Product Description

Shielded Magnetic Dual Ports RJ-45 Connector 1840538-3 6610128-1 1840538-4 1840538-2

RJ45 Banner

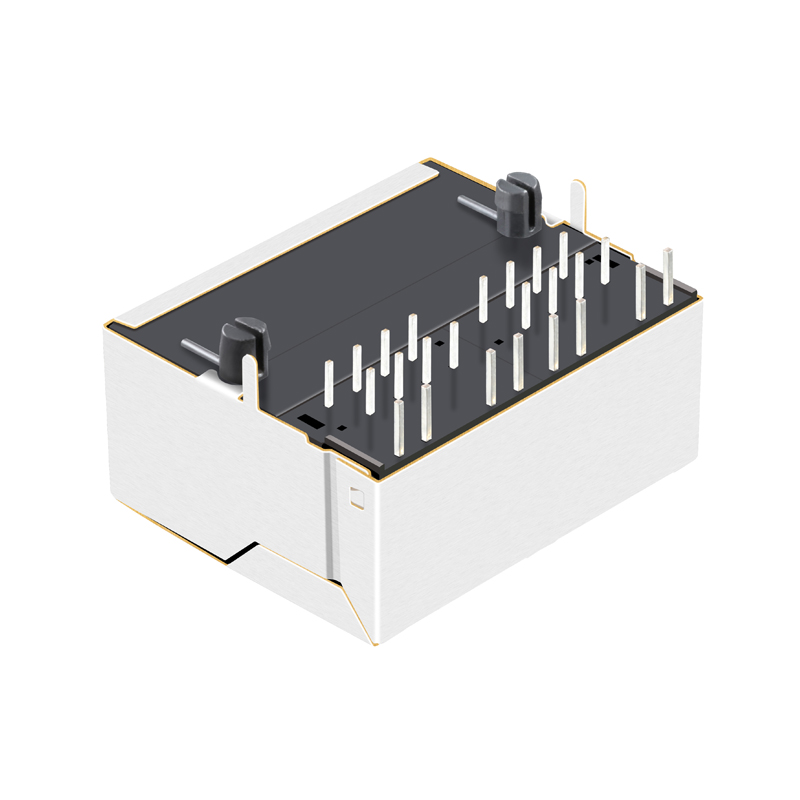

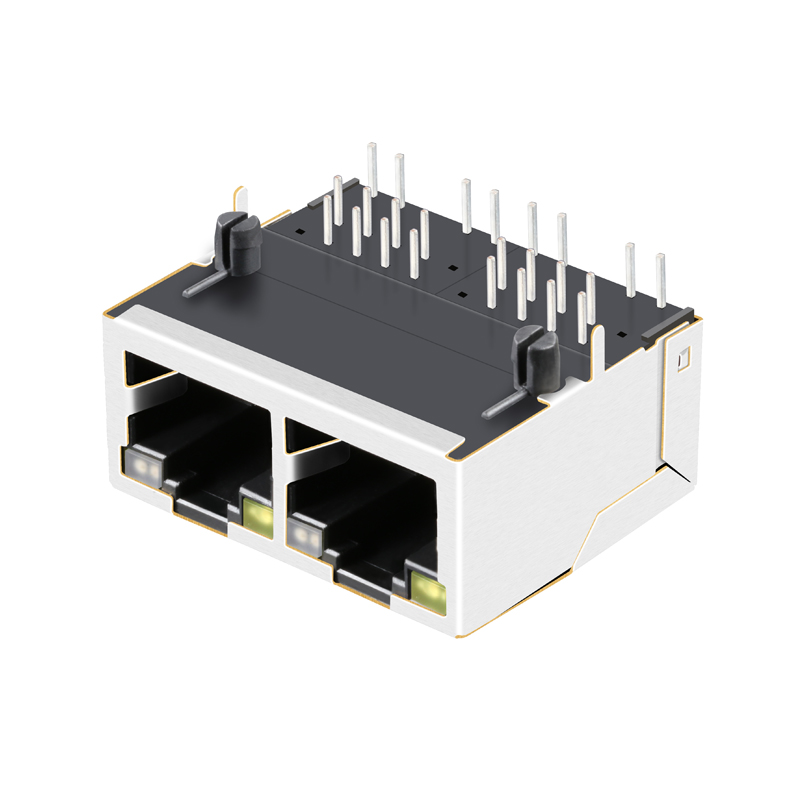

RJ-45 Connector View 1

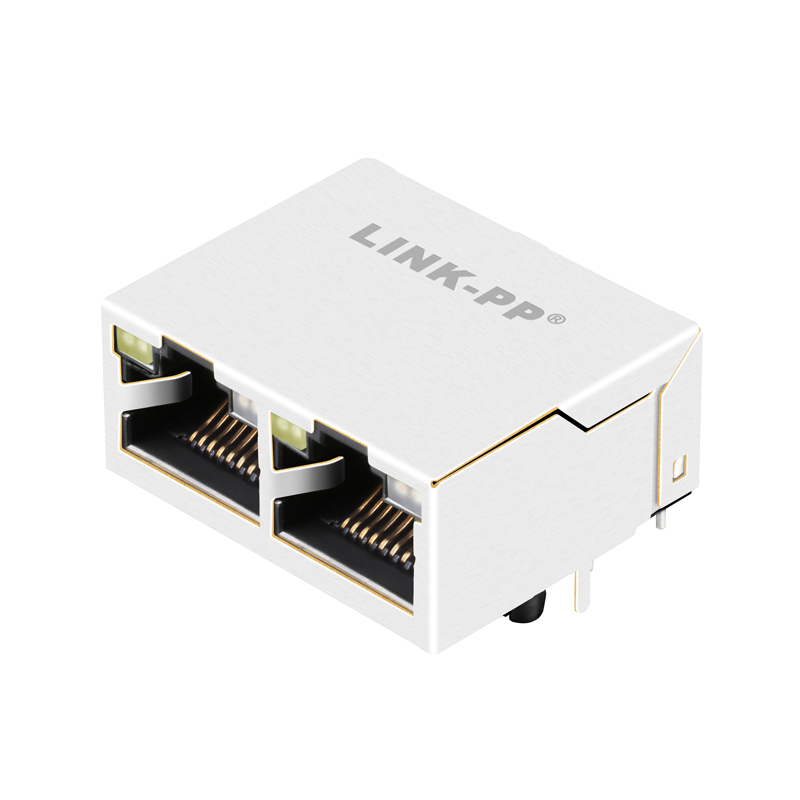

RJ-45 Connector View 2
RJ45 Product Banner
Part Number1840538-3 6610128-1 1840538-4 1840538-2
Application-LANETHERNET (Non-PoE)
AutoMDXYES
Bst CircuitYES
Configuration RXT,C
Configuration TXT,C
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Cores Per Port6
DiodesNO DIODES
LED OptionGREEN/GREEN
LatchUP
Number of Ports1x2
PCBFR4
PCB Mount AngleSIDE ENTRY
PCB Retaining PostT POST
Pin TypeTHT SOLDER
RoHS CompliantYES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
SearchYES
Shield EMI TabsWITH
ShieldingShielded
Speed10/100 Base-T
Temperature0 ~ 70℃
Turns Ratio RX1CT:1
Turns Ratio TX1CT:1
Detailed Dimensions

Preferred Supplier for Industry Leaders

Components trusted by global technology manufacturers for high-reliability network interface applications.

Schematic Diagram
Production Detail 1
Production Detail 2

Why Choose Our Solutions

World’s Leader Supplier of Integrated RJ45 Connectors and Discrete Magnetic Transformers

Professional Certification
  • ISO 9001:2008 Certified
  • UL Certification
  • Reach Certification
  • RoHS Compliance
  • Active Environmental Policy
100% Quality Guarantee
  • Manufactured Under Strict Controls
  • 100% Tested (Full unit testing)
  • Extensive Experience in OEM manufacturing
  • Successful implementations in diverse industries
  • Quality Guarantee: 6 Years
Competitive Service
  • Highly Competitive Pricing
  • Fast Delivery Time: 2-3 Weeks
  • Free Samples Available
  • Custom Design Capabilities
  • Cost-efficient Global Shipping
Separator
Product Layout
Technical Drawing

Frequently Asked Questions

1. What is the network speed supported by these RJ-45 connectors? These connectors support 10/100 Base-T Ethernet speeds, making them ideal for standard networking applications.
2. Are these connectors suitable for PoE (Power over Ethernet) applications? No, these specific models are designed for Non-PoE Ethernet applications as per the technical specifications.
3. What are the environmental compliance standards for these parts? They are RoHS compliant (specifically RoHS-5 with lead-in-solder exemption) and meet Reach certification standards.
4. What is the operating temperature range for the 1840538 series? The connectors are rated for stable operation within a temperature range of 0℃ to 70℃.
5. What mounting type and orientation do these connectors use? They feature a Side Entry (Right Angle) PCB mount angle with THT (Through-Hole Technology) solder pins for secure attachment.
6. Do these connectors include EMI protection? Yes, they are fully shielded and include EMI tabs to ensure signal integrity and reduce electromagnetic interference.
