JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
1 / 5
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack

JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack

Send Inquiry

Product Description

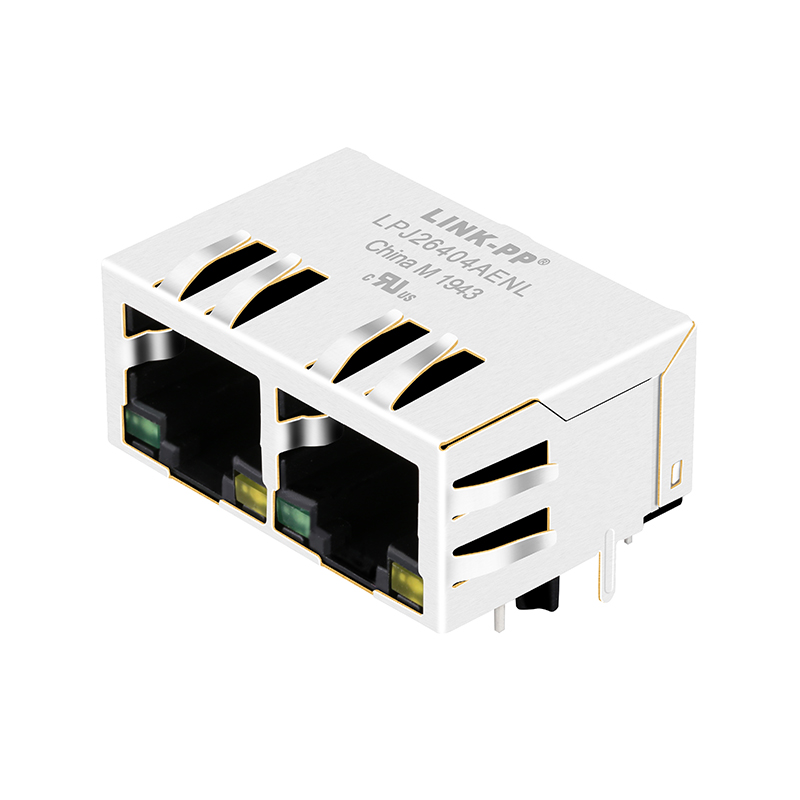

Product View 1

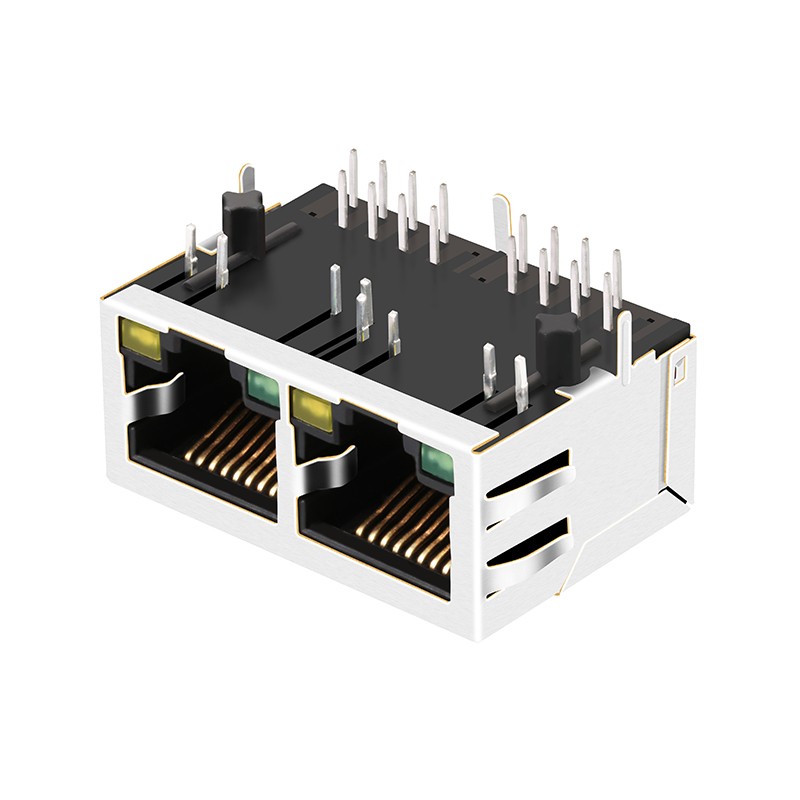

Product View 2

Specification

item value
LINK-PP Part Number LPJ26404AENL
Pulse Part Number JXD0-2005NL / JXR8-1001NL
Part Status Active
Connector Type RJ45
Applications-Lan Ethernet(Non_PoE)
Speed 10/100 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Green/Yellow Led
Number of Cores per Jack 4
Shielding Shielded, Emi Finger
Number of Ports 1x2 Port
Features Board Guide
Tab Direction Down
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature -40°C ~ 85°C
Detail 1
Detail 2
Detail 3
Process 1
Process 2
Structure
