Home > Multi Port RJ45 Connector > JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack

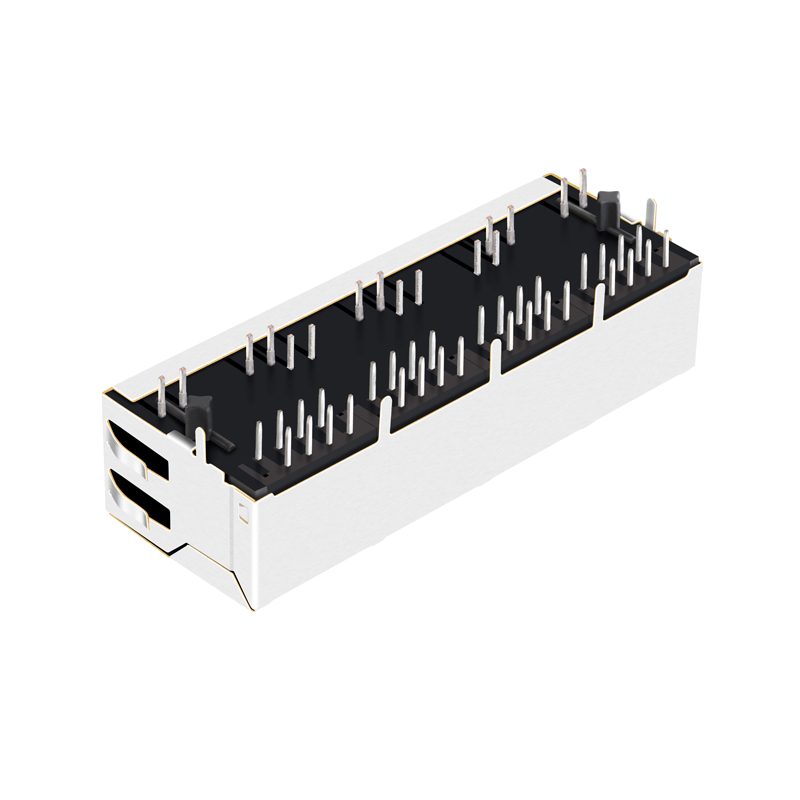

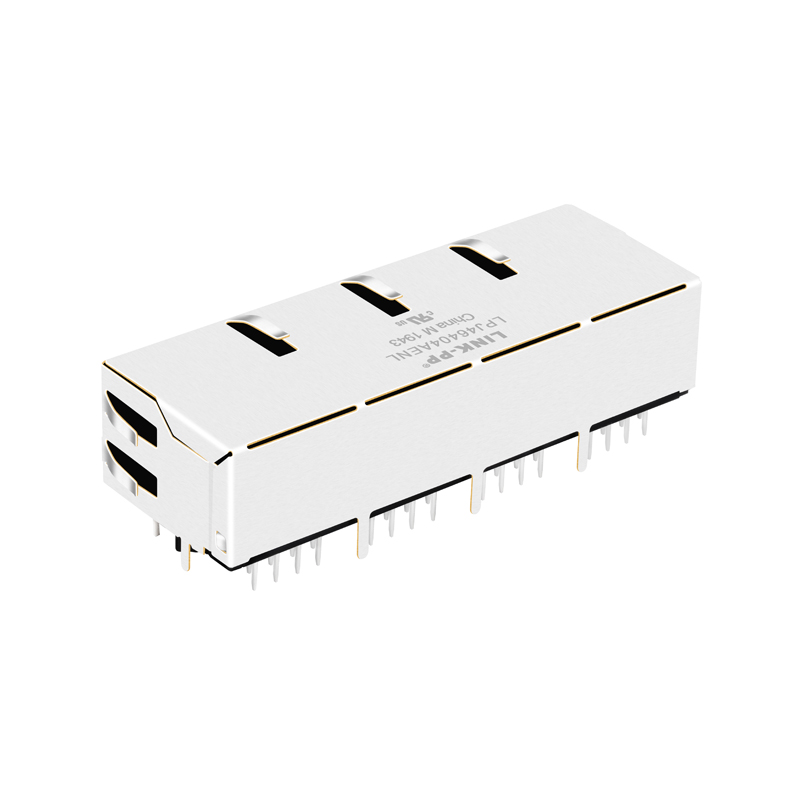

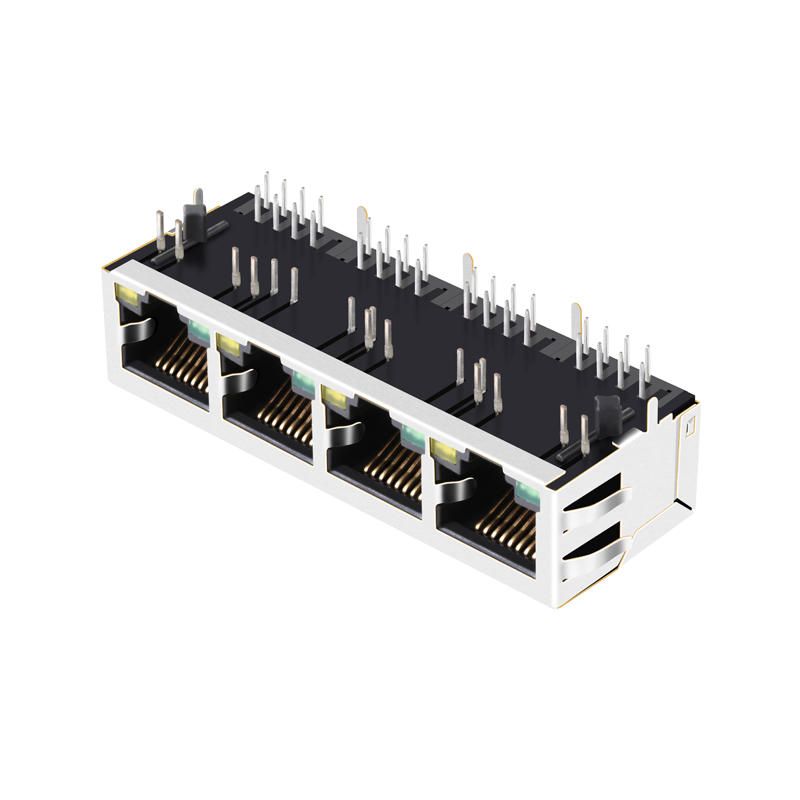

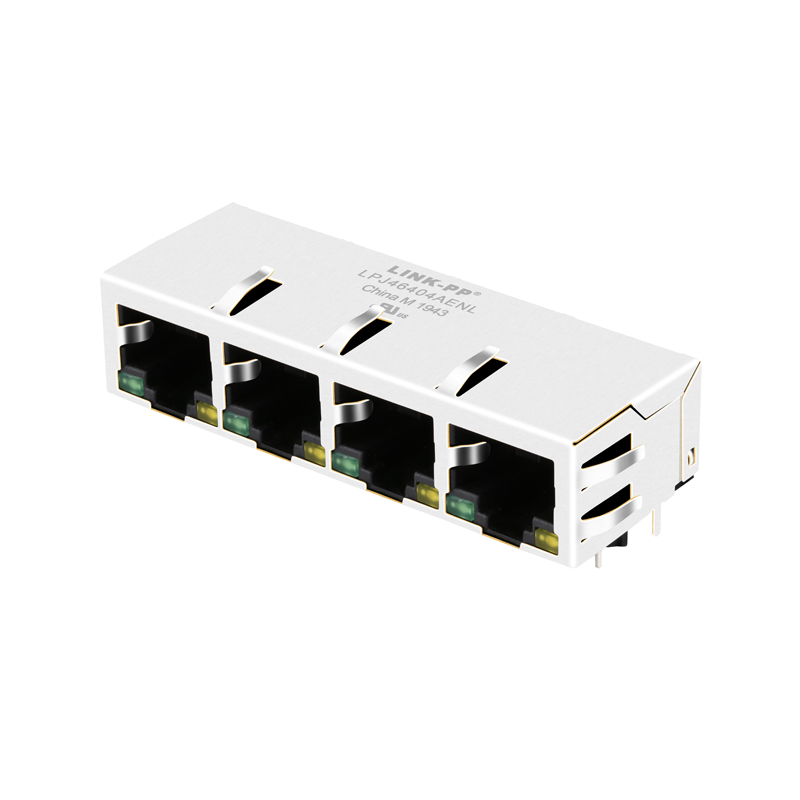

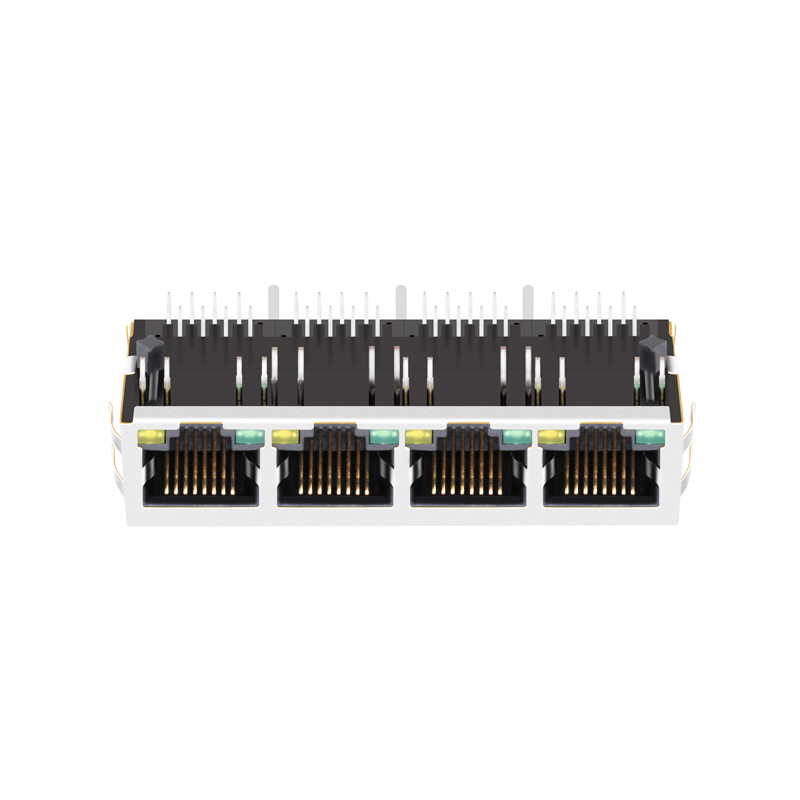

JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
1 / 5
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack

JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack

Send Inquiry

Product Description

Product View 1
Product View 2
📋 Specification
ItemValue
Part NumberLPJ46404AENL
Cross ReferenceJXD0-4005NL / JX80-0033NL
Part StatusActive
Connector TypeRJ45
Applications-LanEthernet(Non_PoE)
Speed10/100 Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorGreen/Yellow Led
Number of Cores per Jack4
ShieldingShielded, Emi Finger
Number of Ports1x4 Port
FeaturesBoard Guide
Tab DirectionDown
Contact FinishGold
Configuration RX/TXT,C
Turns Ratio RX/TX1CT:1CT
Operating Temperature-40°C ~ 85°C
Technical Drawing 1
Technical Drawing 2
Dimension Detail
Internal Schematic
Application Note
PCB Layout

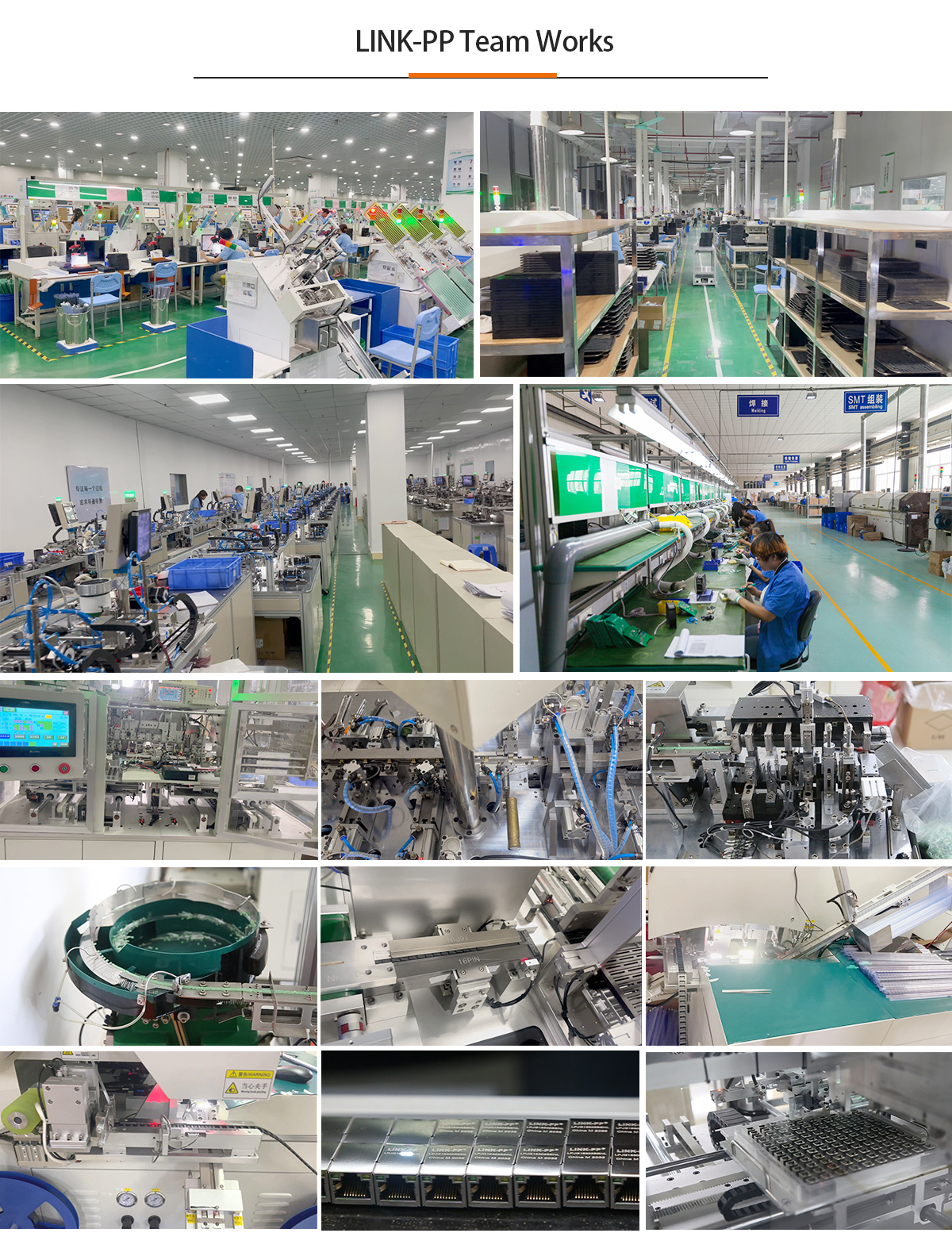

🏭 Professional Manufacturer

We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. Our facility owns advanced manufacturing facilities and test equipments imported from abroad. With an abundant productive capacity of 3000K per month, we provide professional complete solutions for magnetic components and strong technical support. Our products are widely used in networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem.

Main Products:
  • 10/100/1000M/2.5G/5G/10G LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M/2.5G/5G/10G magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Packaging Detail
Quality Control
Certification Showcase
❓ Frequently Asked Questions
Q1: Are you a manufacturer or trade company? A: We are a manufacturer specialized in RJ45 connectors and LAN Transformers for more than 23 years.
Q2: What is the operating temperature range for this RJ45 connector? A: This specific model is designed to operate reliably within a temperature range of -40°C to 85°C.
Q3: Does this connector support PoE (Power over Ethernet)? A: No, this model is designed for Ethernet (Non-PoE) applications.
Q4: Can I get some samples for testing? A: Yes, 3-5 pcs of free samples are available for your testing purposes. Small batches are also acceptable.
Q5: Is OEM service available for branding? A: Yes, we have extensive experience in OEM services. We can laser print your brand directly on the products based on your requirements.
Q6: What is the typical lead time for orders? A: Usually, we can ship orders within 30 days thanks to our professional production team and high-capacity facilities.
