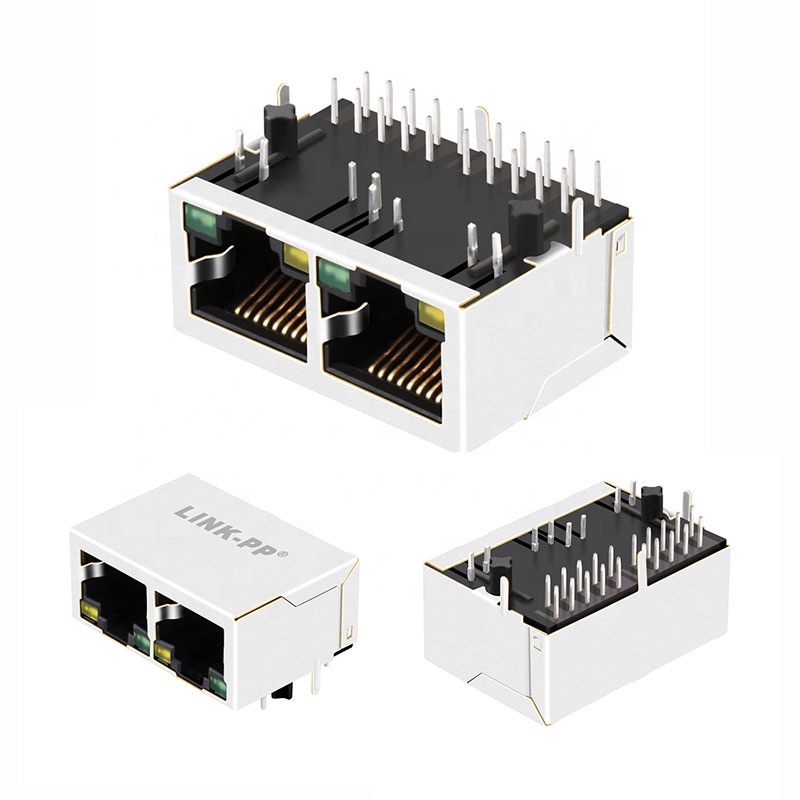

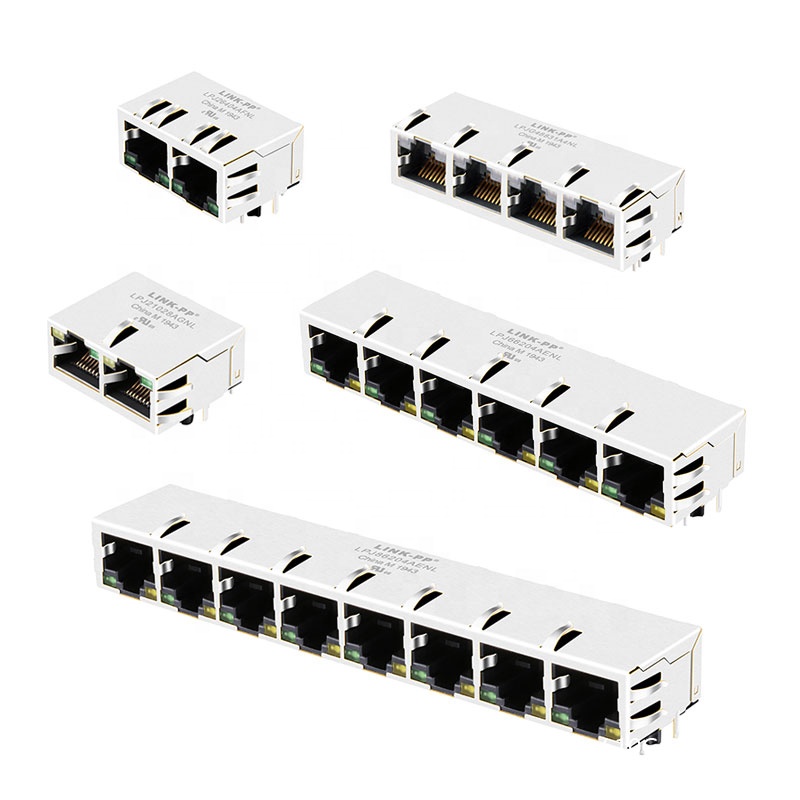

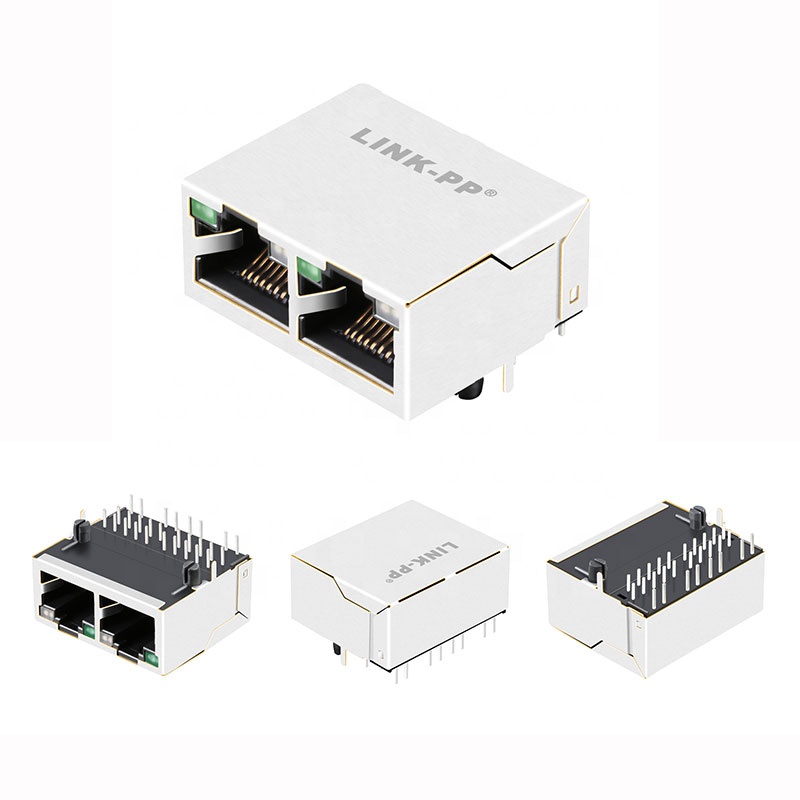

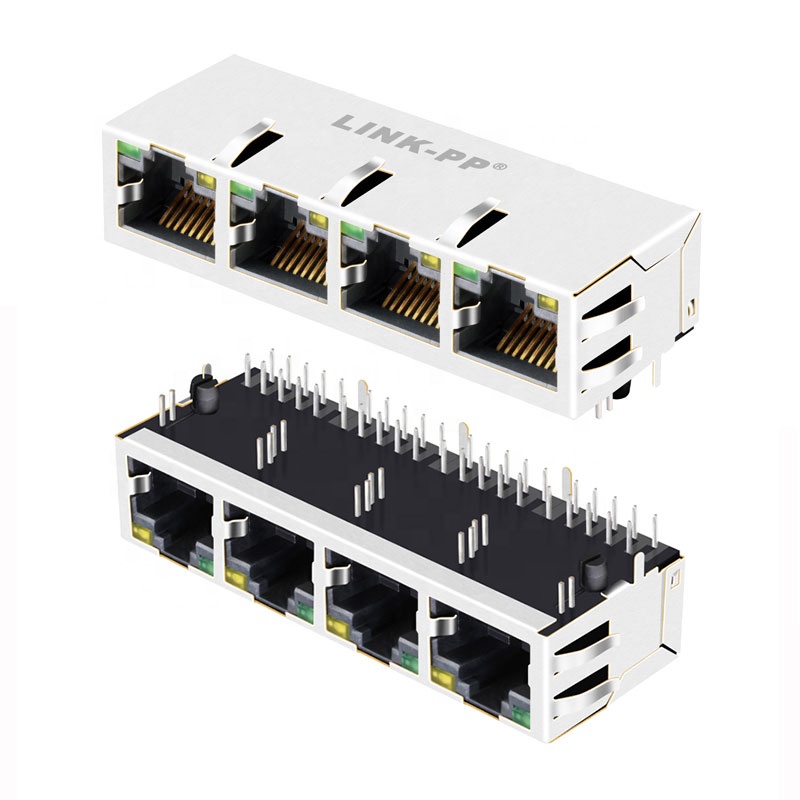

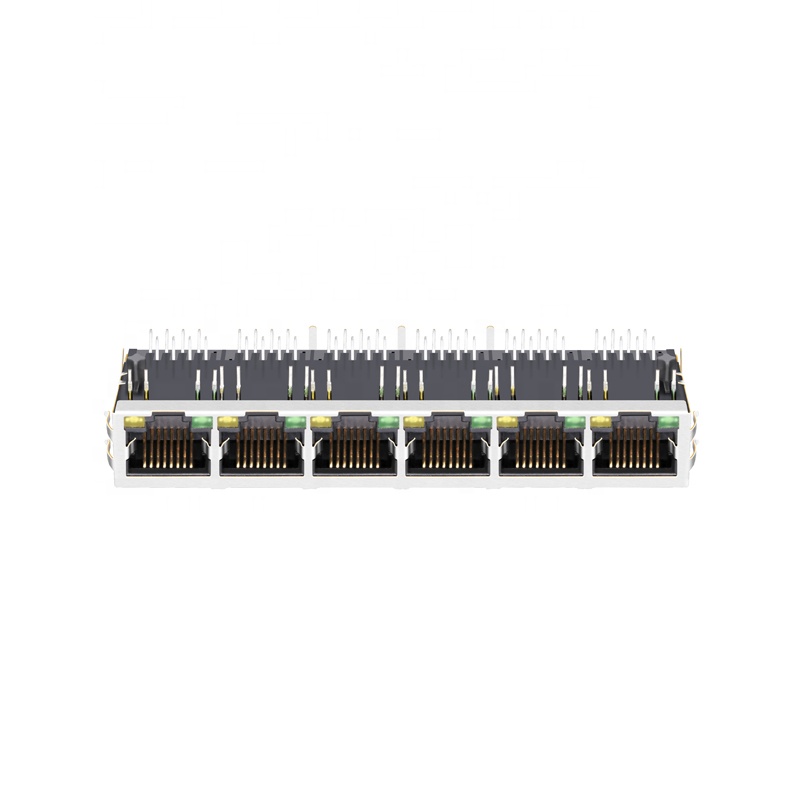

1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors
1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors
1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors
1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors
1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors
1 / 5
1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors
1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors
1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors
1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors
1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors

1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors

Send Inquiry

Product Description

!

Product Description

RJ45 Connector

Characteristics

RJ45 Connector with integrated transformer / common mode choke
Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s
Available in SMT, THT and THT with USB
Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt
HPLE products: Improved Common Mode Rejection due to additional NiZn cores
⚙

Specification

Item Value
Model NumberIntegrated Connector Modules
Part StatusActive
Connector TypeRJ45
Applications-LanEthernet(PoE/Non_PoE)
Speed10/100/1000/2.5G/5G/10G Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorYellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack4/6/8/12
ShieldingShielded, Emi Finger
Number of Ports1x2 1x4 1x6 1x8 Port
FeaturesBoard Guide
Tab DirectionDown/Up
Contact FinishGold
Configuration RX/TXT,C
Turns Ratio RX/TX1CT:1CT
Operating Temperature0°C ~ 70°C / -40°C ~ +85°C
📦

Packing & Delivery

Package Details: Tray

Carton Size: 37*30*30cm

G.W./Carton: 9kg

Qty/Carton: 600pcs

SPQ: 30pcs | N.W/pcs: 0.015kg

Packaging
📷

Facility & Quality Control

Showcase 1 Showcase 2 Showcase 3 Showcase 4 Showcase 5 Showcase 6 Showcase 7
?

Frequently Asked Questions

1. How is the product quality guaranteed? We strictly follow a quality control process that includes providing a pre-production sample before mass production and conducting a final inspection before every shipment.
2. What types of products can I purchase from you? Our main product range includes RJ45 Magnetic connectors, Lan transformers, RJ11 Connectors, standard RJ45 Connectors, and SFP modules.
3. What high-speed standards do your connectors support? Our connectors are designed to support a wide range of speeds, including 10/100/1000 Base-T, as well as 2.5G, 5G, and up to 10G Base-T with AutoMDIX capabilities.
4. Are your products compliant with PoE standards? Yes, our RJ45 connectors support Power over Ethernet (PoE) up to 50 Watts and are compliant with IEEE 802.3u, 802.3ab, 802.3af, 802.3at, and the upcoming 802.3bt standards.
5. What mounting and orientation options are available? We offer Through Hole mounting with a 90° Right Angle orientation. The connectors are available with various tab directions (Up/Down) and include features like board guides.
6. What certifications do your products hold? Our manufacturing processes and products are certified by SGS, ISO9001:2008, UL, REACH, and CE, ensuring international quality and safety compliance.
