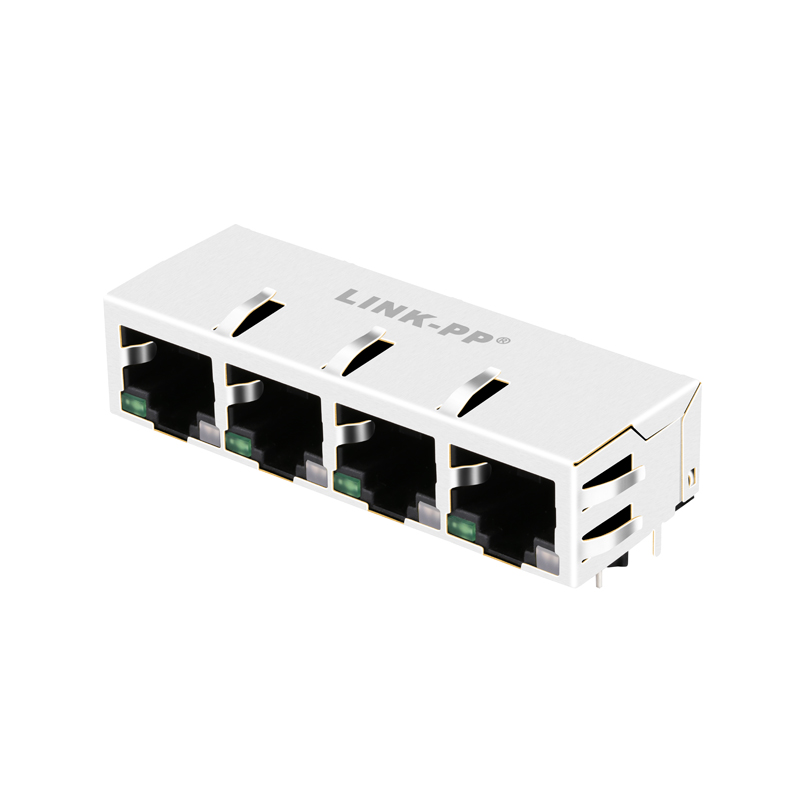

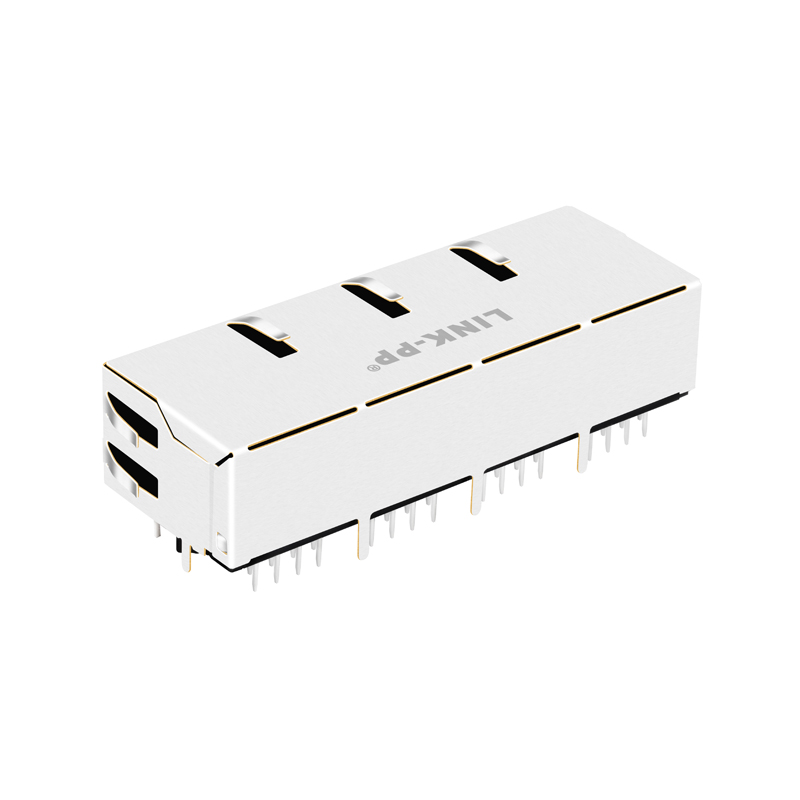

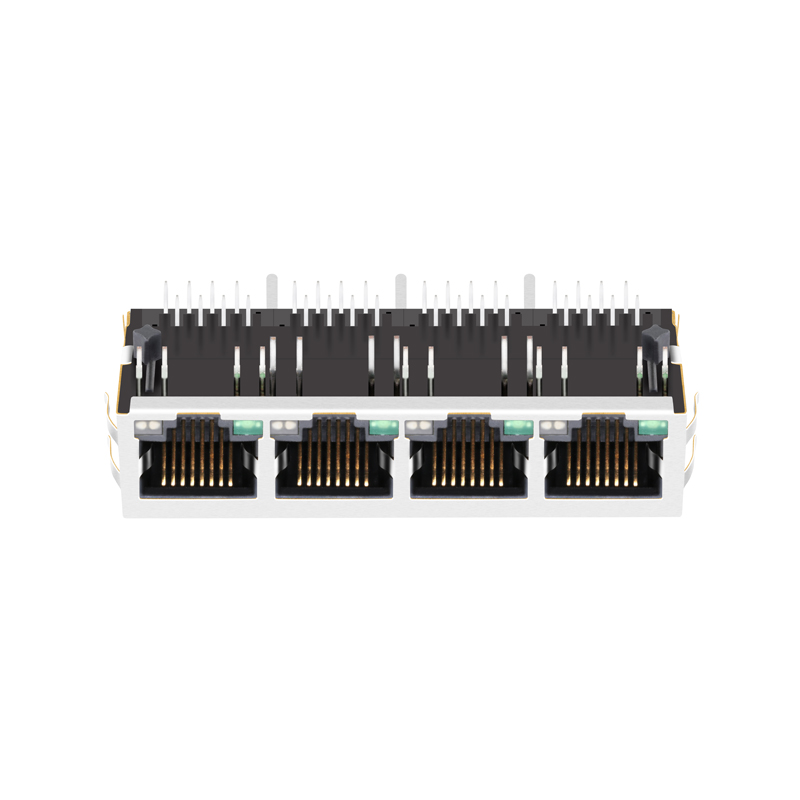

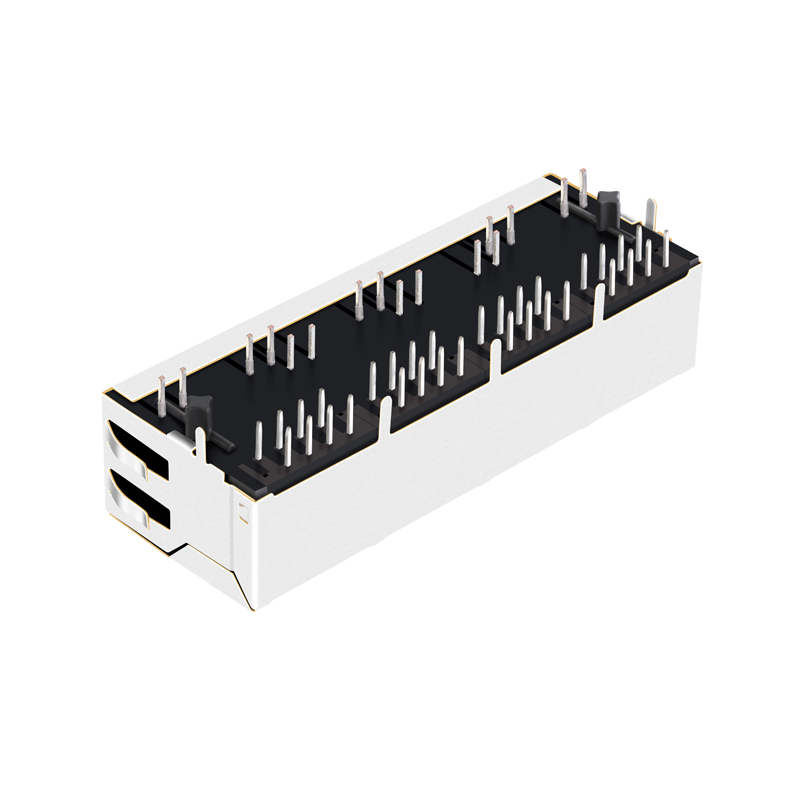

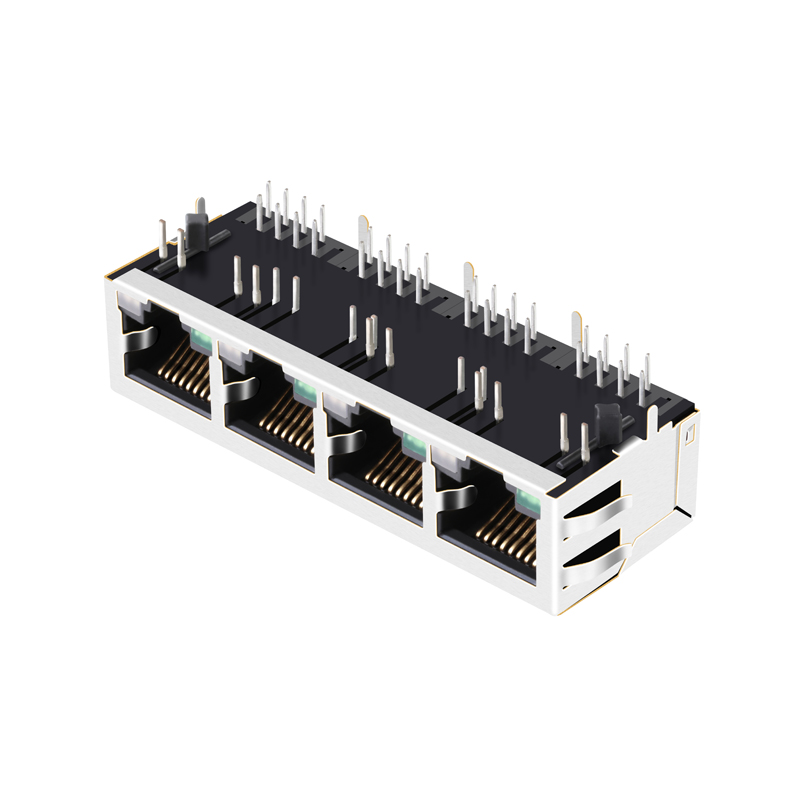

Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7
| Part Number |
5-6610068-7 |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u"/50u" |
| Cores Per Port |
4 |
| Diodes |
NO DIODES |
| LED Option |
GREEN/GREEN&ORANGE |
| Latch |
UP |
| Number of Ports |
1X4 |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
WITH OR WITHOUT |
| Speed |
1000 BASE-T |
| Temperature |
0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
- ISO 9001:2008
- UL Certification
- Reach Certification
- RoHS Compliance
- Active Environmental Policy
- Manufactured Under Strict Controls
- 100% Tested (Not Just Batch Tested)
- Quality Guarantee: 6 Years
- Delivery Time: 2-3 Weeks After Orders
- Free Samples Are Available
- Provide New Design For Customer Requirements
- 90% Off Shipping Cost
- Achieve the highest level of customer satisfaction through continuous improvements in quality, delivery and service
- Committed to and expects quality performance from every employee
- The company standard is defect-free products and services
Frequently Asked Questions (FAQ)
What data speed rate does the 5-6610068-7 connector support?
The 5-6610068-7 connector is designed for Gigabit Ethernet performance, supporting 1000 BASE-T network transmission speeds.
What is the physical configuration of this modular jack?
This is a 1X4 multi-port configuration, meaning it consists of 4 RJ45 female ports arranged in a single row, with the tab latch facing upwards.
Does this RJ45 connector include integrated magnetics?
Yes, it features an integrated BST circuit with a 1CT:1 turns ratio for both RX (Receive) and TX (Transmit) channels, ensuring signal integrity.
What are the operating temperature ranges for this connector?
This connector supports temperature ranges from standard commercial grades (0 to 70°C) to extended industrial ranges (-40 to 85°C).
Is this product RoHS compliant?
Yes, it is compliant with RoHS-5 standards and includes a lead in solder exemption.
What are the available LED light indicator configurations?
This modular jack supports dual LED colors, with options including Green/Green and Orange configurations to display network status.
