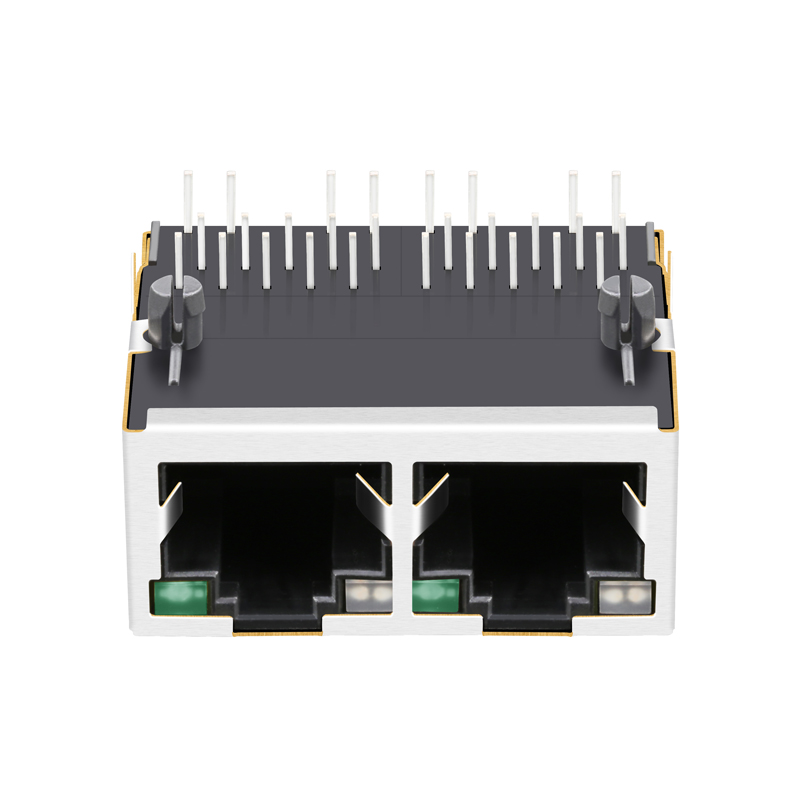

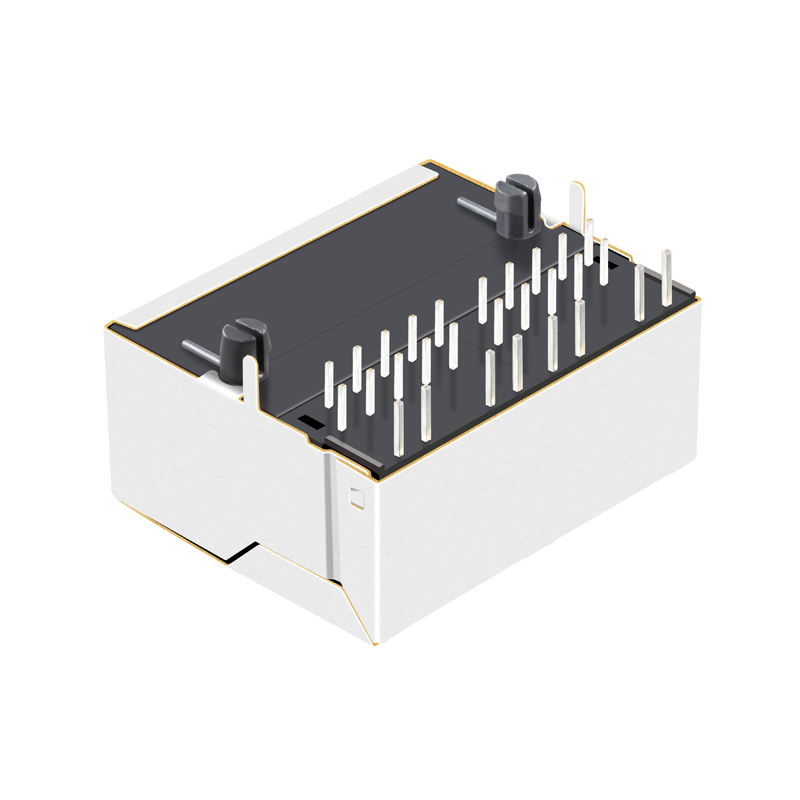

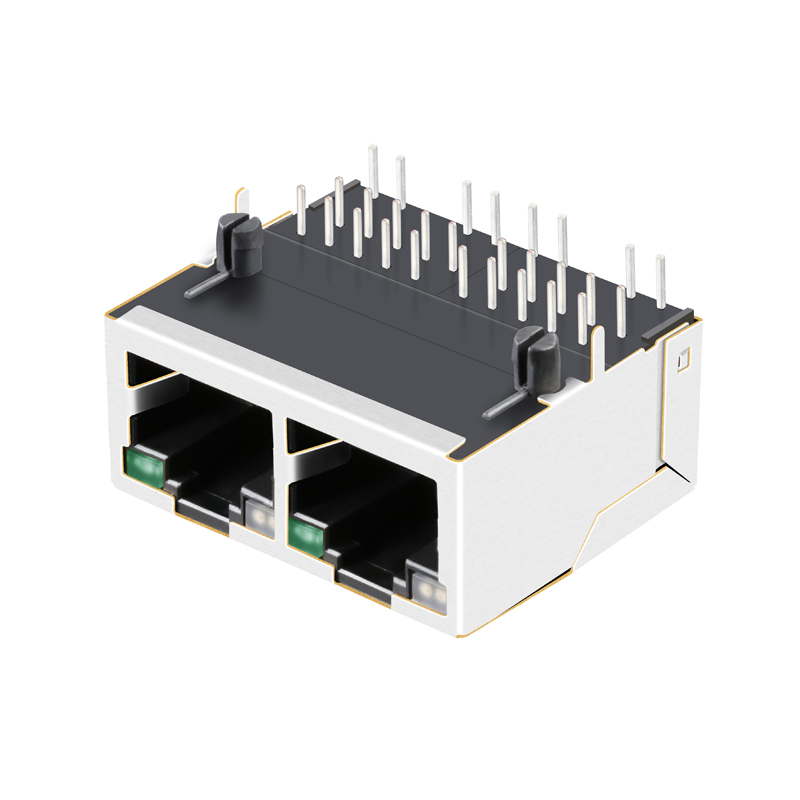

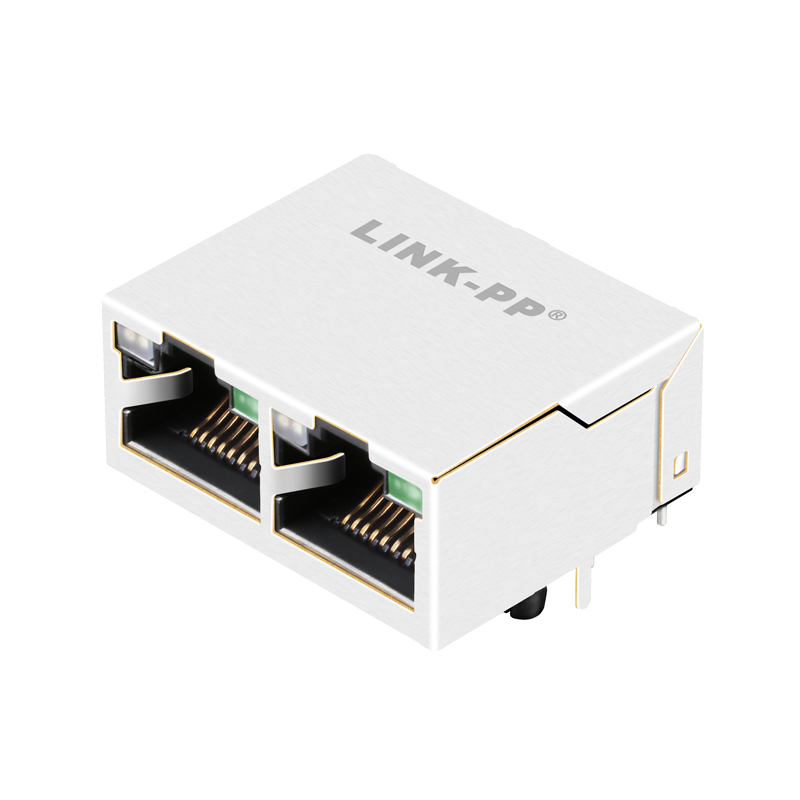

10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
| Part Number |
5-6610197-1 |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u"/50u" |
| Cores Per Port |
4 |
| Diodes |
NO DIODES |
| LED Option |
GREEN/YELLOW |
| Latch |
UP |
| Number of Ports |
1X2 |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
WITH OR WITHOUT |
| Speed |
10/100 BASE-T |
| Temperature |
0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
- ISO 9001:2008
- UL Certification
- Reach Certification
- RoHS Compliance
- Active Environmental Policy
100% Quality Guarantee
- Manufactured Under Strict Controls
- 100% Tested (Not Just Batch Tested)
- OEM Partner of TE (Tyco) For 9 Years
- Preferred Supplier of TI (Texas Instruments)
- Quality Guarantee: 6 Years
Price & Service
- More Competitive Price Than Pulse, Tyco, Halo, Wurth, and Amphenol
- Delivery Time: 2-3 Weeks After Orders
- Free Samples Are Available
- Provide New Design For Customer Requirements
- 90% Off Shipping Cost By DHL, UPS, FEDEX, Or TNT
Corporate Policy
- Achieve the Highest Level of Customer Satisfaction
- Continuous Improvements in Quality, Delivery, and Service
- Committed to Quality Performance From Every Employee
- Standard of Defect-Free Products and Services
Preferred Supplier of TI, Samsung, Cisco, Siemens ...
Frequently Asked Questions
What is the data speed capability of the 5-6610197-1 connector?
This connector supports 10/100 BASE-T Ethernet speeds, making it ideal for standard fast Ethernet interface requirements.
What is the operating temperature range for this RJ45 connector?
It features a versatile temperature design operating from 0 to 70°C and extended ranges down to -40 to 85°C.
What LED configurations are available with the 5-6610197-1?
It comes with a Green/Yellow LED option to provide clear visual status indications.
Is this RJ45 female connector RoHS compliant?
Yes, it is RoHS-5 compliant with lead-in solder exemptions.
What is the contact plating option available on the mating area?
The contact mating area features Gold plating options available in thicknesses of 6u", 15u", 30u", or 50u" based on your performance needs.
What is the mechanical layout configuration for this connector?
It features a side entry (right angle) PCB mount angle with a 1X2 (double port) configuration and a Tab-Up latch style.
