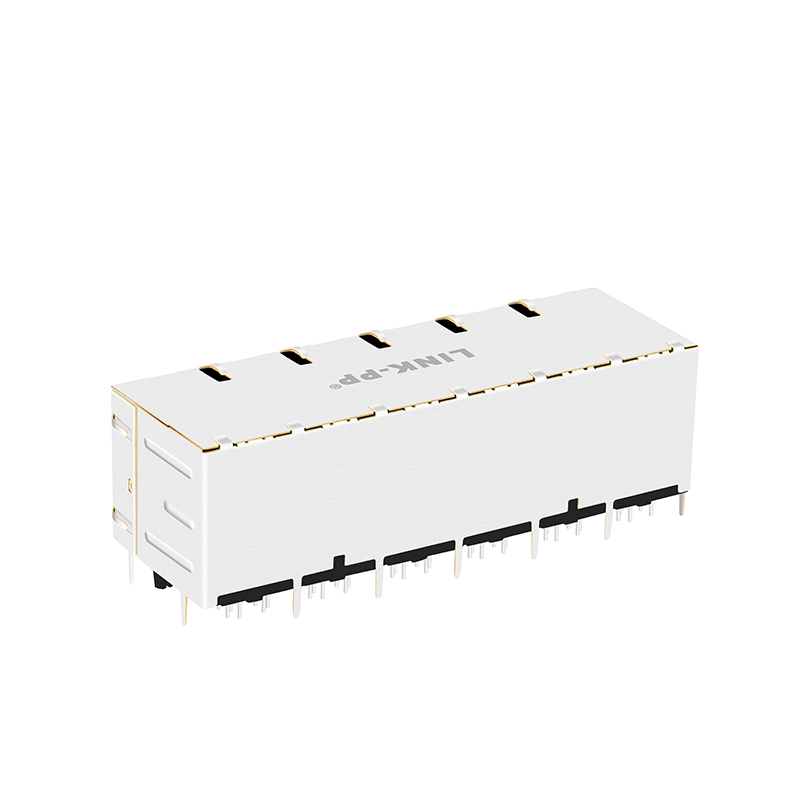

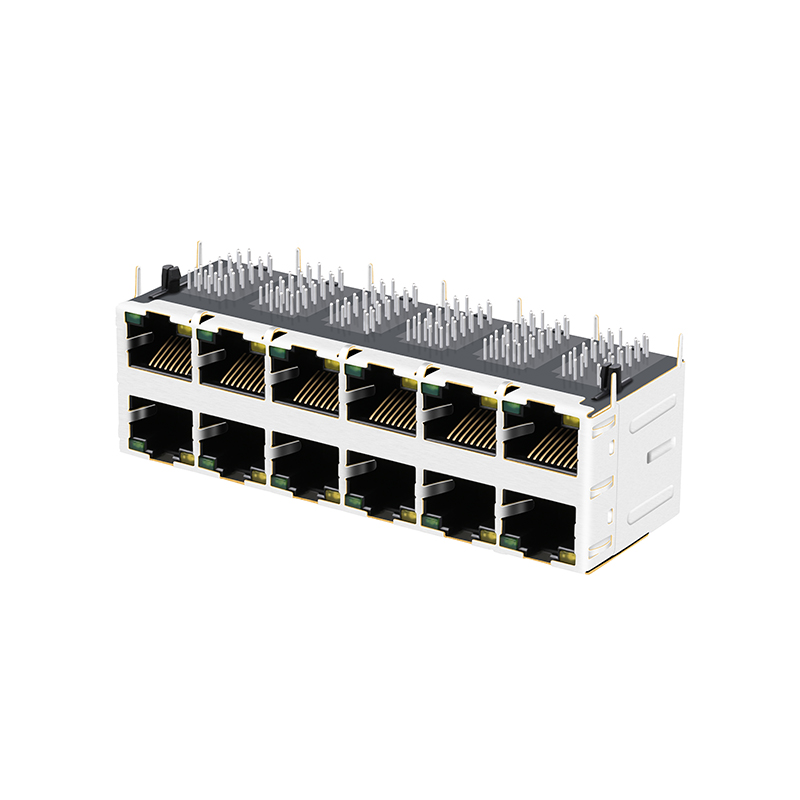

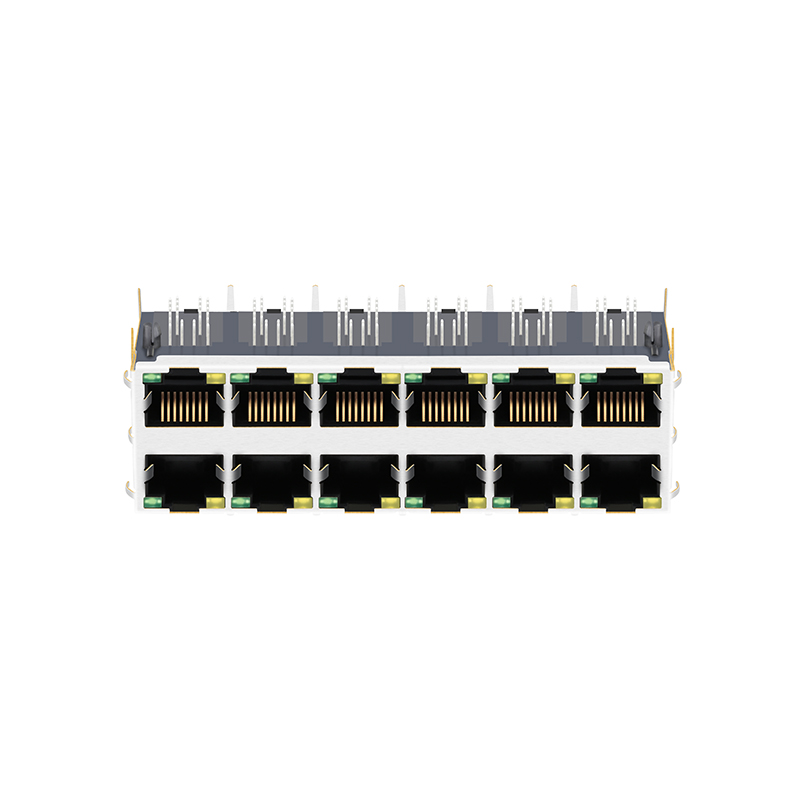

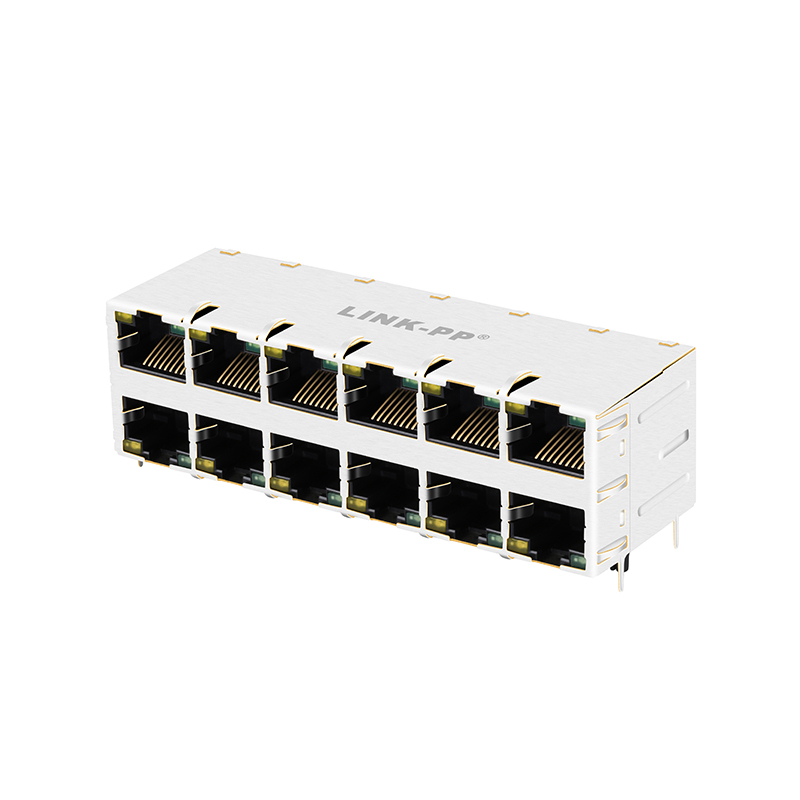

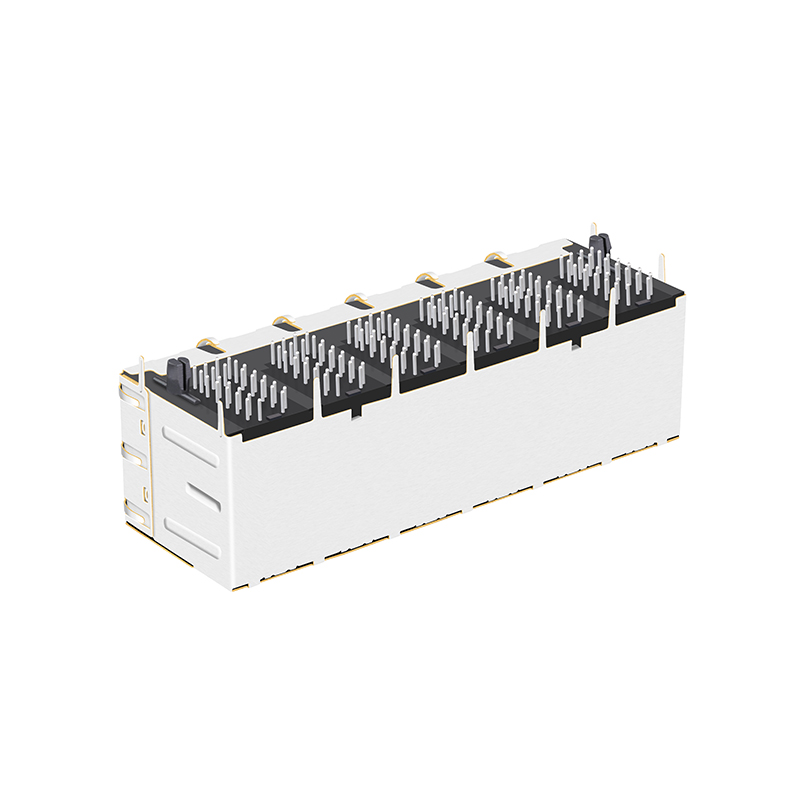

10/100/1000 Base-T RJ45 Stacked Jack 2x6 Port
| Part Number | RJGE-12M6170DJP |
| Application-LAN | ETHERNET(NON POE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores Per Port | 4 |
| Diodes | NO DIODES |
| LED Option | WITH/WITHOUT LEDS |
| Latch | UP/DOWN |
| Number of Ports | 2X6 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH OR WITHOUT |
| Speed | 10/100/1000/10G BASE-T |
| Temperature | 0 TO 70°C / -40 TO 85°C |
| Turns Ratio RX | 1CT:1 |
| Turns Ratio TX | 1CT:1 |
Why Choose Our Solutions
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

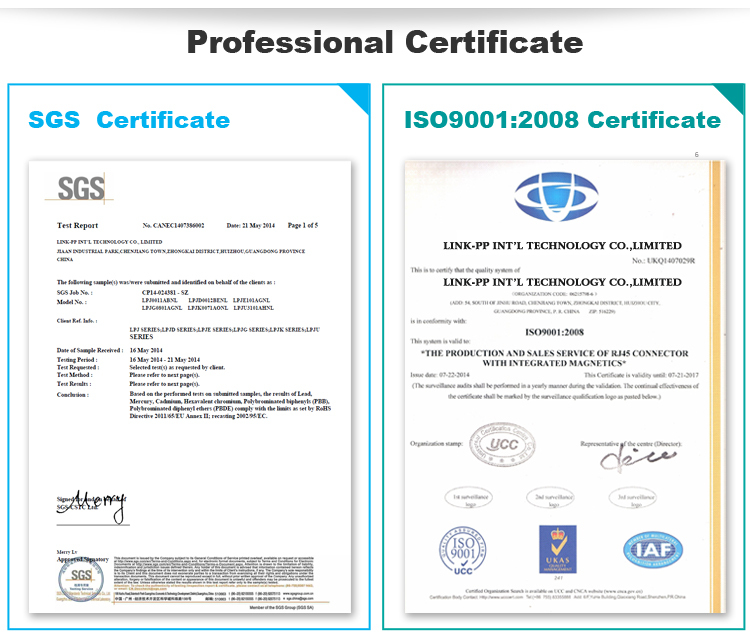

Professional Certification
