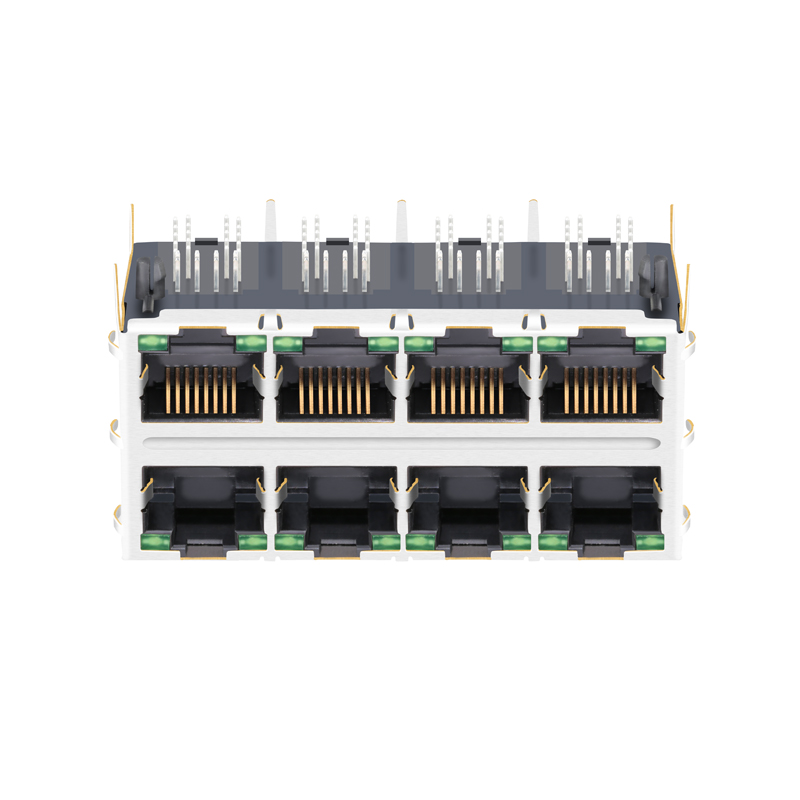

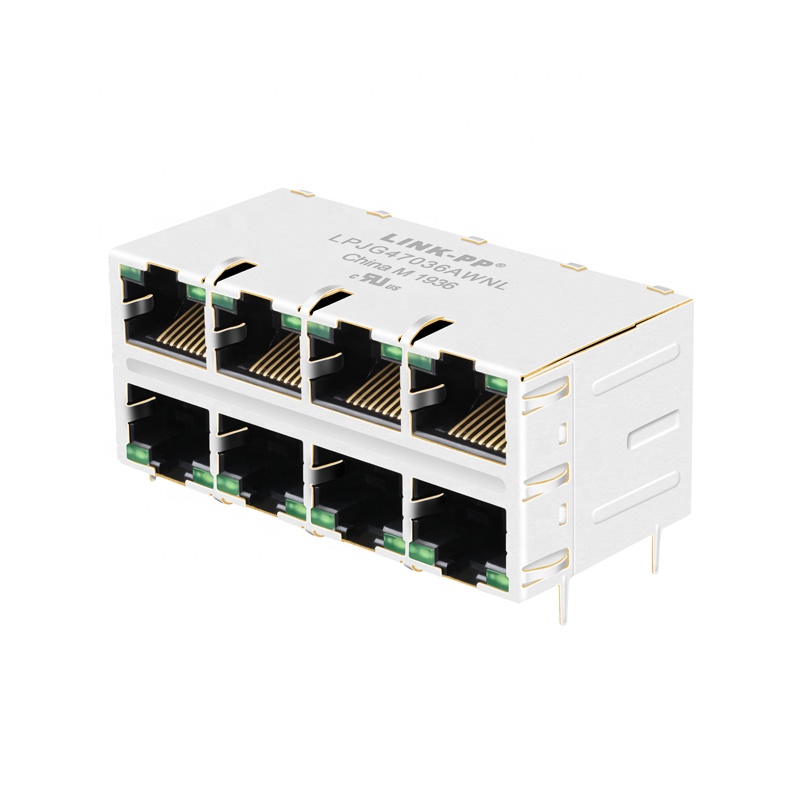

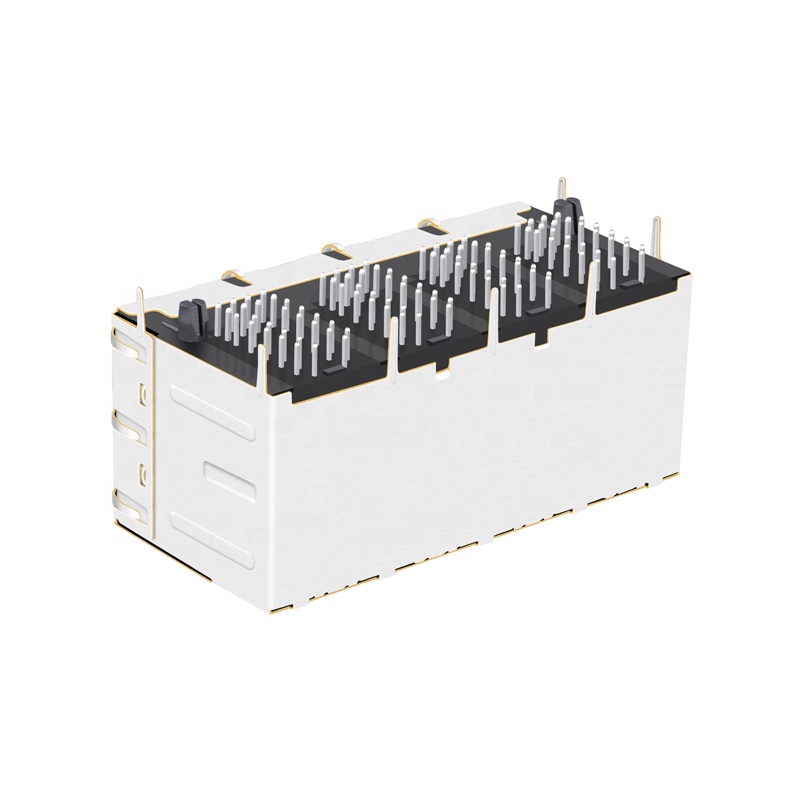

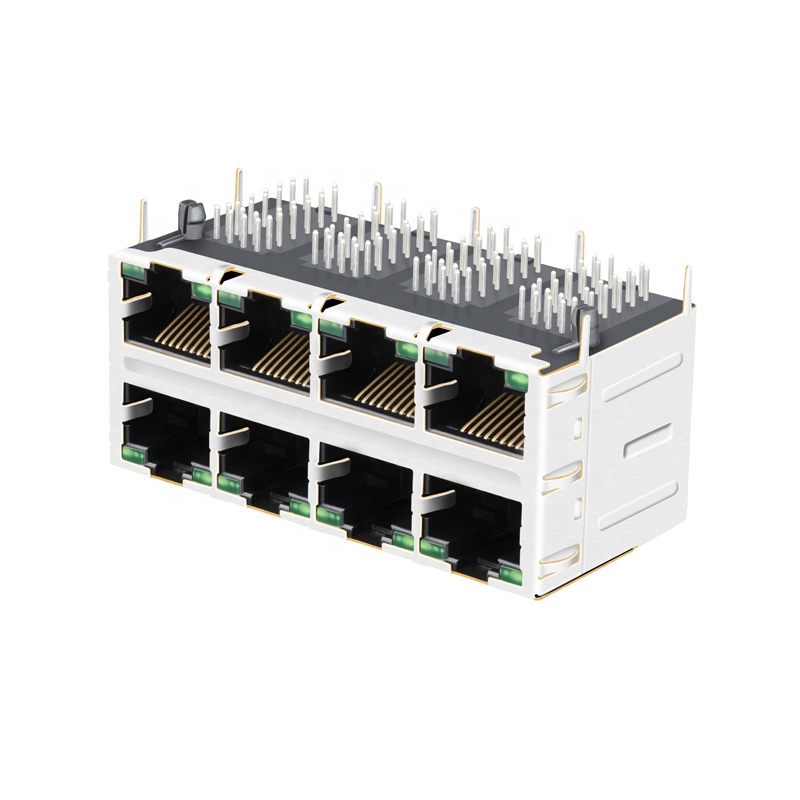

2x4 Port For PoE Cat5e 2.5G Jack RJ45 Female Connector

Part Number	LPJG47036AWNL
Application-LAN	ETHERNET(POE)
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"/50u"
Cores Per Port	8
Diodes	NO DIODES
LED Option	GREEN/GREEN
Latch	UP/DOWN
Number of Ports	2X4
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITH
Shielding	Shielded
Speed	2.5G BASE-T
Temperature	-20~+70℃
Turns Ratio RX	1CT:1
Turns Ratio TX	1CT:1

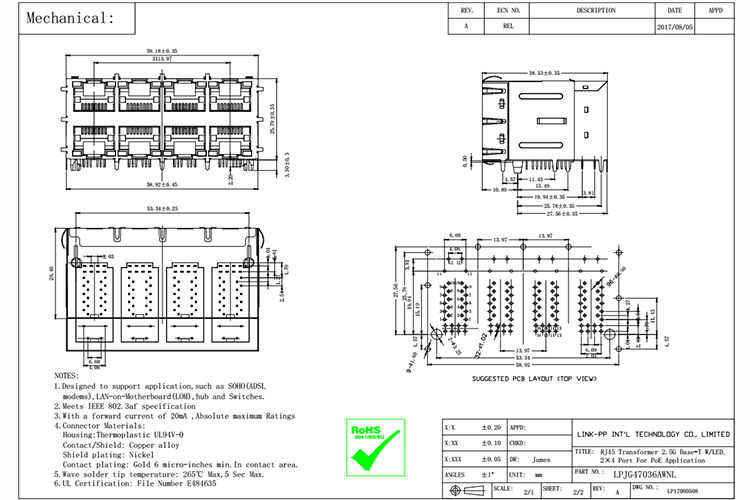

2x4 Port For PoE Cat5e 2.5G Jack RJ45 Female Connector Layout

• Preferred Supplier Of TI Samsung Cisco Siemens …

• Welcome To Visit The TI Website

• You Will Look At Our Logo On BeagleBone Board

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

Professional Certification

ISO 9001:2008
UL Certification
Reach Certification
RoHS Compliance
Active Environmental Policy

100% Guarantee Quality

Manufactured Under Strict Controls.
100% Tested (Not Just Batch Tested)
OEM Of TE (Tyco) For 9 Years
Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
Preferred Supplier Of TI (Texas Instruments)
Quality Guarantee: 6 Years

Competitive Price & Service

More Competitive Price Than Pulse Tyco Halo Wurth And Amphenol
Delivery Time: 2-3 Weeks After Orders
Free Samples Are Available
Provide New Design For Customer Requirements
90% Off Shipping Cost By DHL UPS FEDEX Or TNT

2x4 Port For PoE Cat5e 2.5G Jack RJ45 Female Connector

Frequently Asked Questions

What is the application and speed limit of this RJ45 connector?

This connector is designed for Ethernet (PoE) applications and supports high-speed data transmission up to 2.5G BASE-T, making it ideal for Cat5e network requirements.

What are the environmental standards complied by this product?

The product is RoHS compliant (RoHS-5 with lead in solder exemption) and adheres to global environmental policies including ISO 9001:2008, UL Certification, and Reach Certification.

How is the quality of this 2x4 RJ45 female connector guaranteed?

Every product is manufactured under strict quality controls and undergoes 100% testing (not just batch testing). We also offer a quality guarantee period of 6 years.

Can I get samples before placing a bulk order?

Yes, free samples are available to customers. Additionally, we provide custom design solutions to match specific requirements.

What is the expected delivery time and shipping discount?

The typical delivery time is 2-3 weeks after placing the order. We also pass along shipping cost savings with up to 90% off courier costs via DHL, UPS, FEDEX, or TNT.
