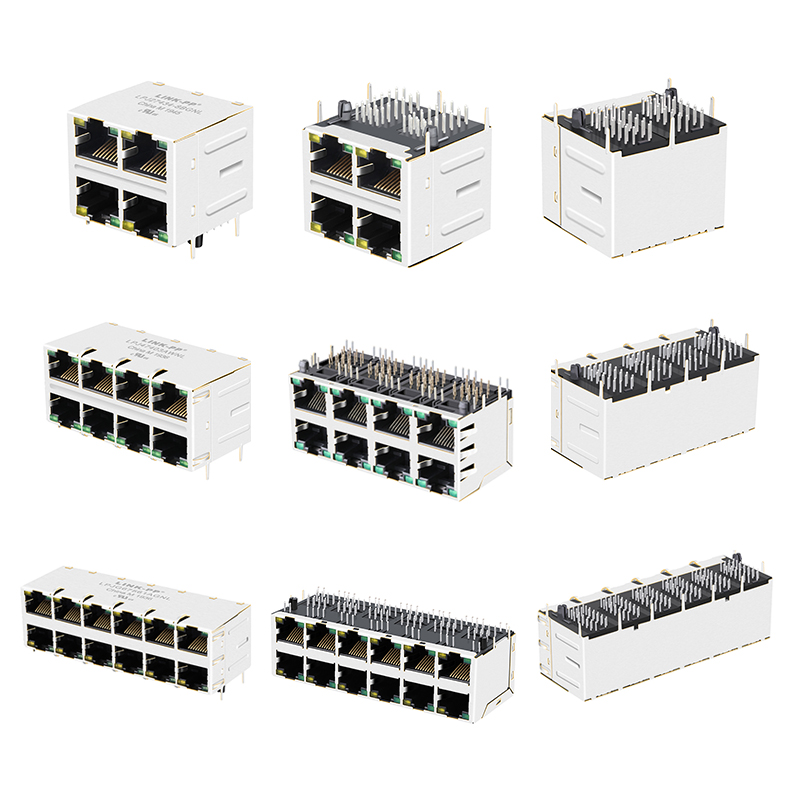

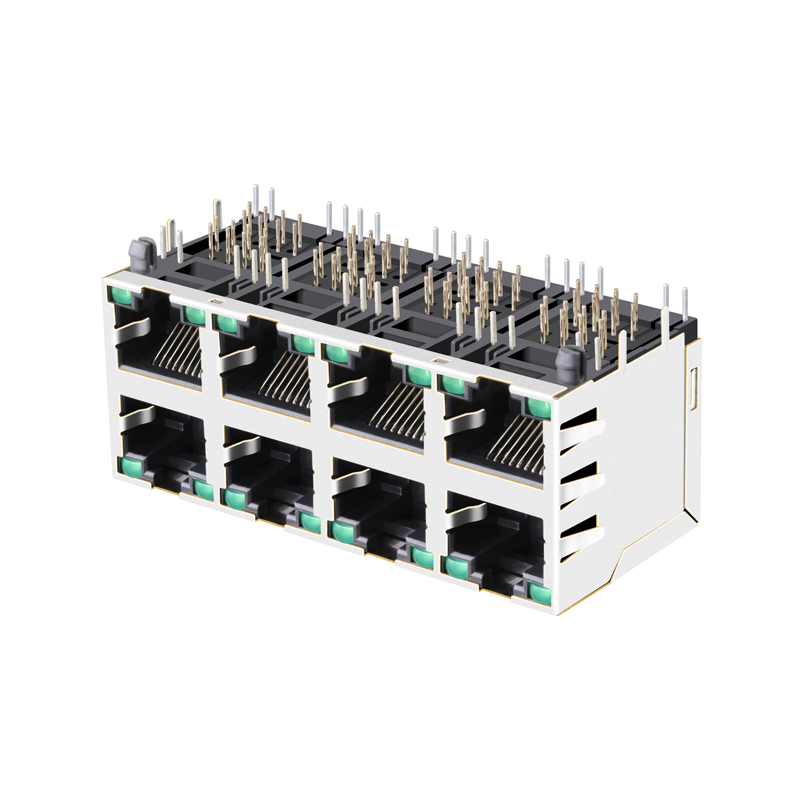

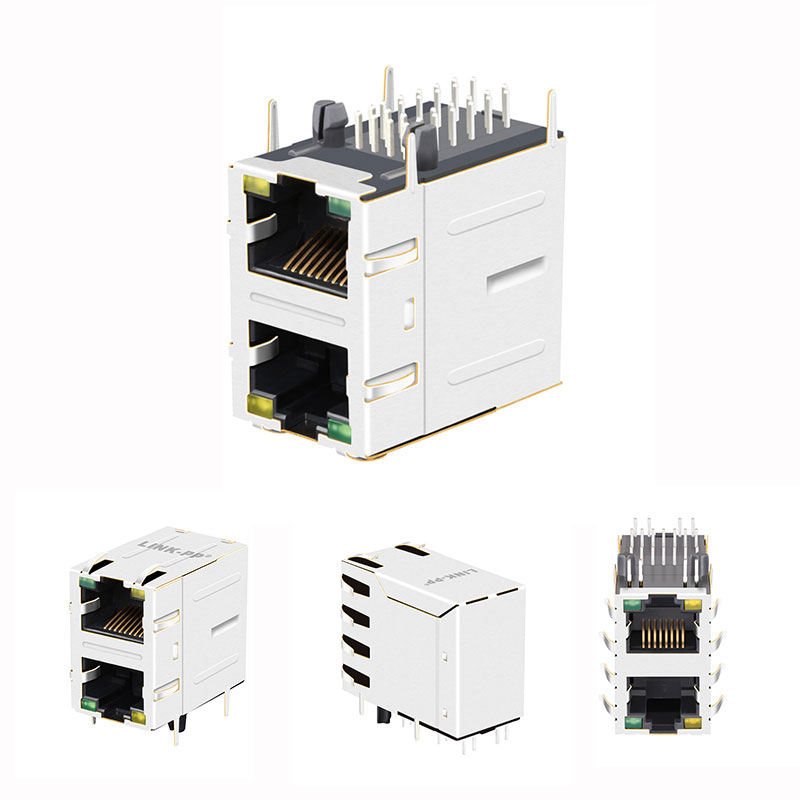

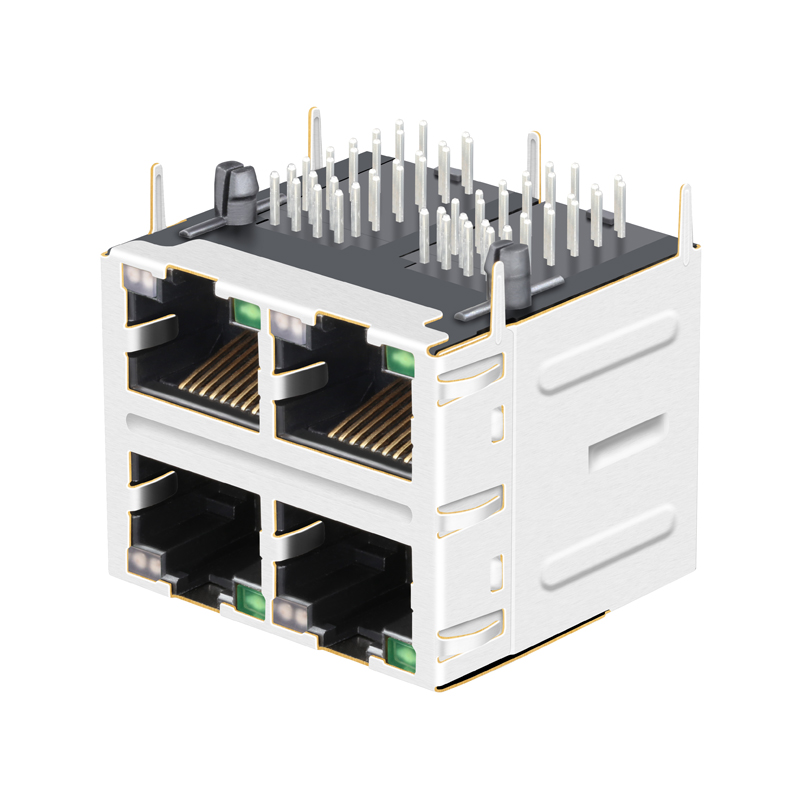

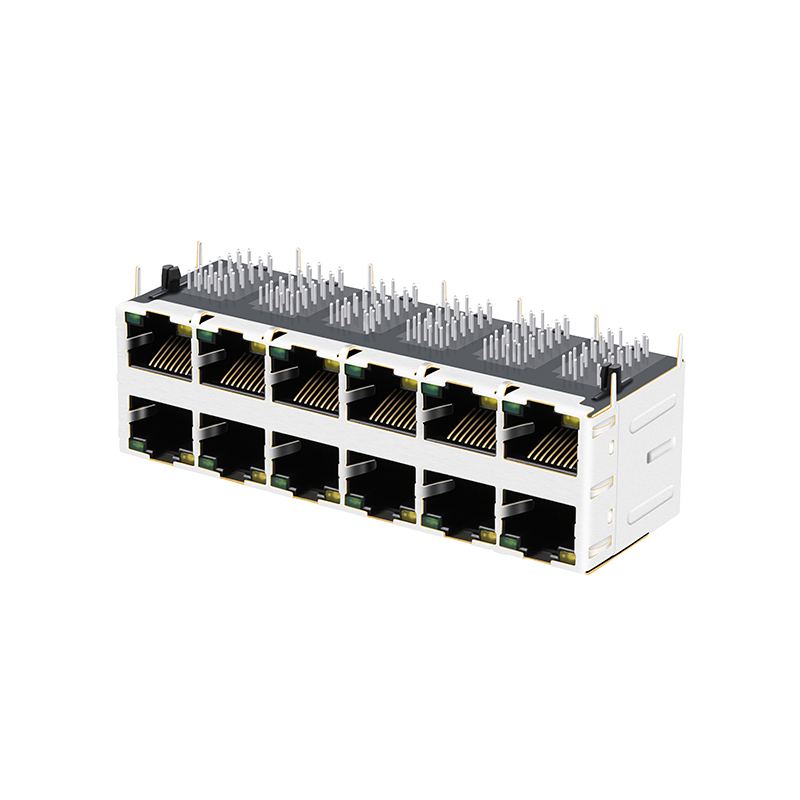

2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
1 / 5
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack

2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack

Send Inquiry

Product Description

Product Description

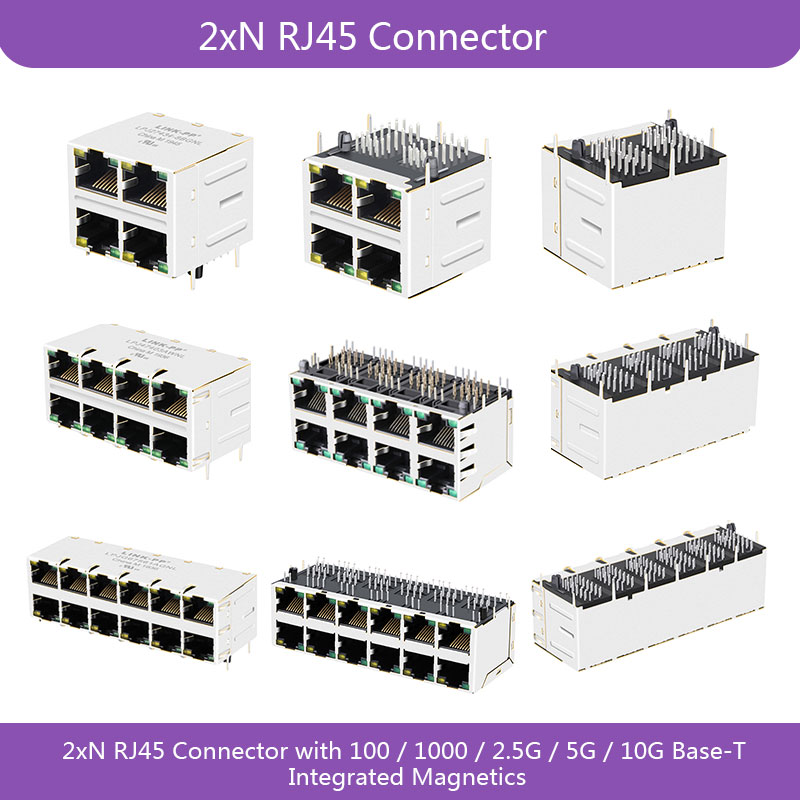

Product Image
Characteristics

RJ45 Connector with integrated transformer / common mode choke. Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s. Available in SMT, THT and THT with USB. Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEE 802.3bt. HPLE products: Improved Common Mode Rejection due to additional NiZn cores.

Specification

Item Value
Model NumberRJ45 Filtered Connectors
Part StatusActive
Connector TypeRJ45
Applications-LanEthernet(PoE/Non_PoE)
Speed10/100/1000/2.5G/5G/10G Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorYellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack4/6/8/12
ShieldingShielded, Emi Finger
Number of Ports2x1 2x2 2x4 2x6 2x8 Port
FeaturesBoard Guide
Tab DirectionDown/Up
Contact FinishGold
Configuration RX/TXT,C
Turns Ratio RX/TX1CT:1CT
Operating Temperature0°C ~ 70°C / -40°C ~ +85°C

Packing & Delivery

Package Details: Tray, Carton size: 32*30*31cm, G.W./carton: 8.5kg, Qty/carton: 1200pcs, SPQ: 50pcs, N.W/pcs: 0.007kg

Packing Image

Production Showcase

Frequently Asked Questions

1. How is the product quality guaranteed?
We ensure quality through a rigorous process including a pre-production sample before mass production and a final inspection conducted before every shipment.
2. What types of products can I purchase from you?
Our main product range includes RJ45 Magnetic connectors, LAN transformers, RJ11 Connectors, RJ45 Connectors, and SFP modules.
3. What makes your manufacturing process reliable?
With over 19 years of specialization in RJ45 connectors and LAN transformers, we maintain a large production capacity and high-standard certifications including SGS, ISO9001:2008, UL, REACH, and CE.
4. What are the available delivery and payment terms?
We accept various delivery terms such as FOB, CFR, CIF, EXW, DDP, and DDU. Payment can be made via T/T, L/C, PayPal, Western Union, and Credit Card in multiple currencies including USD, EUR, and HKD.
5. Do your RJ45 connectors support high-speed data transmission?
Yes, our connectors support a wide range of speeds including 10/100/1000 Base-T as well as high-speed 2.5G, 5G, and 10G Base-T configurations.
6. What is the typical operating temperature range for these connectors?
Our products are designed to operate in standard conditions (0°C ~ 70°C) and industrial-grade environments (-40°C ~ +85°C).
