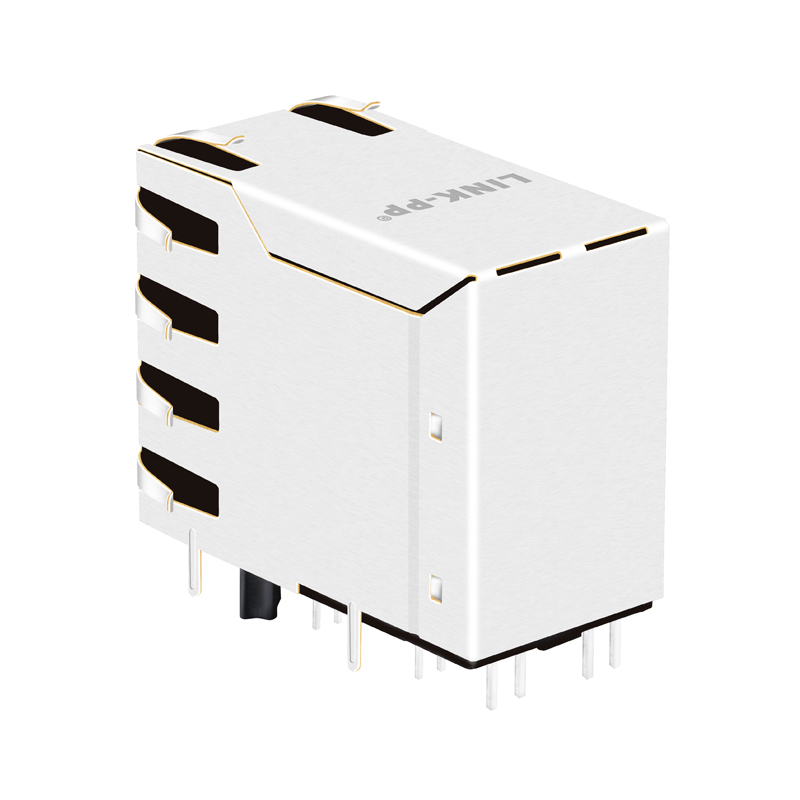

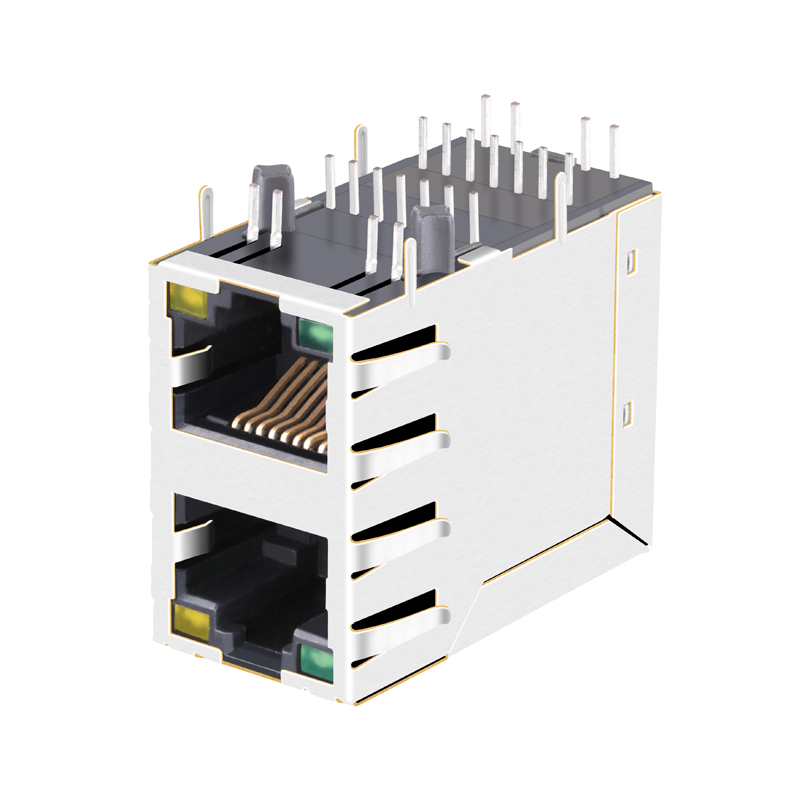

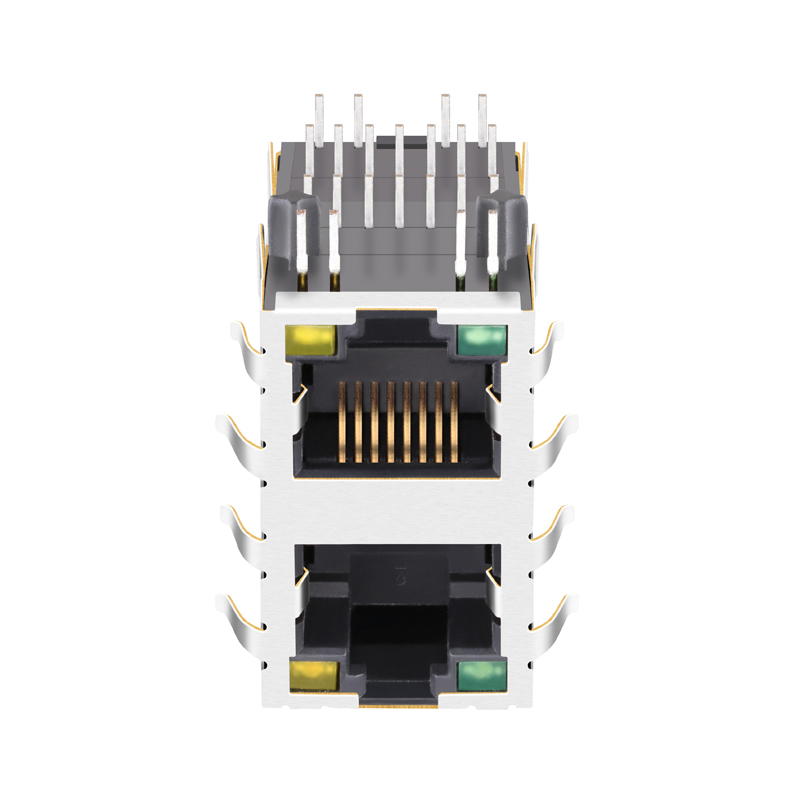

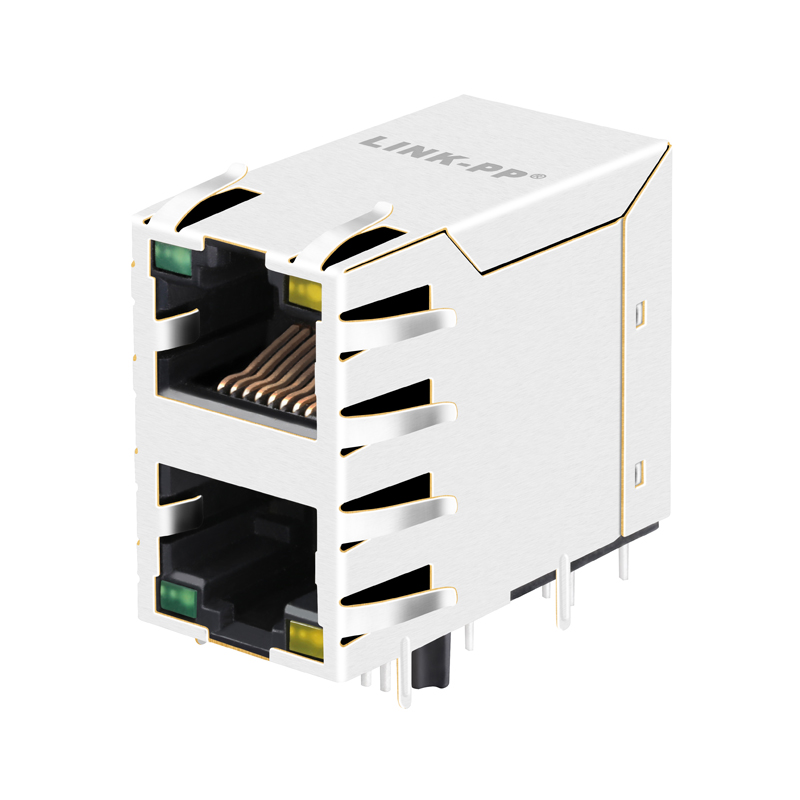

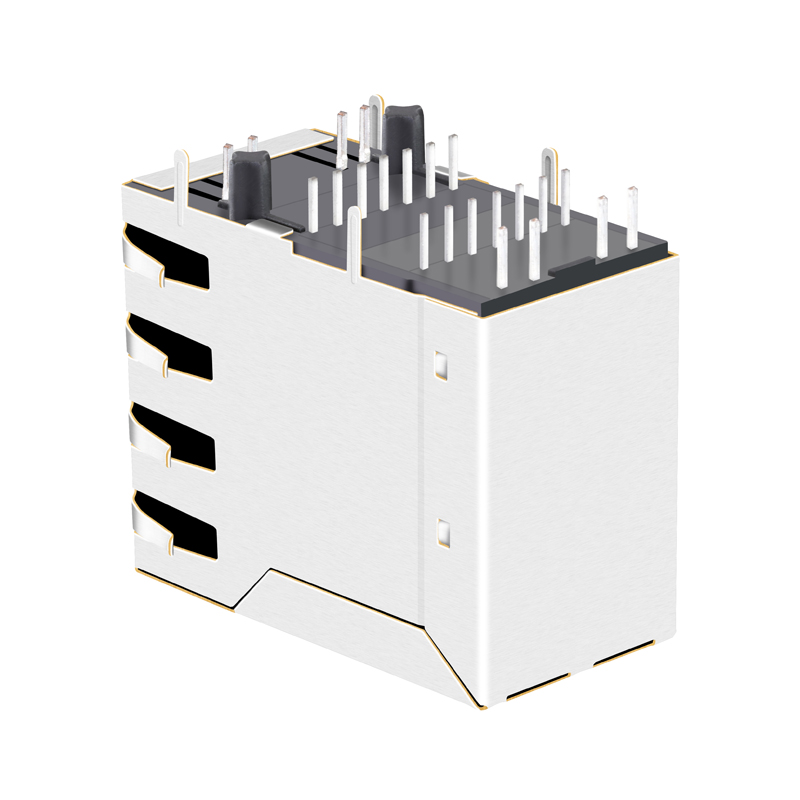

| 2x1 Port RJ45 Connector 10/100 Base-t Integrated Magnetics, Without LED, Tab Down/Up, RoHS |
| Manufacturer Part Number |
LPJ17202CNL |
| WE Part Number |
MIC24A10-0101W-LF3 / 7499051002 |
| Application-Lan |
ETHERNET(NoN PoE) |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Cores per Port |
NO |
| Diodes |
NO DIODES |
| LED Option |
Without |
| Latch |
TAB DOWN / Up |
| Number of Ports |
1X1 |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
With |
| Speed |
10/100 Base-T |
| Temperature |
-40 TO 85℃ |
| Turns Ratio RX |
1CT:1CT |
| Turns Ratio TX |
1CT:1CT |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
- ISO 9001:2008
- UL Certification
- Reach Certification
- RoHS Compliance
- Active Environmental Policy
100% Guarantee Quality
- Manufactured Under Strict Controls.
- 100% Tested (Not Just Batch Tested)
- OEM Manufacturer for 9 Years
- Successful Corporate Integrations
- Preferred Supplier Relationships
- Quality Guarantee: 6 Years
Competitive Price And Service
- More Competitive Pricing Options
- Delivery Time: 2-3 Weeks After Orders
- Free Samples Are Available
- Provide New Design For Customer Requirements
- Highly Optimized Global Shipping Costs
Corporate Quality Policy
- The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction Through Continuous Improvements In Quality, Delivery And Service
- Committed To And Expects Quality Performance From Every Employee
- The Company Standard Is Defect-Free Products And Services
• Preferred Supplier Partnership Standard
• Verified Design Integration
• Logo Placement on Support Boards
China Manufactures 2x1 Port Shielded RJ45 Modular Jack
Frequently Asked Questions
What are the primary applications for this 2x1 Port RJ45 Modular Jack?
This connector is primarily designed for Lan/Ethernet applications (Non-PoE) that require reliable 10/100 Base-T signal transmissions.
What is the operating temperature range for this RJ45 connector?
The connector supports a wide industrial operating temperature range from -40°C to +85°C.
Does this modular jack include built-in LED indicators?
No, this specific model is designed without LED indicators, featuring a clean Tab Down/Up latch configuration.
What type of plating is used on the contact mating area?
The contact mating area features high-quality gold plating, available in options of 6u", 15u", or 30u" to ensure excellent durability and signal integrity.
Is this product compliant with environmental standards?
Yes, it is RoHS compliant (RoHS-5 with lead in solder exemption) and aligns with REACH certification guidelines.
Are sample units available for product testing?
Yes, free samples are available to customers for design validation and requirements evaluation.
