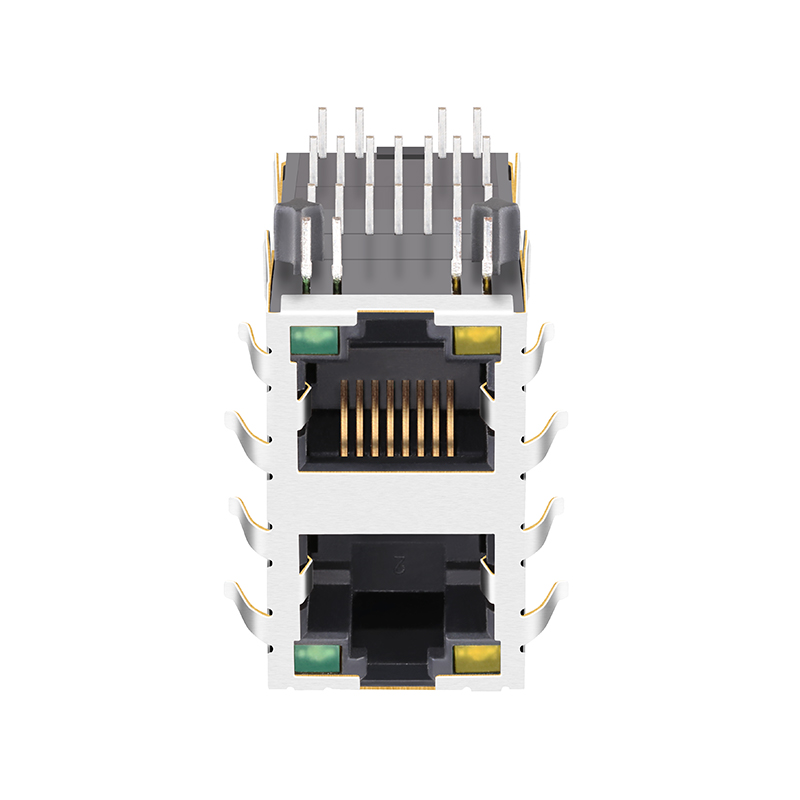

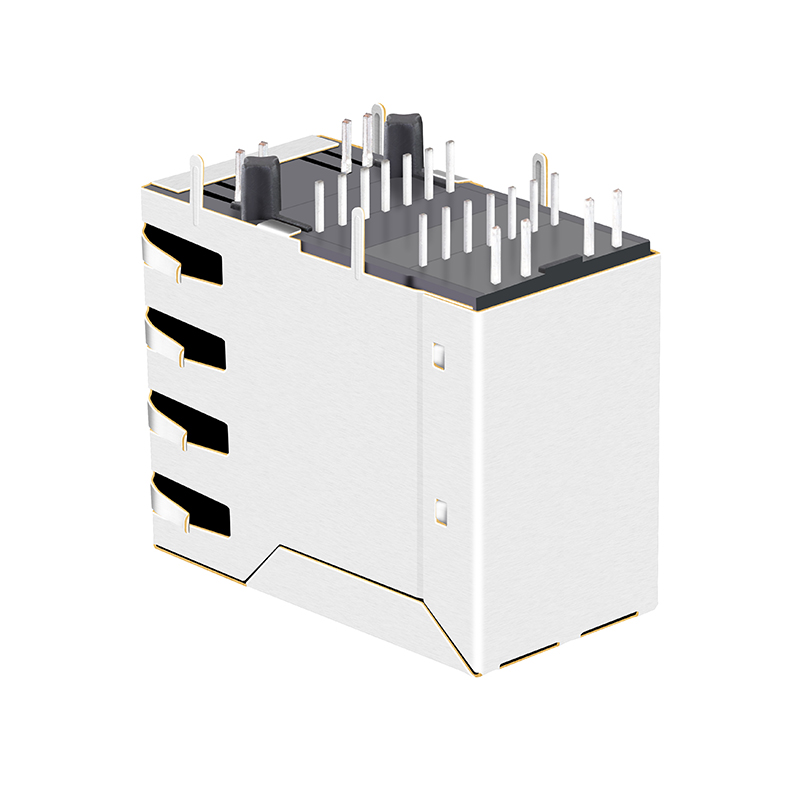

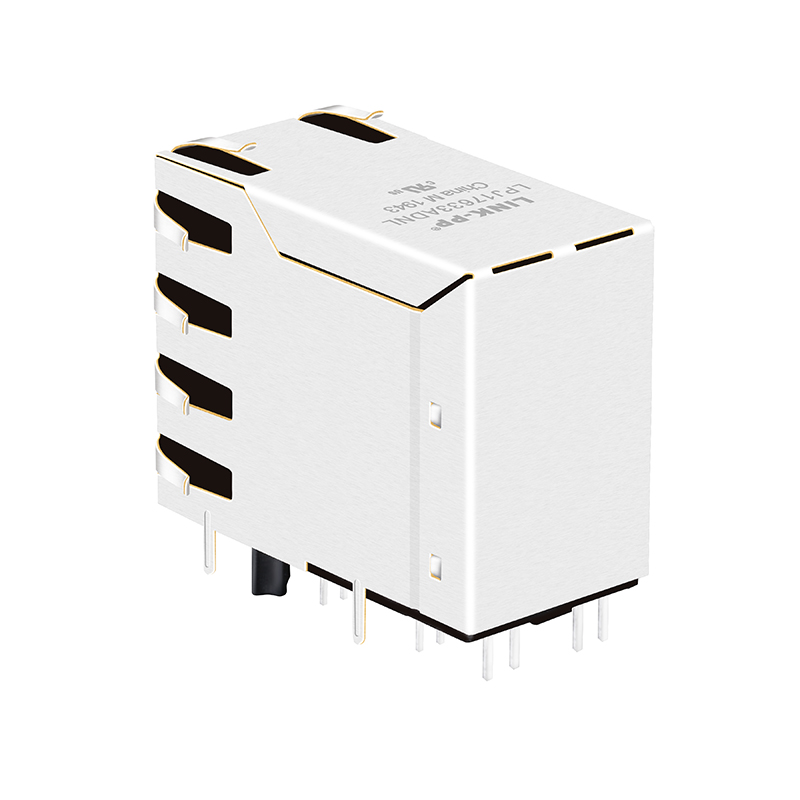

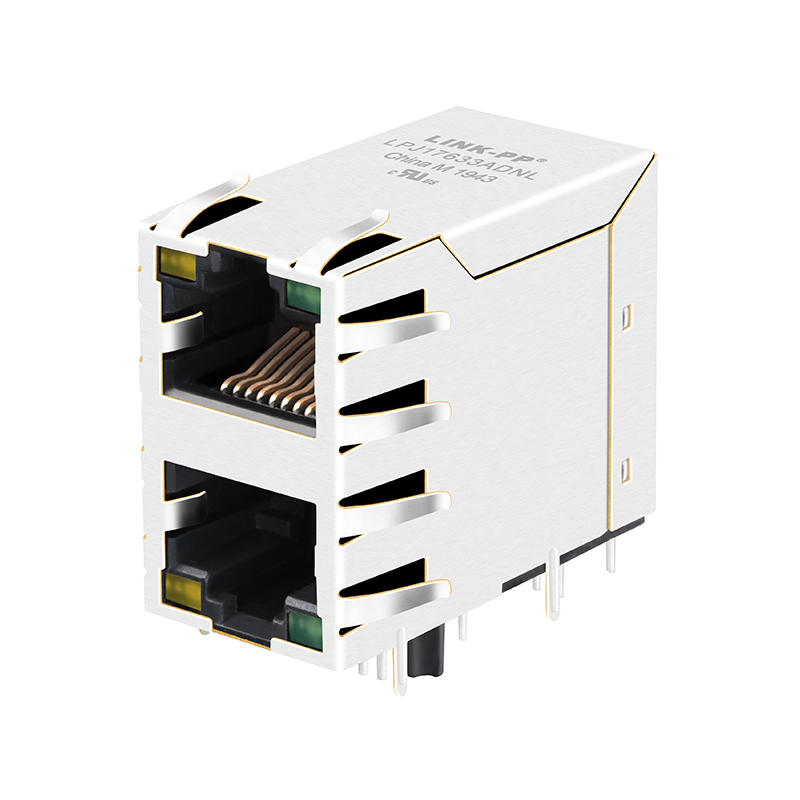

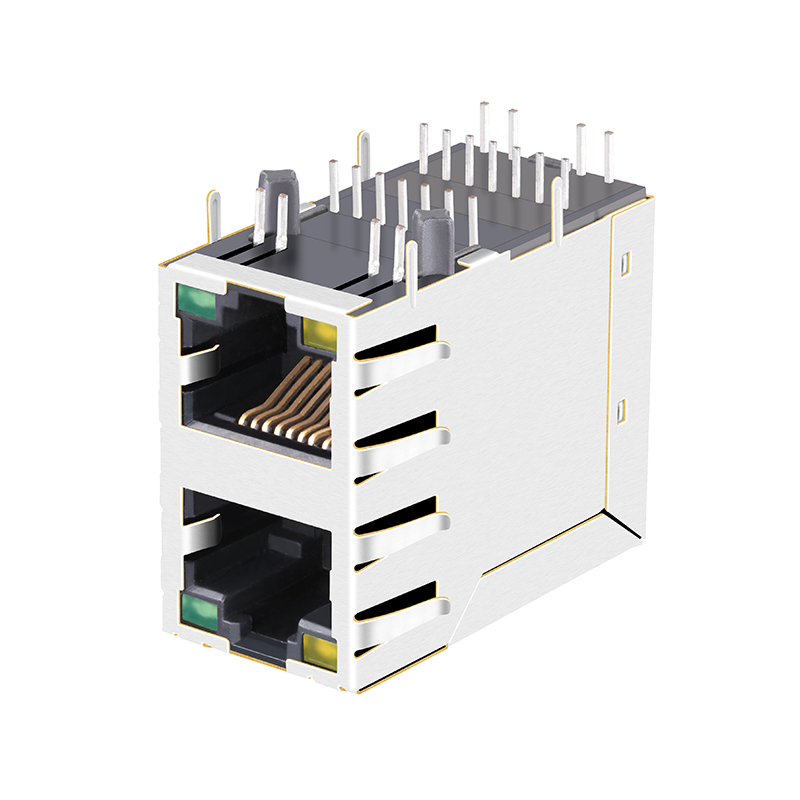

0845-2D1T-H5 0845-2D1T-S4 RM3-ZZ-0020 10/100 Base-T 2 Port 8P8C RJ45 Modular Jack

1 / 5

0845-2D1T-H5 0845-2D1T-S4 RM3-ZZ-0020 10/100 Base-T 2 Port 8P8C RJ45 Modular Jack

Send Inquiry

Product Description

0845-2D1T-H5 0845-2D1T-S4 RM3-ZZ-0020 10/100 Base-T 2 Port 8P8C RJ45 Modular Jack

Part Number	0845-2D1T-H5 / 0845-2D1T-S4 / RM3-ZZ-0020
Application-LAN	ETHERNET(NON PoE)
AutoMDIX	YES
Bst Circuit	YES
Configuration RX/TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores Per Port	4
Diodes	NO DIODES
LED Option	Yellow/Green LEDS
Latch	UP/Down
Number of Ports	2x1 Port
PCB Mount Angle	SIDE ENTRY
Pin Type	THT SOLDER
RoHS Compliant	YES (RoHS-5 with exemption)
Speed	10/100 Base-T Magnetics
Temperature	-40 TO 85°C / 0 TO 70°C
Turns Ratio	1CT:1

WHY CHOOSE US

Global Leader in Integrated RJ45 Connectors and Discrete Magnetic Transformers

📜Professional Certification

ISO 9001:2008
UL Certification
REACH Certification
RoHS Compliance
Active Environmental Policy

🛡️100% Guaranteed Quality

Manufactured under strict controls
100% Tested (Full batch testing)
Trusted OEM partner for global leaders
Preferred supplier for major electronics firms
6-Year Quality Guarantee

💰Competitive Service

Highly competitive pricing
Fast Delivery: 2-3 Weeks
Free Samples Available
Customized Designs for unique requirements
Significant savings on shipping costs

PRODUCT VISUALS

Preferred supplier for global industry giants including Samsung, Cisco, Siemens, and Intel.

Frequently Asked Questions (FAQ)

Q1: What are the primary applications for the 0845-2D1T-H5 modular jack? A1: It is designed specifically for Ethernet (non-PoE) LAN applications, providing reliable 10/100 Base-T connectivity.

Q2: What temperature ranges can this connector withstand? A2: The product is versatile, supporting both industrial (-40 to 85°C) and commercial (0 to 70°C) operating temperature ranges.

Q3: Does the connector support AutoMDIX functionality? A3: Yes, it fully supports AutoMDIX, allowing for automatic detection of straight-through or crossover cable types.

Q4: Is the product compliant with environmental regulations? A4: Yes, it is RoHS compliant (RoHS-5 with lead-in-solder exemption) and meets REACH certifications and ISO 9001:2008 standards.

Q5: What is the typical lead time for an order? A5: Standard delivery time is approximately 2-3 weeks after order confirmation, with free samples available for initial testing.

Q6: What type of quality testing is performed on these jacks? A6: We perform 100% testing on all units, rather than simple batch testing, to ensure defect-free performance and offer a 6-year quality guarantee.
