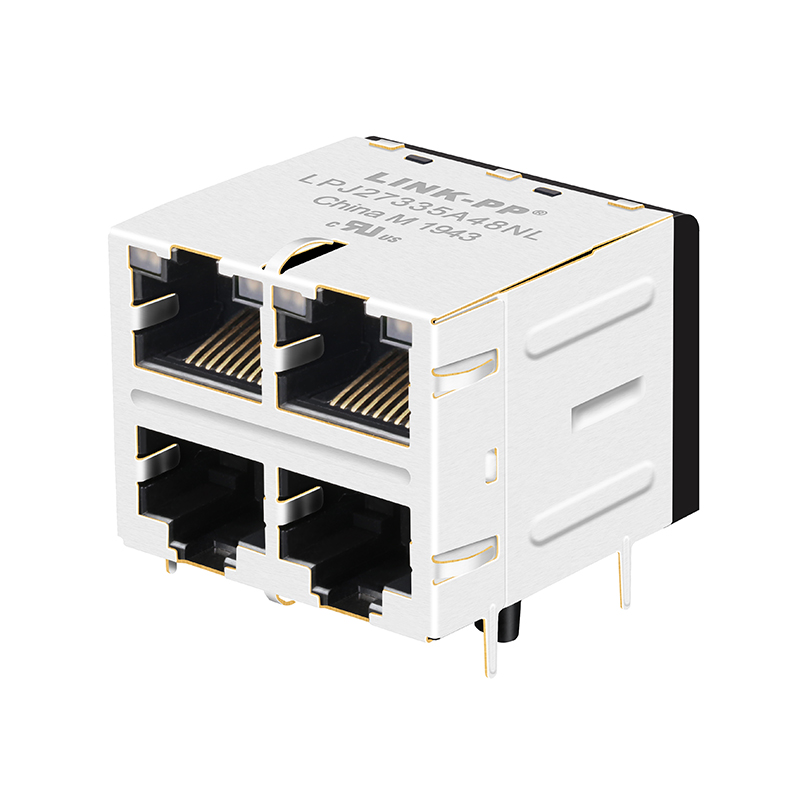

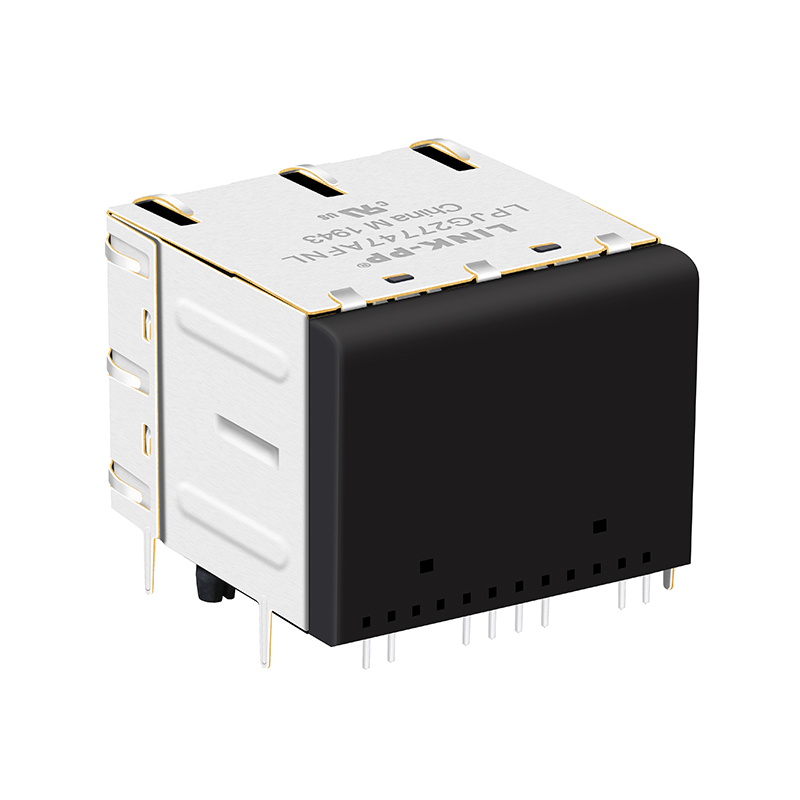

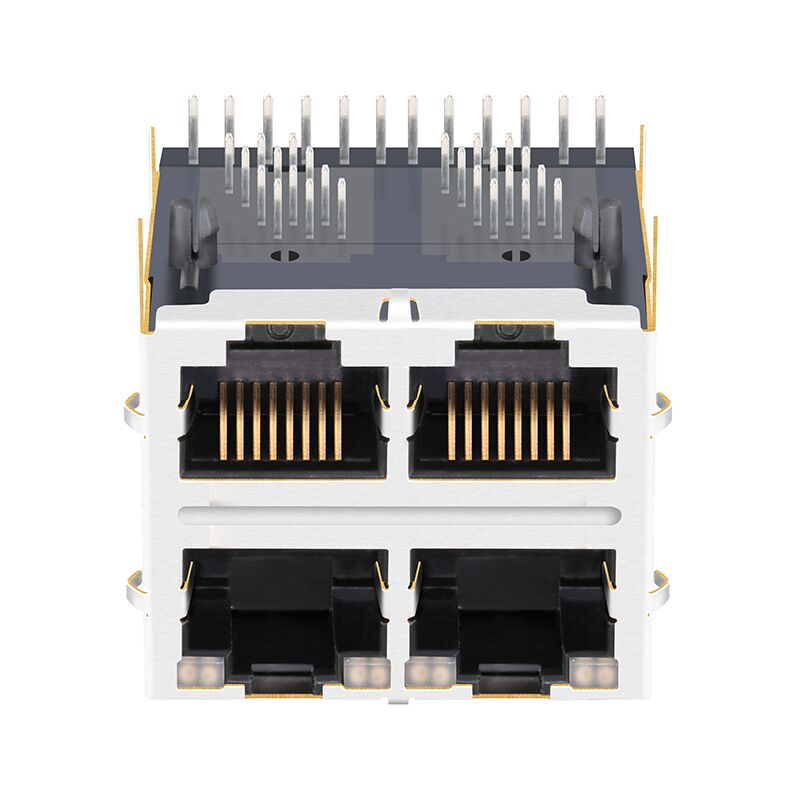

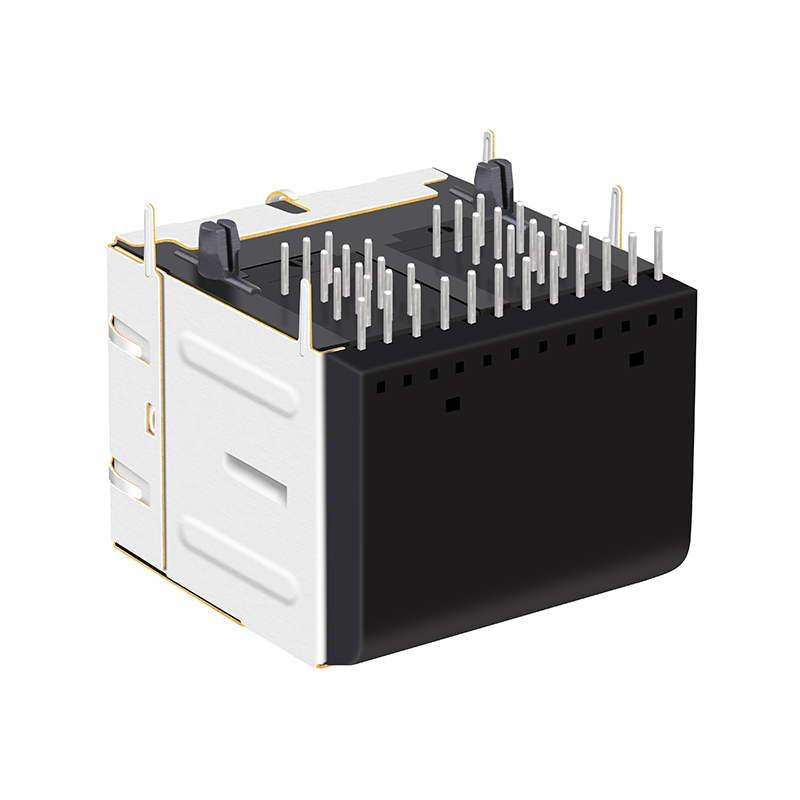

JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
1 / 5
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks

JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks

Send Inquiry

Product Description

Product Image 1

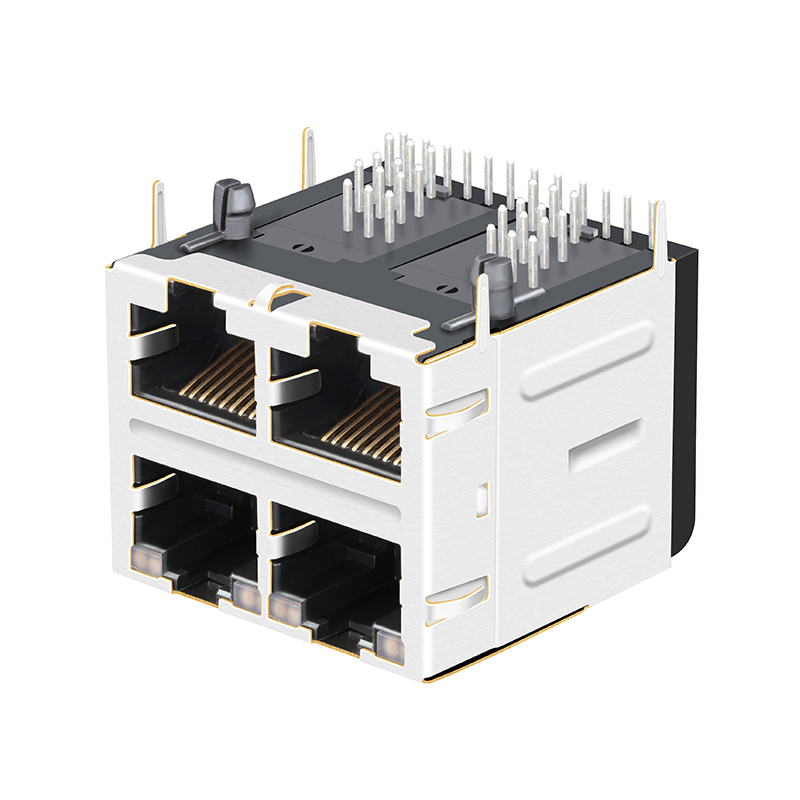

Product Image 2
Technical Specifications
Part NumberLPJ27335A48NL
Reference Part NumberJX20-0252NL
Part StatusActive
Connector TypeRJ45
Applications-LanEthernet(Non_PoE)
Speed10/100 Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorGreen&Orange/Green&Orange Led
Number of Cores per Jack4
ShieldingShielded, Emi Finger
Number of Ports2x2 Port
FeaturesBoard Guide
Tab DirectionBoth
Contact FinishGold
Configuration RX/TXT,C
Turns Ratio RX/TX1CT:1CT
Operating Temperature-40°C ~ 85°C
Product Detail
Product Detail
Dimensions
Schematic
Manufacturing Excellence

As a specialized manufacturer of magnetic telecom and networking components, we are certificated by ISO9001:2000, ROSH, REACH, CE and UL. Our facility owns advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have a dedicated team of around 2000 staff members. With a productive capacity of 3000K per month, we ensure short delivery times and provide professional complete solutions for magnetic components alongside strong technical support.

Main Product Categories
  • 10/100/1000M/2.5G/5G/10G LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M/2.5G/5G/10G magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Package View
Side View
Production View
Quality Control
Certification
Frequently Asked Questions
Are you a manufacturer or trade company?
We are a manufacturer specialized in RJ45 connectors and LAN Transformers for more than 23 years.
Can I get some samples?
Yes, 3-5 pcs free samples are available for your test. Small batches are also acceptable.
Is OEM service available?
Yes. We have rich experience and the ability to put your design and idea into a real product, including laser printing your brand on the products.
What is the typical lead time?
We have a highly professional production team; usually, we can ship within 30 days. For specific order details, please consult our team.
What quality certifications do your products hold?
Our products are fully compliant with ISO9001:2000, RoHS, REACH, CE, and UL standards to ensure global compatibility and safety.
What devices are these components commonly used in?
Our components are widely used in networking equipment such as Hubs, PC cards, Switches, Routers, Mainboards, SDH, PDH, IP Phones, and xDSL modems.
