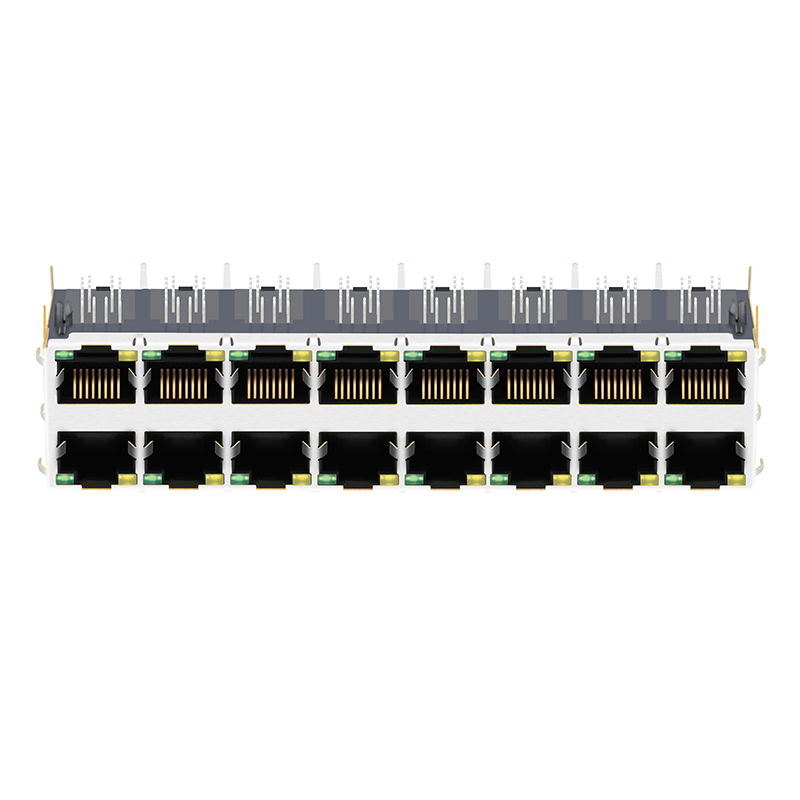

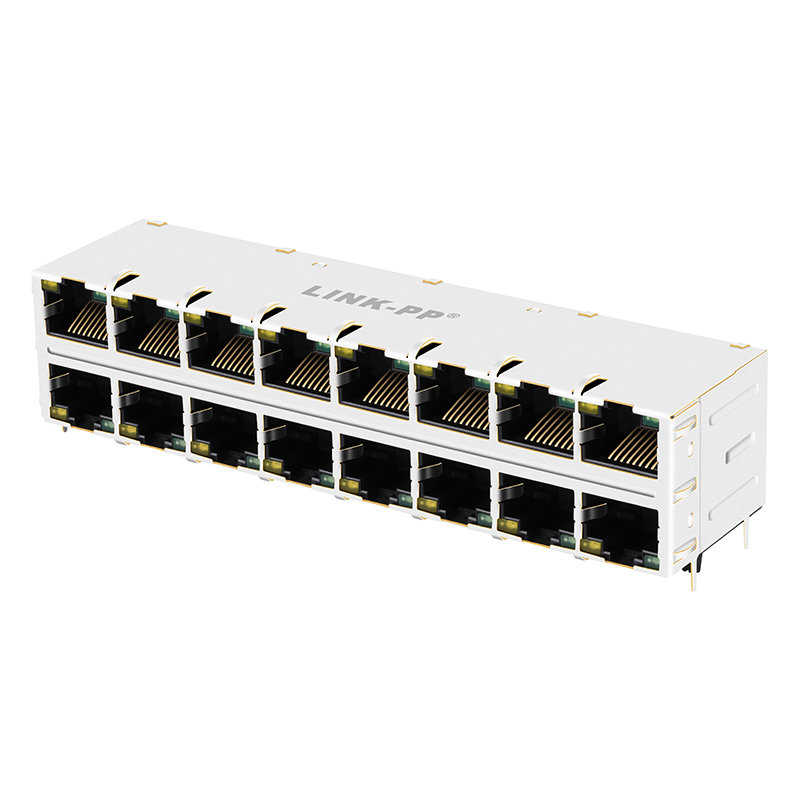

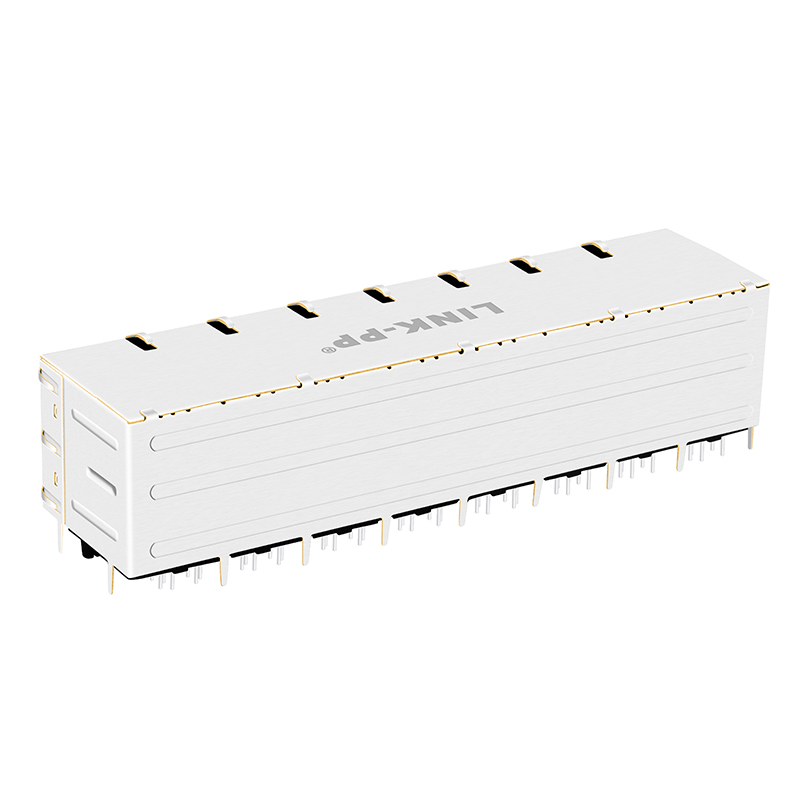

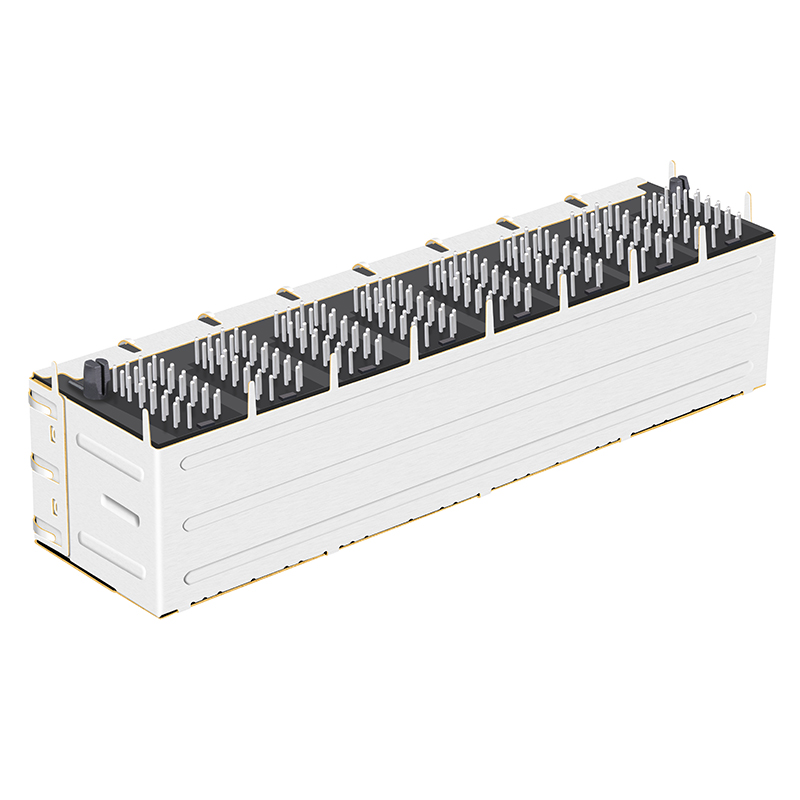

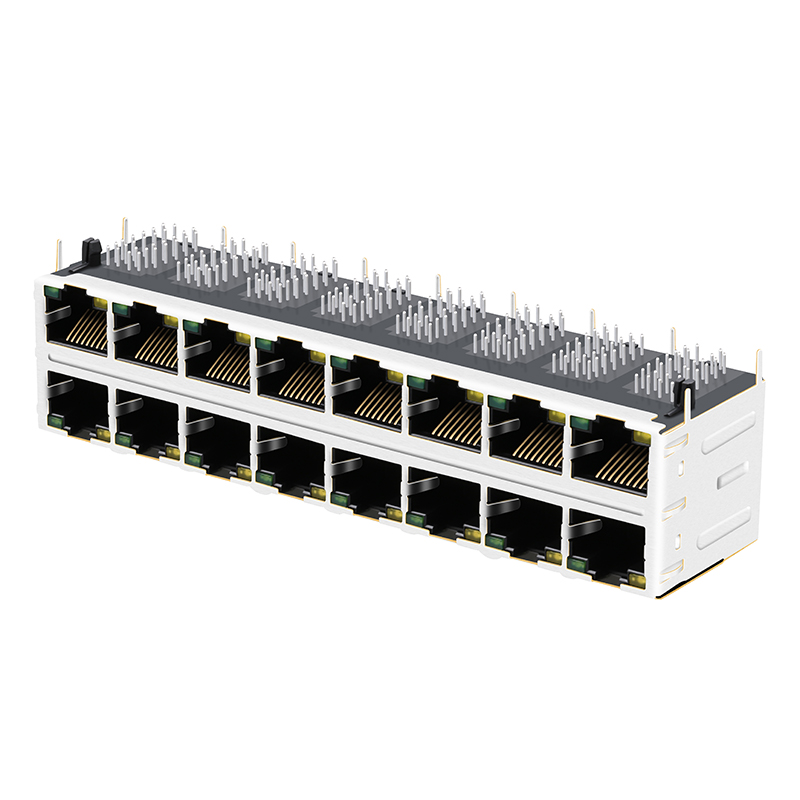

2 * 8 Port RJ 45 Jack , Shielded 16port RJ45 Connector J2042H3B J2045H3C J2039H3C 0853-2X8R-69

Send Inquiry

Product Description

Part Number	RJ45 connector
Application-LAN	ETHERNET(NON POE)
AutomDX	YES
Bst Circuit	YES
Configuration RX / TX	T, C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores Per Port	8
LED Option	WITH LEDS
Latch	Up/Down
Number of Ports	2x8 (16 Ports)
PCB Mount Angle	SIDE ENTRY
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Shield EMI Tabs	Shield, EMI Finger
Speed	10/100/1000 Base-T
Temperature	-40°C ~ 85°C
Turns Ratio RX/TX	1CT:1

Why Choose Us

What is the data transmission speed of this RJ45 connector?

This 16-port RJ45 jack supports high-speed data transmission at 10/100/1000 Base-T levels.

Can this connector work in extreme temperature environments?

Yes, it is designed for industrial use with an operating temperature range of -40°C to 85°C.

Is this RJ45 connector shielded for EMI protection?

Yes, it is fully shielded and includes EMI fingers to ensure reliable signal integrity and interference protection.

What plating options are available for the contact area?

We offer multiple gold plating options to suit different durability needs: 6u", 15u", or 30u".

Does the product come with integrated LEDs?

Yes, this specific configuration includes built-in LEDs for link and activity status indication.

Are free samples available for testing?

Yes, free samples are available to help you verify the quality and compatibility with your design requirements.
