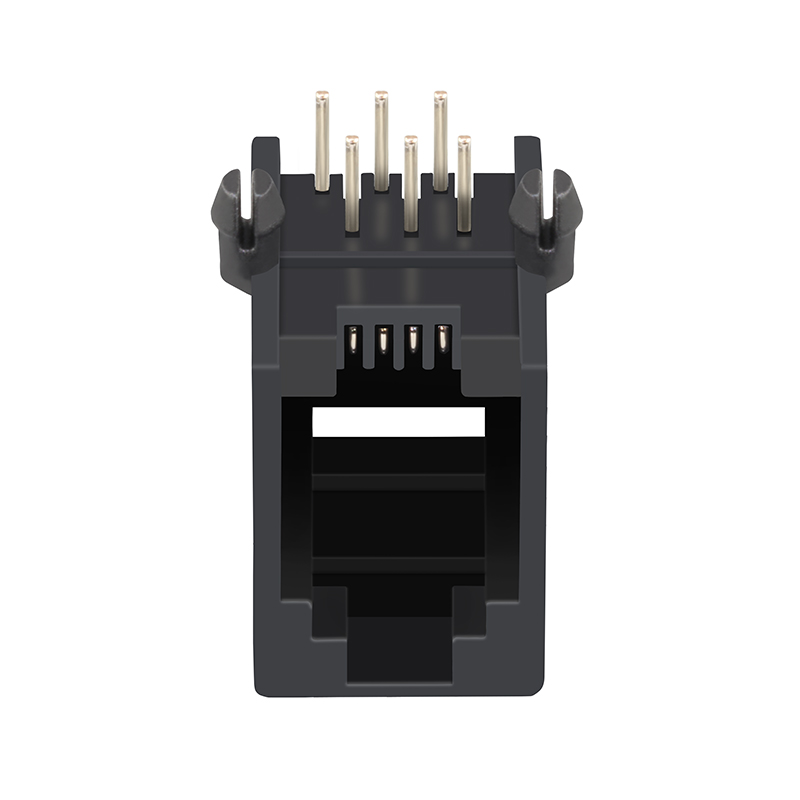

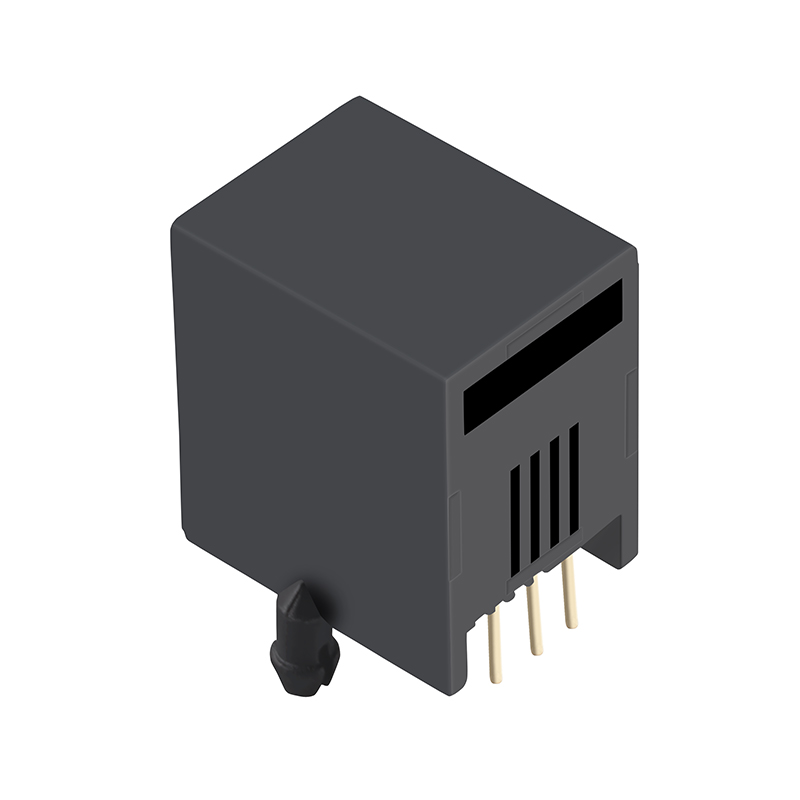

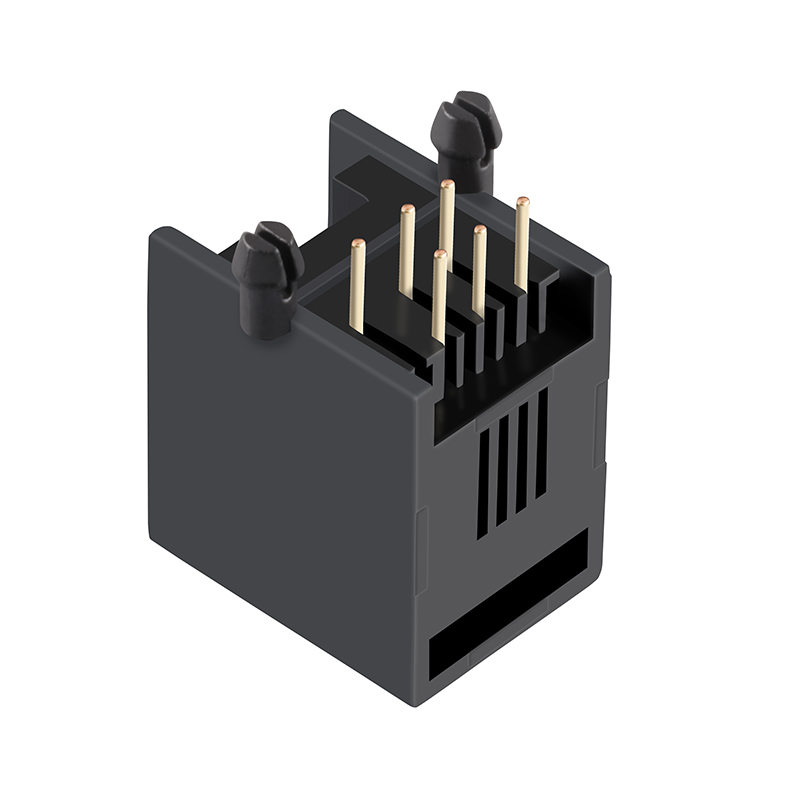

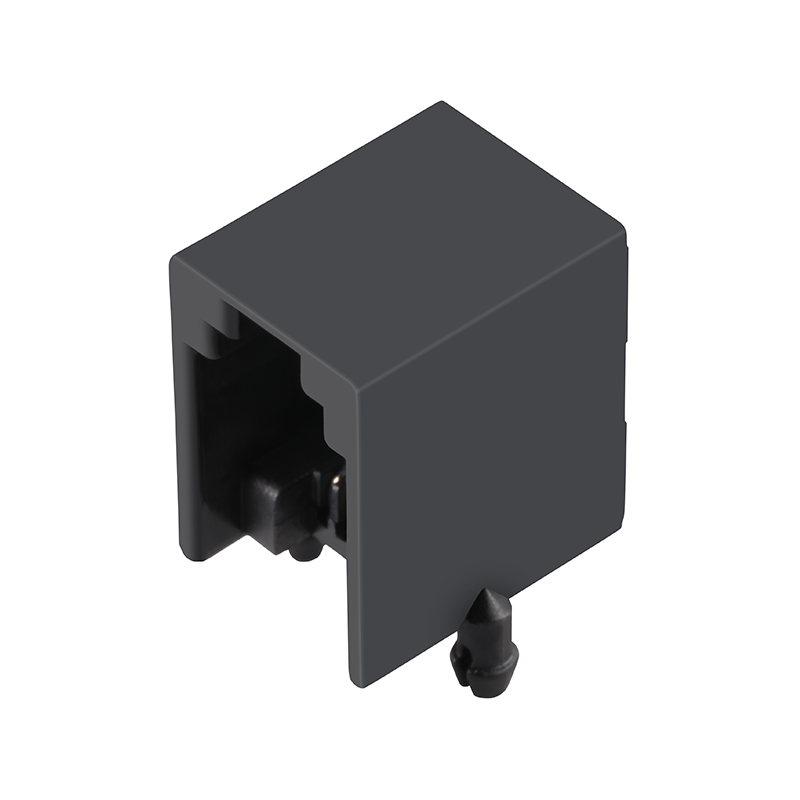

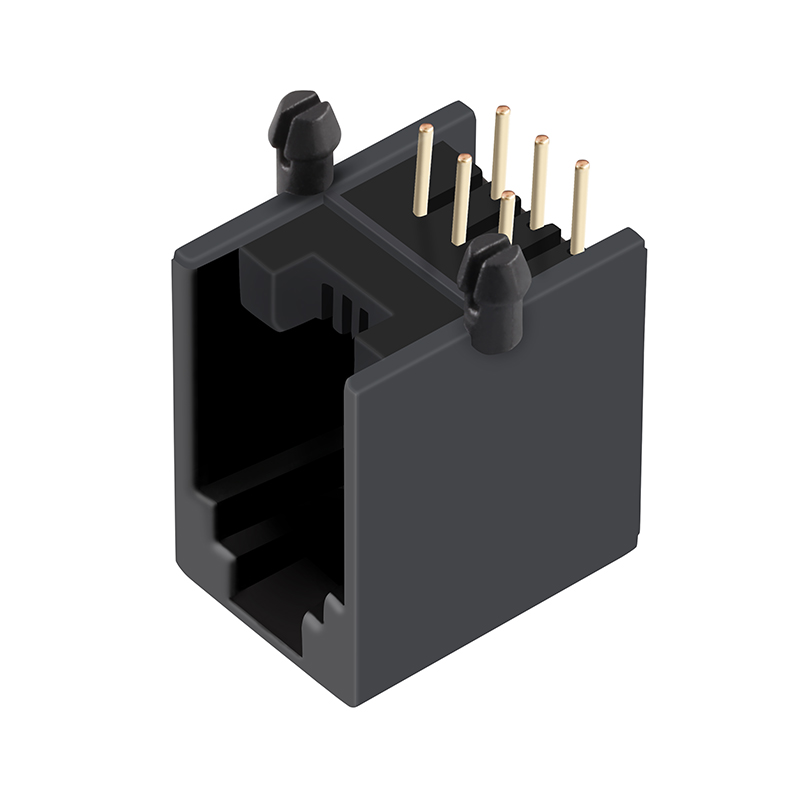

Unshielded 6P6C RJ11 RJ12 Ethernet Connector

Unshielded 6P6C RJ11 RJ12 Ethernet Connector

Products Description

Item	RJ45 Female Connector
Link-PP Part Number	LPJE8014NNL
Compatible With	615006138421
Part Status	Active
Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port
Speed	10/100/1000 Base-T
Latch	Up
Cores per Port	4
Orientation	90° Angle (Right)
PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	Without
LED Option	Without
PCB	FR4
PCB Retaining Post	T POST
Temperature	-40℃ TO 85℃
Bst Circuit	Yes
AutomDX	YES
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT
Configuration RX/TX	T,C

⚙️

Product Range Overview

Quality Control & Facilities

Packaging & Exhibition

Frequently Asked Questions

Are you a factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.

Can I get a sample before mass production?

Yes, we can offer you free samples to test quality, but you should pay the shipping fee.

What is your delivery time?

Ready to ship for stock items, and 15-30 days for mass production.

What after-service can you offer?

One year guarantee period and we offer technical support online 24 hours.

Can you accept OEM/ODM orders?

Yes, please send your inquiry to us so that we can have a detailed discussion.

What is your advantage?

19 years of production experience and we have been partners with industry leaders such as Intel and Jabil for many years.
