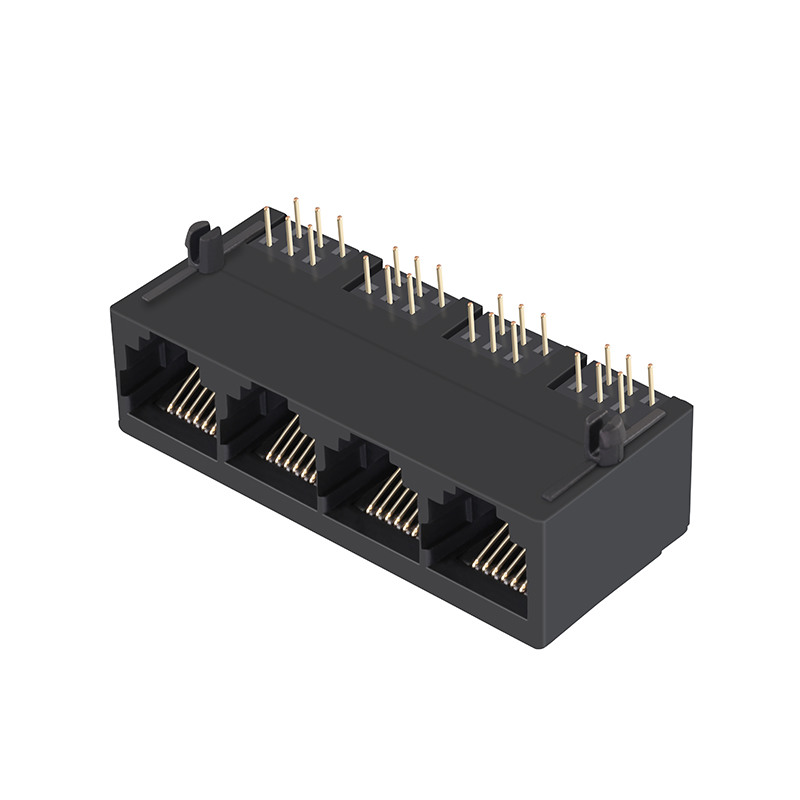

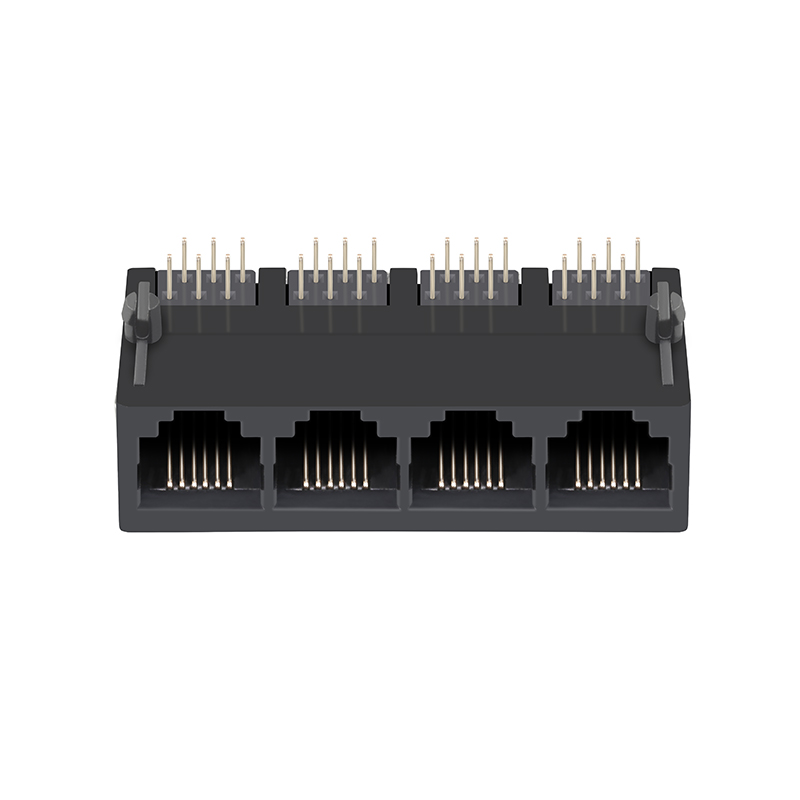

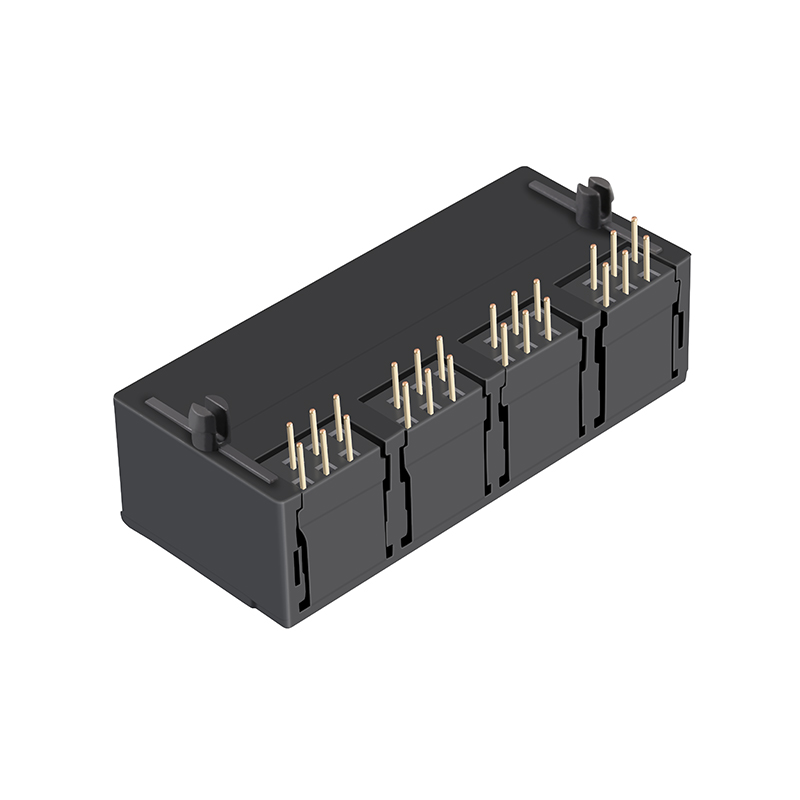

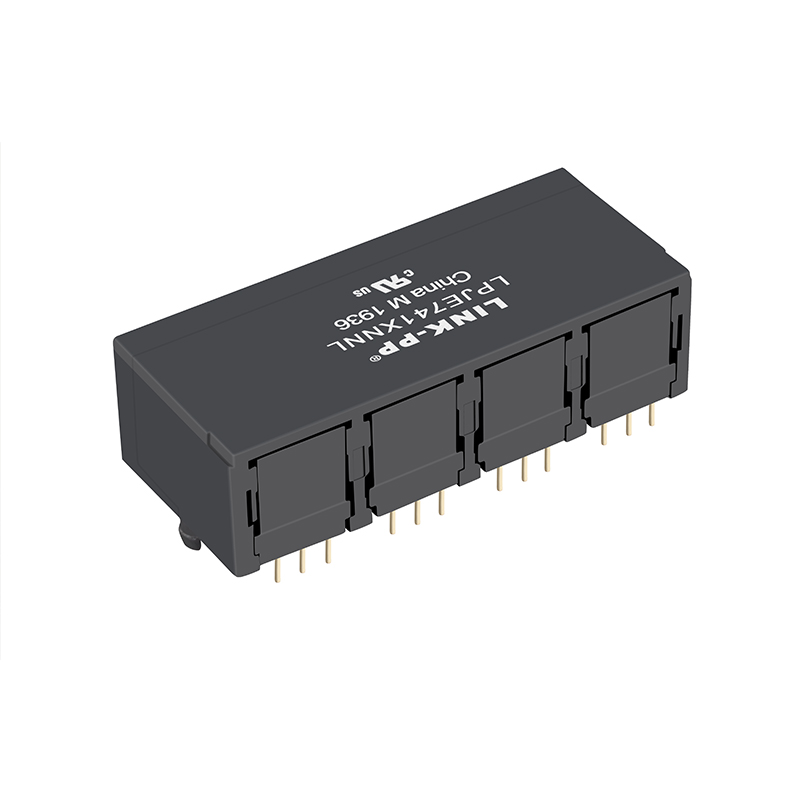

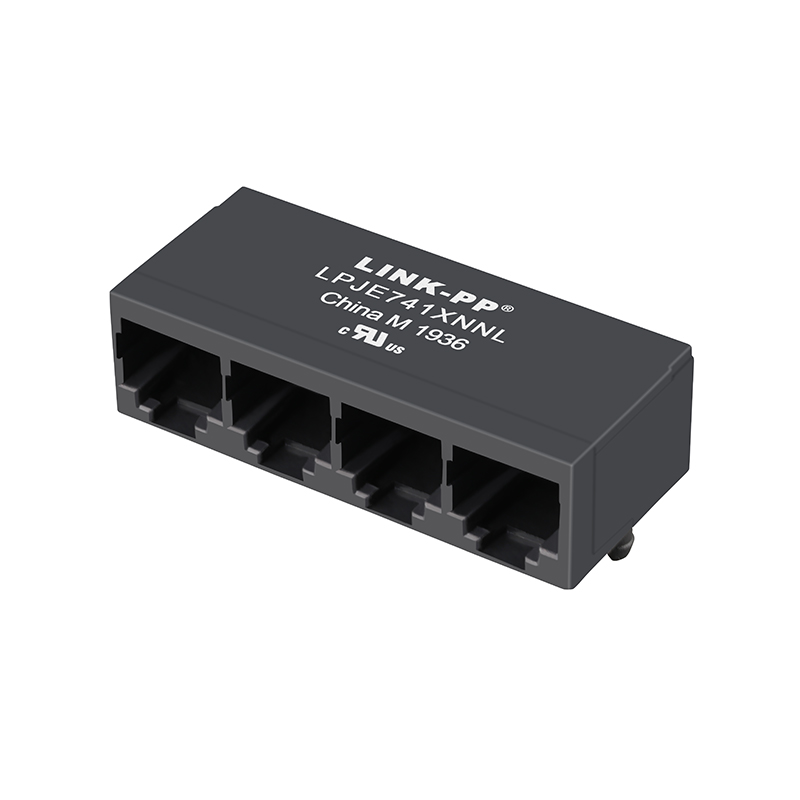

| Item | RJ11 Jack |
| Part Number | LPJE741XNNL |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 6p6c (RJ11, Ethernet) |
| Application-Lan | Ethernet (Non-PoE) |
| Number of Ports | 1x4 Port |
| Latch | Down |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | Side Entry |
| Shield EMI Tabs | Without |
| LED Option | Without |
| PCB | FR4 |
| PCB Retaining Post | T Post |
| Temperature | -40°C to 85°C |
| Bst Circuit | Yes |
| AutomDX | Yes |
| Contact Mating Area Plating | Gold 6u" / 15u" / 30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T, C |
