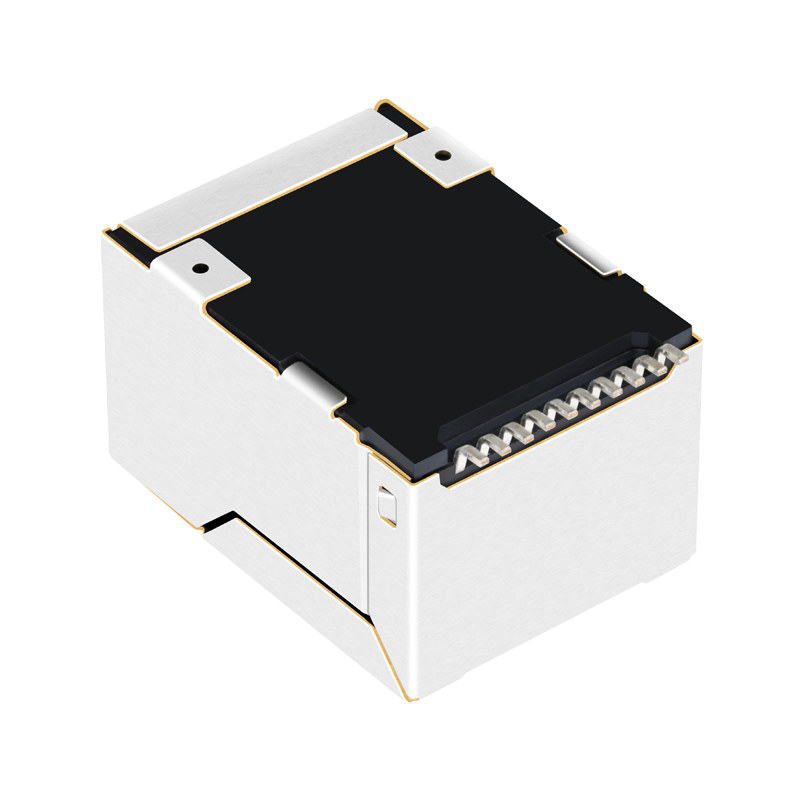

SMT Modular Jack RJ45 MIC24122-5101
SMT Modular Jack RJ45 MIC24122-5101
SMT Modular Jack RJ45 MIC24122-5101
SMT Modular Jack RJ45 MIC24122-5101
SMT Modular Jack RJ45 MIC24122-5101
1 / 5
SMT Modular Jack RJ45 MIC24122-5101
SMT Modular Jack RJ45 MIC24122-5101
SMT Modular Jack RJ45 MIC24122-5101
SMT Modular Jack RJ45 MIC24122-5101
SMT Modular Jack RJ45 MIC24122-5101

SMT Modular Jack RJ45 MIC24122-5101

Send Inquiry

Product Description

RJ45 Connector Types Lan Transformer Product Range
Send Inquiry To Get Latest Price List
SMT Modular Jack RJ45 SMT Modular Jack Details
Products Description
SMT Modular Jack RJ45 MIC24122-5101
Item RJ45 Female Connector
Bothhand Part Number MIC24122-5101
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Down
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

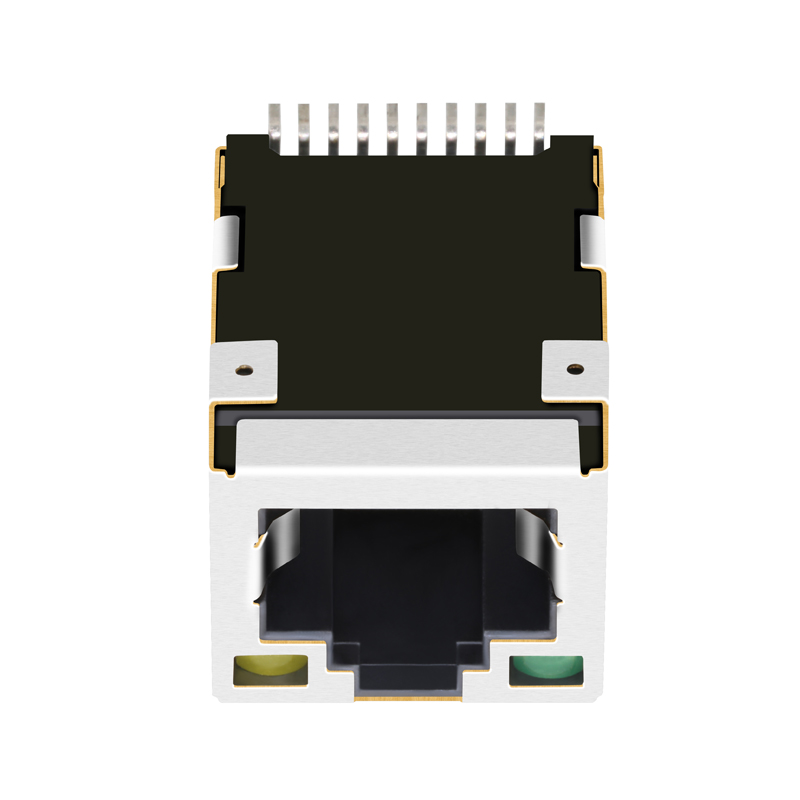

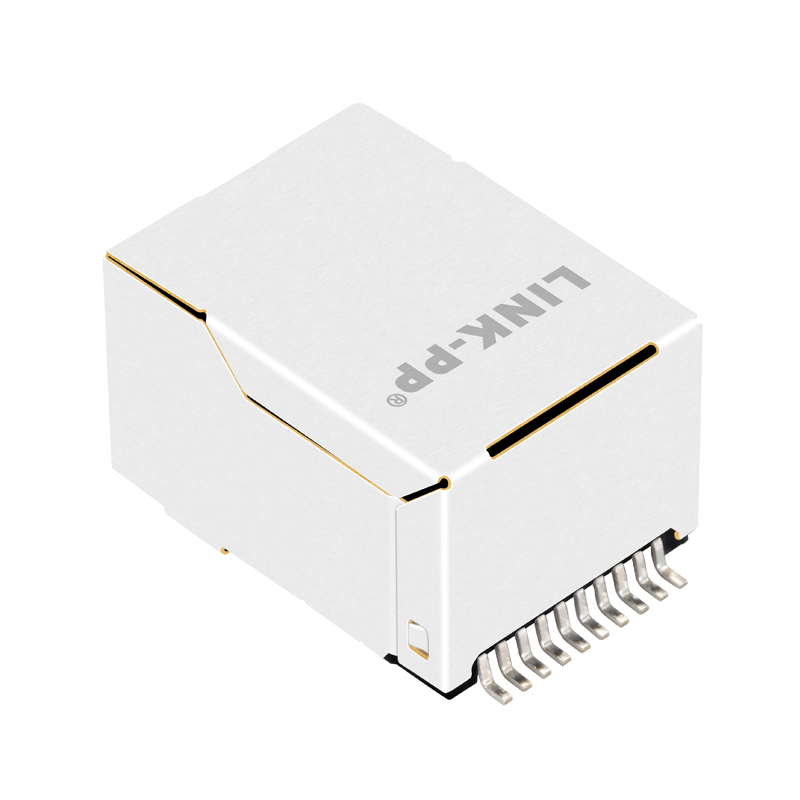

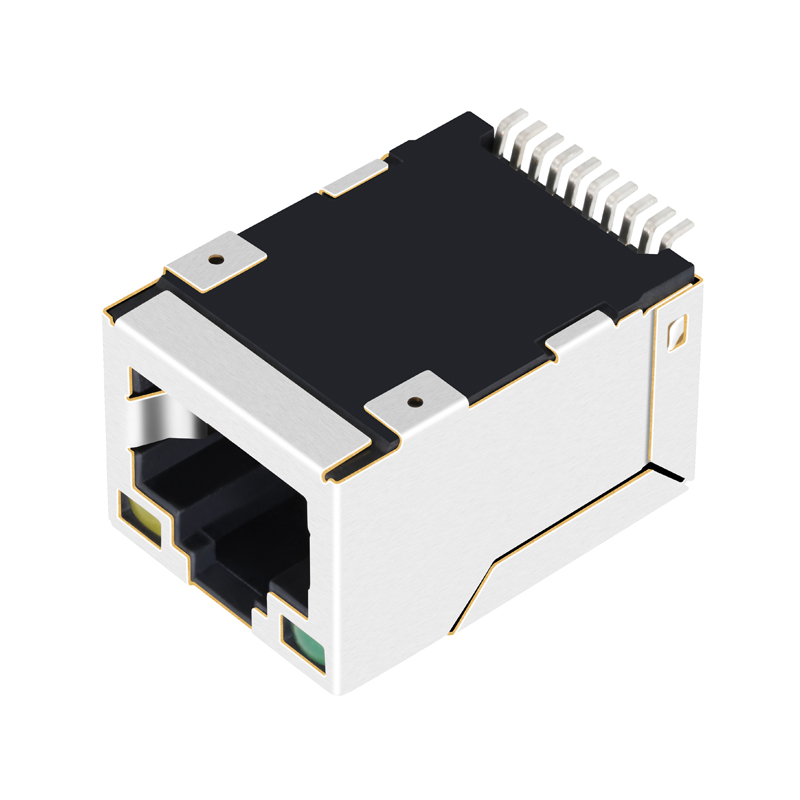

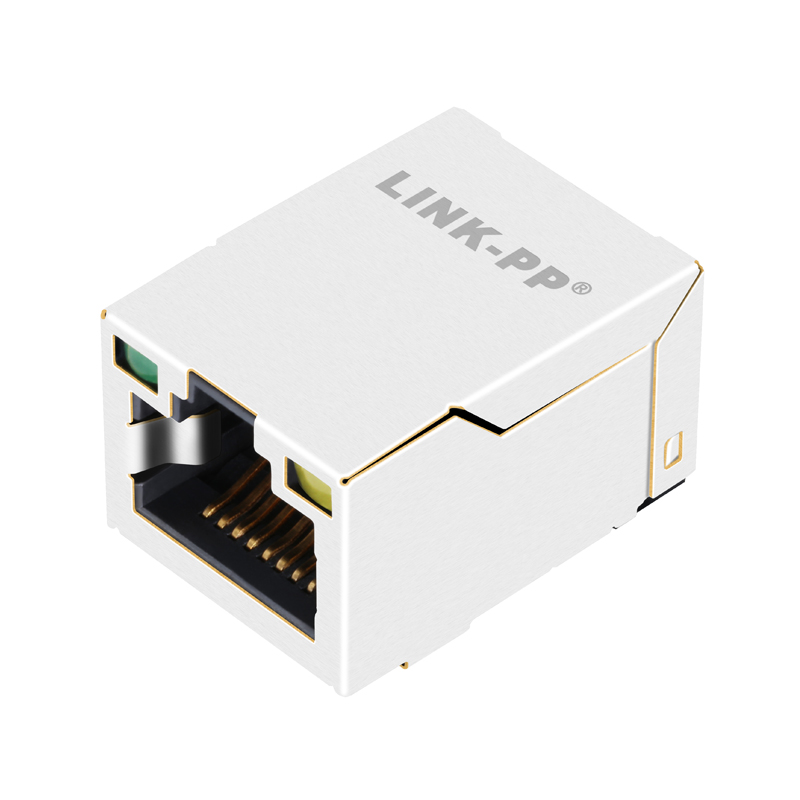

Technical Drawing 1 Technical Drawing 2 Technical Drawing 3 Technical Drawing 4 Technical Drawing 5 Technical Drawing 6 Technical Drawing 7
Product Layout
Why Choose Us
Quality Standard Advanced Testing Precision Control Certified Factory
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL, owning advanced manufacturing facilities and test equipments imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver the goods within the short time. Moreover, we can provide the professional complete solution for magnetic components and strong technical support as well.
Main Products: 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem. We have exported our products to more than 30 countries and regions in the world, including Germany, France, England, USA, Singapore, Korea, Canada, and Japan.
Main Customers: ZNE, JABIL, FOXCONN, H3C, FLEXTRONICS, IBM, TEXAS INSTRUMENTS TELECOMMUNICATION TECHNOLOGIES LLC. Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our faith of pursuing higher will convince you to be our long-term friend.
Production Workshop Testing Area Machinery Warehouse
Frequently Asked Questions
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but the shipping fee needs to be paid by the customer.
What is your delivery time?
Items in stock are ready to ship immediately, while mass production typical takes 15-30 days.
What after-service do you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, we accept custom orders. Please contact us to share your specific requirements and have a detailed discussion.
What is your advantage?
We offer 19 years of professional production experience and have been a trusted partner for industry leaders over many years.
