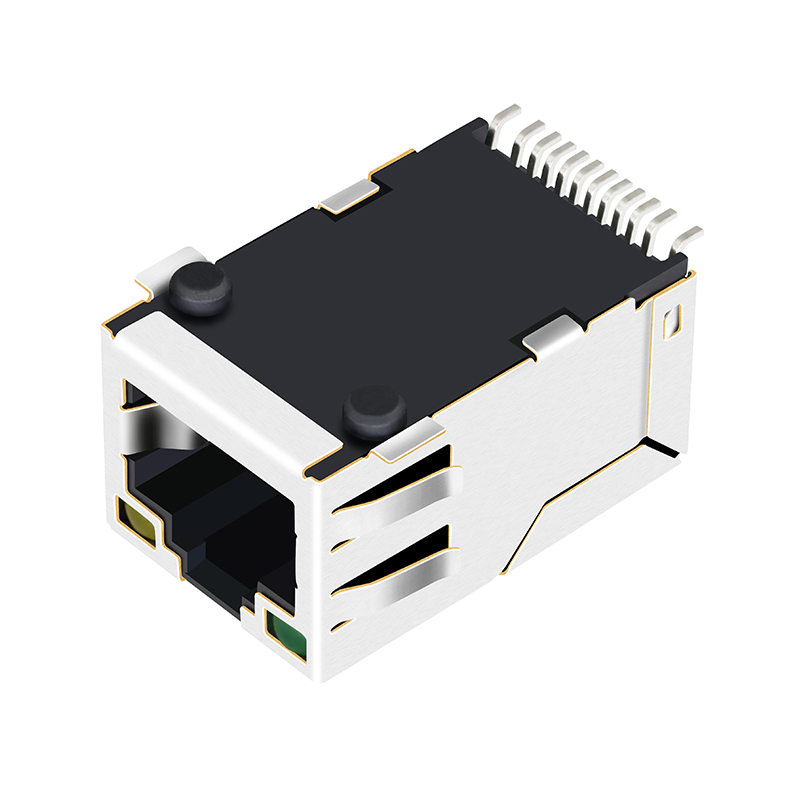

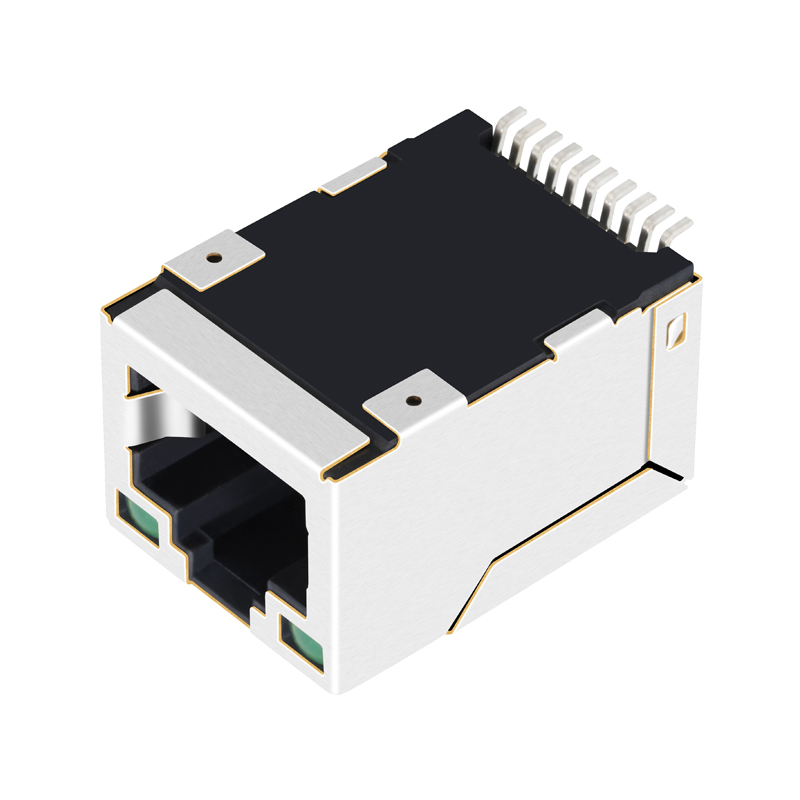

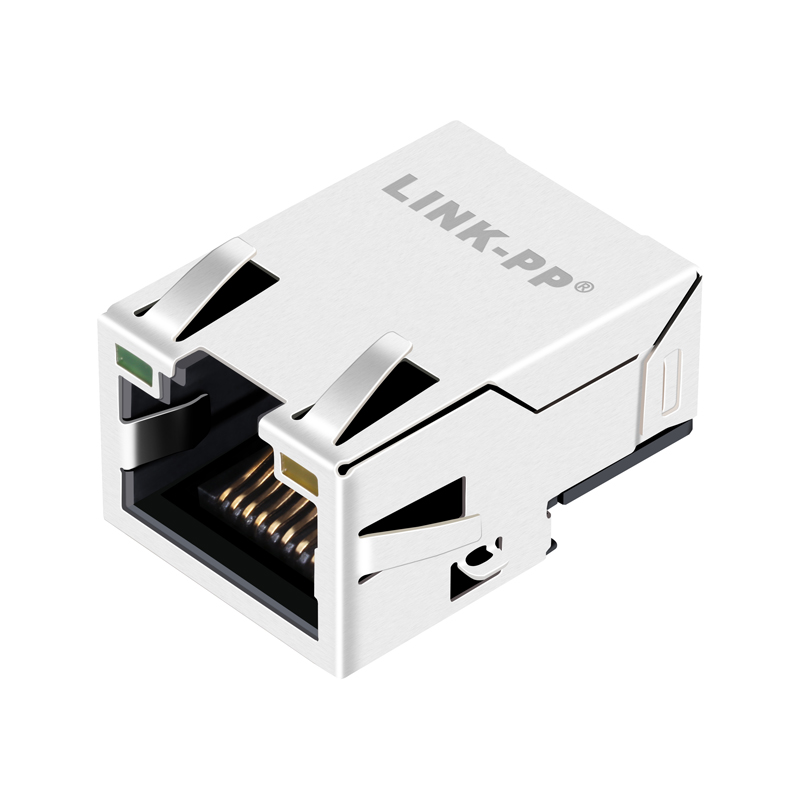

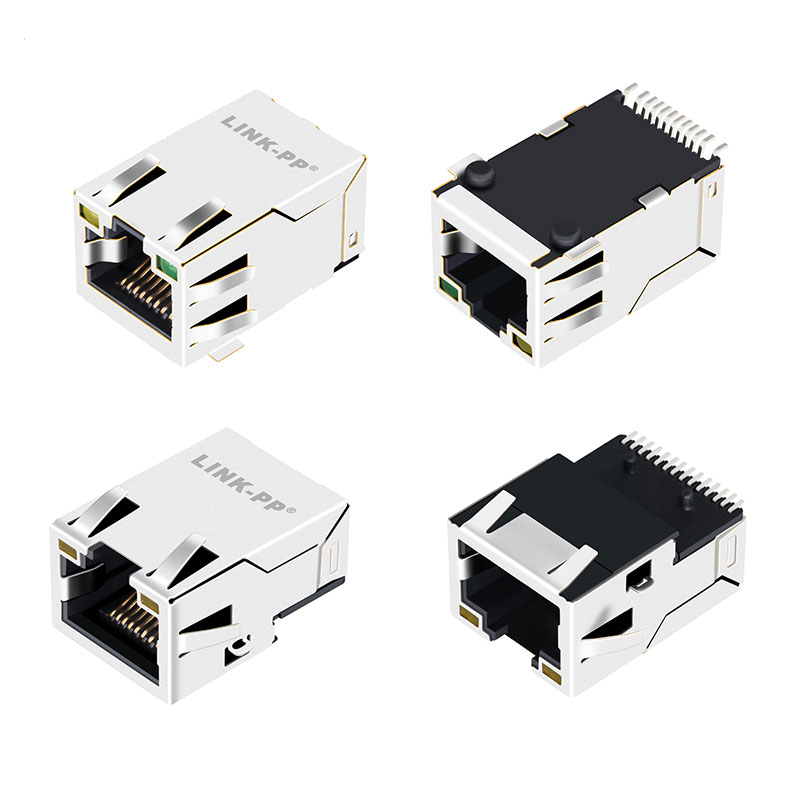

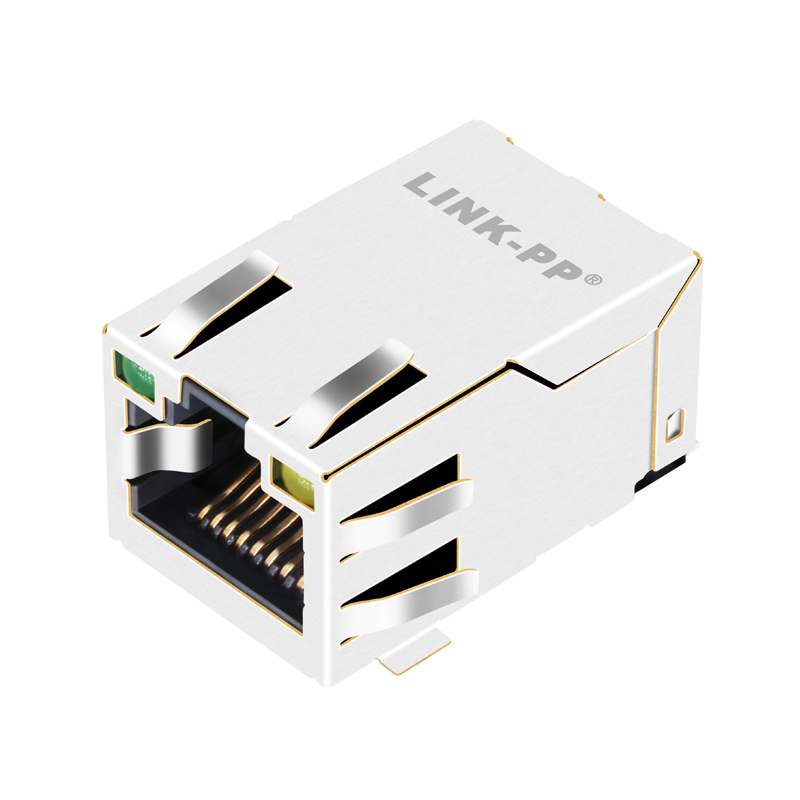

100/1000 Base-T With/without Leds 10p8c 8p8c POE/Non POE SMT SMD Lan PCB Ethernet Connector Modules RJ45 Modular Jack Connectors

Product Characteristics

◈ RJ45 Connector with integrated transformer / common mode choke
◈ Power over Ethernet up to 50 Watt
◈ Speeds up to 10 Gbit/s
◈ Available in SMT, THT and THT with USB
◈ Compliant with IEEE 802.3u, 802.3ab, 802.3af, 802.3at and 802.3bt
◈ HPLE products: Improved Common Mode Rejection via additional NiZn cores

Technical Specifications

Parameter	Details

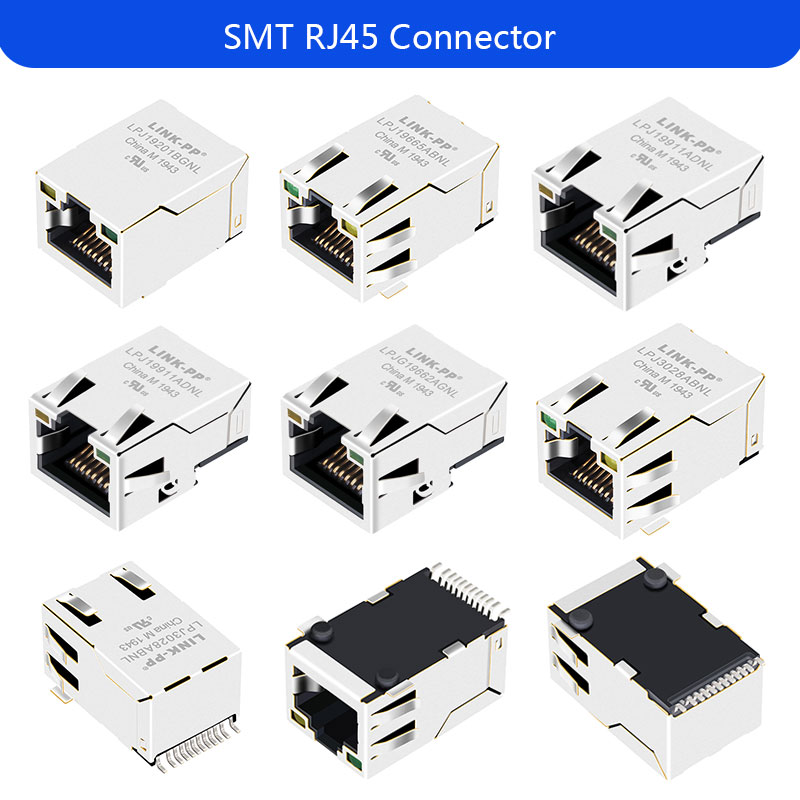

Model Number	SMT RJ45 Connector
Part Status	Active
Connector Type	RJ45
Applications-Lan	Ethernet (PoE/Non_PoE)
Speed	10/100/1000 Base-T, AutoMDIX
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Contact Finish Thickness	6.00µin (0.152µm)
LED Color	Yellow/Green, Green/Yellow
Cores per Jack	4/6/8/12
Shielding	Shielded, EMI Finger
Features	Board Guide
Contact Finish	Gold
Operating Temperature	0°C ~ 70°C / -40°C ~ +85°C

Packing & Delivery

📦 Package: Tray

📏 Carton Size: 34.5*34.5*27cm

⚖️ Weight: G.W. 6.9kg / N.W. 0.013kg per pcs

🔢 Quantity: 550pcs per carton (SPQ: 110pcs)

Production & Facility Showcase

Frequently Asked Questions

Q1: How do you guarantee the quality of your components?

We maintain strict quality control by providing pre-production samples before mass manufacturing and conducting a thorough final inspection before every shipment.

Q2: What types of products can I purchase from you?

We specialize in a wide range of networking components including RJ45 Magnetics, Lan transformers, RJ11 Connectors, RJ45 Connectors, and SFP modules.

Q3: Why should I choose your company over other suppliers?

With over 19 years of specialized manufacturing experience, we are certified by SGS, ISO9001, UL, REACH, and CE. Our massive production capacity of 30,000K units per week ensures stable supply for global leaders.

Q4: What are your accepted payment and delivery terms?

We support various delivery terms including FOB, CFR, CIF, EXW, and DDP. Payments can be made via T/T, L/C, Credit Card, or PayPal in multiple currencies such as USD, EUR, and HKD.

Q5: What is your manufacturing scale?

Our operations are supported by a dedicated team of over 1,000 professionals, ensuring high-quality output and technical support for all our networking solutions.

Q6: Are your products compliant with international standards?

Yes, our products are designed to meet major industry standards including IEEE 802.3u, 802.3ab, and the latest PoE standards like IEEE 802.3bt.
