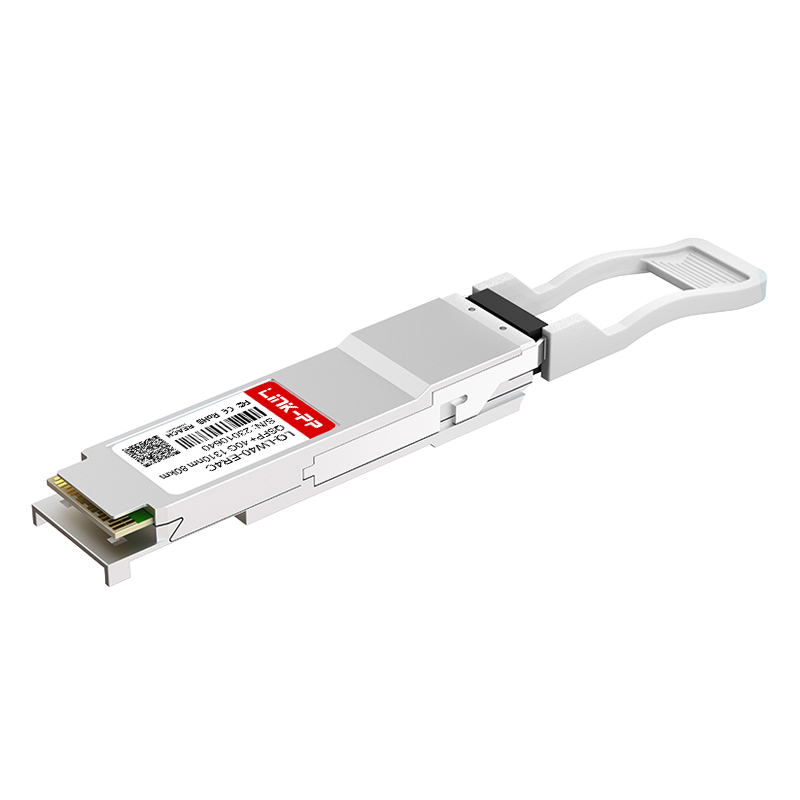

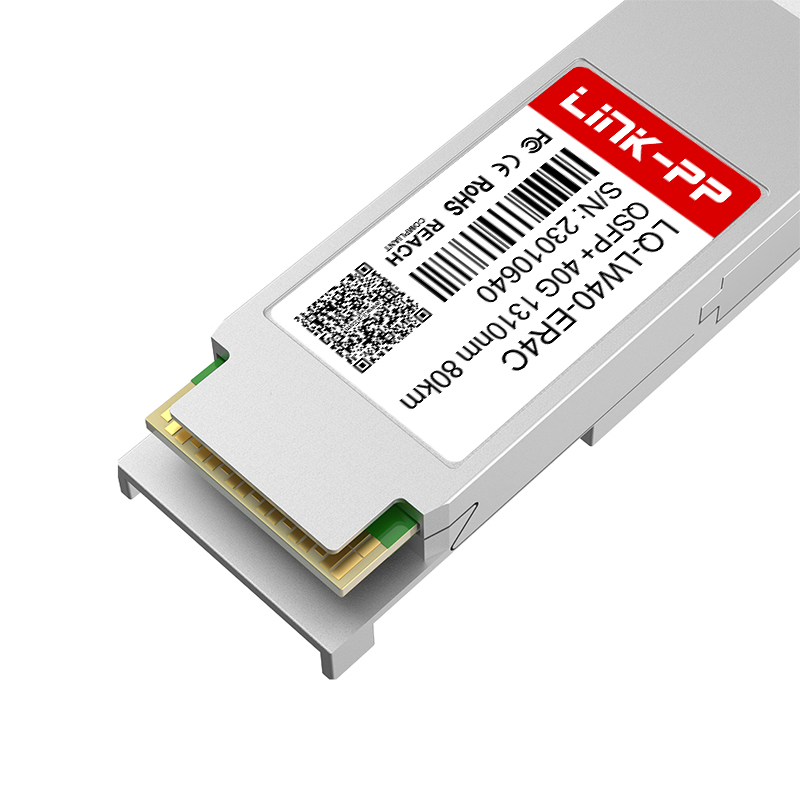

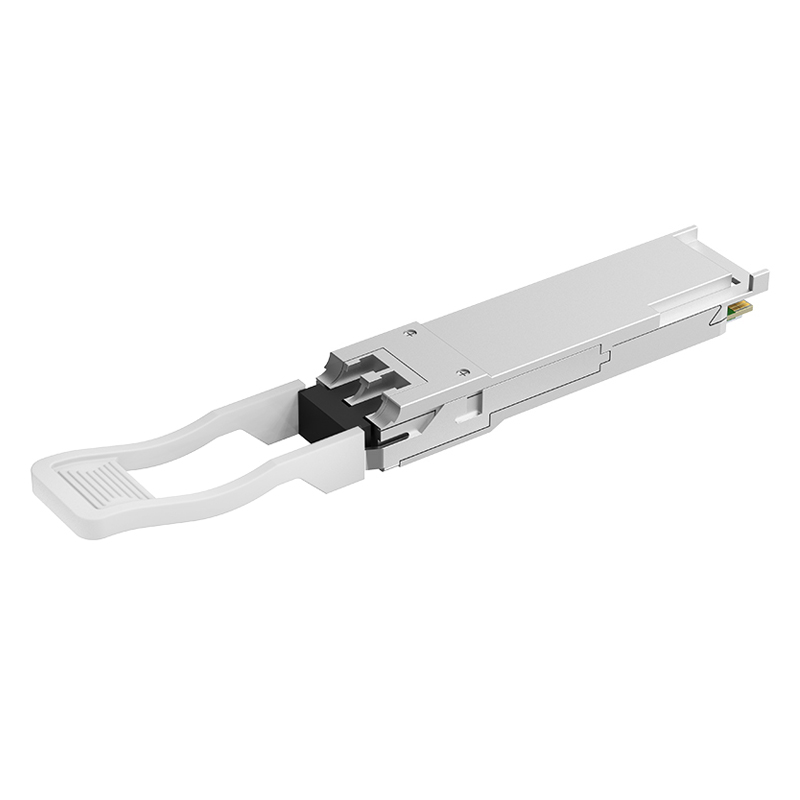

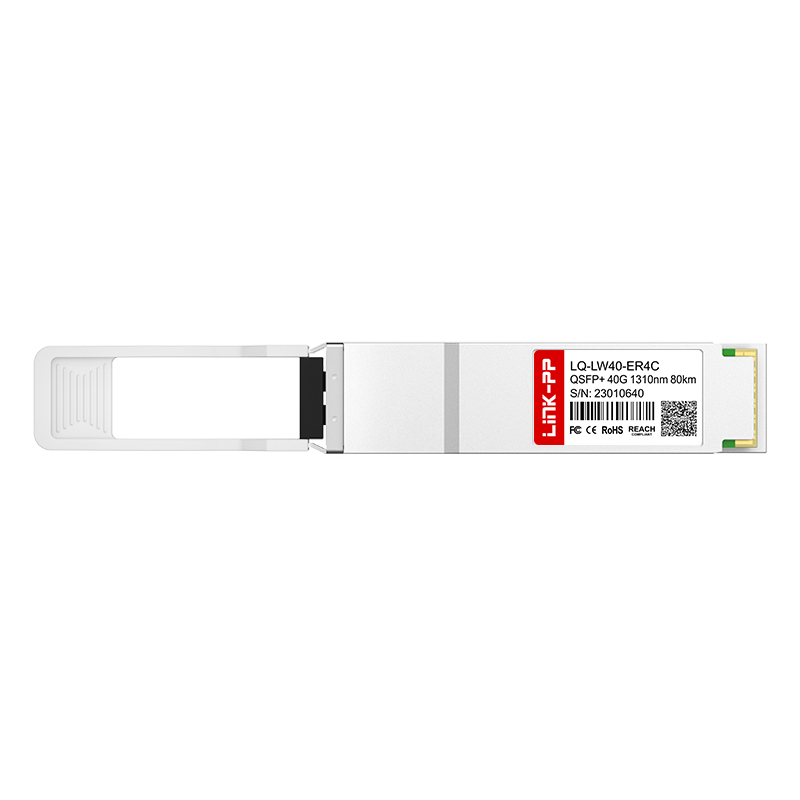

| Item | 40G QSFP+ Module |
| Part Status | Active |
| Form Factor | QSFP+ |
| Max Data Rate | 40G |
| Wavelength | 1310nm |
| Max Cable Distance | 80KM |

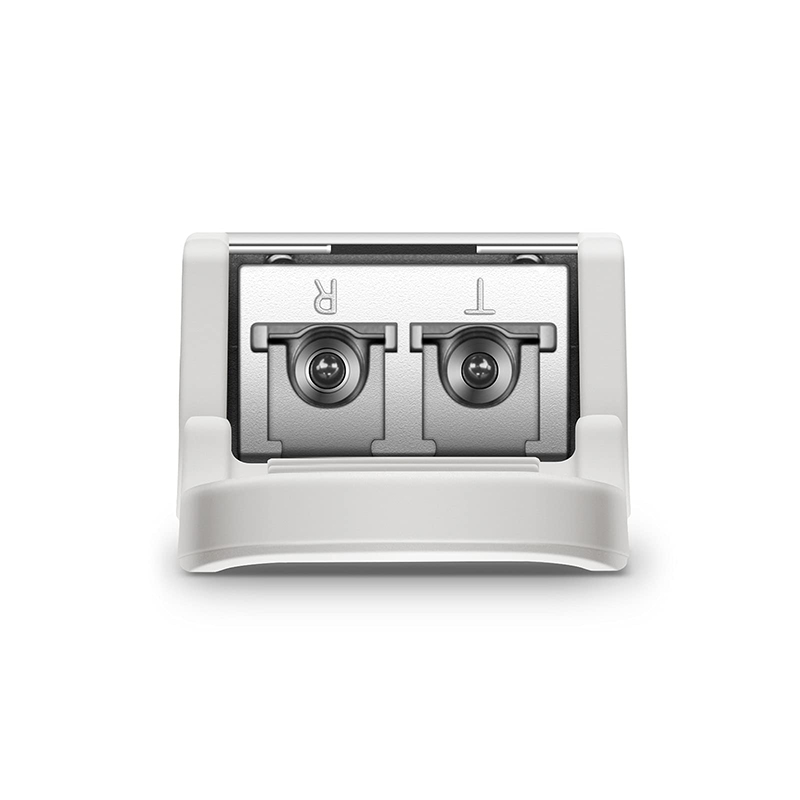

| Connector | Duplex LC |
| Media | SMF |
| Optical Component | EML/PIN |
| TX Power | 1~6dBm |
| Receiver Sensitivity | <-25dBm |
| Receiver Overload | -8dBm |
| Power Consumption | ≤4.5W |
| DDM/DOM | DDM Supported |
| Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | QSFP+ MSA, IEEE 802.3ba Compliant |
| Warranty | 5 Years |
| Sample | Available |
Provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier(EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical module which the product rate ranging from 10G to 800G, providing high-quality optical interconnection solutions.
High reliability and performance products with mature and efficient lasers and mainstream chip solutions. Includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul for 4G/5G systems.
Providing FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products for global communication network constructers.
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
