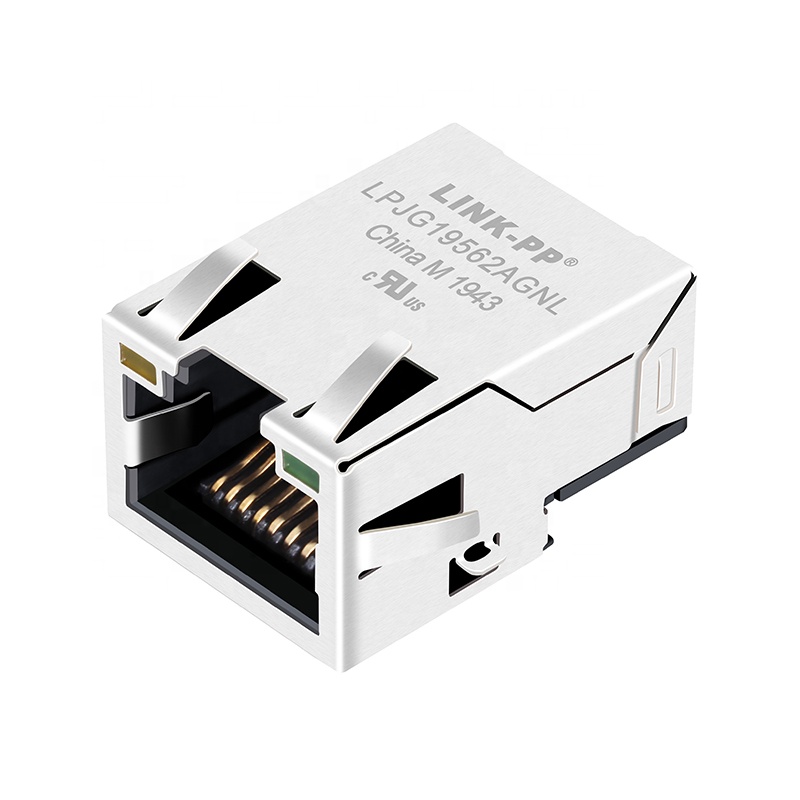

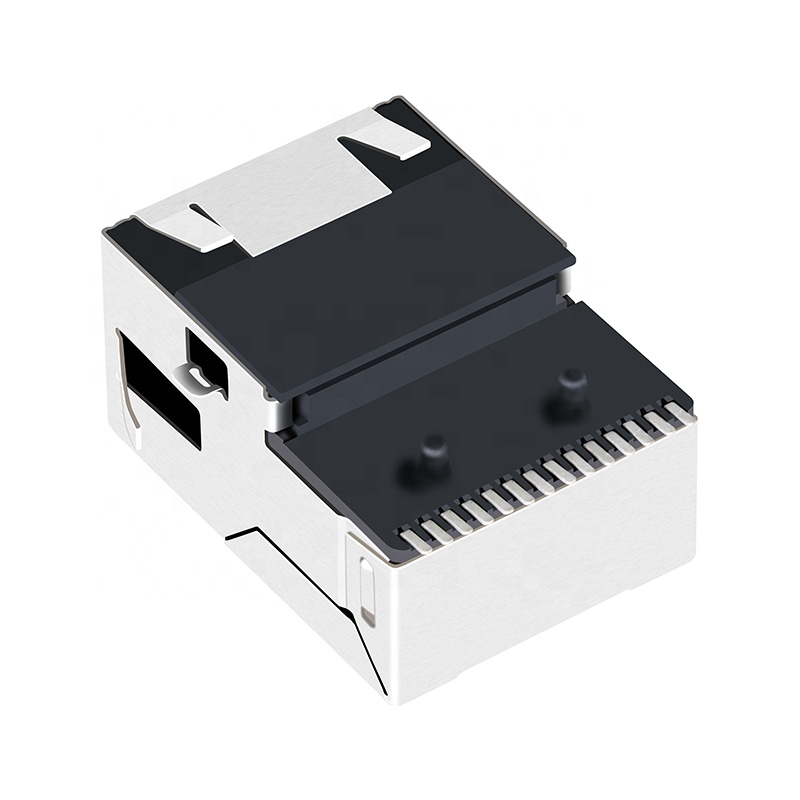

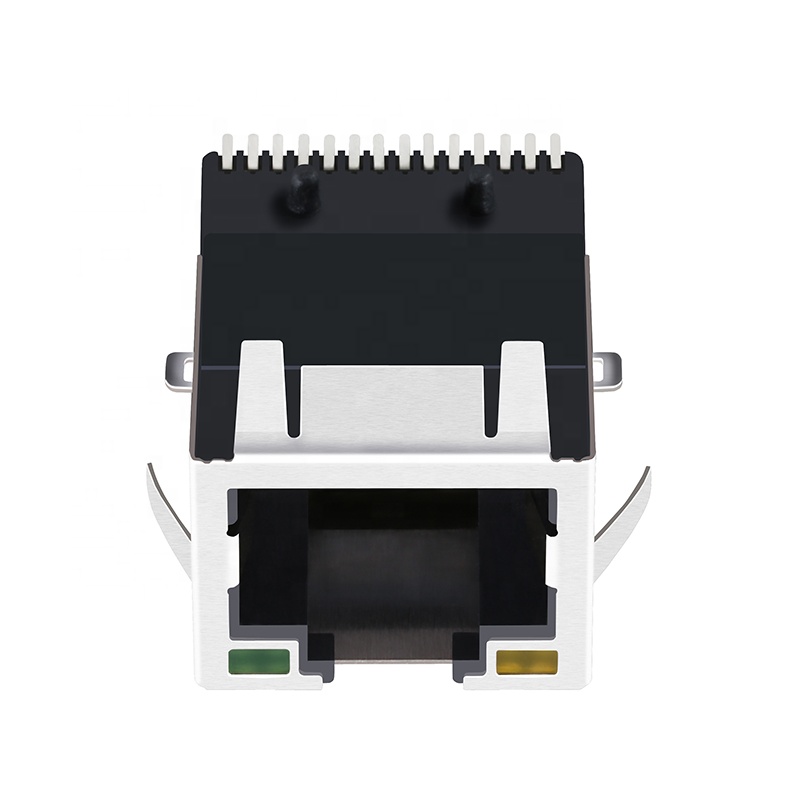

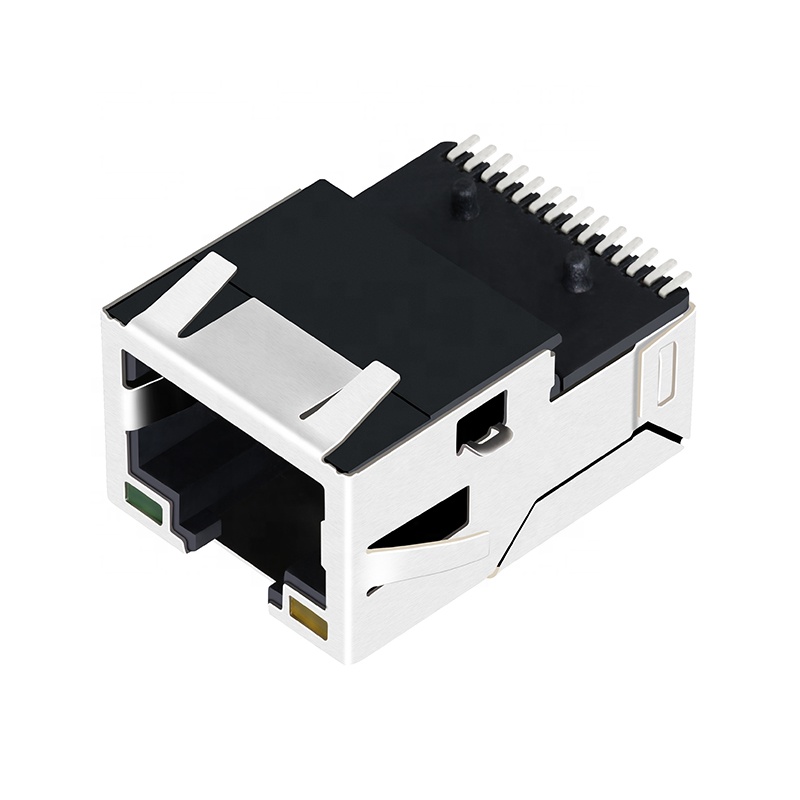

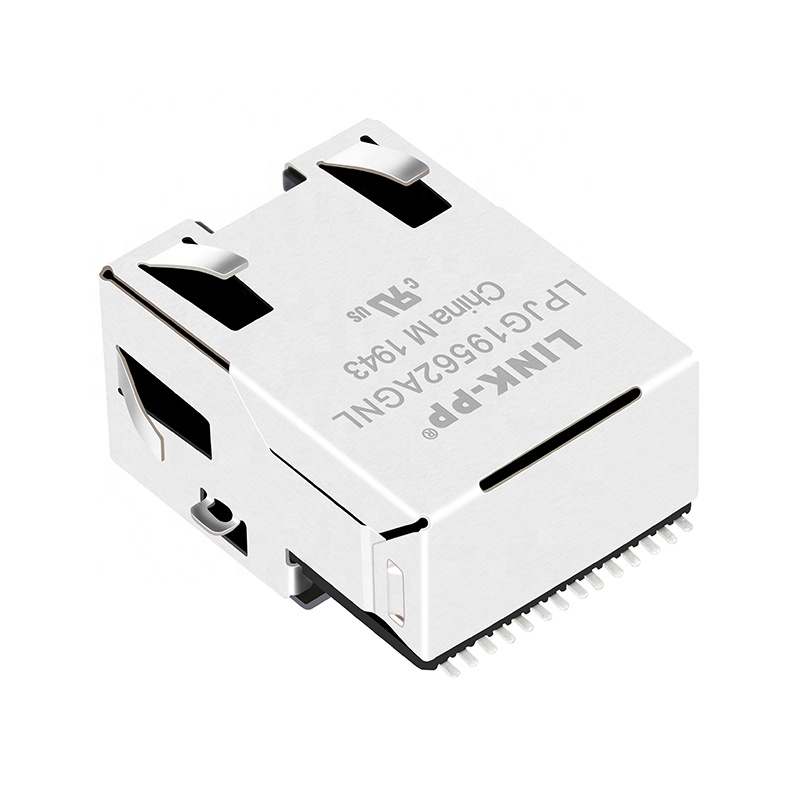

7498111120AR 7498111120R Shielded 1000Base-T 1 Port SMT RJ45 Modular Jack with Magnetics
7498111120AR 7498111120R Shielded 1000Base-T 1 Port SMT RJ45 Modular Jack with Magnetics
7498111120AR 7498111120R Shielded 1000Base-T 1 Port SMT RJ45 Modular Jack with Magnetics
7498111120AR 7498111120R Shielded 1000Base-T 1 Port SMT RJ45 Modular Jack with Magnetics
7498111120AR 7498111120R Shielded 1000Base-T 1 Port SMT RJ45 Modular Jack with Magnetics
1 / 5
7498111120AR 7498111120R Shielded 1000Base-T 1 Port SMT RJ45 Modular Jack with Magnetics
7498111120AR 7498111120R Shielded 1000Base-T 1 Port SMT RJ45 Modular Jack with Magnetics
7498111120AR 7498111120R Shielded 1000Base-T 1 Port SMT RJ45 Modular Jack with Magnetics
7498111120AR 7498111120R Shielded 1000Base-T 1 Port SMT RJ45 Modular Jack with Magnetics
7498111120AR 7498111120R Shielded 1000Base-T 1 Port SMT RJ45 Modular Jack with Magnetics

7498111120AR 7498111120R Shielded 1000Base-T 1 Port SMT RJ45 Modular Jack with Magnetics

Send Inquiry

Product Description

Product Categories Overview
7498111120AR 7498111120R Shielded 1000Base-T 1 Port SMT RJ45 Modular Jack with Magnetics
Products Description
Item RJ45 Female Connector
Bothhand Part Number 7498111120AR 7498111120R
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Dimensional Drawing 1 Product Dimensional Drawing 2
RJ45 Front View RJ45 Side View RJ45 Bottom View RJ45 Packaging Display
☞ Products Link Overview ☞
Product Categories Grid
Manufacturing Equipment 1 Manufacturing Equipment 2 Testing Laboratory 1 Testing Laboratory 2 Warehouse and Stock 1 Warehouse and Stock 2
FAQ
1 Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
2 Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but you should cover the shipping fee.
3 What is your delivery time?
Items in stock are ready to ship, and mass production usually takes 15-30 days.
4 What after-sales service do you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
5 Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion about your custom requirements.
6 What is your main advantage?
We bring 19 years of professional production experience and have served as a trusted component partner for Intel and Jabil for many years.
