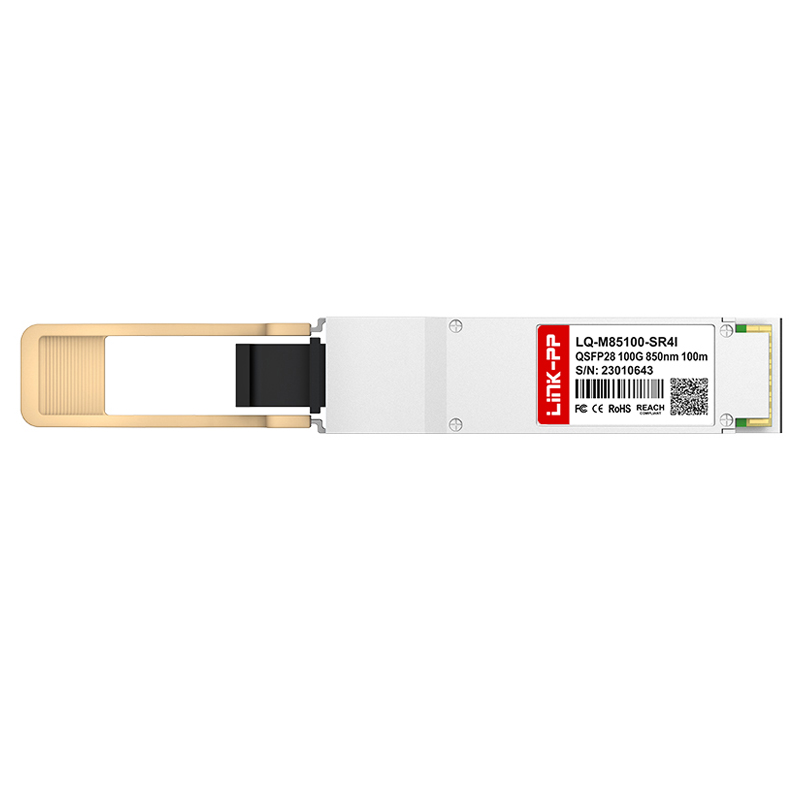

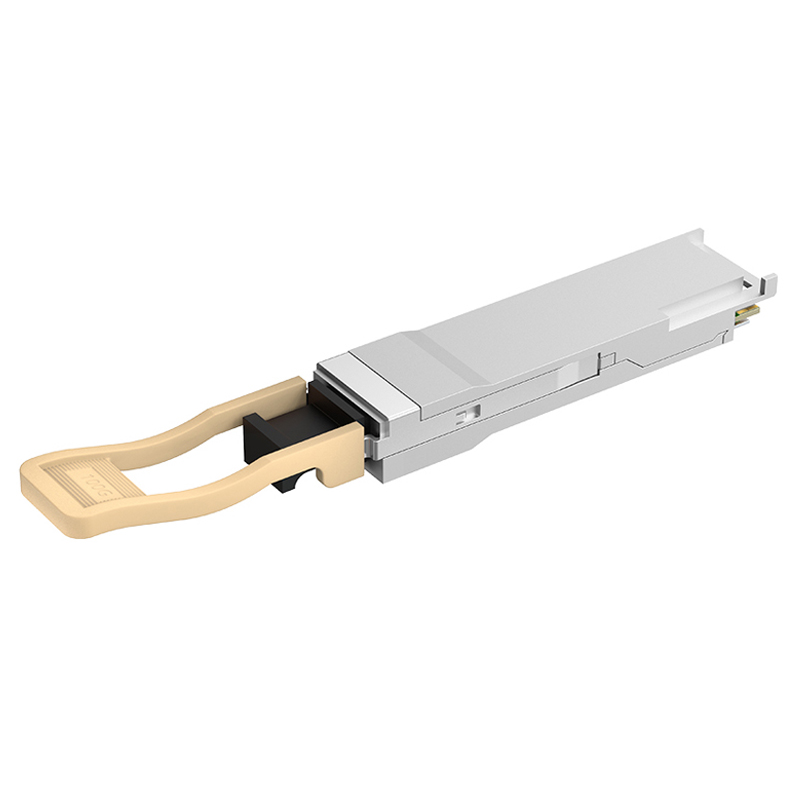

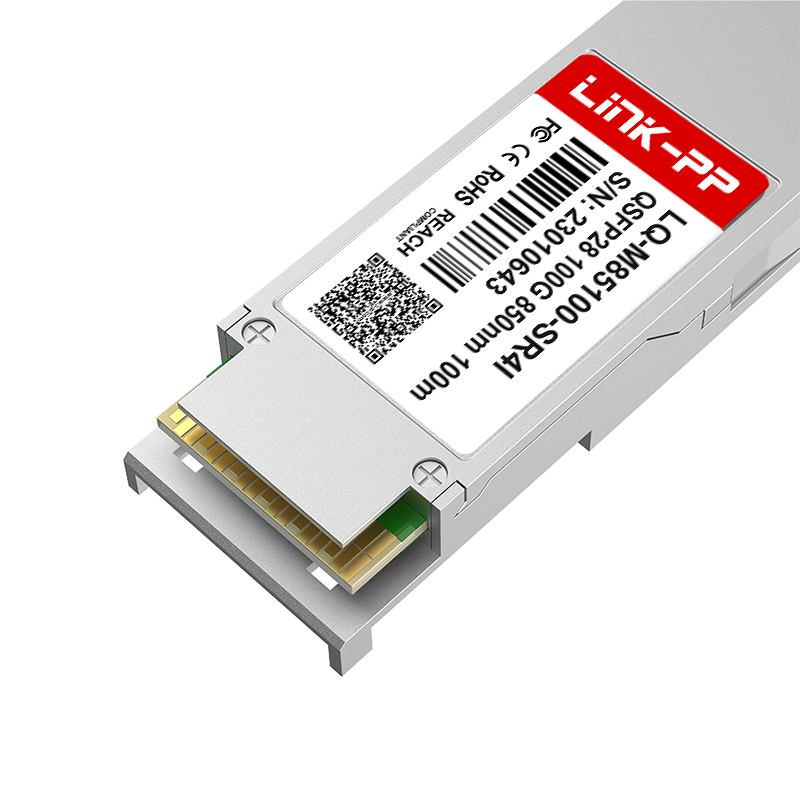

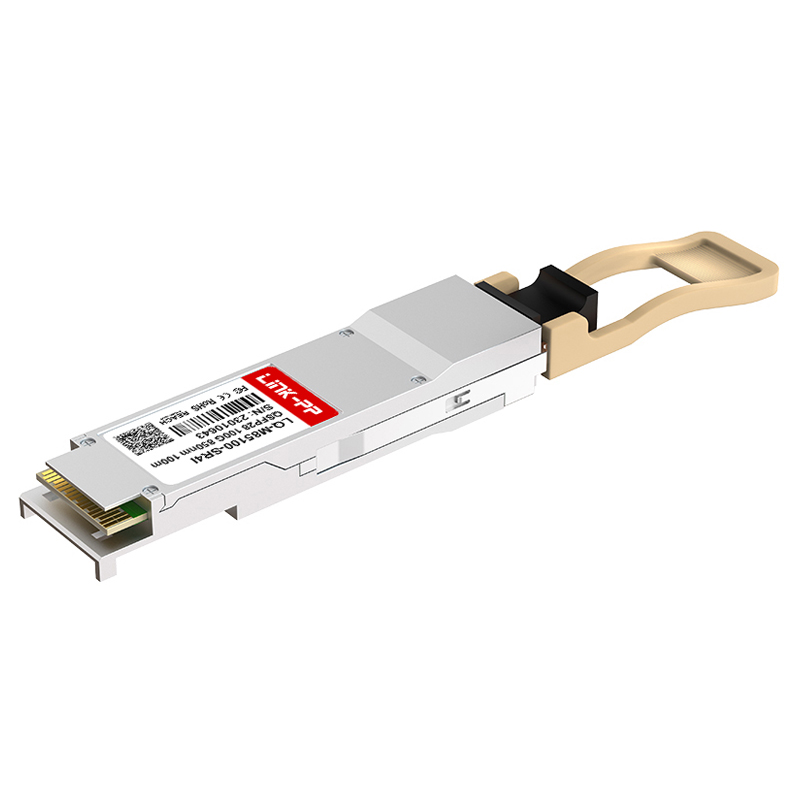

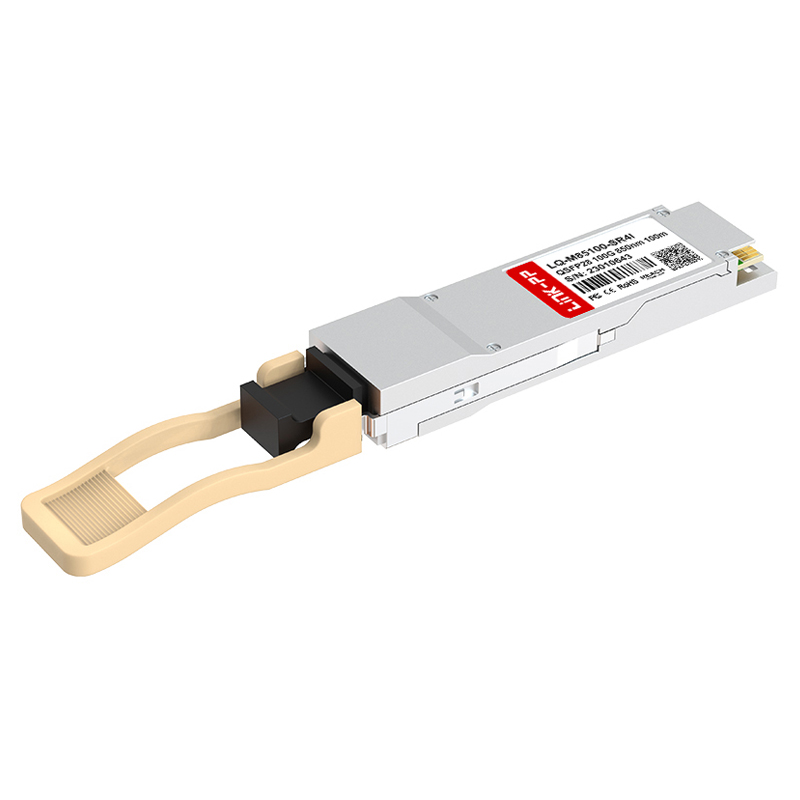

| Item | Fiber Optical Modules |
| Part Status | Active |
| Form Factor | QSFP |
| Max Data Rate | 103.125Gbps (4x 25.78Gbps) |
| Max Cable Distance | 70m@OM3 / 100m@OM4 |
| Wavelength | 850nm |
| Connector | MTP/MPO-12 |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Transmitter Type | VCSEL 850nm |
| TX Power | -8.4~2.4dBm |
| Receiver Sensitivity | <-10.3dBm |
| Power Budget | 1.9dB |
| Receiver Overload | 2.4dBm |
| Power Consumption | ≤2.5W |
| Extinction Ratio | >3dB |
| DDM/DOM | Supported |
| Warranty | 5 Years |
| Sample | Available |
| Protocols | IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636, RoHS, CPRI, eCPRI |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
ISO9001, ROHS, REACH, CE and UL certified manufacturing.
Abundant capacity of 3000K per month for short lead times.
Providing high-speed optical interconnection solutions worldwide.
Our company is a specialized manufacturer of magnetic telecom and networking components. We own advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we currently have around 2000 staff dedicated to providing high-quality solutions.
We develop, manufacture, and sell a full series of optical modules for cloud computing and ultra-broadband networks. Using the latest optoelectronics technologies, we ensure every product meets the highest industrial standards.
