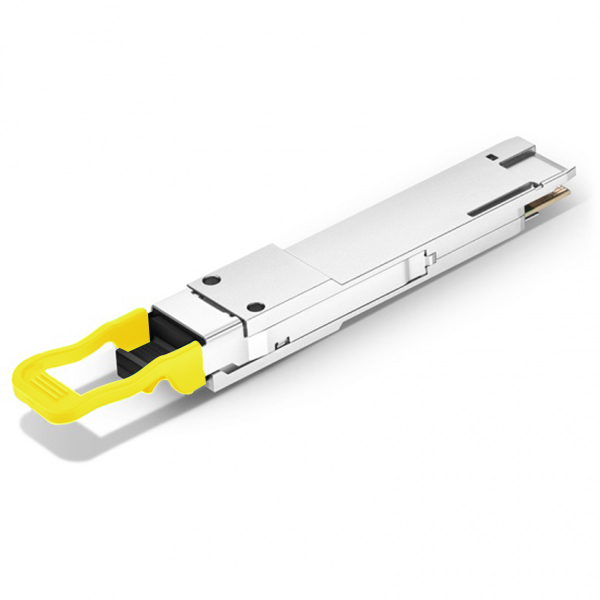

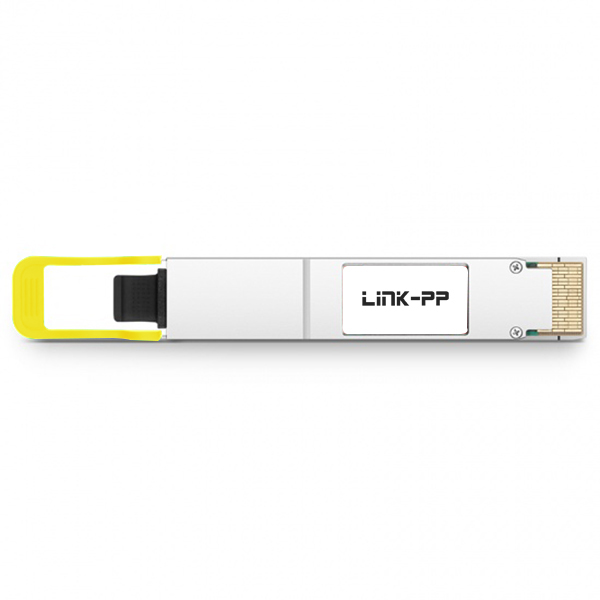

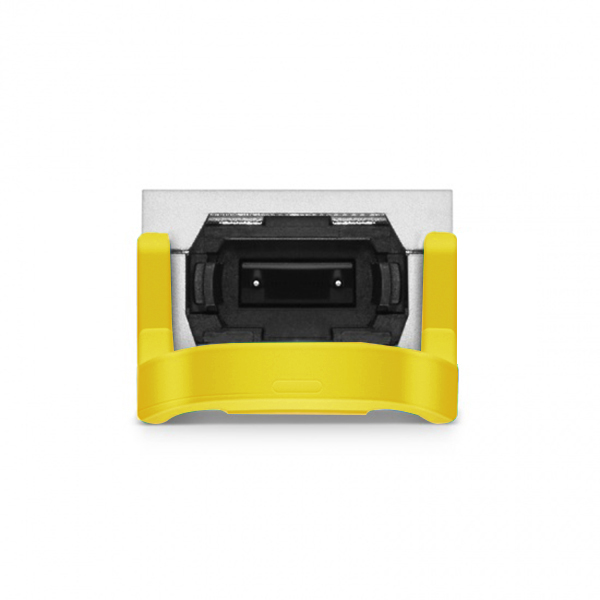

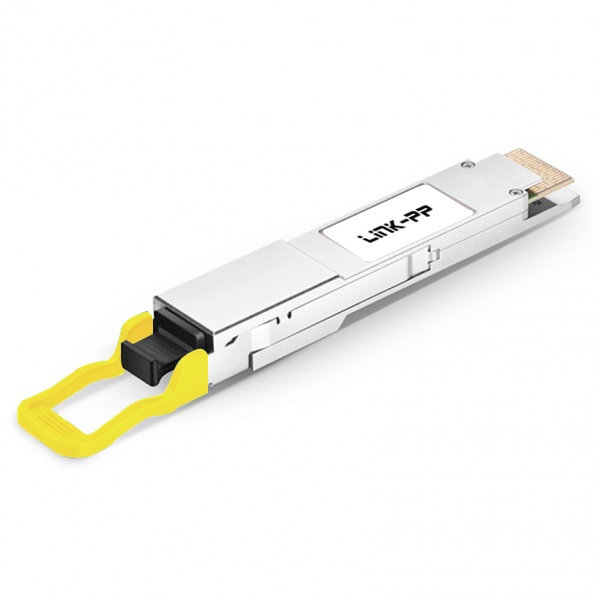

400G DR4 QSFP-DD PAM4 1310nm 500m MTP/MPO-12 APC SMF Optical Transceiver Module
◆ Products Description
| Item | Fiber Optical Modules |
| Part Status | Active |
| Form Factor | QSFP-DD |
| Max Data Rate | 425Gbps (4x106.25Gb/s) |
| Max Cable Distance | 500m |
| Wavelength | 1310nm |
| Connector | MTP/MPO-12 APC |
| Media | SMF |
| Optical Component | DFB/PIN |
| TX Power | -2.9~4dBm |
| RX Power | -5.9~4.0dBm |
| Receiver Sensitivity | -6.5dBm |
| Powerbudget | 3dB |
| Power Consumption | ≤10W |
| Extinction Ratio | 3.5dB |
| DDM/DOM | DDM Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Warranty | 5 Years |
| Sample | Available |
| Protocols | IEEE 802.3bs, QSFP-DD MSA, CMIS 4.1 |
◆ VIEW OUR SOLUTION
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. Our company provides a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
◆ Related Products SFP Cage
◆ Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL, owning advanced manufacturing facilities and test equipment. Established in 1997, we have around 2000 staff at present. With an abundant productive capacity of 3000K per month, we are able to deliver products within a short time.
Moreover, we provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks.
◆ FAQ
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, though shipping fees apply.
3. What is your delivery time?
Products in stock are ready to ship; mass production typically takes 15-30 days.
4. What after-service can you offer?
We provide a one-year guarantee period and offer 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, we welcome inquiries for detailed discussions regarding OEM and ODM requirements.
6. What is your advantage?
With over 19 years of production experience, we have established long-term partnerships with leading industry players.
