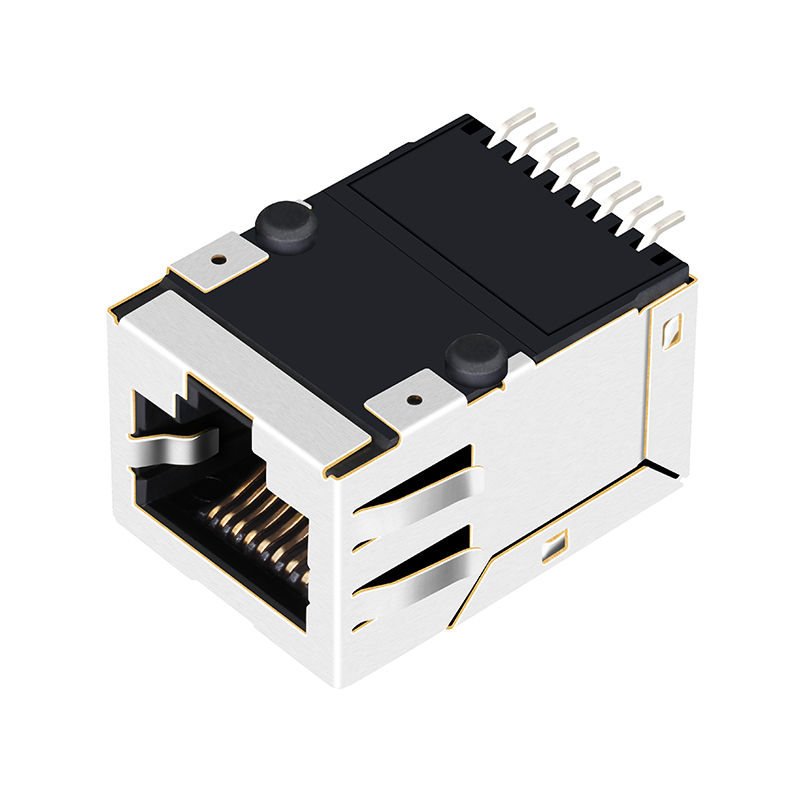

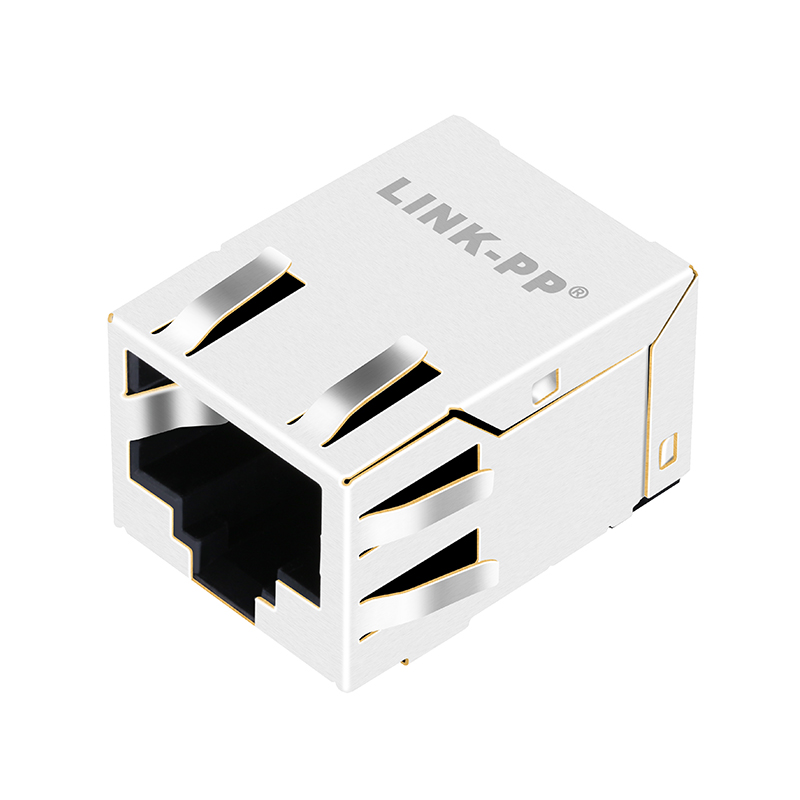

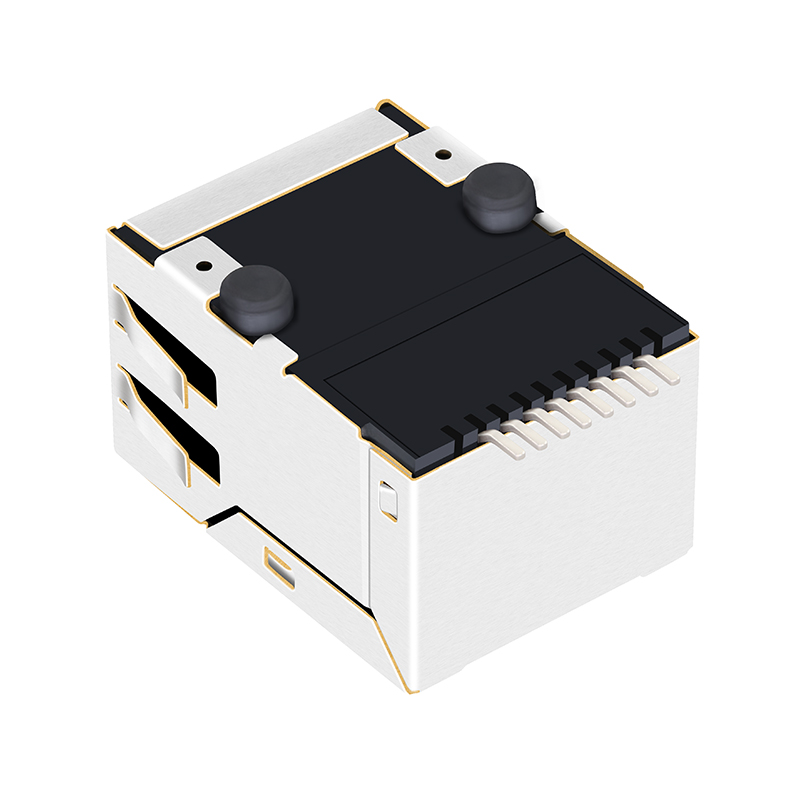

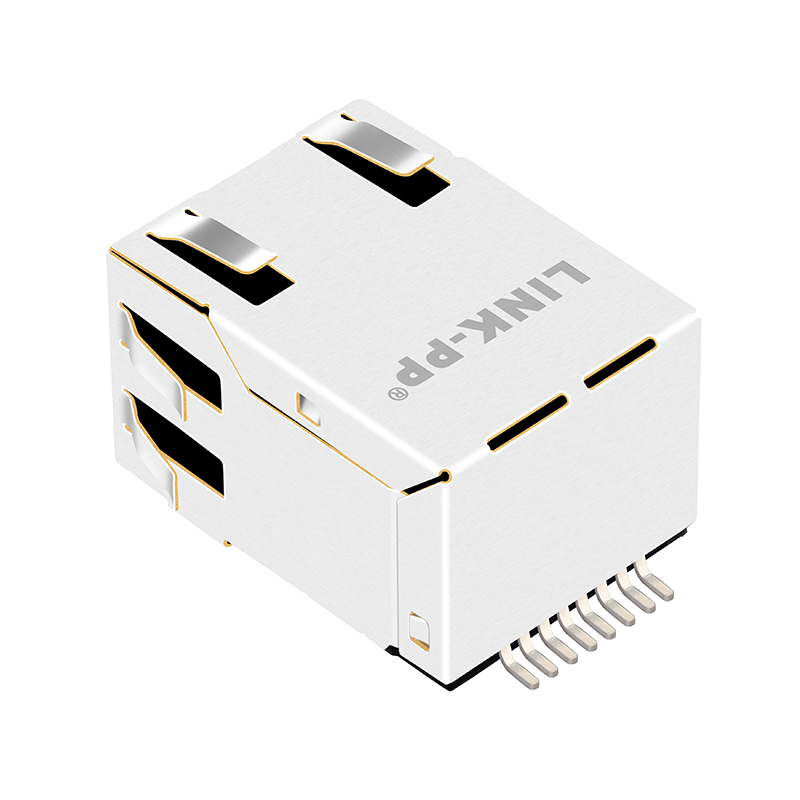

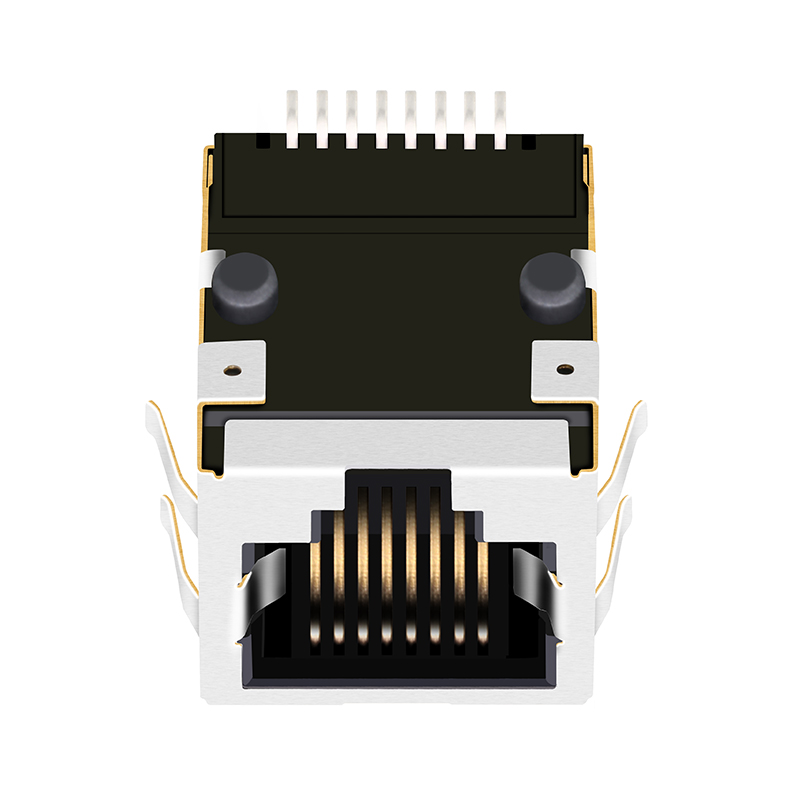

Low Profile RJ45 connector 8P8C SMT Top Entry Modular Jack 0855135109

Send Inquiry

Product Description

Low Profile RJ45 Connector 8P8C SMT Top Entry Modular Jack 0855135109

Part Number	0855135109
Application-LAN	ETHERNET (NON POE)
AutoMDIX	YES
Bst Circuit	YES
Configuration RX	T, C
Configuration TX	T, C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores Per Port	4
Diodes	NO DIODES
LED Option	WITH LEDS / WITHOUT LEDS
Latch	UP / DOWN
Number of Ports	1X1
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES (RoHS-5 with lead in solder exemption)
Speed	10/100/1000 BASE-T
Temperature	0 TO 70°C / -40 TO 85°C
Turns Ratio RX/TX	1CT:1

Why Choose Our Solutions

Global leader in integrated RJ45 connectors and discrete magnetic transformers, providing high-performance components for telecommunications and networking hardware.

🛡️

Professional Certification

ISO 9001:2008
UL Certification
Reach Certification
RoHS Compliance
Active Environmental Policy

✅

100% Quality Guarantee

Manufactured Under Strict Controls
100% Tested (Not Just Batch Tested)
Trusted by Global Fortune 500 Companies
6-Year Quality Guarantee

🚀

Competitive Service

Cost-Effective Pricing
Fast Delivery: 2-3 Weeks
Free Samples Available
Custom Design Capabilities
Global Shipping Discounts

Preferred Supplier for Industry Leaders in Computing and Networking

Frequently Asked Questions

1. What is the primary application for the 0855135109 RJ45 connector? This connector is designed for Ethernet (Non-PoE) applications, supporting data transfer speeds of 10/100/1000 Base-T.

2. Does this modular jack support both standard and industrial temperature ranges? Yes, it is versatile and can operate in temperatures ranging from a standard 0 to 70°C up to an industrial -40 to 85°C.

3. What mounting style does this RJ45 connector use? It features a Low Profile, Top Entry SMT (Surface Mount Technology) design, making it ideal for compact PCB layouts.

4. What are the gold plating options available for the contacts? We offer multiple gold plating thicknesses for the contact mating area, including 6u", 15u", and 30u" to meet different durability requirements.

5. Is the 0855135109 connector RoHS compliant? Yes, the product is RoHS compliant, meeting international environmental standards for hazardous substances.

6. Can this connector be ordered with integrated LEDs? Yes, we provide flexible configurations including options with LEDs or without LEDs to suit your specific hardware design.
