| Specification Item | Details |
|---|---|
| Place of Origin | Guangdong, China |

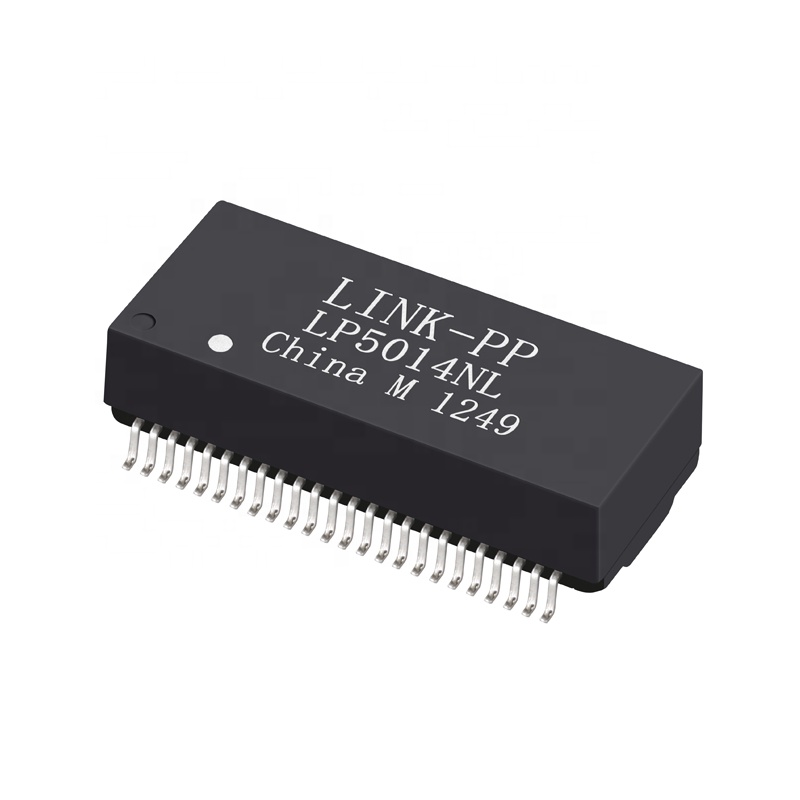

| Model Number | LP5014NL |
| Usage | Electronic |
| Phase | Single |
| Coil Structure | TOROIDAL |
| Coil Number | AUTOTRANSFORMER |
| Part Number | S558-5999-Q2-F |
| Part Status | Active |
| Application-Lan | Ethernet(Non-PoE) |
| Number of Ports | Dual Port |
| Speed | 10/100/1000 Base-TX |
| Package | Tape & Reel |
| Cores per Port | 16 |
| PIN number | 48 PIN |
| Mounting Type | Surface Mount |
| Temperature | 0℃ TO +70℃ |
Packaging Specifications:
As a specialized manufacturer of magnetic telecom and networking components certified by ISO9001:2000, RoHS, REACH, CE, and UL, the facility features advanced manufacturing installations and testing equipment imported from abroad.
With an abundant monthly productive capacity of 3000K, short delivery times and professional complete solutions for magnetic components are reliably provided alongside strong technical support.
Key Applications:
Products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems.
Main Product Ranges:
A1: It is designed for electronic implementations, specifically optimized for Ethernet (Non-PoE) LAN configurations.
A2: This dual-port component supports high-performance speeds of 10/100/1000 Base-TX.
A3: The standard package format is Tape & Reel, with 350 pieces per reel (SPQ) and 1400 pieces per master carton. A single piece weighs approximately 0.005kg.
A4: The component is qualified to operate safely and effectively in temperature environments ranging from 0℃ to +70℃.
A5: All magnetic telecommunication and networking components are produced in facilities conforming to ISO9001:2000 standard regulations and hold certifications for RoHS, REACH, CE, and UL.

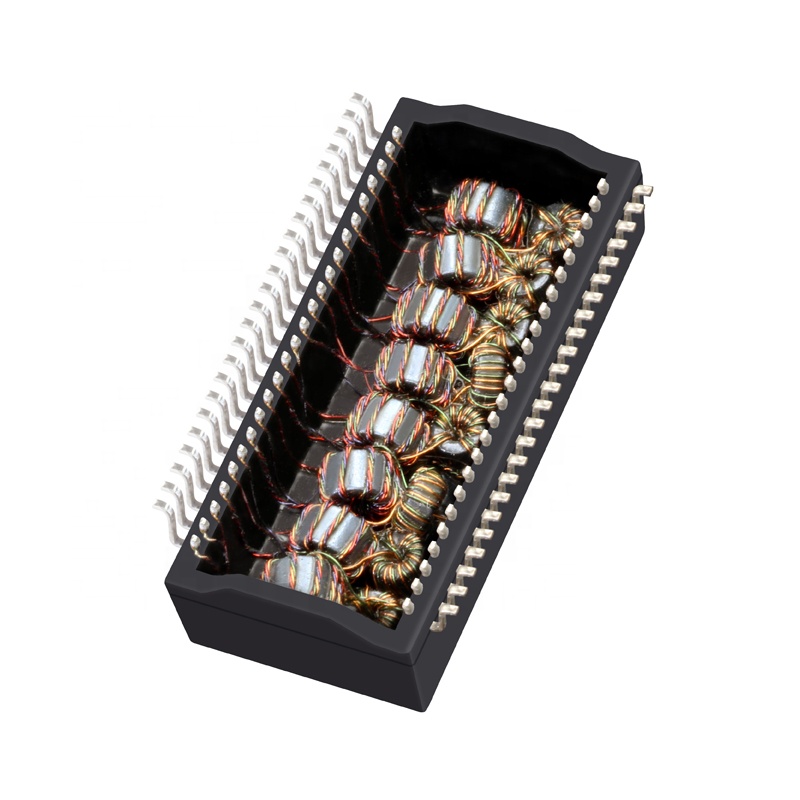

A6: This device features a surface mount (SMD) mounting type with 48 pins, structured with a toroidal coil design.
