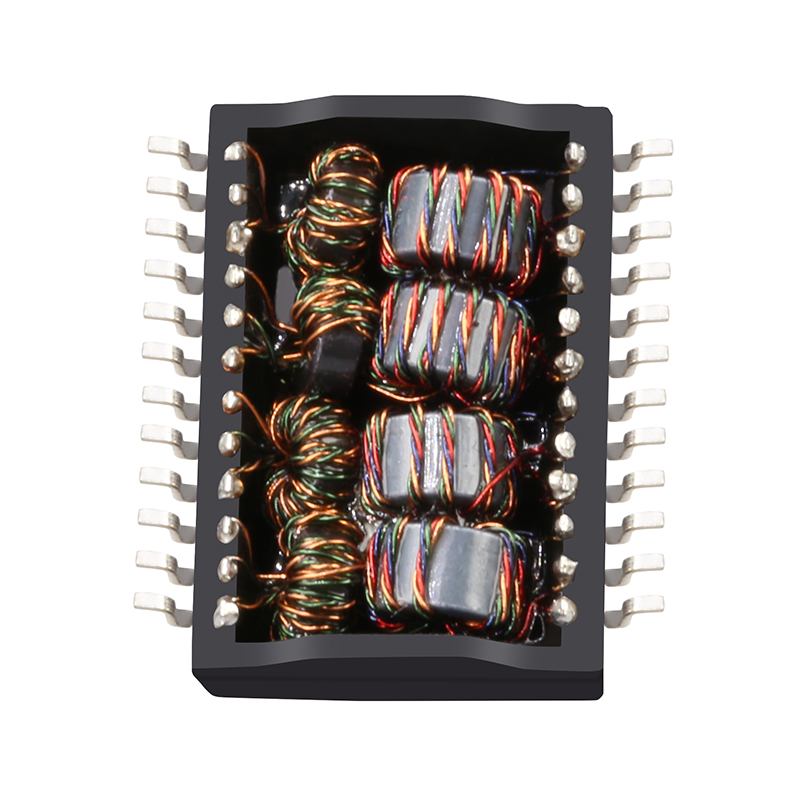

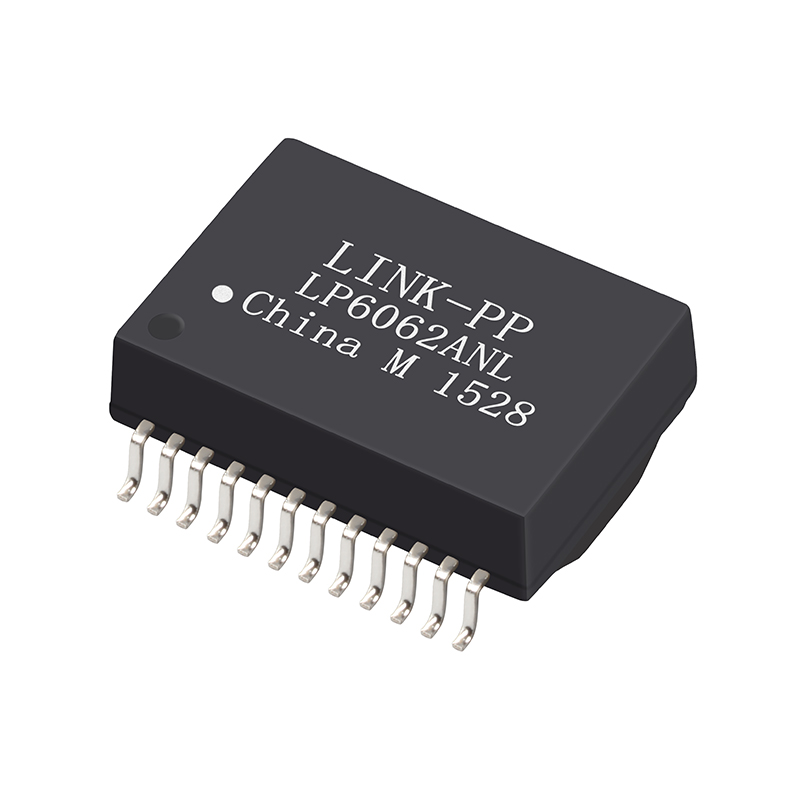

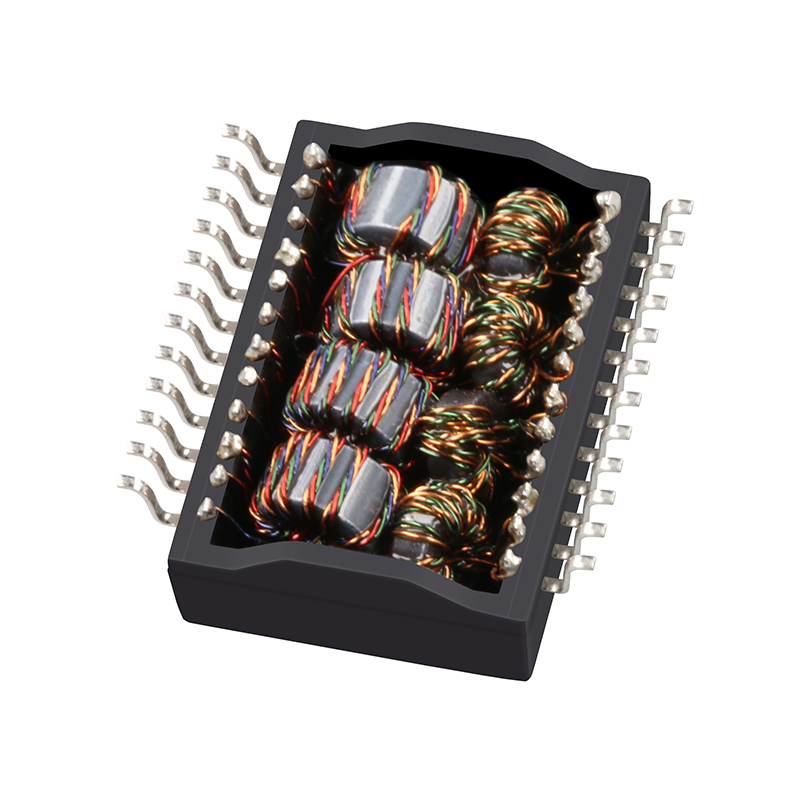

In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
1 / 5
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL

In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL

Send Inquiry

Product Description

Lan Transformer Highlight

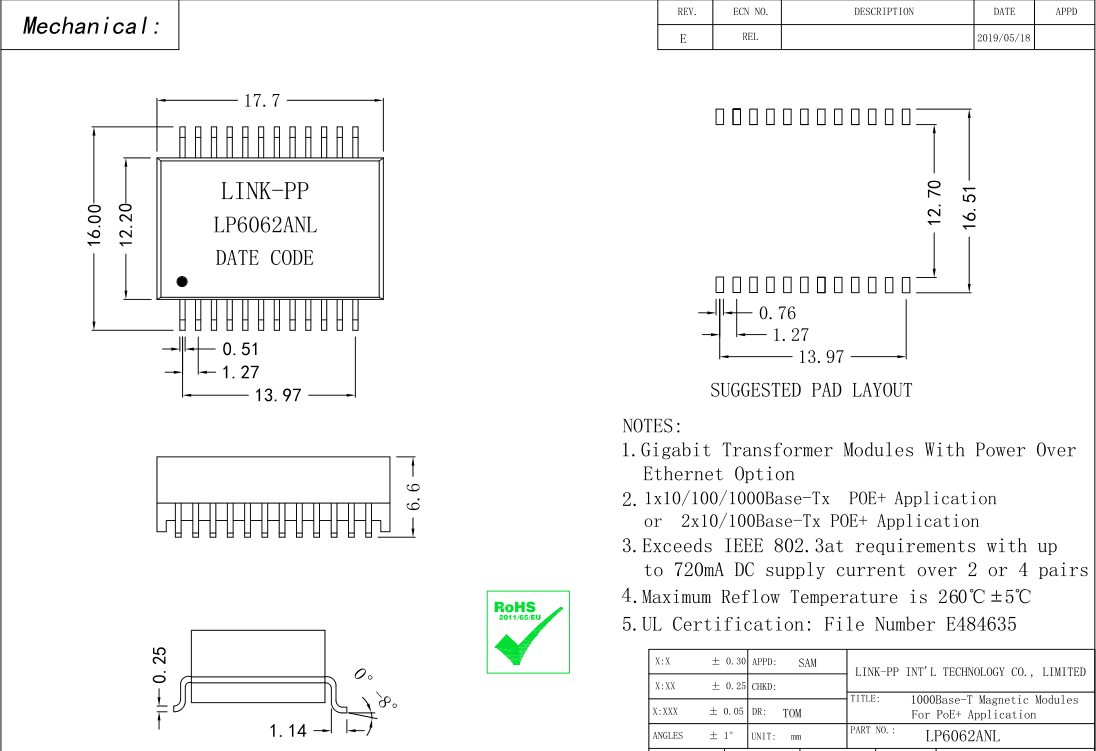

Lan Transformer Front View Lan Transformer Side View Lan Transformer Diagram
Lan Transformer Application
Item Value
Place of Origin China
LINK-PP Part Number: LP6062ANL
Halo Part Number TG1G-S012NZRL
Transformer Type Lan Transformer
Application-Lan Ethernet(PoE+)
Number of Ports Single Port
Speed 10/100/1000 Base-T
Package Tape & Reel
Cores per Port 8
PIN number 24 Pin
Mounting Type Surface Mount
Temperature -40℃ TO +85℃
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C,S
Lan Transformer Performance
Packaging Specifications: N.W/pcs: 0.004kg | Package: Reel | SPQ: 400pcs | Qty/carton: 1600pcs | Carton size: 37*37*25cm | G.W/carton: 5.8kg
Production Process 1 Production Process 2 Production Process 3

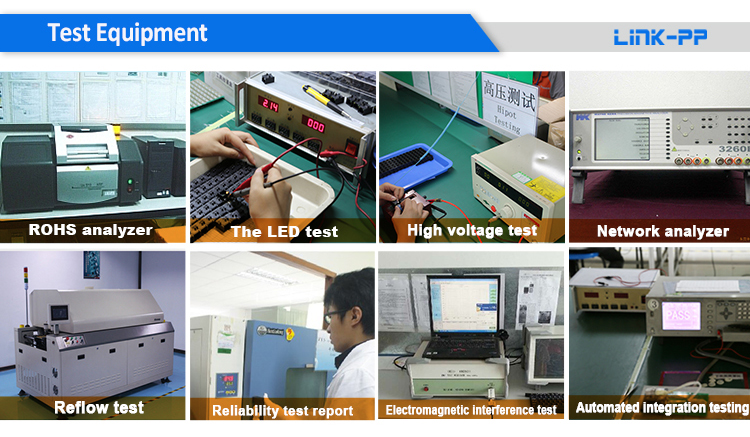

Quality Inspection 1 Quality Inspection 2 Quality Inspection 3
Certification and Standards
Frequently Asked Questions
Q: What applications is the LP6062ANL Lan Transformer suitable for?
It is specifically designed for Ethernet (PoE+) applications, supporting network speeds of 10/100/1000 Base-T with a single-port layout.
Q: Can I use LP6062ANL as a direct cross-reference for Halo TG1G-S012NZRL?
Yes, the LP6062ANL is designed as a compatible replacement for Halo part number TG1G-S012NZRL, matching standard electrical and physical specifications.
Q: What is the operating temperature range for this transformer?
This component supports an industrial-grade temperature range from -40℃ up to +85℃, ensuring stability in varied environmental conditions.
Q: What are the packaging specifications for bulk shipments?
The standard packaging configuration is Tape & Reel (400pcs per reel). A full carton contains 1600pcs with gross dimensions of 37*37*25cm and a gross weight of approximately 5.8kg.
Q: What mounting type and pin configuration does it use?
The LP6062ANL is a Surface Mount (SMD) device equipped with a 24-pin layout, featuring a turns ratio of 1CT:1CT for RX/TX and T, C, S configurations.
