1000Base-T SMT tab up Single Port Modular Jack RJ45 Connector HR961120C

Product Specifications

Item	RJ45 Female Connector
Replaceable Part Number	HR961120C
Part Status	Active
Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Application-Lan	Ethernet (Non-PoE)
Number of Ports	1x1 Port
Speed	10/100 Base-T
Latch	Up
Cores per Port	4
Orientation	90° Angle (Right)
PCB Mount Angle	Side Entry
Shield EMI Tabs	Without
LED Option	Green/Yellow
PCB	FR4
PCB Retaining Post	T Post
Temperature	0°C To 70°C
Bst Circuit	Yes
AutoMDIX	Yes
Contact Mating Area Plating	Gold 6u" / 15u" / 30u"
Turns Ratio RX/TX	1CT:1CT
Configuration RX/TX	T, C

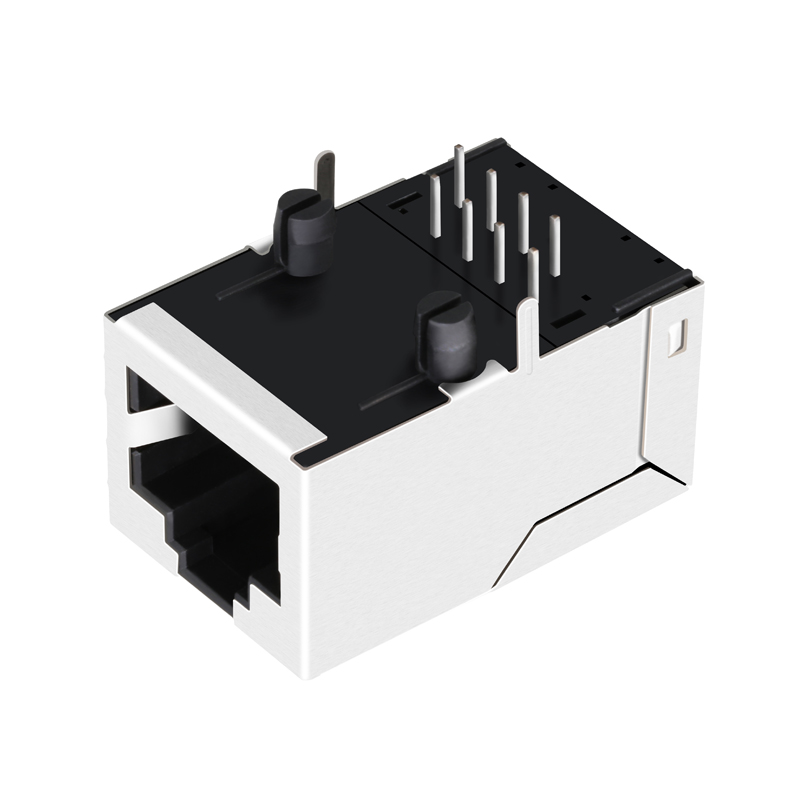

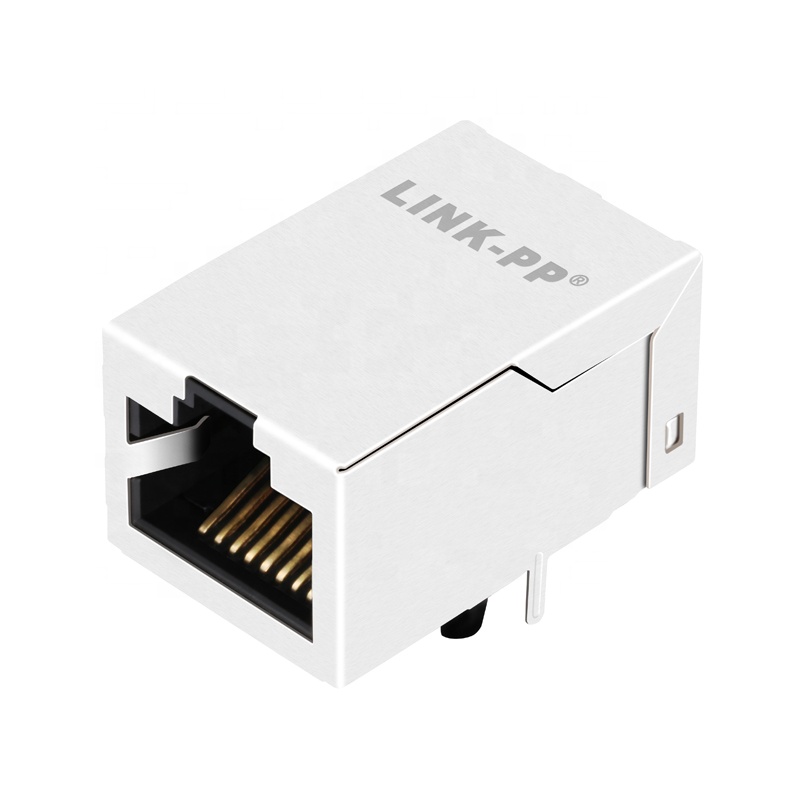

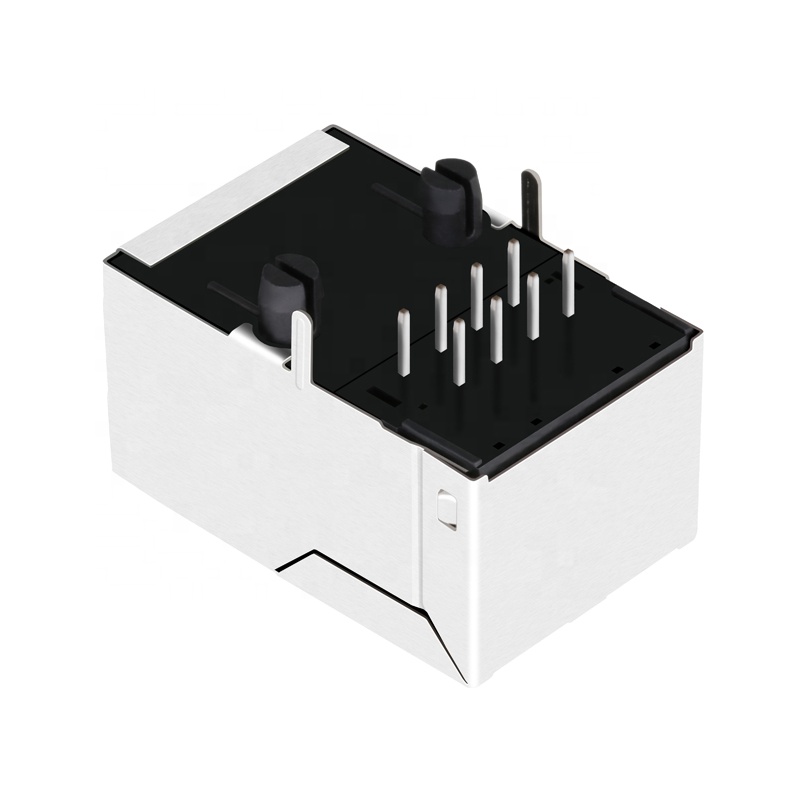

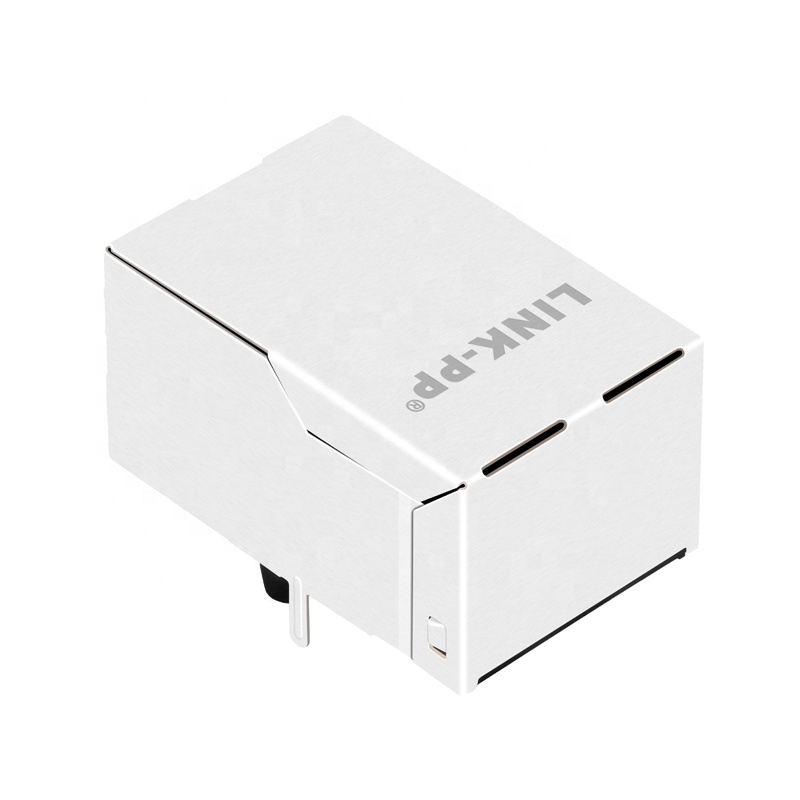

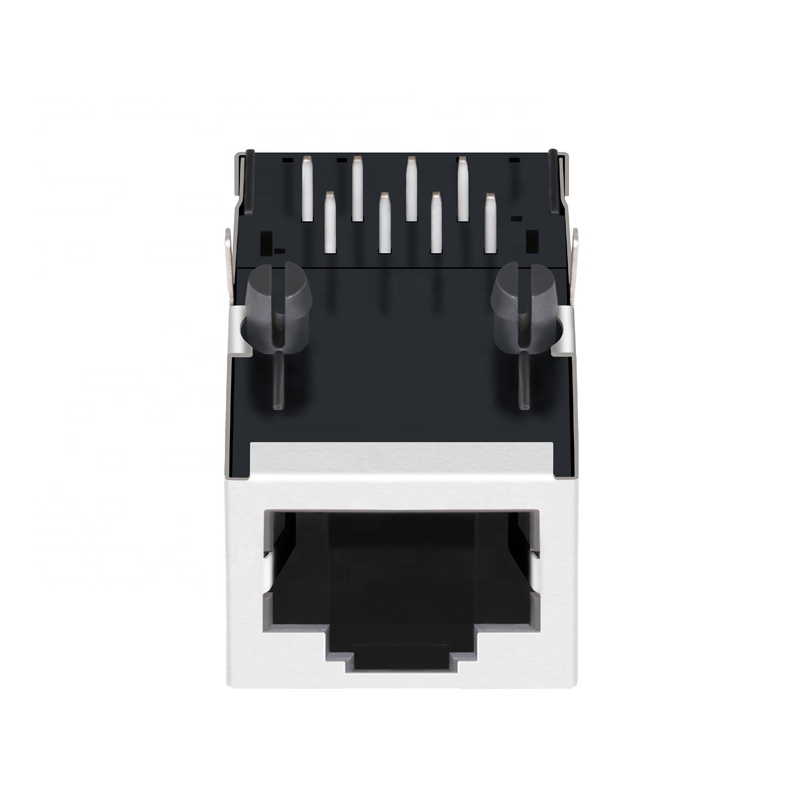

Detailed Product Angles
