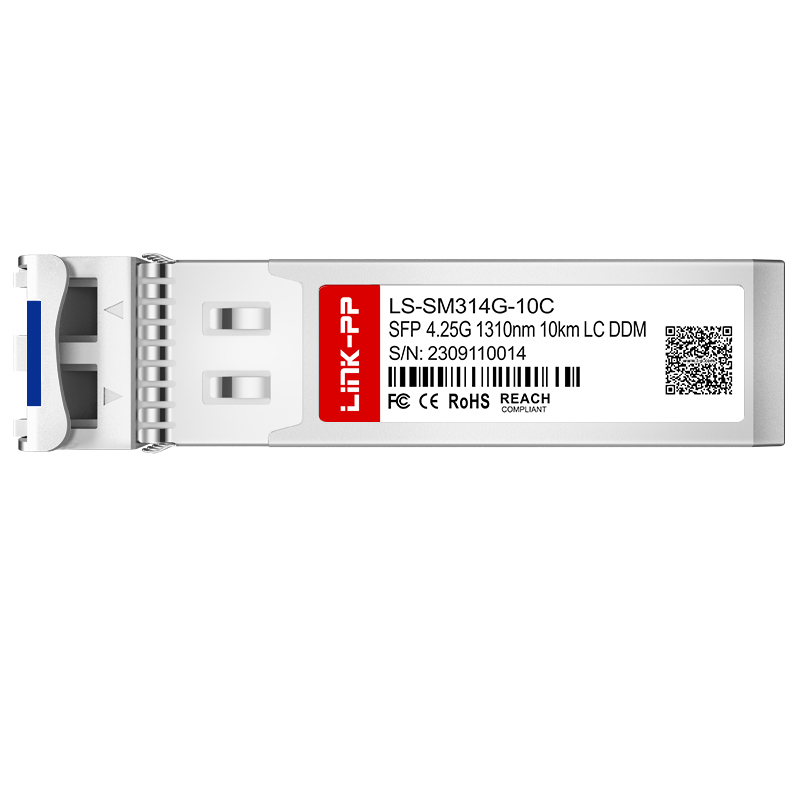

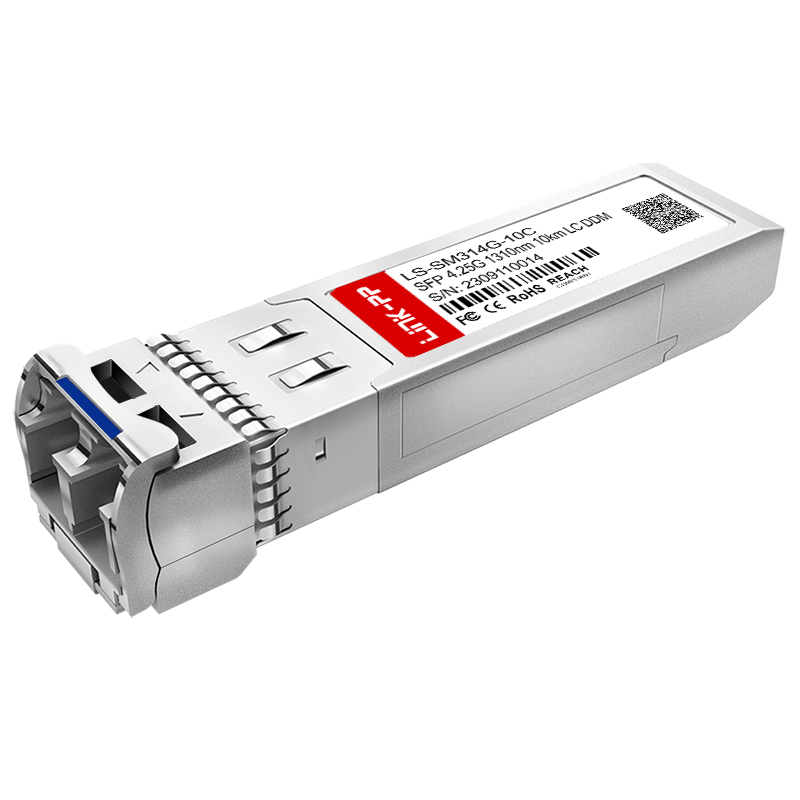

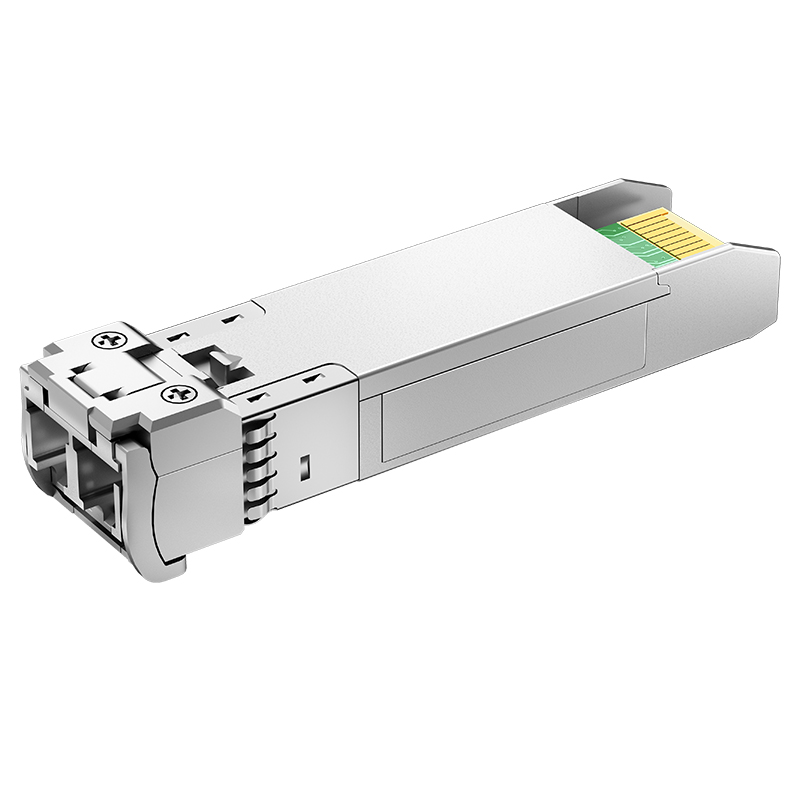

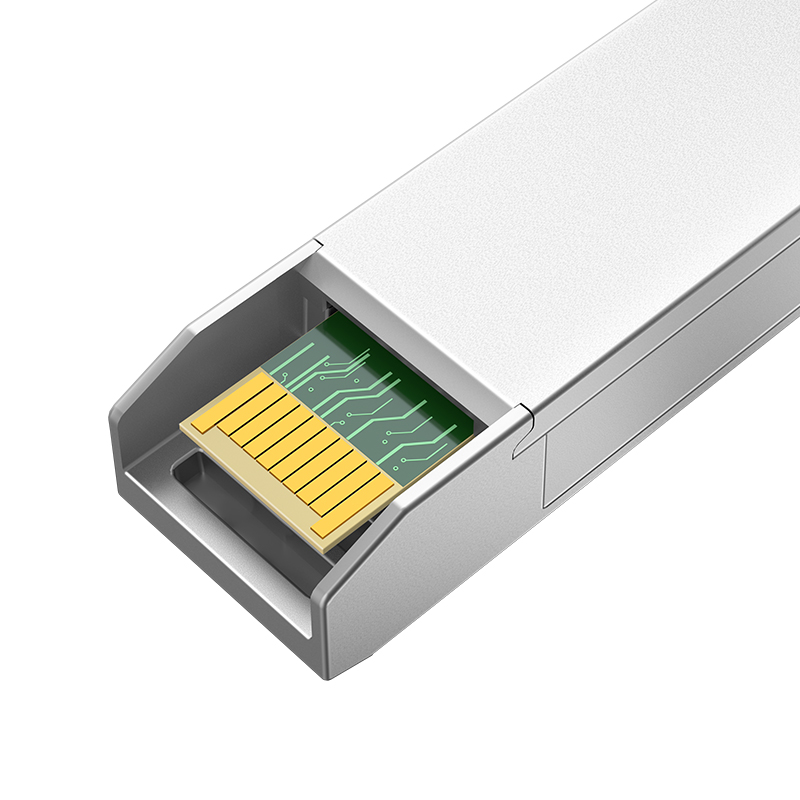

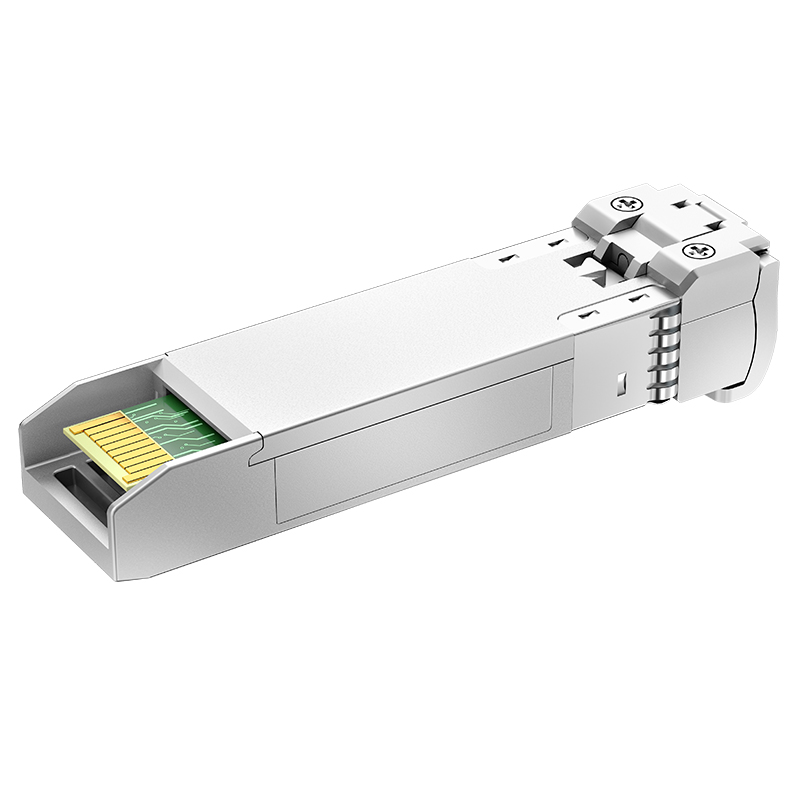

Single Mode SFP 4G Fibre Channel 1310nm 10km Duplex LC Optical Transceiver Module

Product Description

Single Mode SFP 4G Fibre Channel 1310nm 10km Duplex LC Optical Transceiver Module
Part No. LS-SM314G-10C
Form Factor SFP
Max Data Rate 4.25Gbps
Wavelength 1310nm
Max Cable Distance 10km
Connector Duplex LC
Media SMF
Transmitter Type DFB
Receiver Type PIN
TX Power -8 ~ -1dBm
Receiver Sensitivity < -18dBm
EMC (Electro Magnetic Compatibility) Supported
DDM/DOM Supported
Protocols MSA Compliant
Temperature Range 0 to 70°C / -40 to 85°C
Warranty 5 Years
Sample Available
VIEW OUR SOLUTIONS

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

4G SFP Optical Transceiver
Support Full Range Of 4.25G SFP
Part Number Data Rate Wavelength Distance Media DDM
LS-MM854G-S1C 4.25Gbps 850nm 150m Multi-mode Yes
LS-MM852G-S3C 4.25Gbps 850nm 300m Multi-mode Yes
LS-MM854G-S5C 4.25Gbps 850nm 500m Multi-mode Yes
LS-SM314G-02C 4.25Gbps 1310nm 2km Single Mode Yes
LS-SM314G-04C 4.25Gbps 1310nm 4km Single Mode Yes
LS-SM314G-10C 4.25Gbps 1310nm 10km Single Mode Yes
LS-SM314G-40C 4.25Gbps 1310nm 40km Single Mode Yes
LS-SM554G-40C 4.25Gbps 1550nm 40km Single Mode Yes
