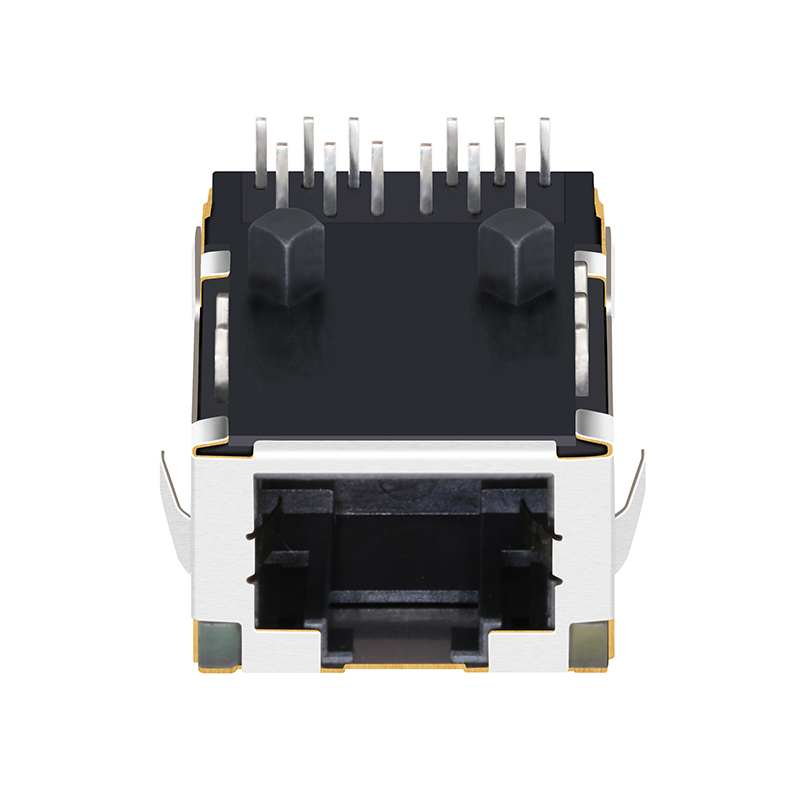

Shielded 10/100/1000 Base-T Low-Profile RJ45 Magjack
Part Numbers: RJMG212021210NR / RJMG2018226A0ER / RJMG2012228A0ER
Products Description
| Item | RJ45 Female Connector |
| Part Number | RJMG212021210NR / RJMG2018226A0ER / RJMG2012228A0ER |
| Part Status | Active |
| Connector Type | Jack |
| Contacts | 8p8c (RJ45, Ethernet) |
| Application | Ethernet (Non PoE) |
| Port Config | 1x1 Port |
| Speed | 10/100/1000 Base-T |
| Latch Direction | Up |
| Cores per Port | 12 |
| Orientation | 90° Angle (Right) |
| Mounting Angle | SIDE ENTRY |
| Shield EMI Tabs | With |
| LED Option | Orange & Green / Yellow |
| PCB Material | FR4 |
| Temperature | 0℃ TO 70℃ |
| Turns Ratio | 1CT:1CT |
✔ Key Advantage: These low-profile RJ45 Magjacks are designed for high-speed Gigabit Ethernet applications, providing excellent EMI shielding and space-saving dimensions for modern PCB designs.

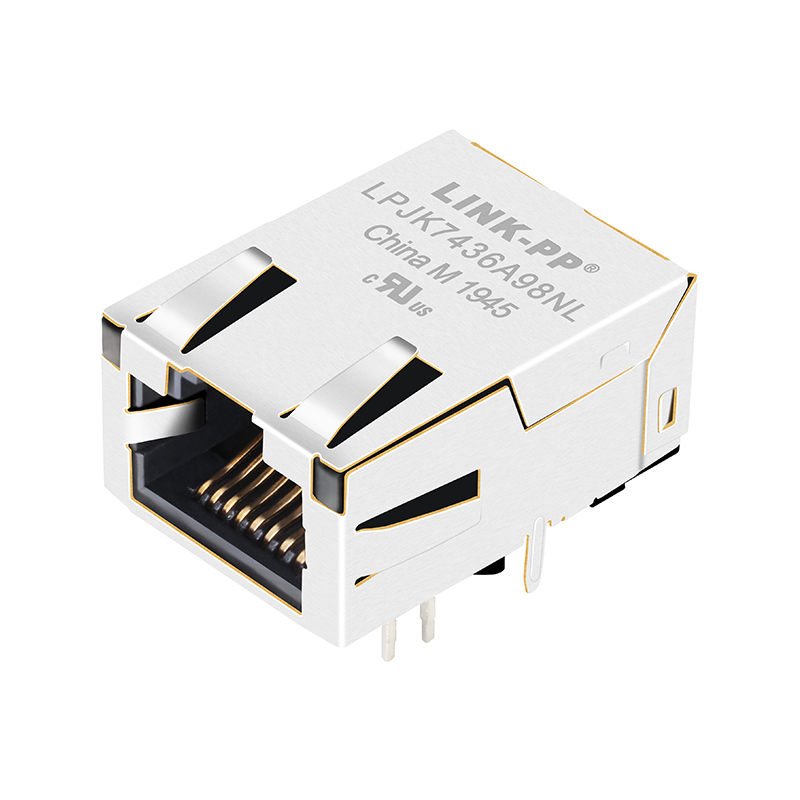

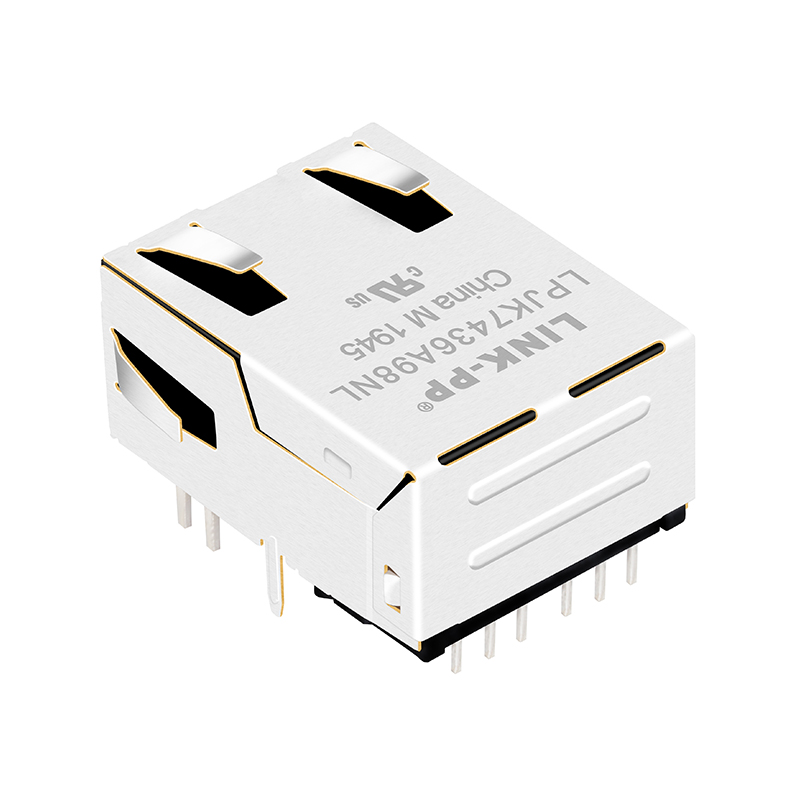

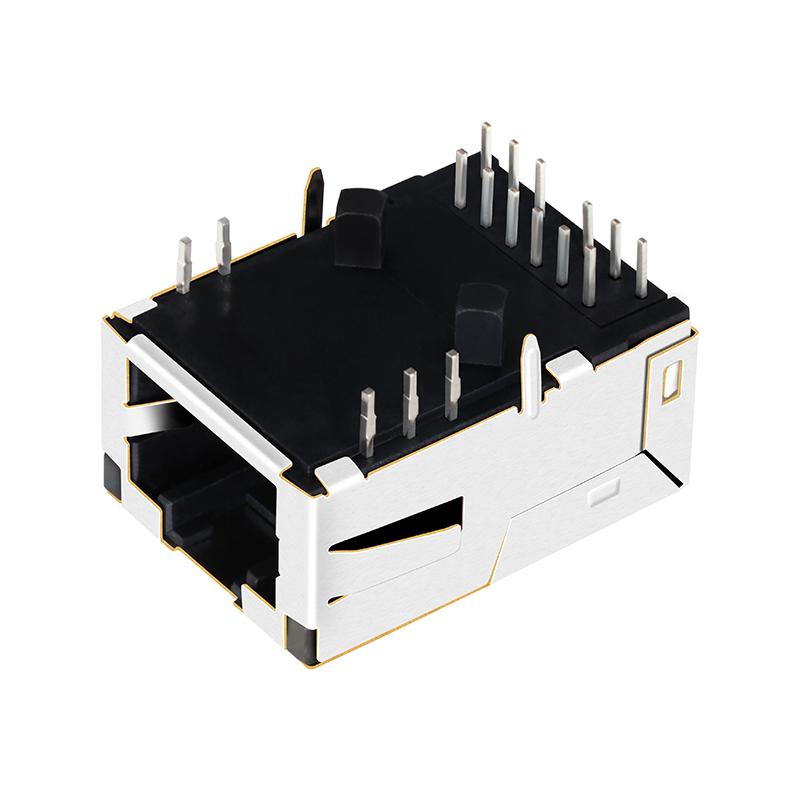

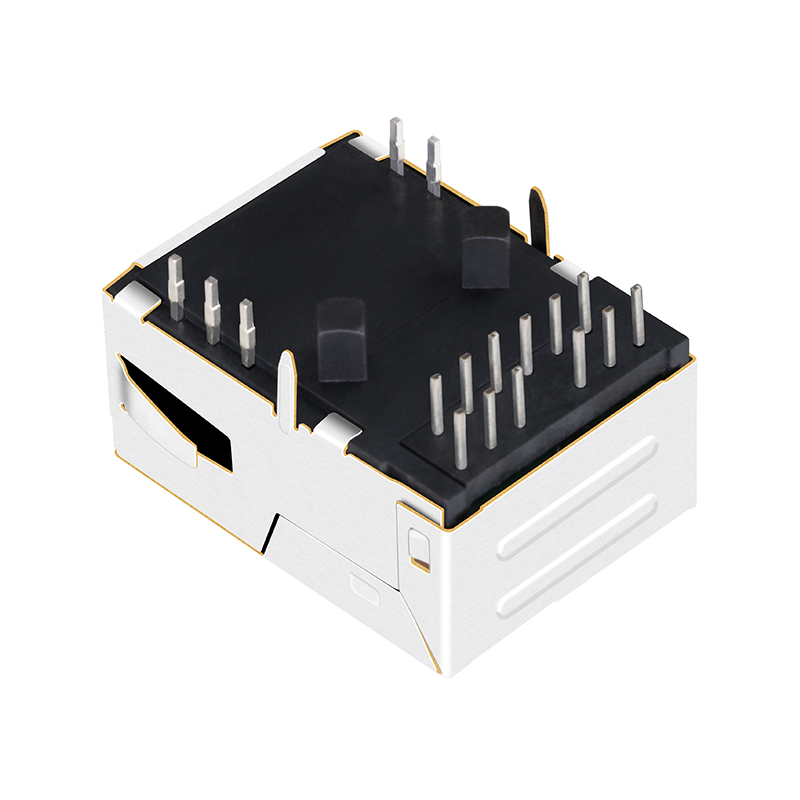

Product Series Gallery
Technical Diagrams & Features
Company Overview
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products and custom capabilities, we serve as a global supplier to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers in over 200 countries. We are committed to being a world leader in Ethernet RJ45 connectors and LAN transformer solutions.
Frequently Asked Questions
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer free samples for quality testing, though shipping fees apply.
What is the typical delivery lead time?
Items in stock are ready to ship immediately; mass production typically takes 15-30 days.
What kind of after-sales service do you provide?
We offer a one-year guarantee period and provide 24-hour online technical support.
Do you accept OEM/ODM orders?
Yes, we welcome OEM and ODM inquiries for detailed discussion and custom manufacturing.
What is the operating temperature range for these connectors?
The standard operating temperature range is 0℃ to 70℃, suitable for most commercial environments.
