Home > Low Profile RJ45 Connector > Tab up Low Profile Magnetic RJ 45 Socket Shielded 1 Port 10G Female RJ45 Jack

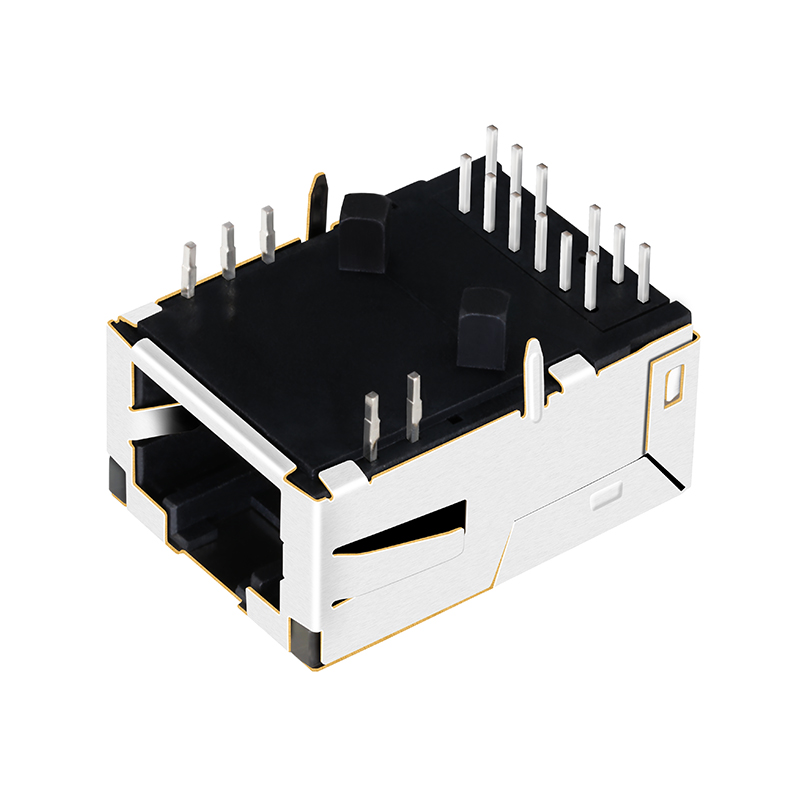

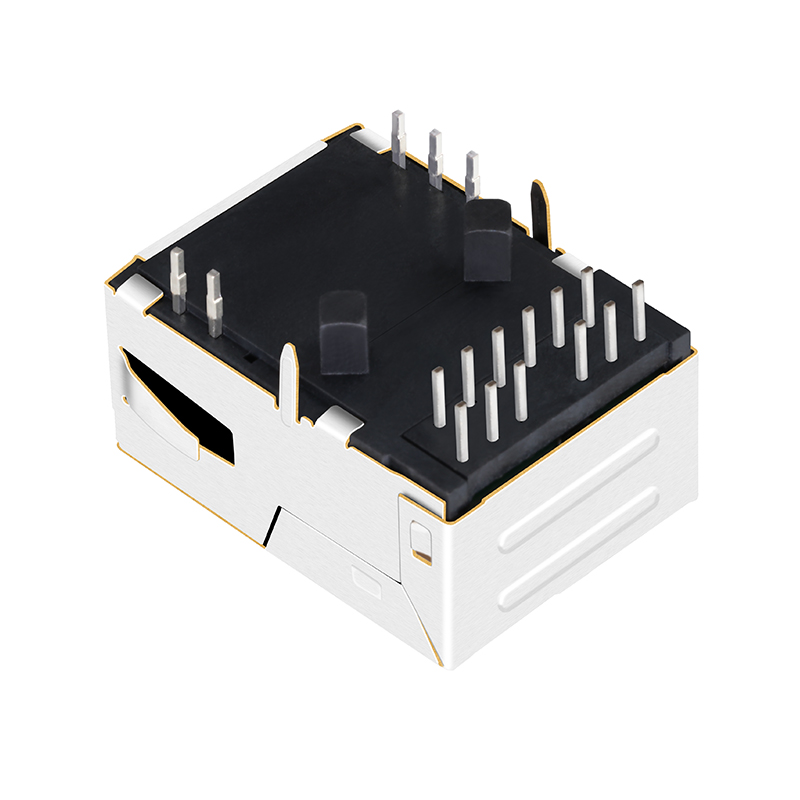

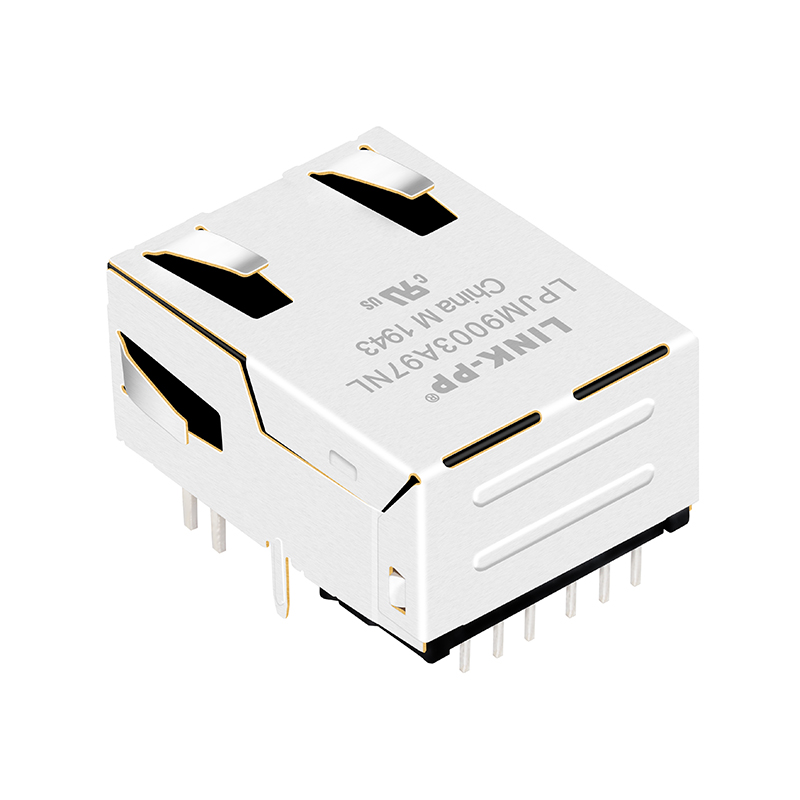

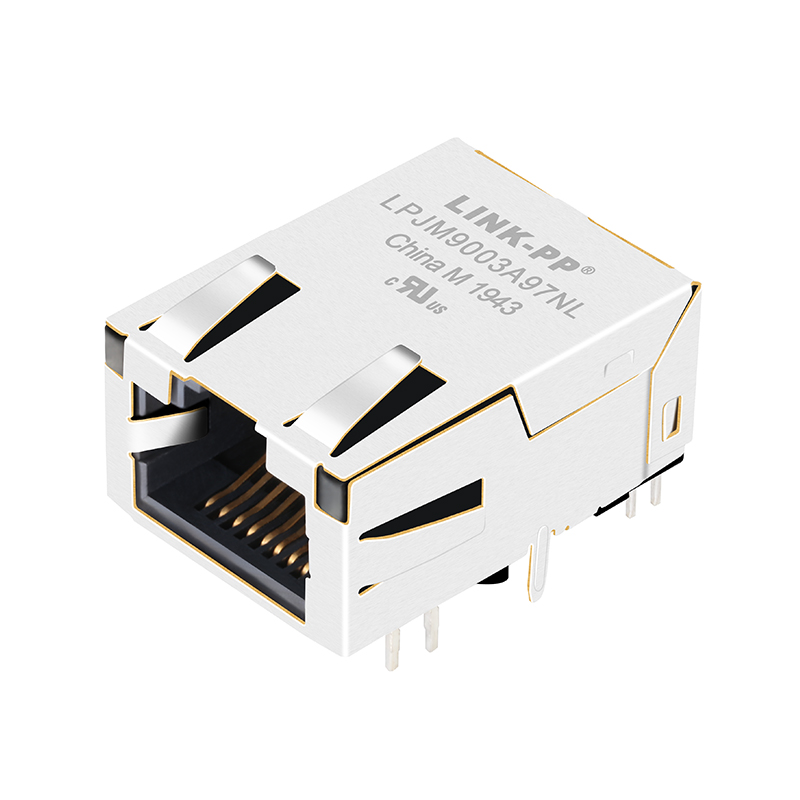

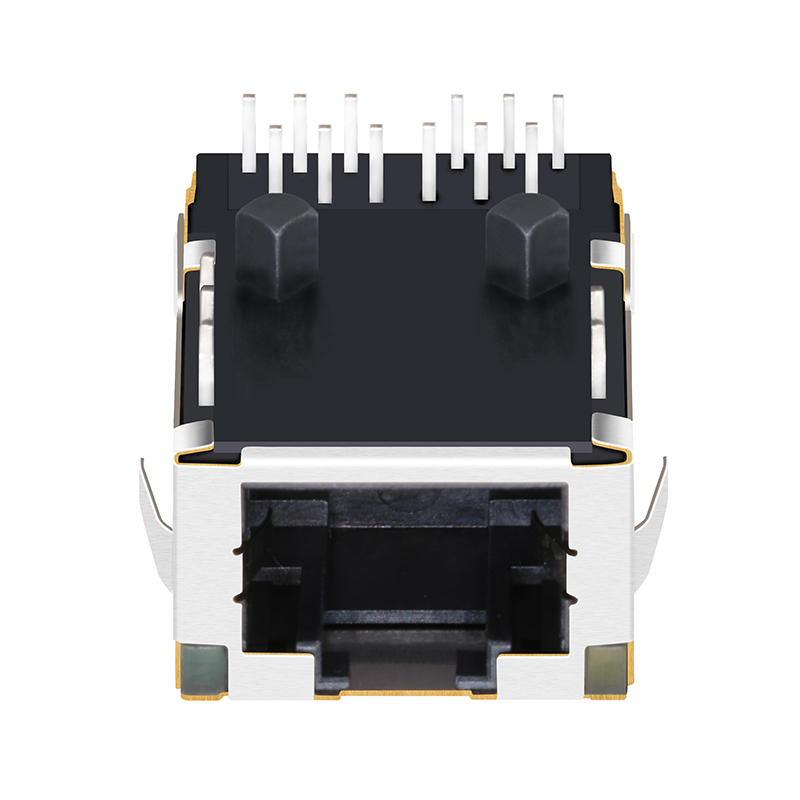

Tab up Low Profile Magnetic RJ 45 Socket Shielded 1 Port 10G Female RJ45 Jack
Tab up Low Profile Magnetic RJ 45 Socket Shielded 1 Port 10G Female RJ45 Jack
Tab up Low Profile Magnetic RJ 45 Socket Shielded 1 Port 10G Female RJ45 Jack
Tab up Low Profile Magnetic RJ 45 Socket Shielded 1 Port 10G Female RJ45 Jack
Tab up Low Profile Magnetic RJ 45 Socket Shielded 1 Port 10G Female RJ45 Jack
1 / 5
Tab up Low Profile Magnetic RJ 45 Socket Shielded 1 Port 10G Female RJ45 Jack
Tab up Low Profile Magnetic RJ 45 Socket Shielded 1 Port 10G Female RJ45 Jack
Tab up Low Profile Magnetic RJ 45 Socket Shielded 1 Port 10G Female RJ45 Jack
Tab up Low Profile Magnetic RJ 45 Socket Shielded 1 Port 10G Female RJ45 Jack
Tab up Low Profile Magnetic RJ 45 Socket Shielded 1 Port 10G Female RJ45 Jack

Tab up Low Profile Magnetic RJ 45 Socket Shielded 1 Port 10G Female RJ45 Jack

Send Inquiry

Product Description

Product Overview
Tab Up Low Profile Magnetic RJ 45 Socket Shielded 1 Port 10G Female RJ45 Jack
Products Description
ItemRJ45 Female Connector
Part NumberLPJM9003A97NL
Part StatusActive
Connector TypeJack
Number of Positions/Contacts10p8c (RJ45, Ethernet)
Application-LanEthernet (Non-PoE)
Number of Ports1x1 Port
Speed10G Base-T
LatchUp
Cores per Port4
Orientation90° Angle (Right)
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWith
LED OptionGreen/Yellow
PCB MaterialFR4
PCB Retaining PostT POST
Temperature Range-40℃ TO 85℃
Bst CircuitYes
AutoMDIXYES
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Technical Drawing
⚙️ Advanced Design

Low profile and shielded design optimized for 10G high-speed Ethernet applications.

📡 Signal Integrity

Integrated magnetic components ensure superior EMI shielding and signal stability.

Series Collection
Production Chart
Quality Control
Testing Laboratory
Certifications
Professional Capability
Established in 1997, our team is a professional designer and manufacturer in magnetic telecom and networking components. We offer an extensive line of state-of-the-art catalog products as well as custom capabilities. As a global supplier to OEMs, contract manufacturers, and CEMs, we serve over 10,000+ customers across 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to being a world leader in Ethernet RJ45 connectors and LAN transformer solutions.
Facility 1
Facility 2
Facility 3
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, though the shipping fee should be covered by the requester.
What is your delivery time?
Stock items are ready to ship immediately; mass production typically takes 15-30 days.
What after-service do you offer?
We provide a one-year guarantee period and offer 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, we welcome OEM and ODM inquiries. Please contact us for a detailed discussion on your requirements.
What is your core advantage?
We have over 19 years of professional production experience and have served as a trusted partner for major global technology firms for many years.
