2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector
2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector
2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector
2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector
2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector
1 / 5
2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector
2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector
2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector
2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector
2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector

2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector

Send Inquiry

Product Description

Product Description

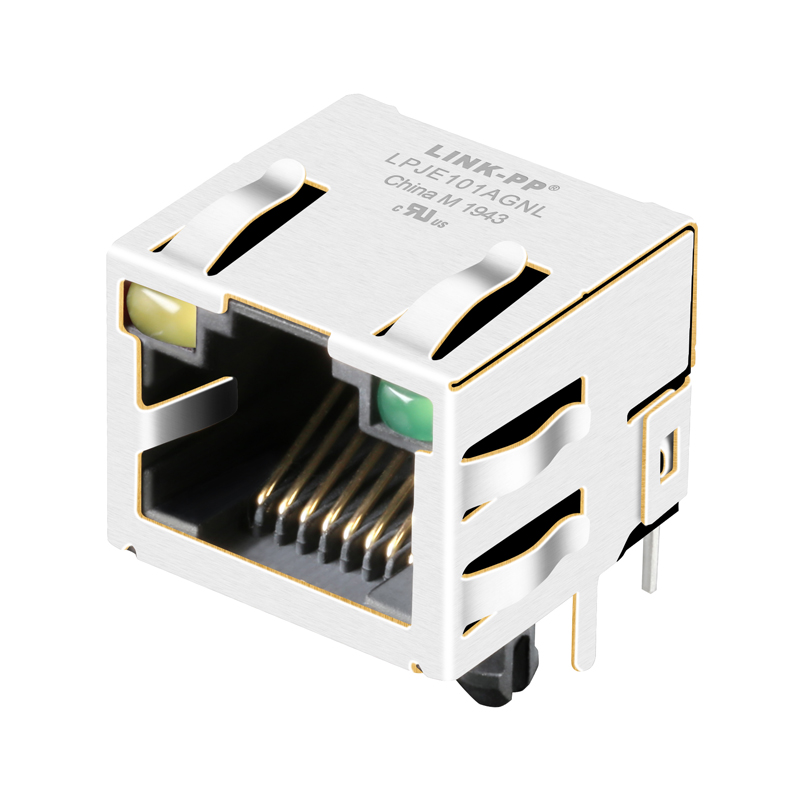

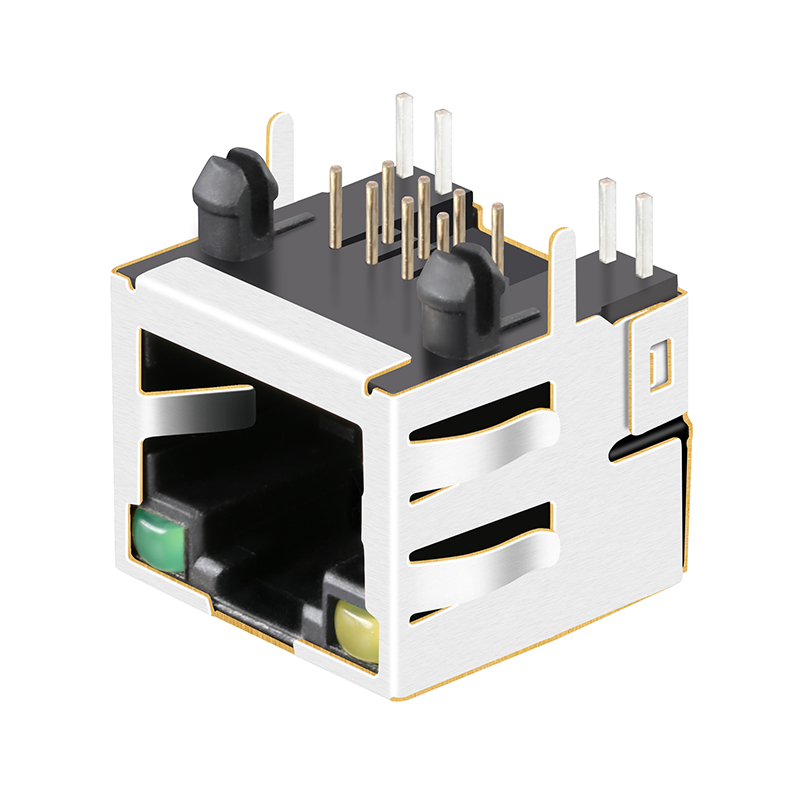

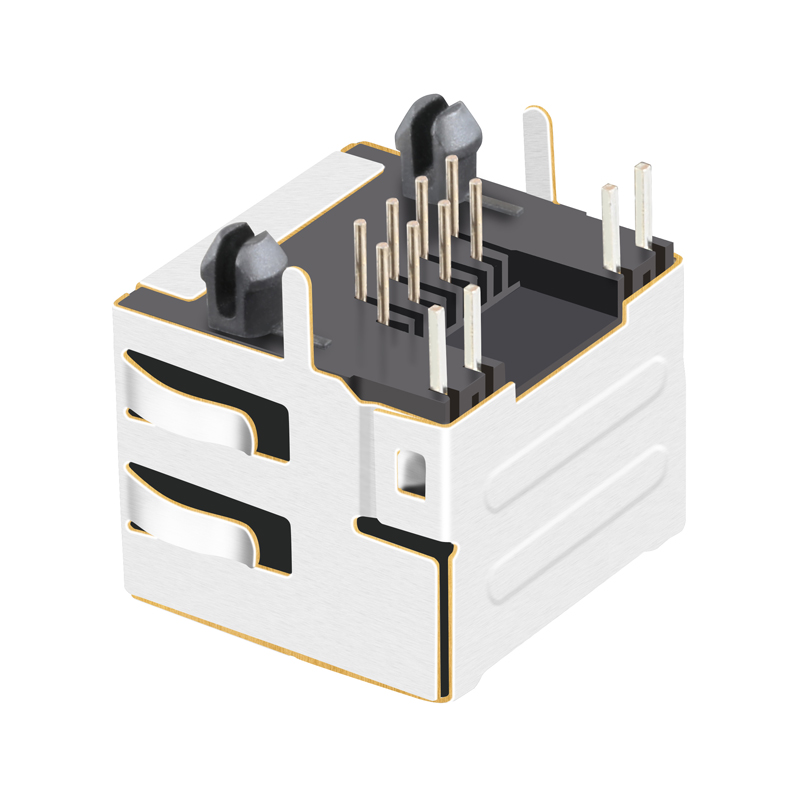

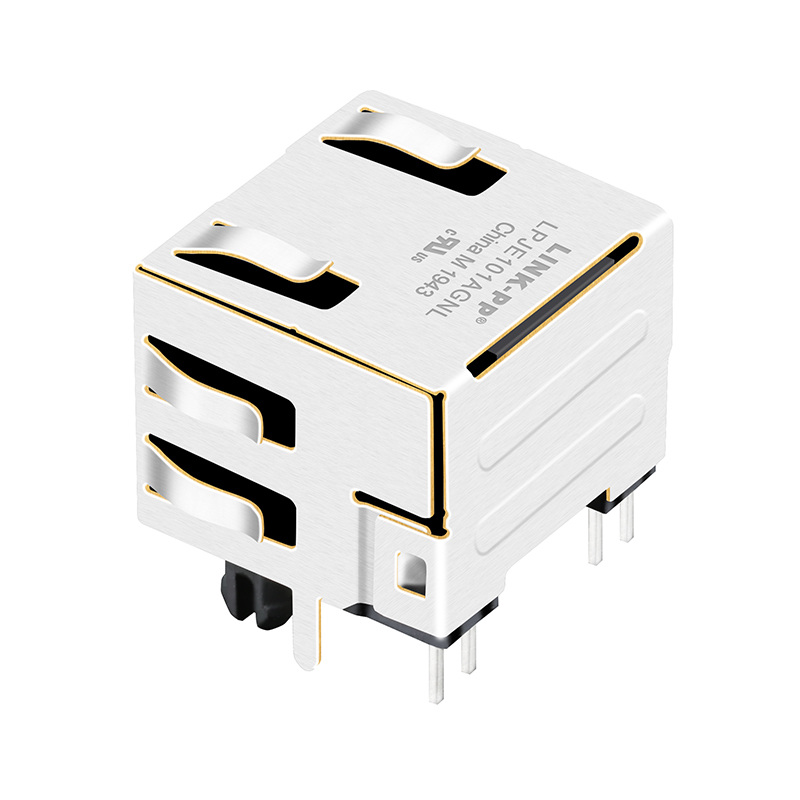

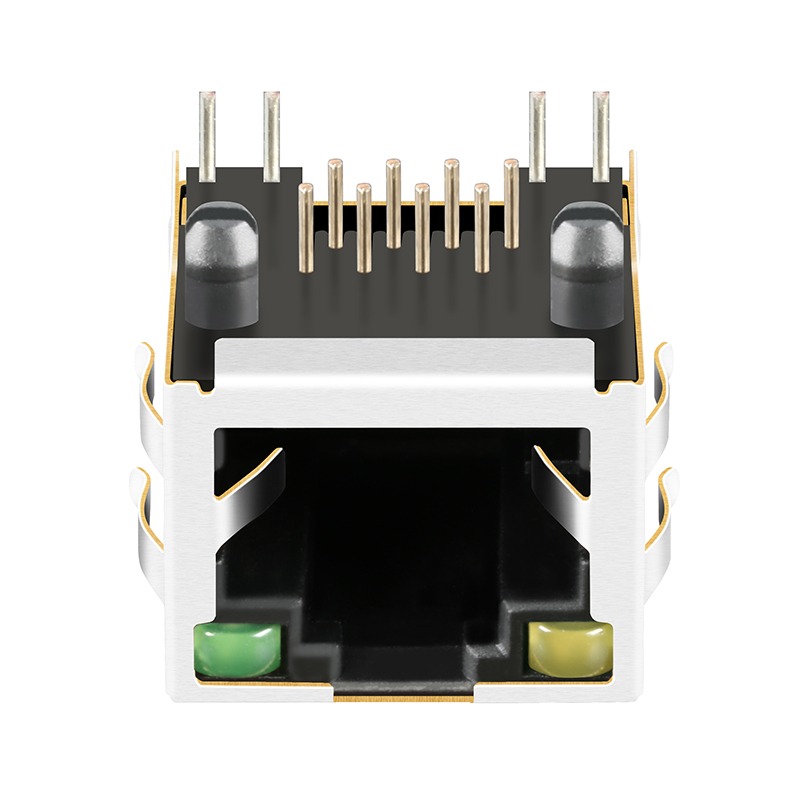

Product View 1
Product View 2
Specification
Item Value
Model Number LPJE101AGNL
Part Status Active
Connector Type RJ45
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow/Green
Shielding Shielded
Number of Ports Single Port
Features Board Guide
Tab Direction Up
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature -40°C ~ 85°C
Packing & Delivery
The Part Number package: 100 pcs in 1 tray, 3000 tray in 1 carton, which is 54.5*28.5*27cm, 13.1KGS (3000pcs) of each carton.
Packing Details
Product Characteristics
Main Characteristics:
RJ45 Connector with integrated transformer / common mode choke. Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s. Available in SMT, THT and THT with USB. Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEE 802.3bt. HPLE products: Improved Common Mode Rejection due to additional NiZn cores.
Frequently Asked Questions
How do you guarantee the quality of your RJ45 connectors?
We always provide a pre-production sample before mass production and conduct a final inspection before every shipment to ensure the highest quality standards.
What specific products can I purchase from your catalog?
Our core product range includes RJ45 Magnetics, Lan transformers, RJ11 Connectors, RJ45 Connectors, and SFP modules.
What certifications do your products hold?
Our products and manufacturing processes are certificated by SGS, ISO9001:2008, UL, REACH, and CE, ensuring compliance with international safety and quality regulations.
What is the production capacity for your factory?
With over 2,600 staff members, we maintain a productive capacity of approximately 30,000K units per week to support large-scale industrial demands.
What are your accepted payment and delivery terms?
We accept various delivery terms including FOB, CFR, CIF, EXW, DDP, and Express Delivery. Payment can be made via T/T, L/C, PayPal, Western Union, and other major methods in currencies like USD, EUR, and HKD.
What is the operating temperature range for the LPJE101AGNL model?
The LPJE101AGNL model is designed to operate reliably within a temperature range of -40°C to 85°C.
