LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
1 / 5
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector

LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector

Send Inquiry

Product Description

Product Description

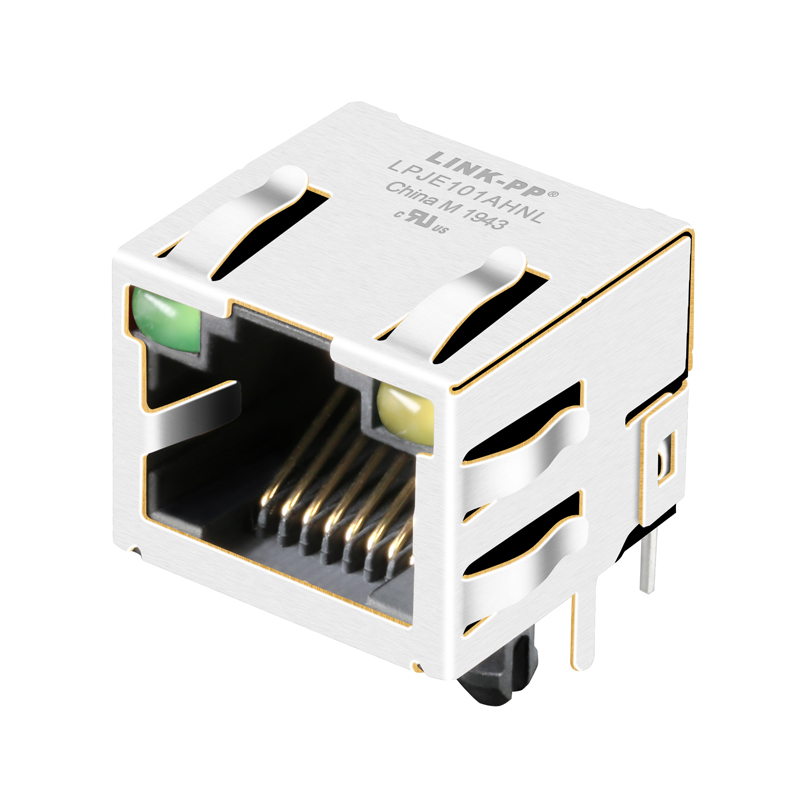

Product Image 1

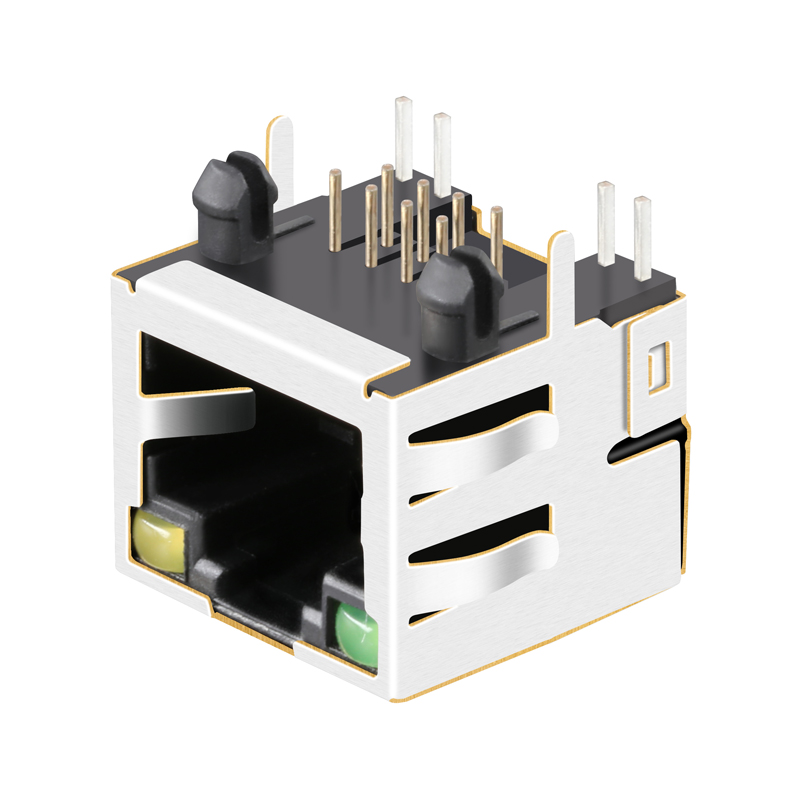

Product Image 2
Specification
Item Value
Model Number LPJE101AHNL
Part Status Active
Connector Type RJ45
Applications Without Magnetics
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow/Green
Shielding Shielded, EMI Finger
Number of Ports Single Port
Features Board Guide
Tab Direction Up
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature -40°C ~ 85°C
Packing & Delivery
Package Information
Package: Tray
Carton Size: 54.5*28.5*27cm
G.W / Carton: 13.1kg
Qty / Carton: 3000pcs
SPQ: 100pcs
N.W / Pcs: 0.004kg
Packaging Illustration
Company Profile
Company Facility 1
Company Facility 2
Company Facility 3
Company Facility 4
Company Facility 5
Company Facility 6
Frequently Asked Questions
1. What is the application of the LPJE101AHNL connector?
The LPJE101AHNL is an RJ45 connector designed for networking and communication applications that do not require integrated magnetics, allowing for external circuitry design flexibility.
2. What are the advantages of the 90-degree right angle orientation?
The 90-degree right-angle layout allows the connector to be mounted flat alongside the printed circuit board (PCB), optimizing space efficiency in low-profile devices and slim enclosures.
3. Does this connector feature built-in LED indicators?
Yes, it features integrated dual-color (Yellow/Green) LEDs, providing immediate and convenient visual feedback for network connection and activity status.
4. What type of shielding does the LPJE101AHNL provide?
It features robust metal shielding with EMI fingers, which minimizes electromagnetic interference and ensures stable signal integrity in dense electronics settings.
5. Can this RJ45 connector operate in extreme temperatures?
Yes, it has a wide operating temperature range from -40°C up to +85°C, making it suitable for both commercial and harsh industrial environments.
6. How is the product packed for shipping?
The connectors are safely packed in protective trays containing 100 units per tray. Master cartons hold 3,000 units in total, ensuring protection during transit.
