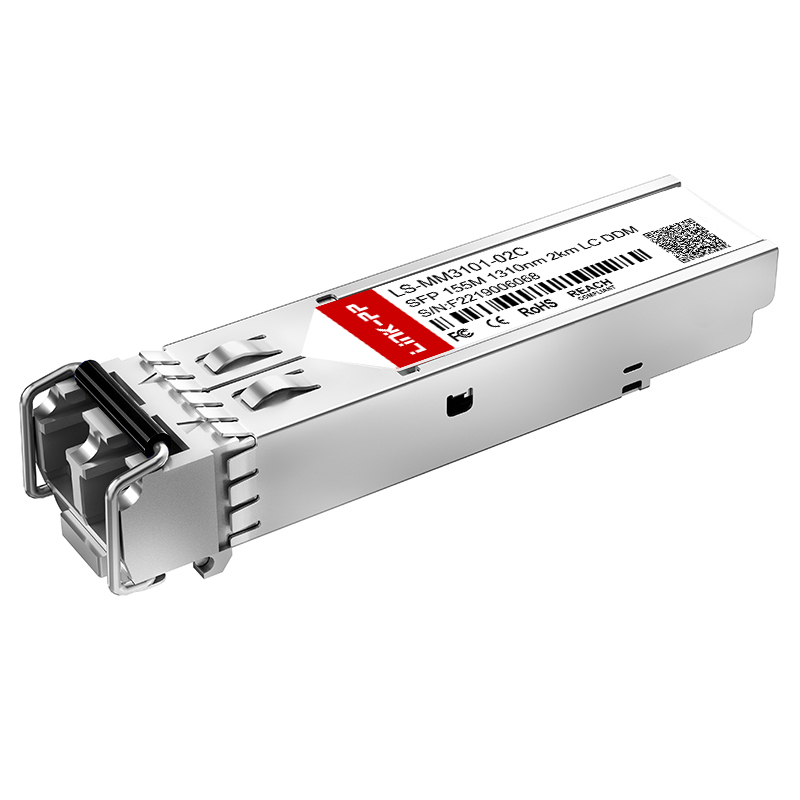

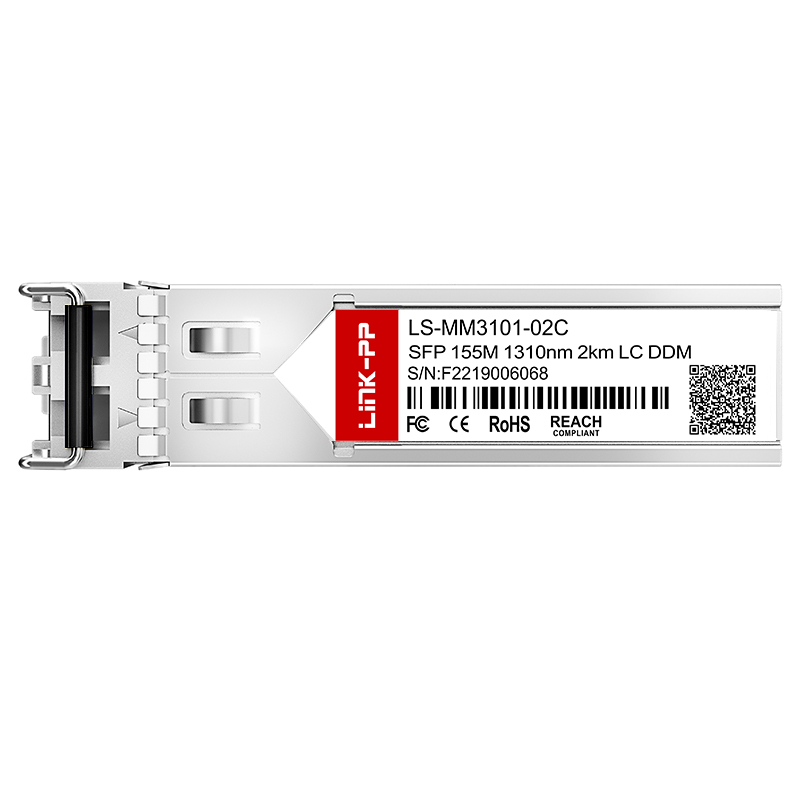

SFP-FE-SX-MM1310 Compatible MMF LC Optical Module Multimode 1310nm 155M SFP Transceiver 2km

Product Description

View Our Solutions
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. Our team provides a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Solutions
Optical Transport
Optical Transport Networks

We provide end-to-end DWDM devices with almost all optical components - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR, etc.

Cloud and Enterprise

To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.

Cloud and Enterprise
Wireless Solutions
Wireless

We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.

FTTx

Aiming at global communication network constructors, we provide FTTx optical fiber access total solutions covering all-optical or optical copper combined access solutions and products.

FTTx
Subsystems
Subsystems

To ensure the normal operation of communication lines, we provide optical cable O&M solutions which integrate an optical line protection system (OLP) and an optical line monitoring system (OLM).

Technical Specifications
SFP-FE-SX-MM1310 Compatible MMF LC Optical Module Multimode 1310nm 155M SFP Transceiver 2km
Form FactorSFP
Max Data Rate155Mbps
Wavelength1310nm
Max Cable Distance2km
ConnectorDuplex LC
MediaMMF
Transmitter TypeFP
Receiver TypePIN
TX Power-15 ~ -8dBm
Receiver Sensitivity< -32dBm
EMC (Electro Magnetic Compatibility)Supported
DDM/DOMSupported
ProtocolsIEEE802.3U, GR-468, MSA Compliant
Temperature Range0 to 70°C / -40 to 85°C
Warranty5 Years
100M (155M) SFP Ordering Information
Model Number Description
LS-MM8501-S5CSFP 155M, 850nm, 550m, LC, DDM, 0℃-70℃ / -40℃-85℃
LS-MM8501-02CSFP 155M, 850nm, 2km, LC, DDM, 0℃-70℃ / -40℃-85℃
LS-MM3101-02CSFP 155M, 1310nm, 2km, LC, DDM, 0℃-70℃ / -40℃-85℃
LS-SM3101-10CSFP 155M, 1310nm, 10km, LC, DDM, 0℃-70℃ / -40℃-85℃
LS-SM3101-15CSFP 155M, 1310nm, 15km, LC, DDM, 0℃-70℃ / -40℃-85℃
LS-SM3101-20CSFP 155M, 1310nm, 20km, LC, DDM, 0℃-70℃ / -40℃-85℃
LS-SM3101-40CSFP 155M, 1310nm, 40km, LC, DDM, 0℃-70℃ / -40℃-85℃
LS-SM5501-80CSFP 155M, 1550nm, 80km, LC, DDM, 0℃-70℃ / -40℃-85℃
