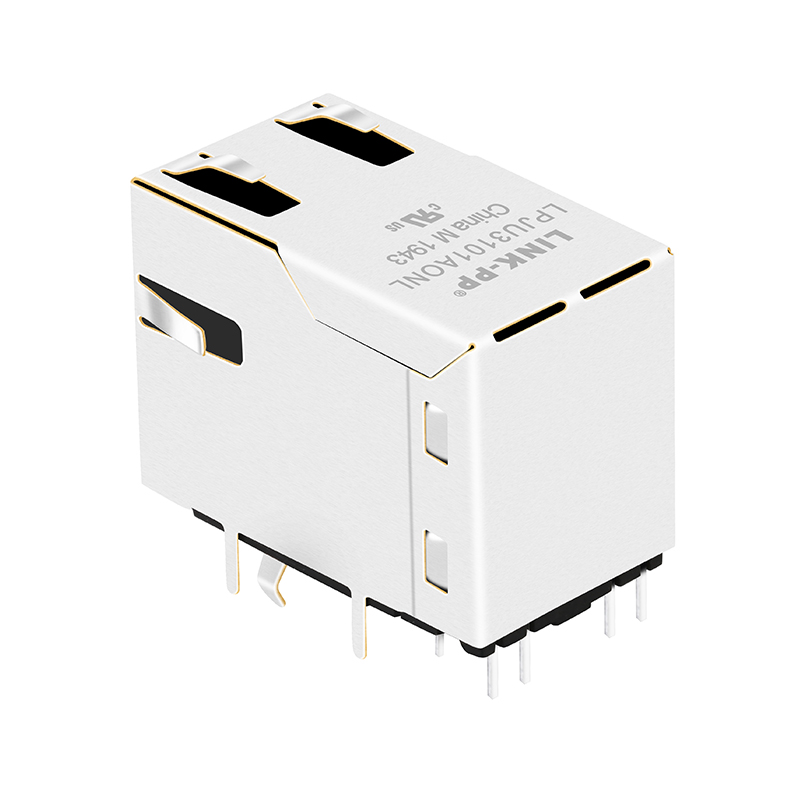

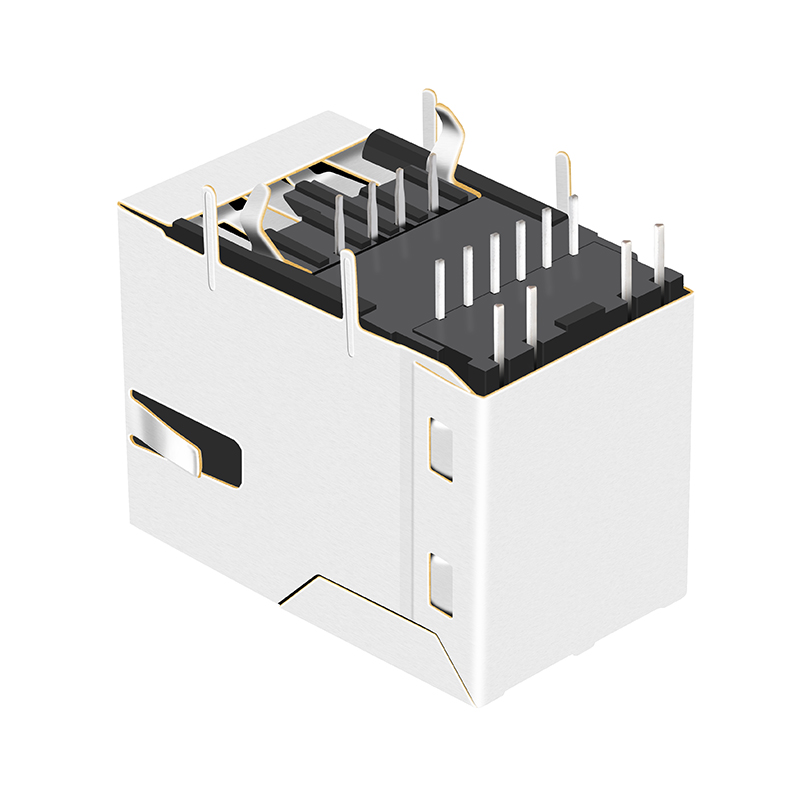

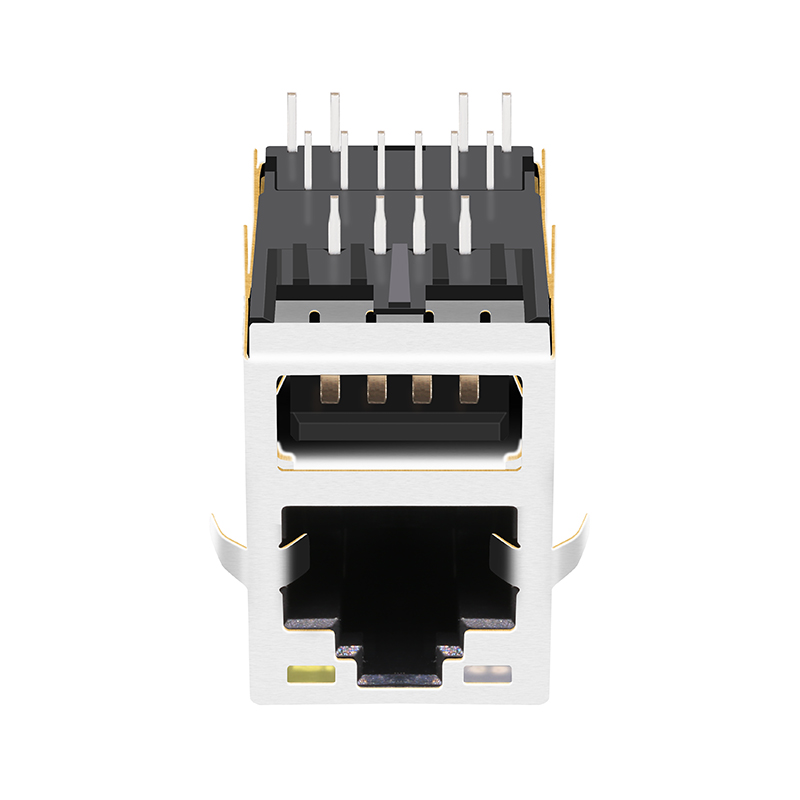

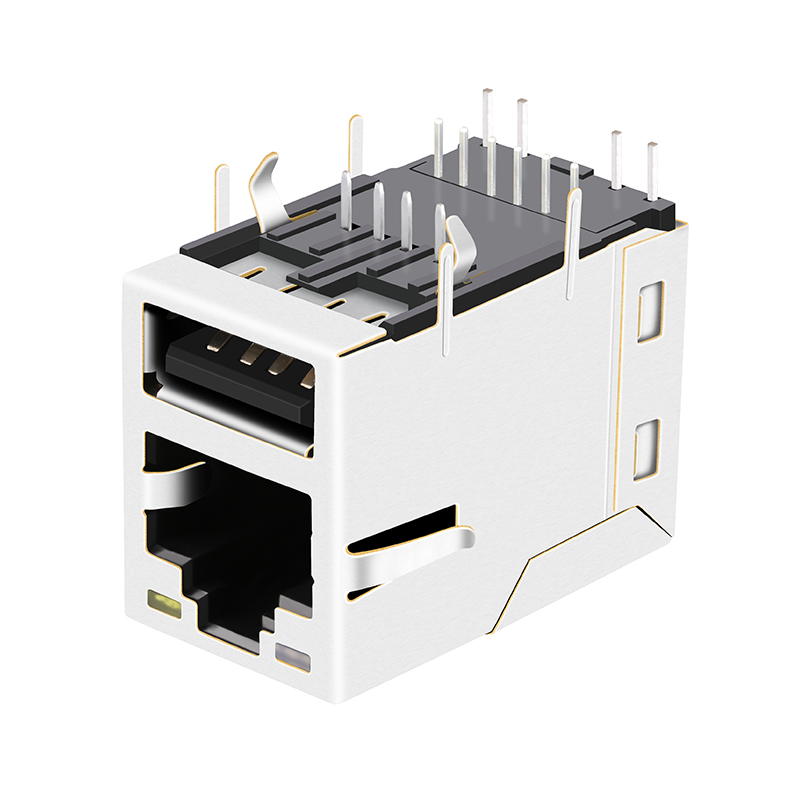

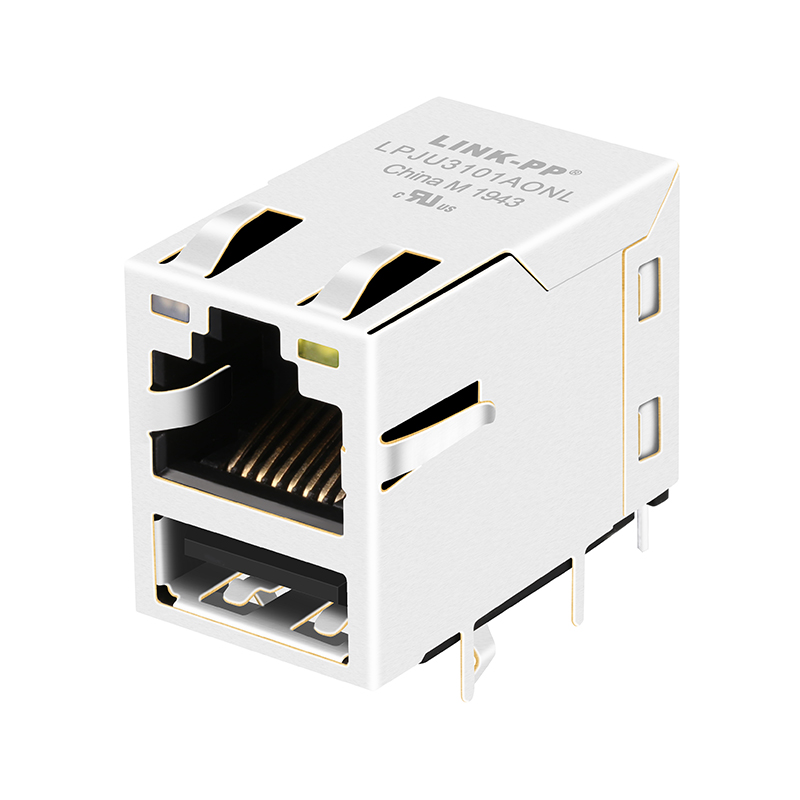

| Item | RJ45 Female Connector |
| Part Number | LPJU3101AONL |
| Cross Part Number | GTI07-30113 |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port |
| Speed | 10/100 Base-T |
| Latch | Up |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With |
| LED Option | Green/Yellow |
| PCB Material | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0℃ TO 70℃ |
| Bst Circuit | Yes |
| AutomDX | YES |
| Contact Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
A specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL, owns advanced manufacturing facilities and test equipments imported from abroad. Established in 1997, the company has around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to delivery the goods within short lead times. Moreover, we provide professional complete solutions for magnetic components and strong technical support.
Main Products: 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. The products are widely used in networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem. Exporting to more than 30 countries and regions globally, customers cover Germany, France, England, USA, Singapore, Korea, Canada and Japan.
Working with partners like JABIL, FOXCONN, H3C, FLEXTRONICS, and TEXAS INSTRUMENTS, the engineering staff is dedicated to identifying, developing and manufacturing the optimal solution for unique requirements.
