RU1-161A9WGA 1000 Base-T With Dual USB RJ45 Connector Modular Jack

Product Description

Product Category Showcase
Transformer Banner
Send Inquiry To Get Latest Price List
Product Details Dimensions
Circuit Diagram Schematic
RU1-161A9WGA 1000 Base-T With Dual USB RJ45 Connector Modular Jack
Products Description
Item RJ45 Female Connector
Part Number RU1-161A9WGA
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 12
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

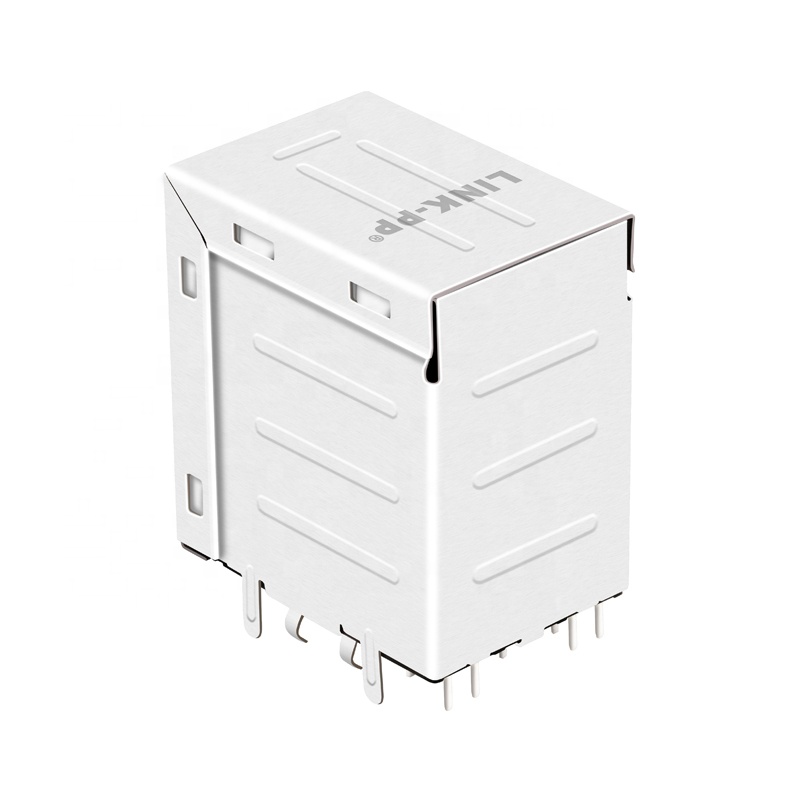

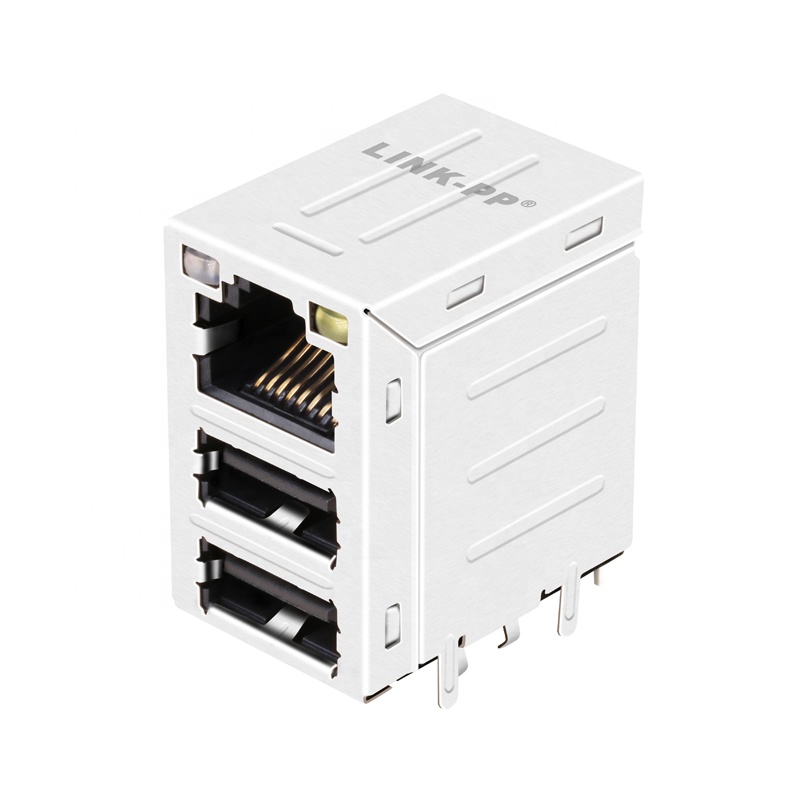

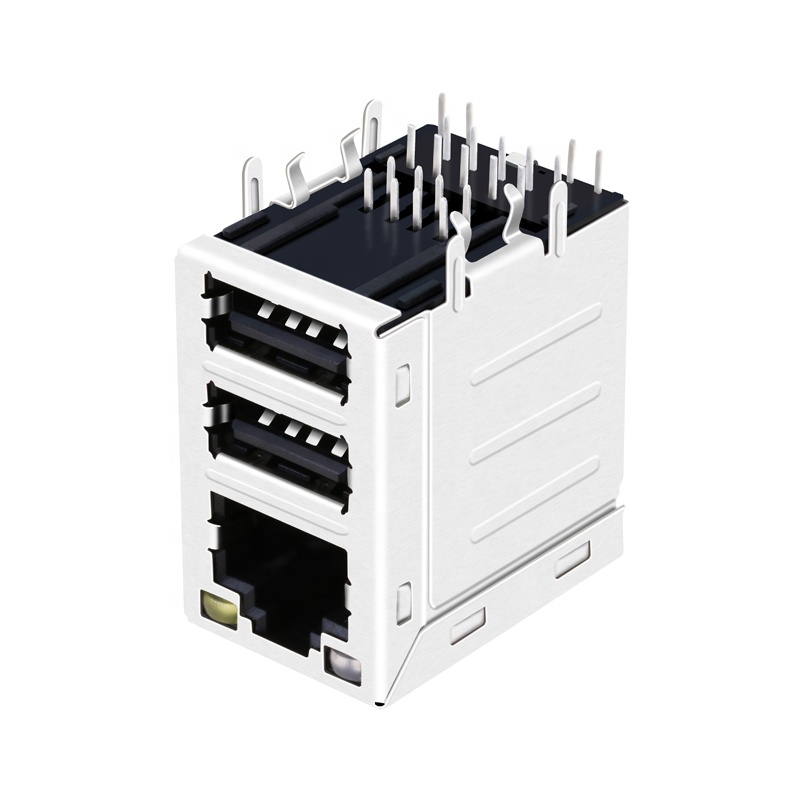

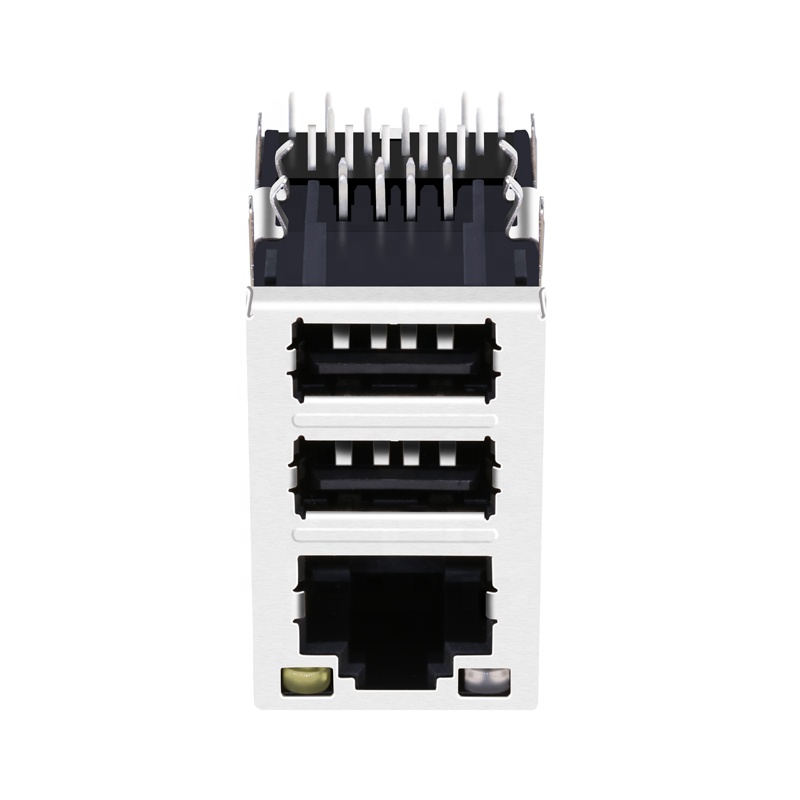

Product Side View Product Angle View Product Front View Product Back View Product Bottom View Product Top View Product Packaging
Material Specification Graphic
Why Choose Us
Quality Standard Certificate Manufacturing Testing Process Production Capacity Detail Worldwide Logistics Details
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE, and UL. The facility owns advanced manufacturing systems and test equipment imported from abroad. Established in 1997, we currently have around 2,000 staff members. With an abundant production capacity of 3,000K per month, we are capable of delivering goods within a short timeframe. Moreover, we provide professional, complete solutions for magnetic components along with robust technical support.
Main Products:
  • 10/100/1000M LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Our products are widely used in networking and communication equipment such as HUBs, PC cards, switches, routers, PC mainboards, SDH, PDH, IP Phones, and xDSL modems. We have exported our products to more than 30 countries and regions globally, including Germany, France, England, USA, Singapore, Korea, Canada, and Japan.
Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solution for unique requirements. We trust that our strength in the field and our dedication to quality will establish a long-term partnership.
Production Workshop Testing Equipment Laboratory Warehouse Stocking Room Certification Showcase
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping costs will be your responsibility.
What is your delivery time?
Items in stock are ready to ship immediately, while mass production orders typically require 15-30 days.
What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send your requirements to us so that we can have a detailed discussion.
What is your advantage?
We have 19 years of professional production experience and have been a trusted manufacturing partner to major global tech corporations for many years.
