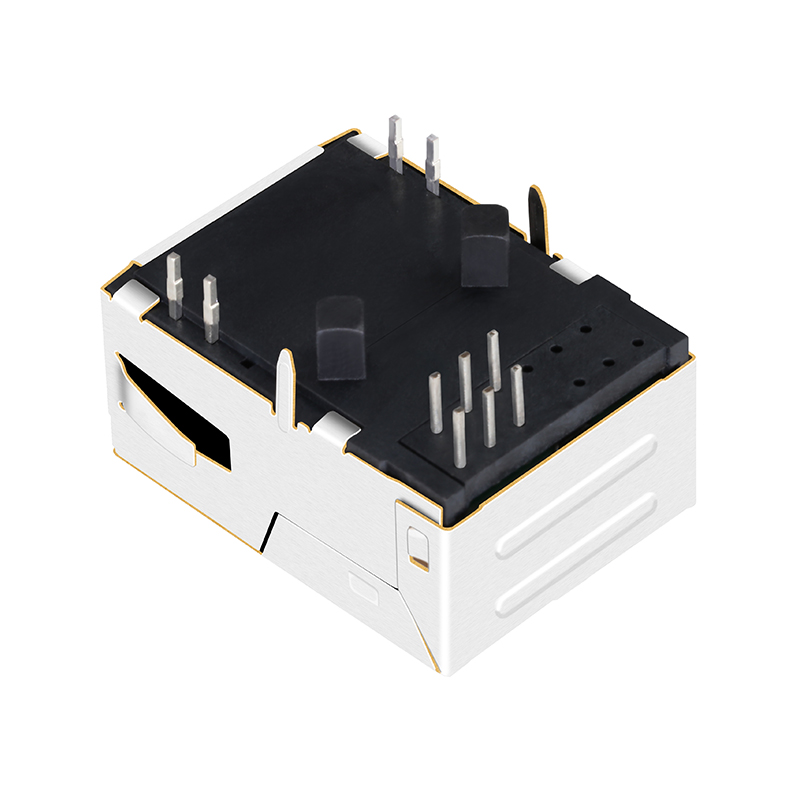

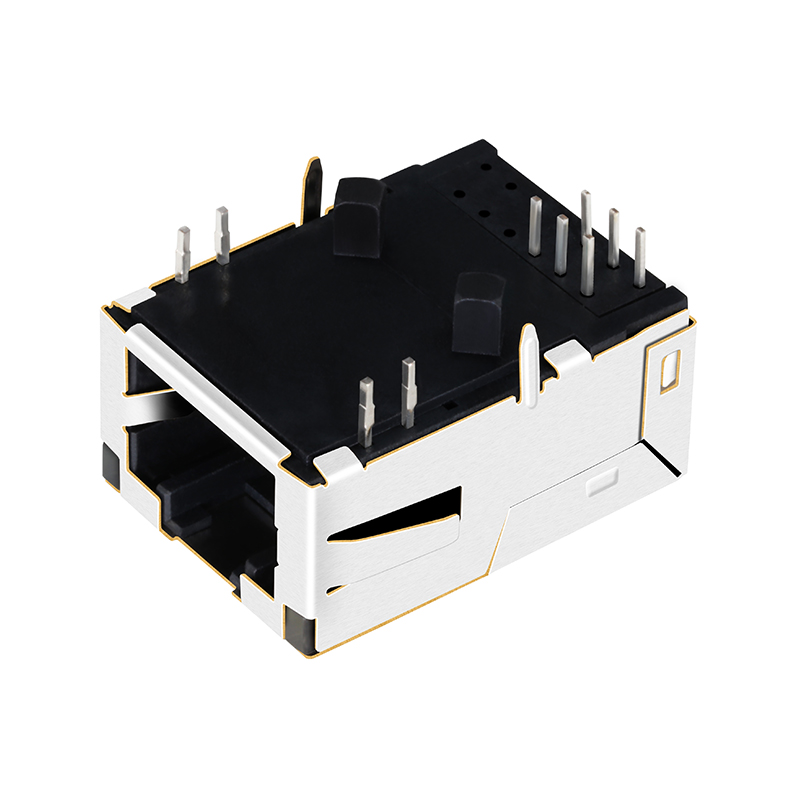

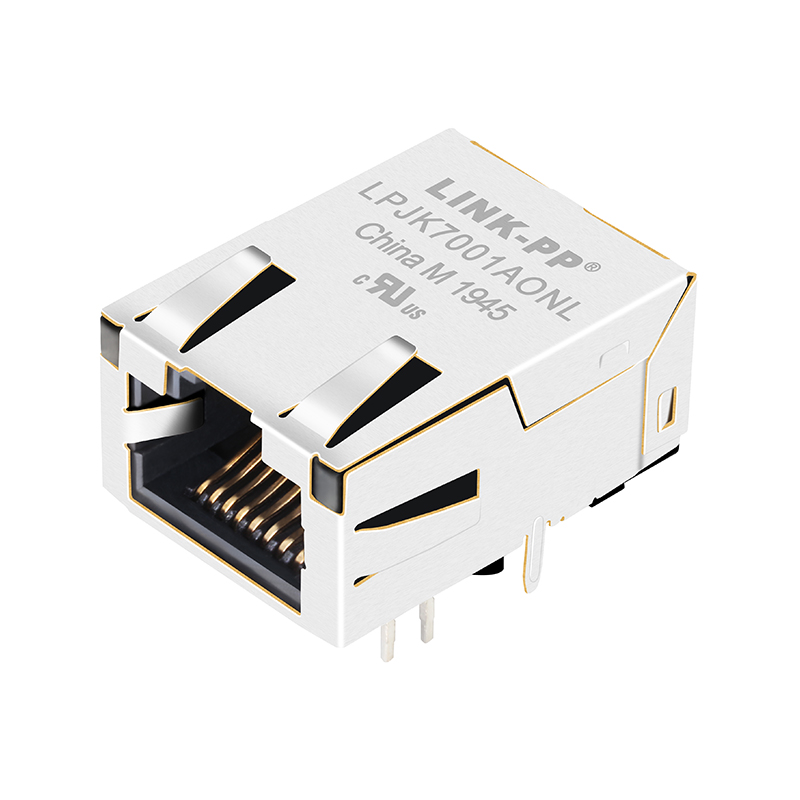

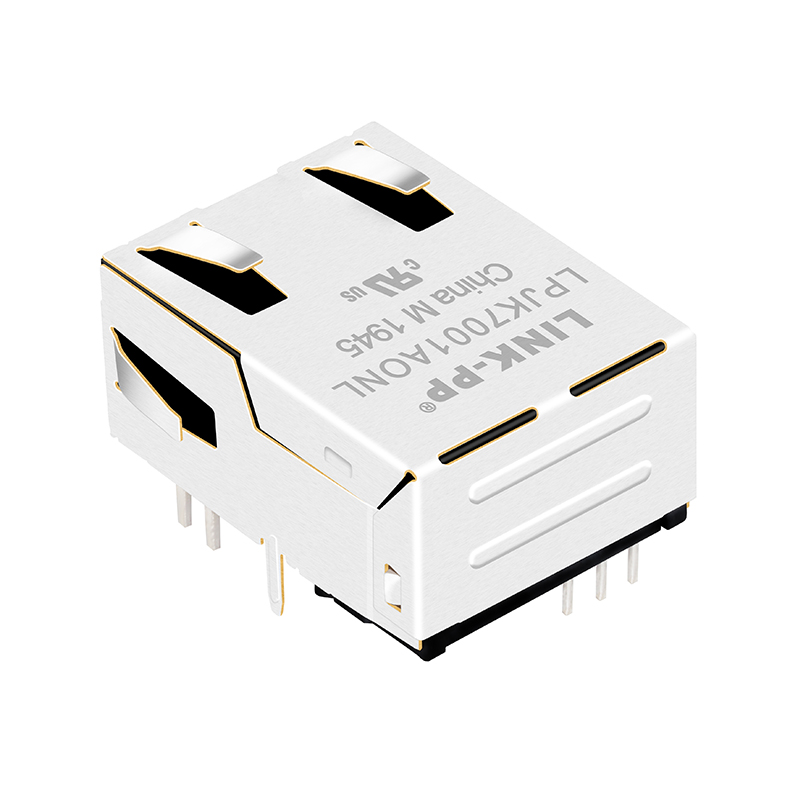

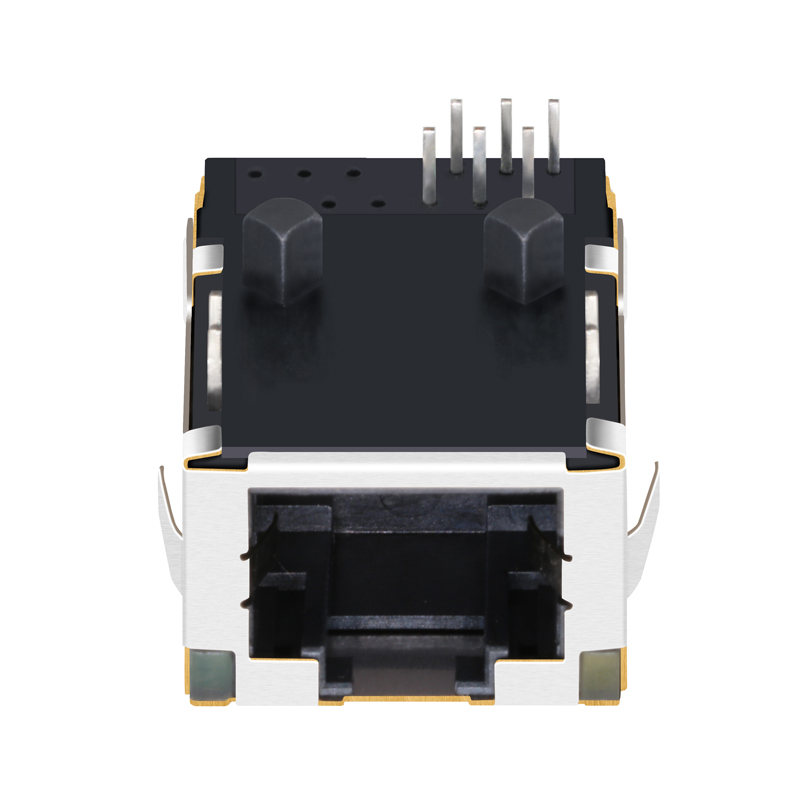

L829-1X1T-91 Tab up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds

Product Description

RJ45 Connector Overview
L829-1X1T-91 Tab Up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds
Products Description
ItemRJ45 Female Connector
Part NumberLPJK7001AONL
Compatible WithL829-1X1T-91
Part StatusActive
Connector TypeJack
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet(NoN PoE)
Number of Ports1x1 Port
Speed10/100 Base-T
LatchUp
Cores per Port4
Orientation90° Angle (Right)
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWith
LED OptionWith
PCBFR4
PCB Retaining PostT POST
Temperature0℃ TO 70℃
Bst CircuitYes
AutomDXYES
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C
Technical Drawing
Explore Our Comprehensive Product Range
Connector Options 1
Connector Options 2
Connector Options 3
Production View 1
Production View 2
Quality Control
Storage
Packaging
Company Profile
Established in 1997, our team is a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.

As a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, we serve more than 10,000+ customers across 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming a world-leading provider of Ethernet RJ45 connectors and LAN transformers.
Factory Facility 1
Factory Facility 2
Certifications
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we offer free samples to test quality, though shipping fees are typically covered by the customer.
What is your typical delivery time?
Stock items are ready to ship immediately; mass production typically requires 15-30 days.
What after-sales service do you provide?
We offer a one-year guarantee period and provide 24-hour online technical support.
Do you accept OEM/ODM orders?
Yes, we welcome custom requirements. Please contact our team for a detailed discussion on your specifications.
What are your core advantages?
With over 19 years of production experience, we have established long-term partnerships with major global technology leaders.
