| Part Number | ARJ11E-MCSS |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u"/50u" |
| Cores Per Port | 4 |
| Diodes | NO DIDES41 |
| LED Option | GREEN/RED |
| Latch | UP |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH OR WITHOUT |
| Speed | 1000 BASE-T |
| Temperature | 0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX | 1CT:1 |
| Turns Ratio TX | 1CT:1 |

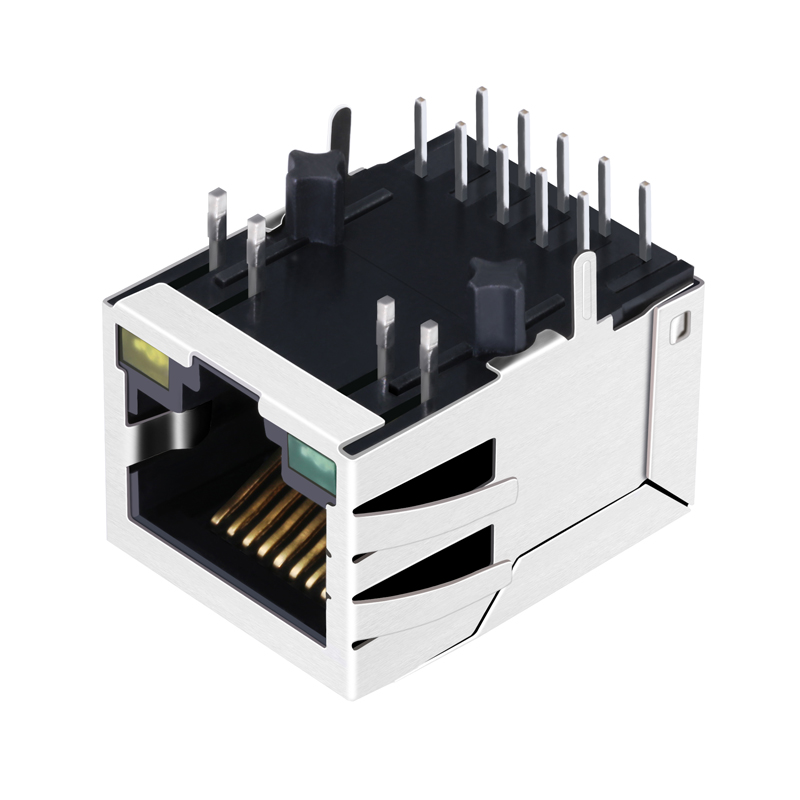

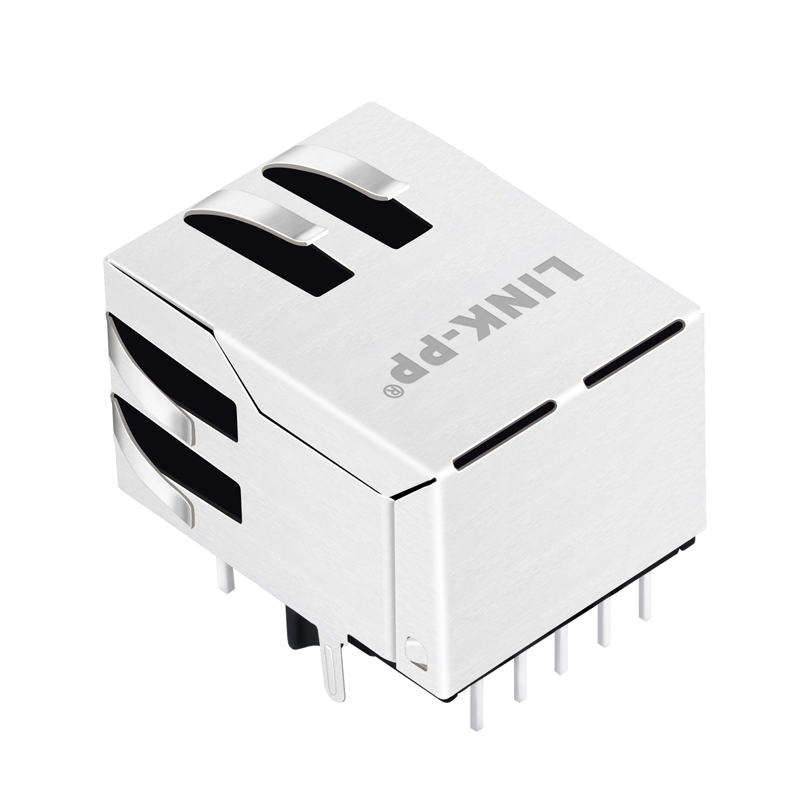

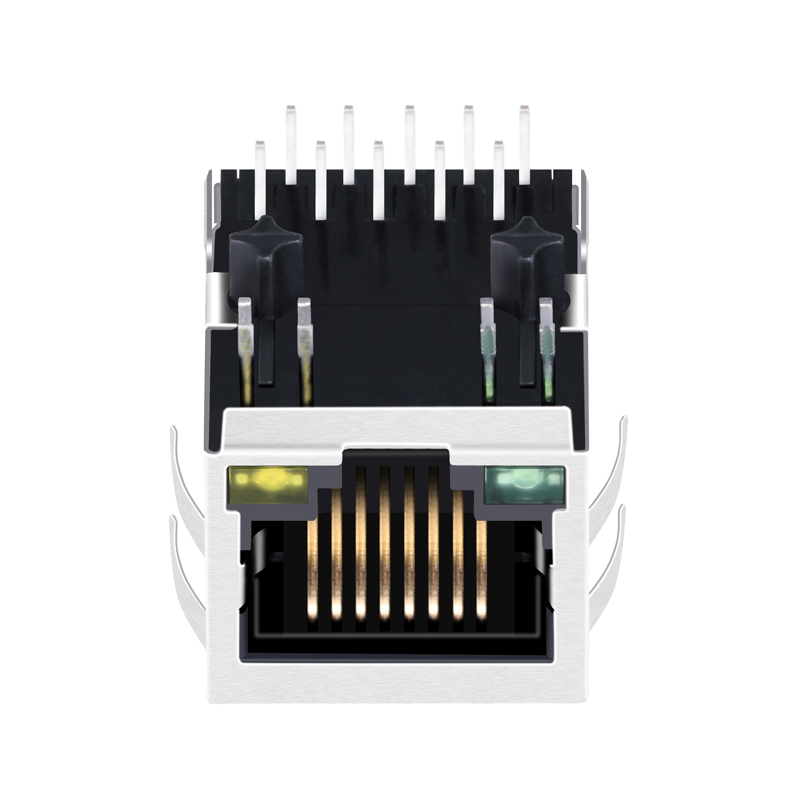

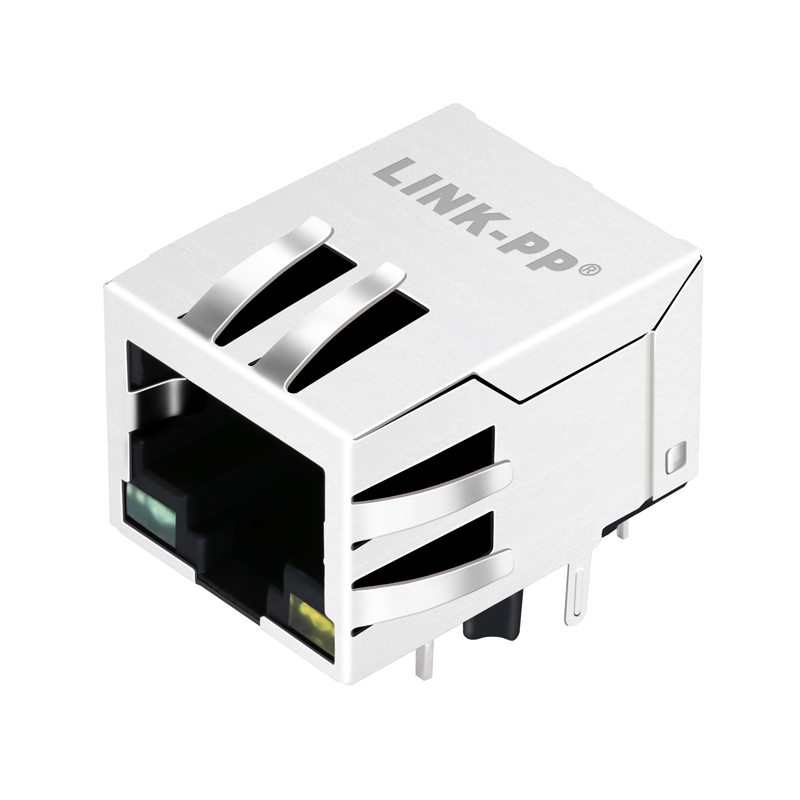

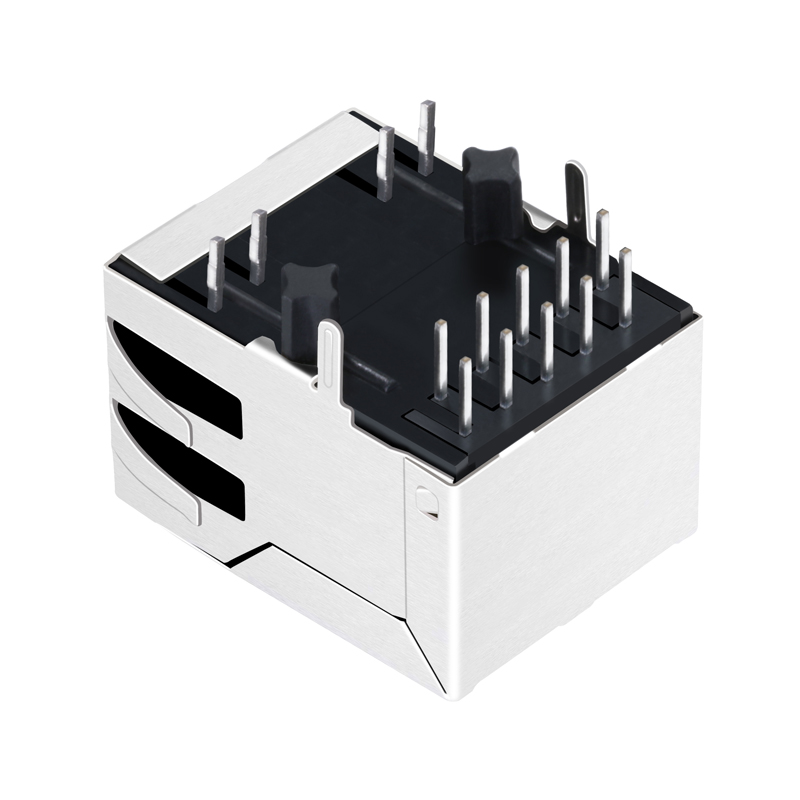

The ARJ11E-MCSS connector supports 1000 BASE-T Gigabit Ethernet speeds, comes integrated with POE (Power over Ethernet) functionality, and uses a side-entry PCB mount design making it optimal for high-speed network interfaces.
These connectors are engineered to operate reliably in temperature environments ranging from 0°C to 70°C or extended ranges of -40°C to 85°C, depending on the specific model configuration.
The products are manufactured under strict compliance and hold ISO 9001:2008 registration, UL Certification, REACH Certification, and RoHS Compliance with lead-in-solder exemptions.
The contacts feature high-performance gold plating options available in thicknesses of 6u", 15u", 30u", or 50u" to ensure superior signal integrity and long-term durability.
All units undergo a rigorous 100% test routine (rather than simple batch testing) and are supported by a quality guarantee of up to 6 years, ensuring zero-defect standards for network deployments.
