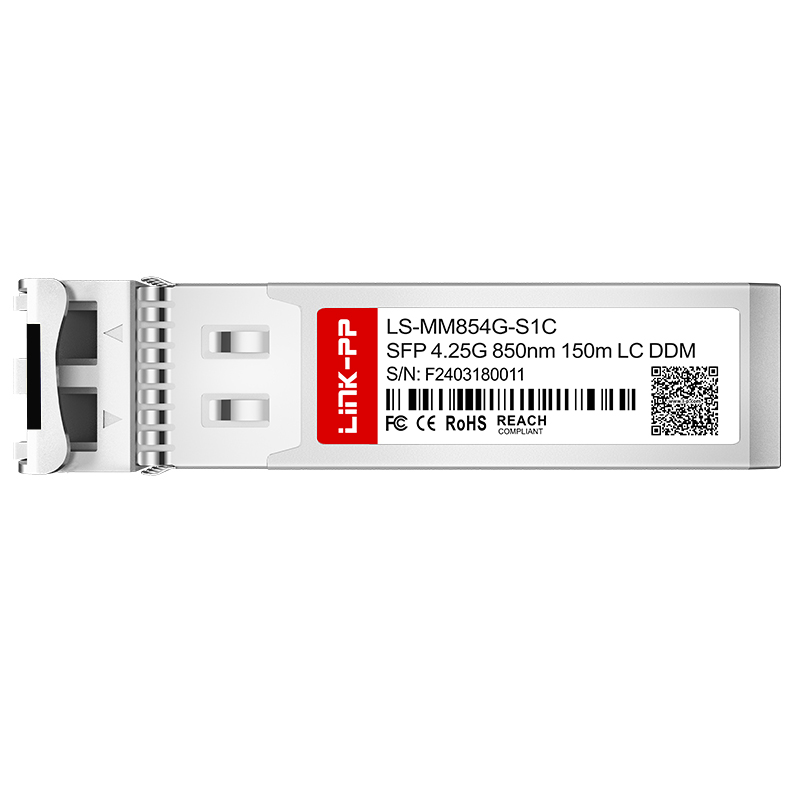

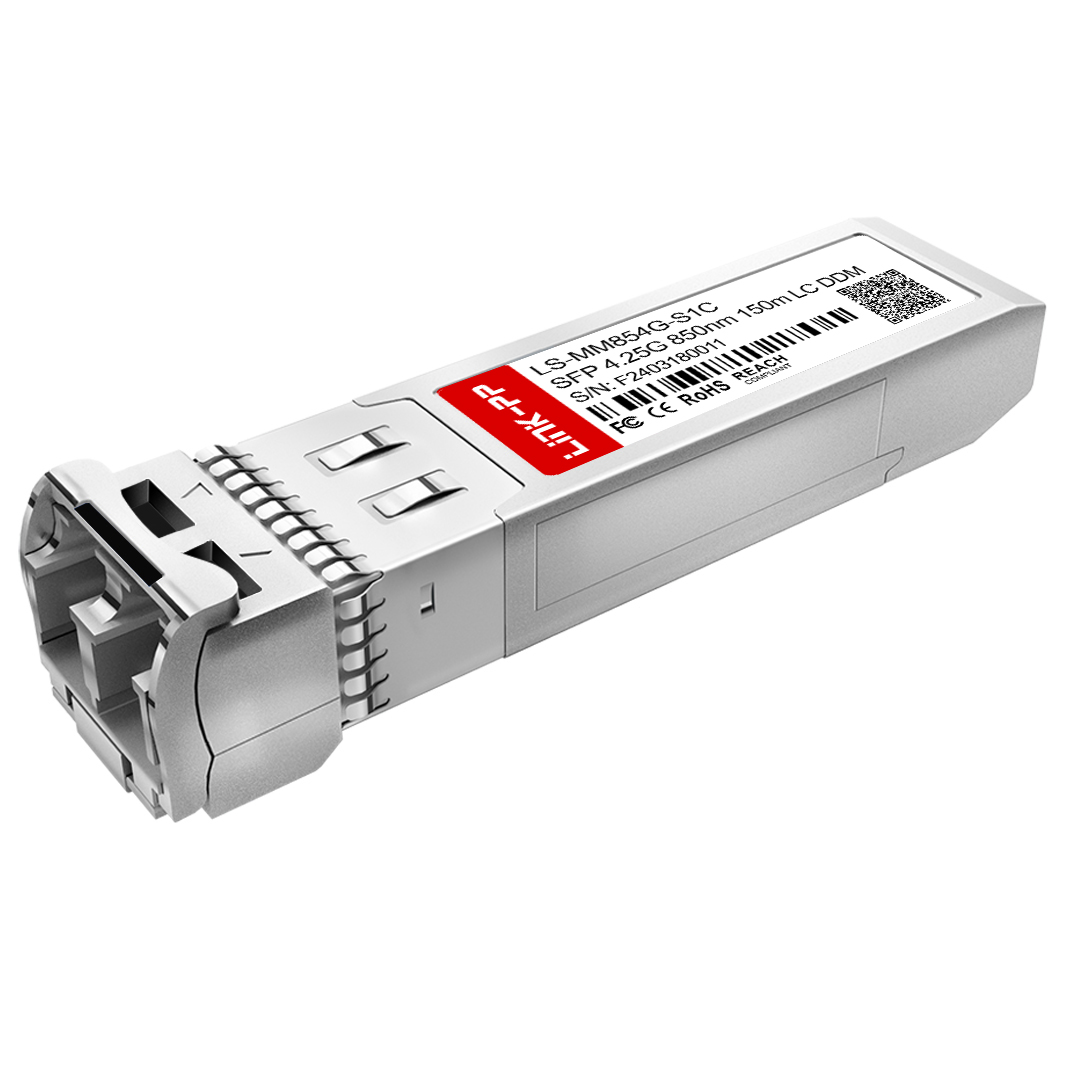

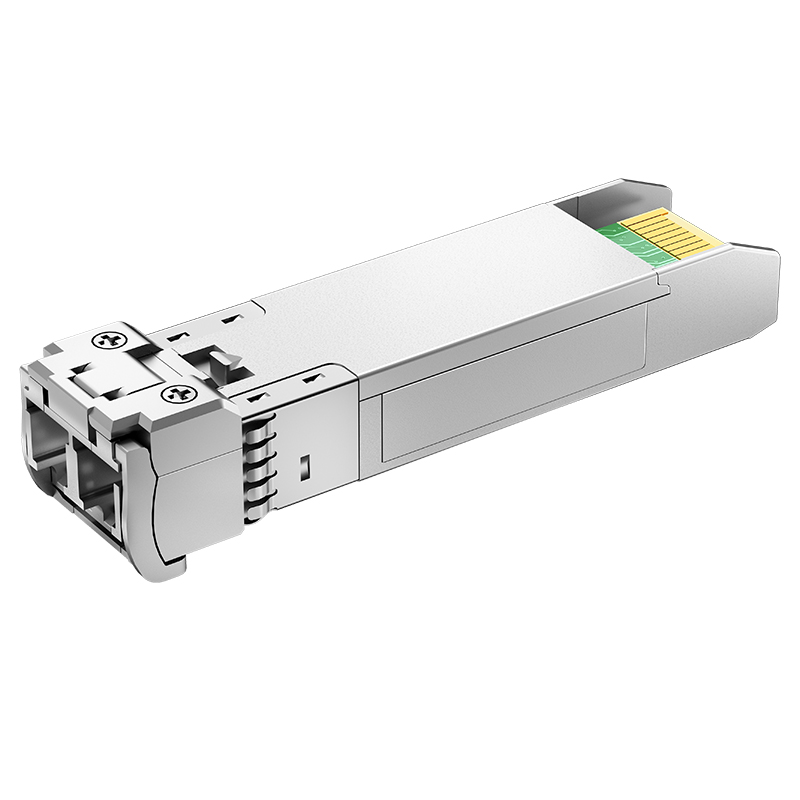

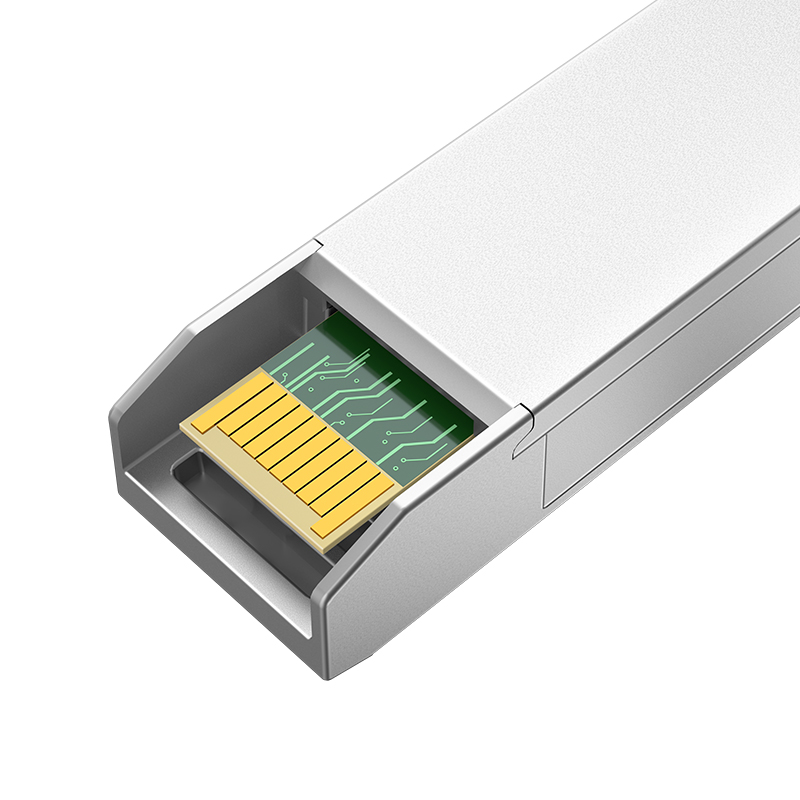

Multi Mode SFP 4G Fibre Channel 850nm 150m MMF LC Optical Transceiver Module

Product Description

Multi Mode SFP 4G Fibre Channel 850nm 150m MMF LC Optical Transceiver Module

Part No. LS-MM854G-S1C
Form Factor SFP
Max Data Rate 4.25Gbps
Wavelength 850nm
Max Cable Distance 150m
Connector Duplex LC
Media MMF
Transmitter Type VCSEL
Receiver Type PIN
TX Power -9 ~ 0dBm
Receiver Sensitivity < -20dBm
EMC (Electro Magnetic Compatibility) Supported
DDM/DOM Supported
Protocols MSA Compliant
Temperature Range 0 to 70°C / -40 to 85°C
Warranty 5 Years
Sample Available

VIEW OUR SOLUTIONS

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.

We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Optical Transceiver Module
Support Full Range Of 4.25G SFP
Part Number Data Rate Wavelength Distance Media DDM
LS-MM854G-S1C 4.25Gbps 850nm 150m Multi-mode Yes
LS-MM852G-S3C 4.25Gbps 850nm 300m Multi-mode Yes
LS-MM854G-S5C 4.25Gbps 850nm 500m Multi-mode Yes
LS-SM314G-02C 4.25Gbps 1310nm 2km Single Mode Yes
LS-SM314G-04C 4.25Gbps 1310nm 4km Single Mode Yes
LS-SM314G-10C 4.25Gbps 1310nm 10km Single Mode Yes
LS-SM314G-40C 4.25Gbps 1310nm 40km Single Mode Yes
LS-SM554G-40C 4.25Gbps 1550nm 40km Single Mode Yes
Solutions Layout
Module Matrix
Application Scenarios & Solutions
Optical Transport Networks

Optical Transport Networks

We can provide end-to-end DWDM device solutions with almost all optical components - from active modules to optical passive devices. This includes optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR, among others.

Cloud and Enterprise

Cloud and Enterprise

To meet the demand for mass data transmission in data centers, we have developed a series of high-speed optical modules with data rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for modern enterprise data networks.

Wireless

Wireless Networks

We provide high reliability and performance products using mature, efficient lasers and mainstream chip solutions. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul, which meet all scenario requirements in 4G/5G systems.

FTTx Solutions

FTTx Access

Aimed at global communication network constructors, we provide total FTTx optical fiber access solutions covering all-optical or combined optical-copper access architectures and products.

Subsystems Solutions

Subsystems

To ensure the stable operation of active communication lines, we provide advanced optical cable O&M solutions integrating optical line protection systems (OLP) and optical line monitoring systems (OLM).

Related Products SFP Cage
SFP Cage Related Products
Why Choose Us
Quality Standard
Testing Equipment
Production Capacity
Global Delivery
Manufacturing Facility & Profile

We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, RoHS, REACH, CE, and UL. Our production lines feature advanced manufacturing and testing equipment imported from leading overseas suppliers.

Established in 1997, our facility currently employs around 2,000 staff. With an abundant production capacity reaching 3,000K units per month, we efficiently ensure short turnaround times and prompt dispatch schedules.

In addition, we design, produce, and globally distribute a comprehensive range of optical modules for fixed access, wireless networks, carrier Ethernet, WDM, and high-speed cloud computing systems, employing the latest optoelectronic technologies.

Factory Environment
Production Line

Frequently Asked Questions

Are you a factory or a trading company?

We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, SFP modules, and more.

Can I request a sample before mass production?

Yes, we can provide free samples for quality evaluation purposes, with shipping/freight costs covered by the customer.

What is your delivery and lead time?

For items currently in stock, they are ready to ship immediately. For mass production orders, the standard lead time is 15-30 days.

What after-sales service and support do you provide?

We offer a one-year warranty period alongside 24-hour online technical support to handle any product queries.

Do you accept OEM/ODM orders?

Yes, we accept both OEM and ODM orders. Please send us your detailed specification requirements so we can discuss the customization parameters.

What are your main manufacturing advantages?

We carry over 19 years of dedicated manufacturing experience, operating as a trusted partner and supplier to major global systems integrators and enterprise brands.
