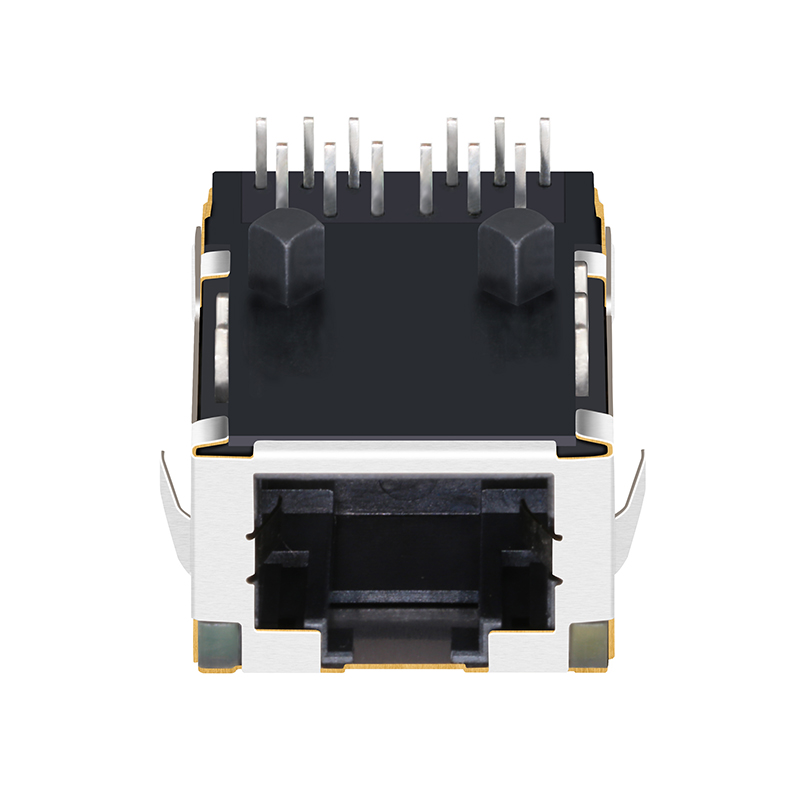

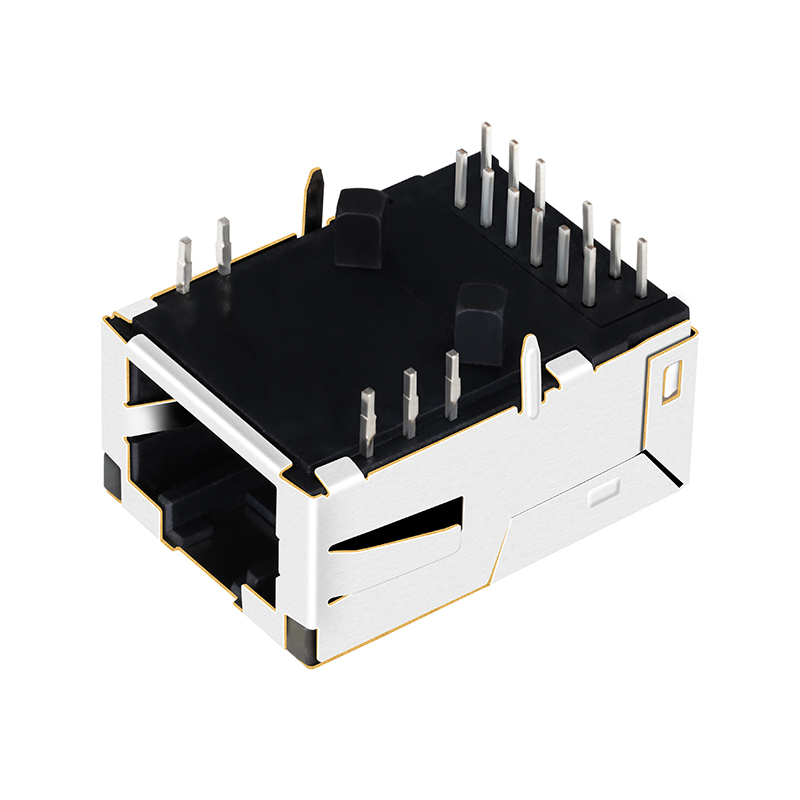

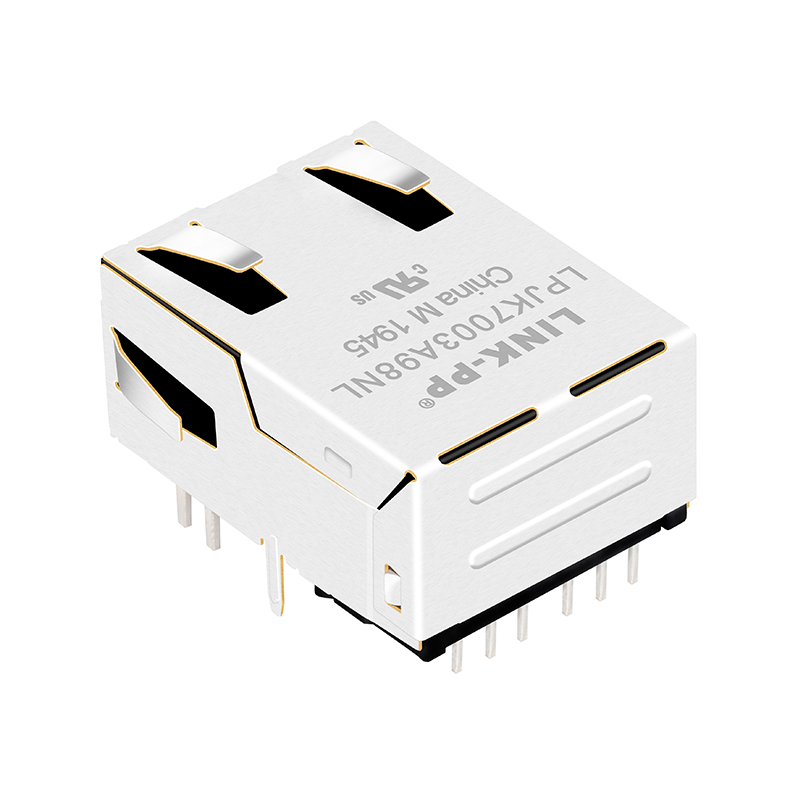

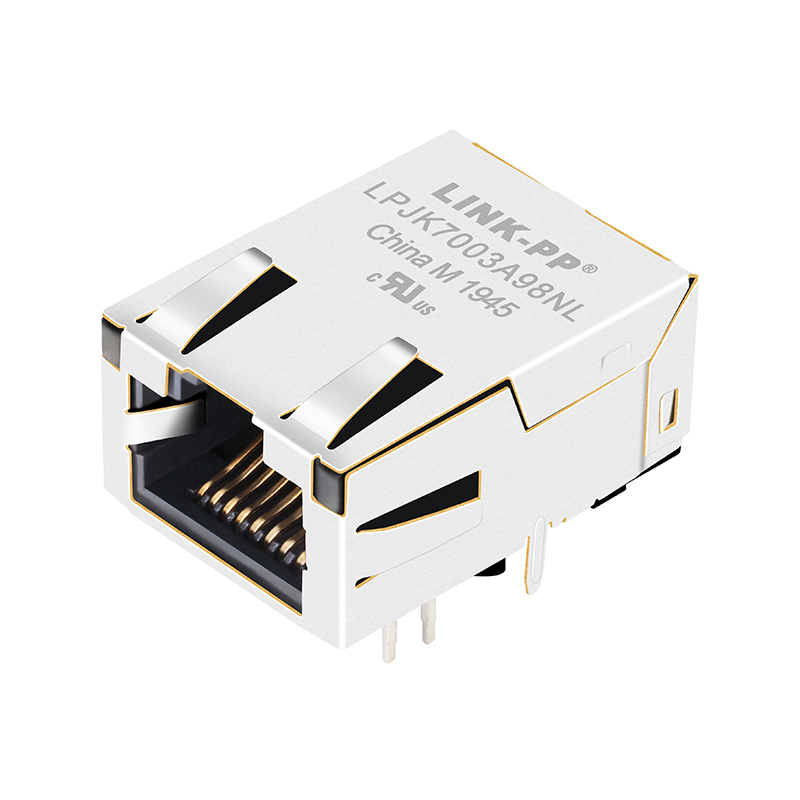

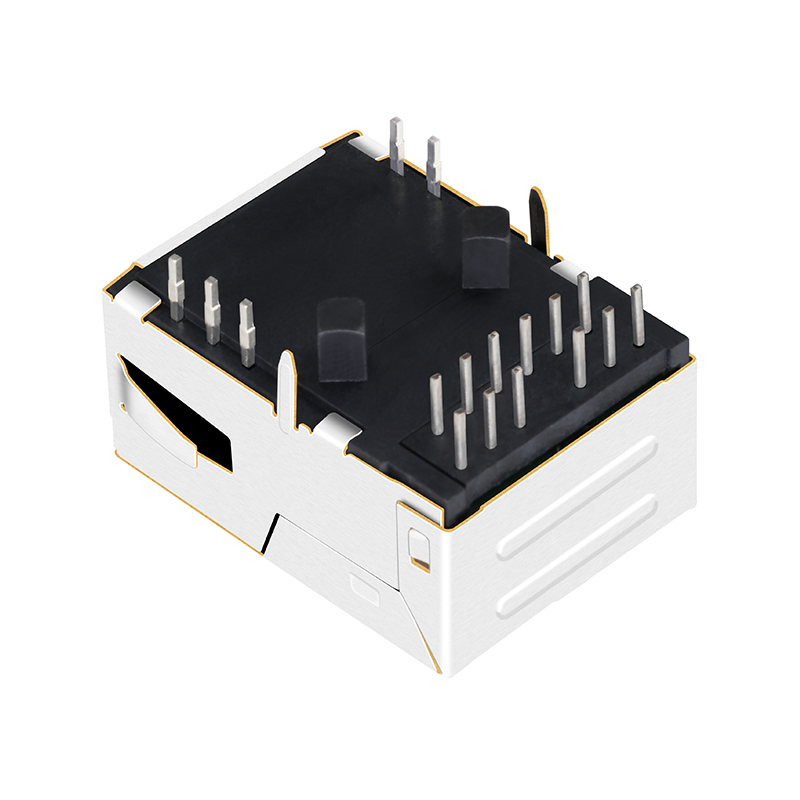

Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
Products Description
| Item | RJ45 Female Connector |
| Part Number | LPJK7003A98NL |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 10p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port, Low Profile |
| Speed | 10/100/1000 Base-T |
| Latch | Down |
| Cores per Port | 8 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With |
| LED Option | Orange&Green/Yellow |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0℃ TO 70℃ |
| Bst Circuit | Yes |
| AutomDX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
🔍 Integrated Magnetic Solutions for Networking Components
Technical Drawings & Dimensions
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we serve as a global supplier to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer free samples to test quality, though shipping costs are typically covered by the customer.
What is your typical delivery time?
Items in stock are ready to ship immediately. For mass production orders, the lead time is generally between 15-30 days.
What kind of after-sales service do you provide?
We provide a one-year guarantee period along with 24-hour online technical support.
Do you accept OEM/ODM orders?
Yes, we welcome OEM and ODM inquiries. Please contact us to discuss your specific requirements.
What are your main advantages?
With over 19 years of production experience, we have established long-term partnerships with global industry leaders, ensuring high-quality standards and reliability.
