Home > Single Port RJ45 Connector > HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot

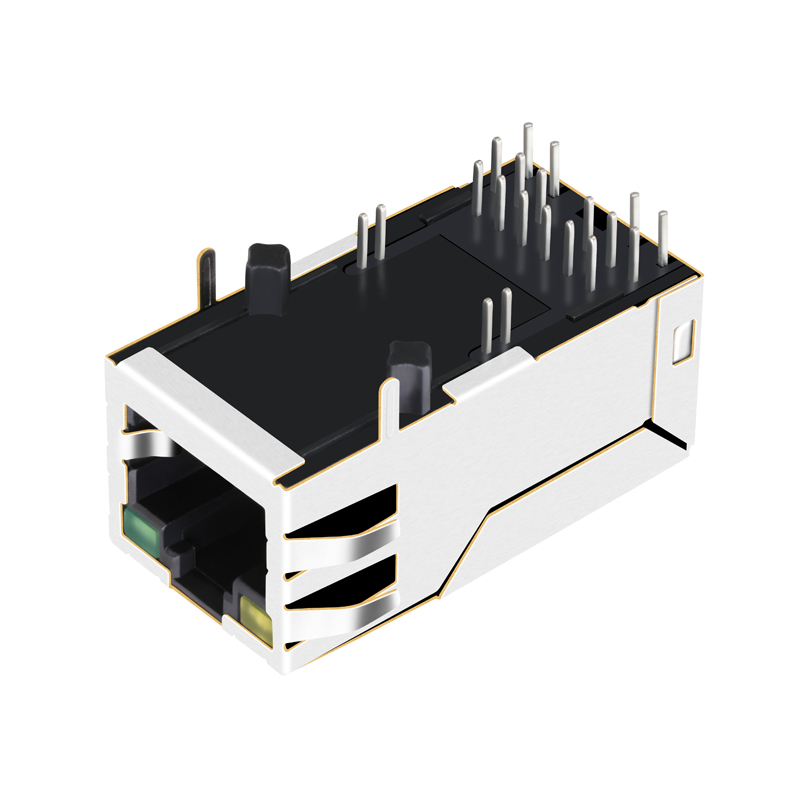

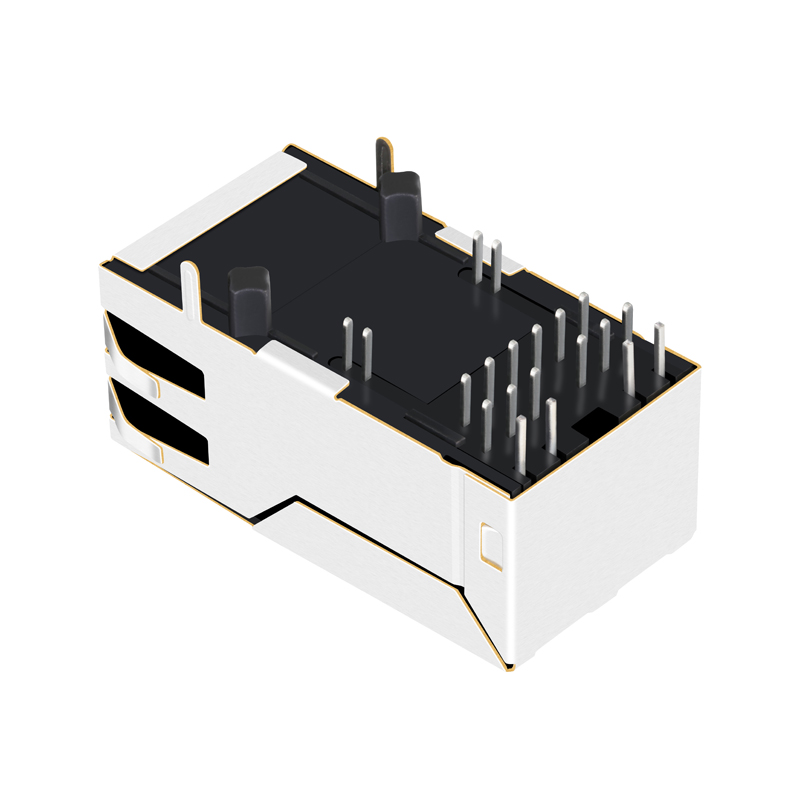

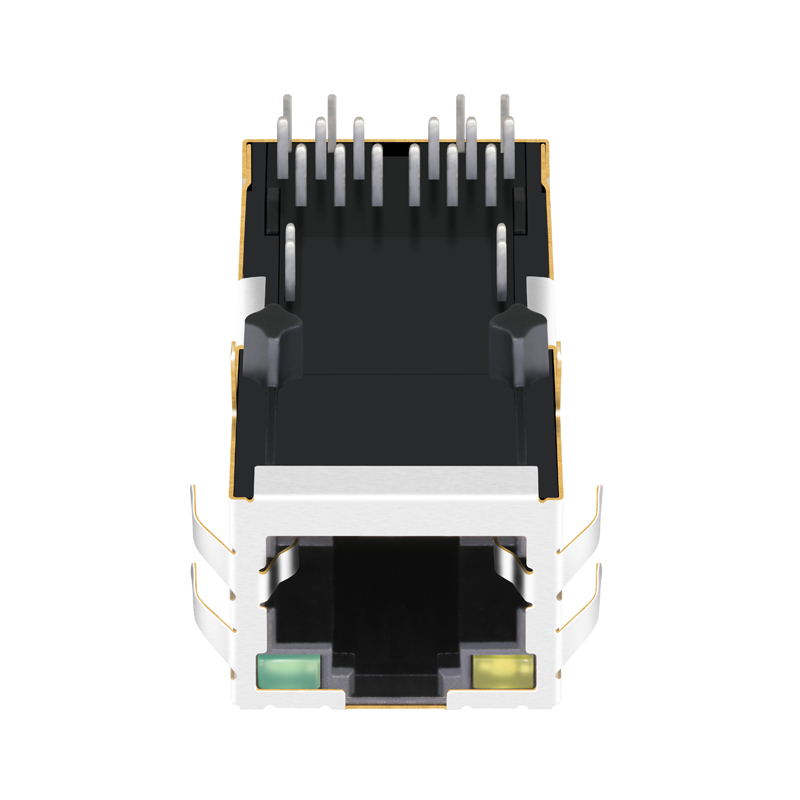

HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
1 / 5
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot

HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot

Send Inquiry

Product Description

RJ45 Connectors and Modules
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
Products Description
Item RJ45 Female Connector
Bothhand Part Number HR851140A
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Down
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C
RJ45 Connector Side View
RJ45 Connector Bottom View
Product View 1
Product View 2
Product View 3
Product View 4
Product Line Category
Product Quality Assurance
Technical Drawing 1
Technical Drawing 2
Technical Drawing 3
Technical Drawing 4
Technical Drawing 5
Technical Drawing 6
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should cover the shipping fee.
What is your delivery time?
Items currently in stock are ready to ship immediately, while mass production orders typically require 15-30 days.
What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send your inquiry to us so that we can proceed with a detailed discussion regarding your requirements.
What is your advantage?
We possess over 19 years of production experience and have served as a trusted partner to major industry-leading corporations for many years.
