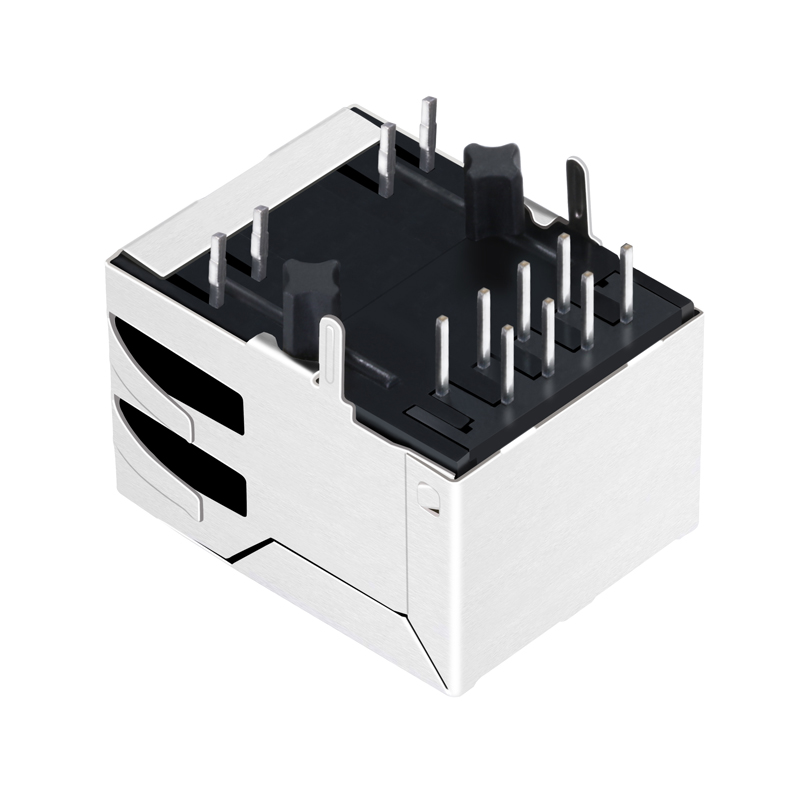

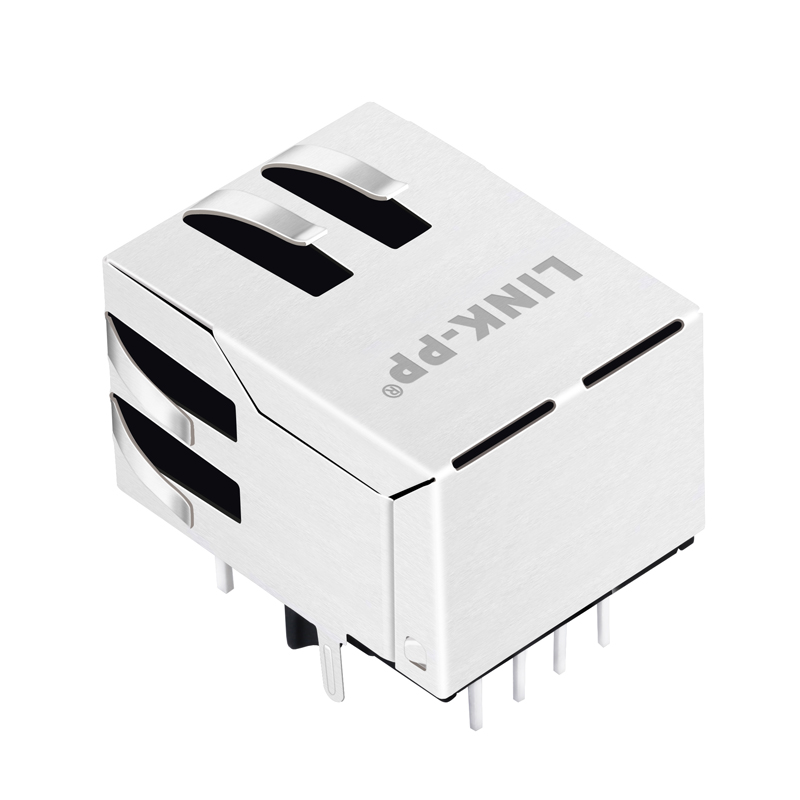

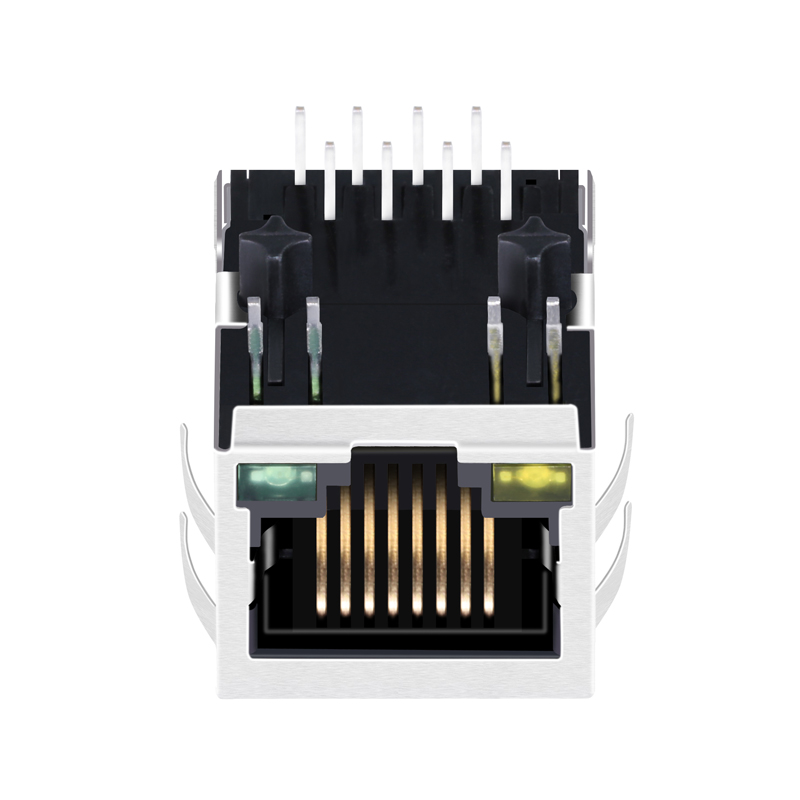

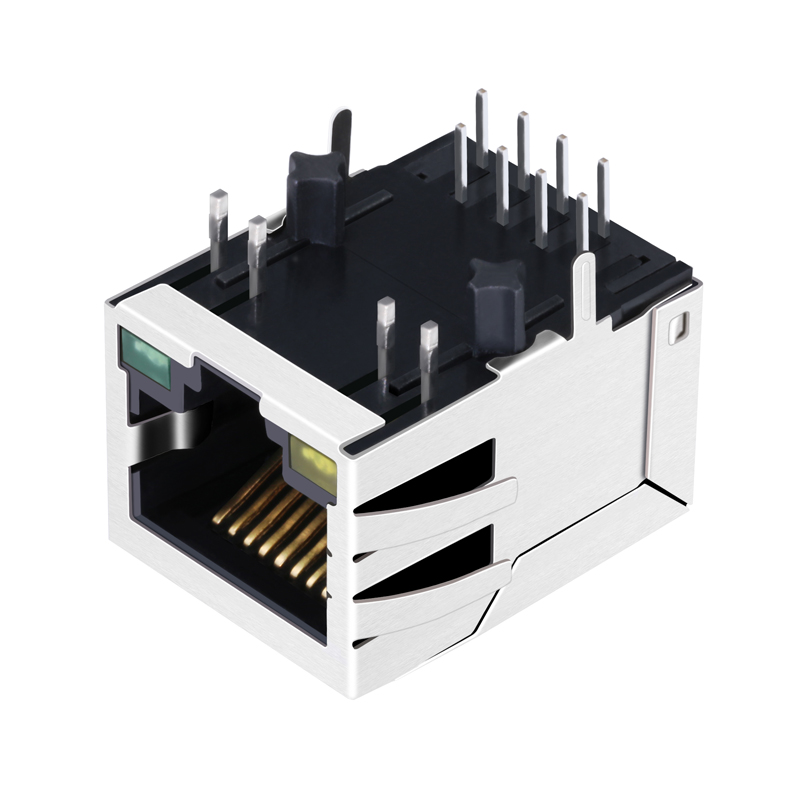

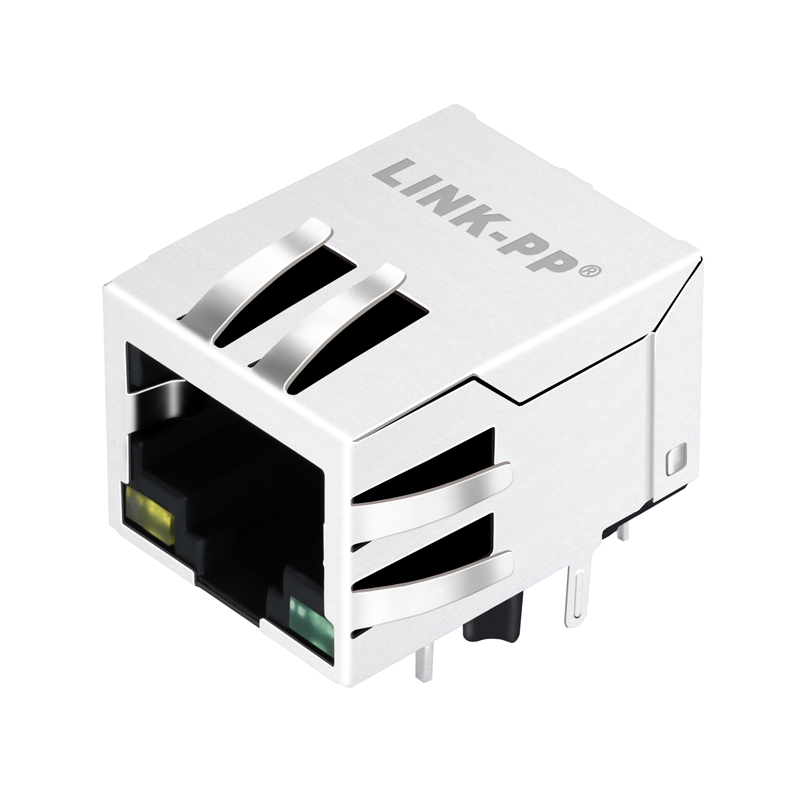

Female RJ45 for Internet Modular Plug TIC-L003-11
| Part Number |
TIC-L003-11 |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Cores Per Port |
4 |
| Diodes |
NO DIODES |
| LED Option |
WithOUT LEDS |
| Latch |
DOWN |
| Number of Ports |
1X1 |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 With LEAD IN SOLDER EXEMPTION |
| Shield EMI Tabs |
With OR WithOUT |
| Speed |
10/100 BASE-T |
| Temperature |
0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
ISO 9001:2008
UL Certification
Reach Certification
RoHS Compliance
Active Environmental Policy
100% Quality Guarantee
Manufactured Under Strict Controls
100% Tested (Not Just Batch Tested)
Quality Guarantee: 6 Years
Competitive Price & Service
High Compatibility with Major Brands
Delivery Time: 2-3 Weeks
Free Samples Available
Custom Designs for Specific Requirements
Frequently Asked Questions
1. What is the maximum data transmission speed for the TIC-L003-11?
The TIC-L003-11 supports 10/100 BASE-T speeds, making it ideal for standard Ethernet connectivity requirements.
2. Does this RJ45 connector include integrated LED indicators?
No, this specific model (TIC-L003-11) is designed without LEDs. If you require LED options, please contact us for alternative models.
3. What is the operating temperature range for this component?
It is designed to operate reliably in temperatures ranging from 0 to 70°C, with industrial options available for -40 to 85°C.
4. Is the TIC-L003-11 RoHS compliant?
Yes, it is RoHS compliant (RoHS-5) with standard lead-in-solder exemptions, meeting international environmental standards.
5. What type of plating is used on the contact mating area?
The contact mating area features high-quality gold plating, available in 6u", 15u", or 30u" thicknesses to ensure superior connectivity and durability.
6. What is the mounting orientation for this RJ45 plug?
The TIC-L003-11 features a side entry (right angle) PCB mount angle with a T-post retaining system for secure attachment.
