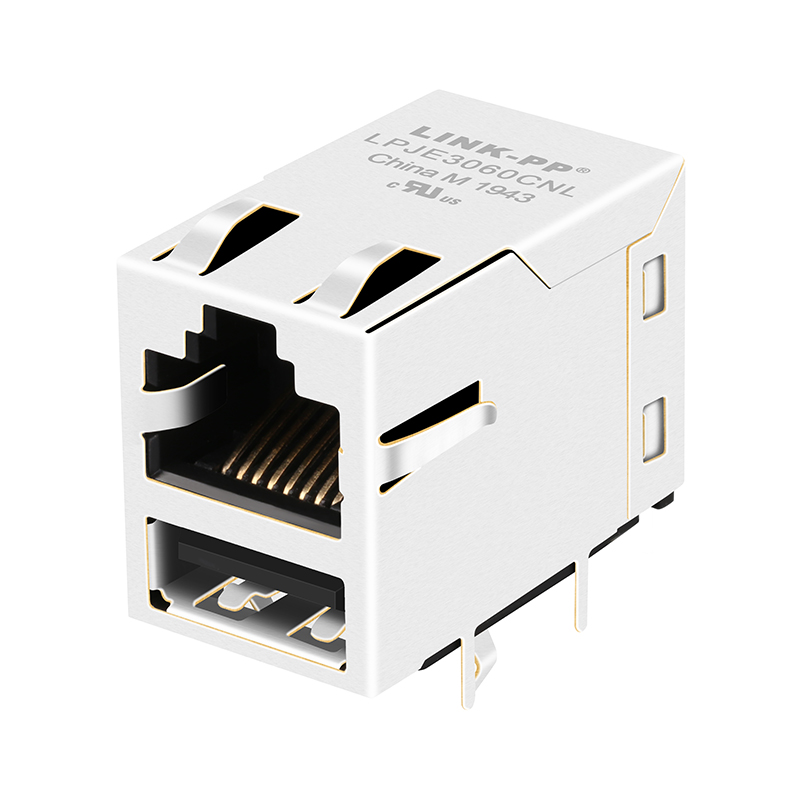

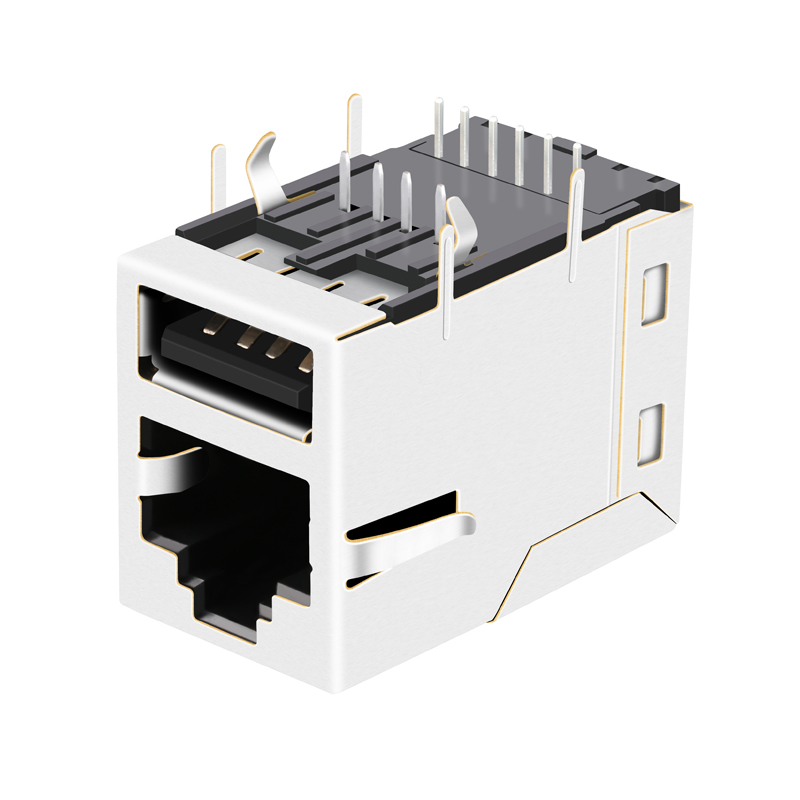

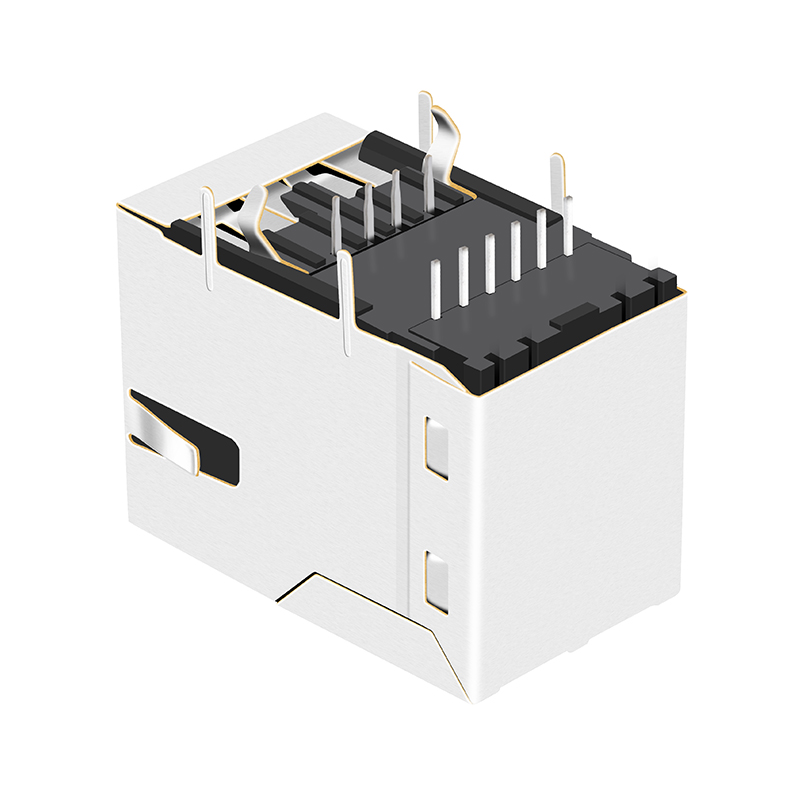

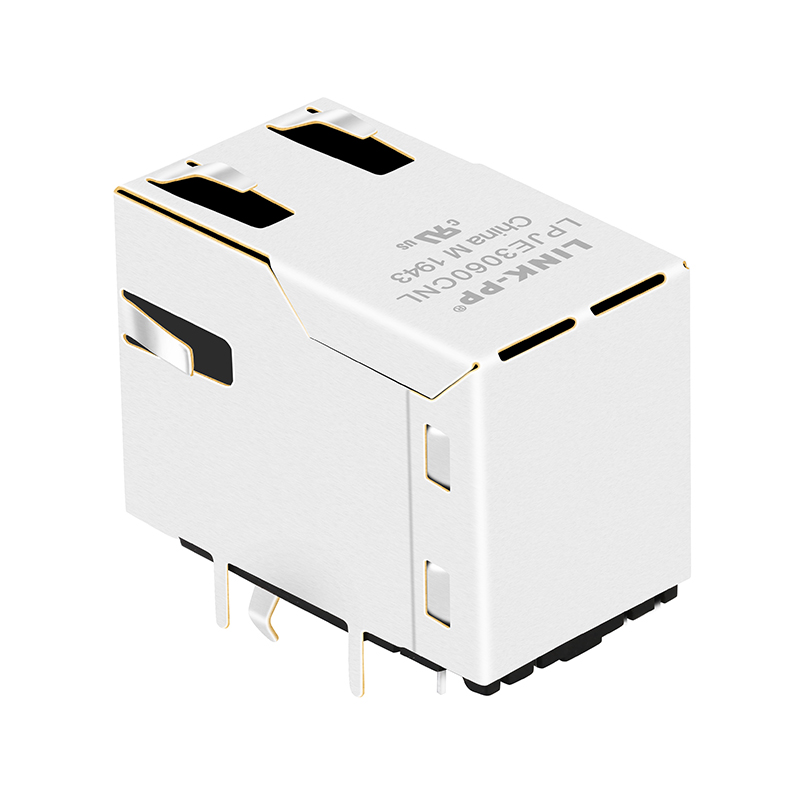

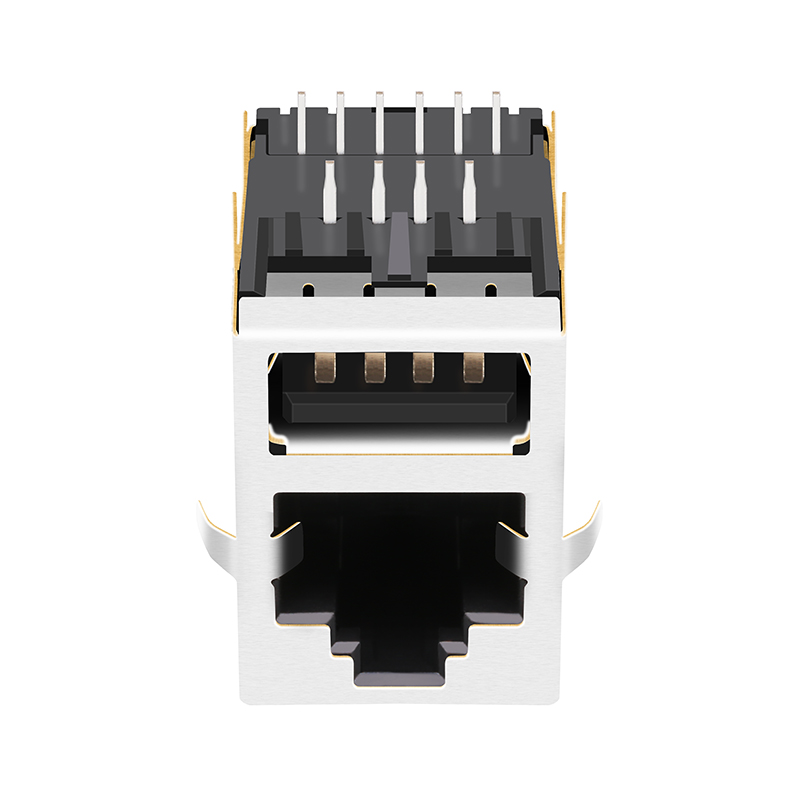

| Item | RJ45 Connector Without Magnetics |
| Part Number | LPJE3060CNL |
| Part Status | Active |
| Connector Type | Jack |
| Positions/Contacts | 10p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet (Non Poe) |
| Number of Ports | 1 Port with 1 USB |
| Latch | Up |
| Cores per Port | 8 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With |
| LED Option | Without Led Light |
| PCB Material | FR4 |
| PCB Retaining Post | T POST |
| Temperature Range | 0℃ TO 70℃ |
| Bst Circuit | Yes |
| AutoMDX | YES |
| Contact Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we serve as a global supplier for OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers in over 200 countries.
Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading provider of Ethernet RJ45 connectors and LAN transformers.
