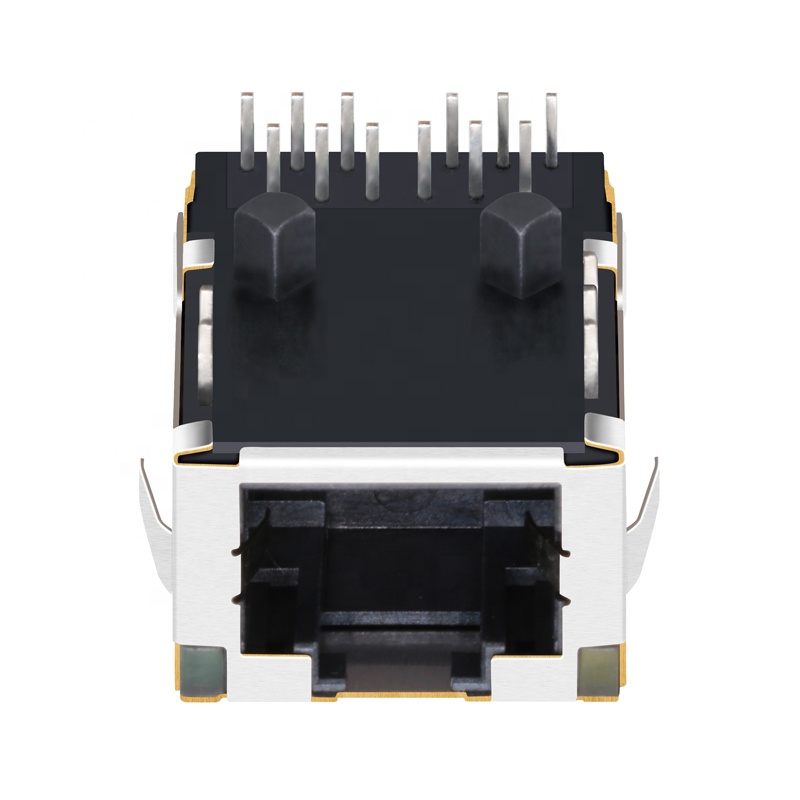

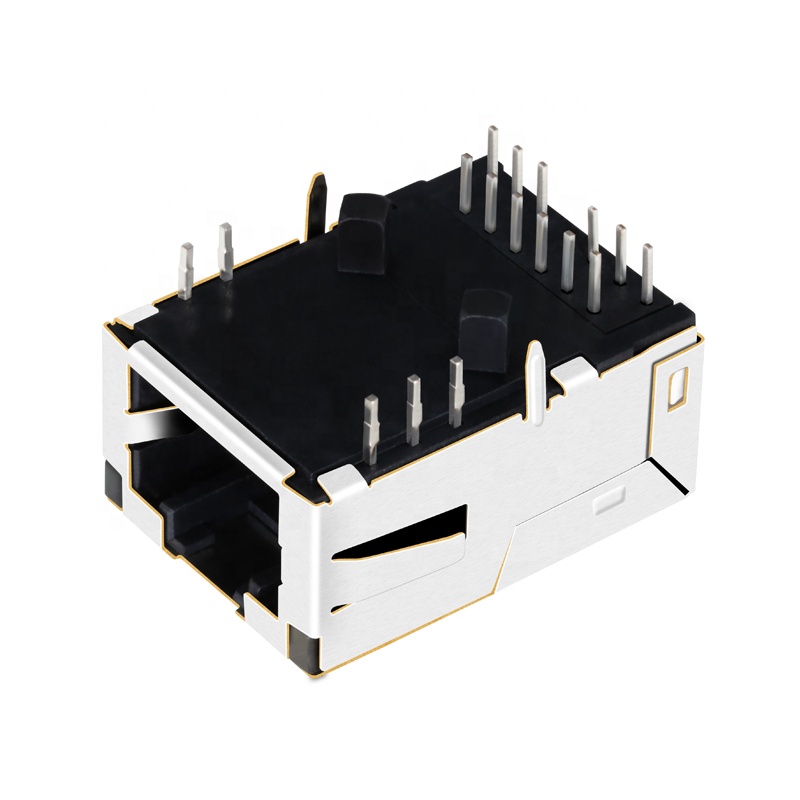

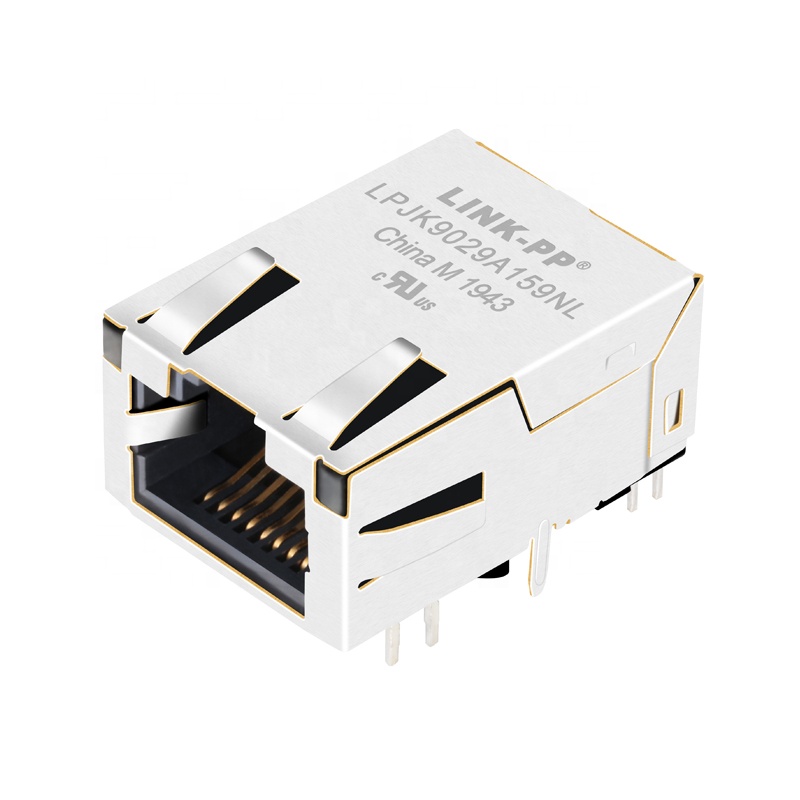

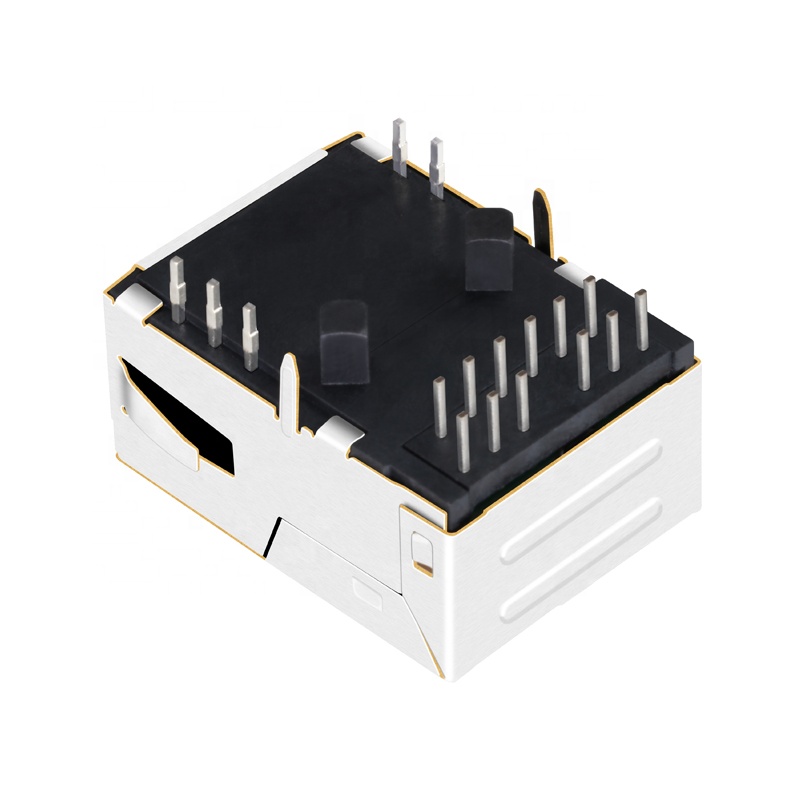

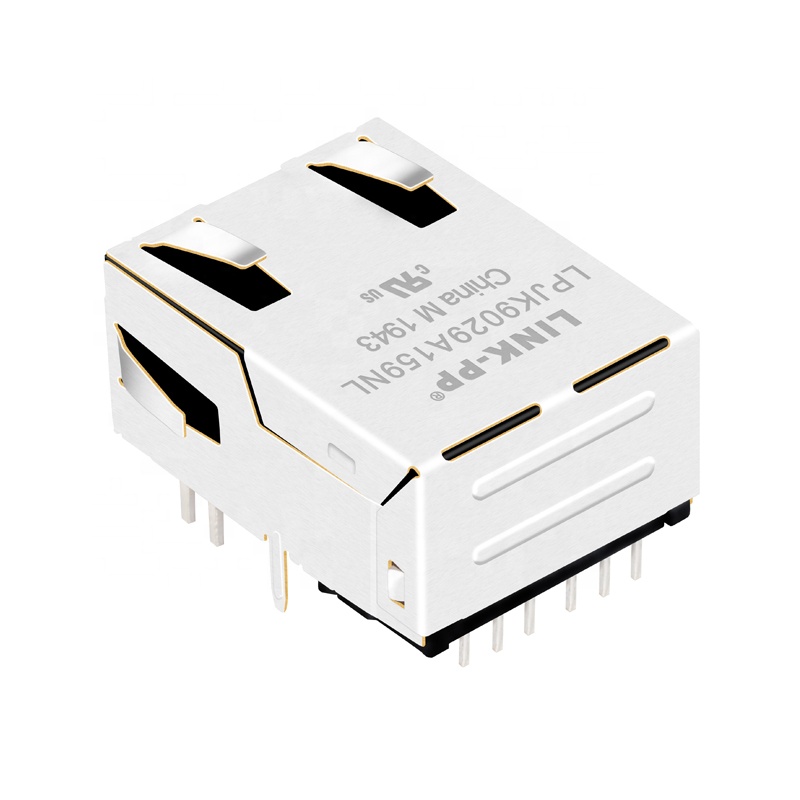

5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector

iProduct Description

⚙Specification

Model Number	LPJK9029A159NL
Part Status	Active
Connector Type	RJ45
Applications-Lan	5G Base-T, AutoMDIX
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Contact Finish Thickness	6.00µin (0.152µm)
LED Color	Yellow&Green - Yellow
Number of Cores per Jack	8
Shielding	Shielded
Number of Ports	Single Port
Features	Board Guide
Tab Direction	Down
Contact Finish	Gold
Configuration RX/TX	T,C
Turns Ratio RX/TX	1CT:1CT
Operating Temperature	0°C ~ 70°C

★Product Characteristics

RJ45 Connector with integrated transformer / common mode choke. Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s. Available in SMT, THT and THT with USB. Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEE 802.3bt. HPLE products: Improved Common Mode Rejection due to additional NiZn cores.

📦Packing & Delivery

Package Details: 110 pcs in 1 tray (34.5*34.5*27cm). Each carton contains 550pcs (5.5KGS).

🏭Production Excellence

Specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. Equipped with advanced manufacturing facilities and test equipment. With a monthly capacity of 3000K units, ensuring professional solutions and strong technical support.

?Frequently Asked Questions

1. What is the primary application for this RJ45 connector? It is specifically designed for 5G Base-T applications and LAN networking, supporting speeds up to 10 Gbit/s.

2. Does this connector support Power over Ethernet (PoE)? Yes, it supports PoE up to 50 Watts and is compliant with IEEE 802.3af, 802.3at, and upcoming 802.3bt standards.

3. What are the shielding features of the LPJK9029A159NL? The connector is fully shielded and includes a board guide for secure mounting and EMI protection.

4. What is the standard packaging quantity? The components are packed with 110 pieces per tray, with a standard carton holding 550 pieces.

5. What temperature range can this component operate in? The operating temperature range for this model is 0°C to 70°C.

6. Which certifications do these magnetic components hold? Our products are certificated by ISO9001:2000, ROSH, REACH, CE, and UL.
