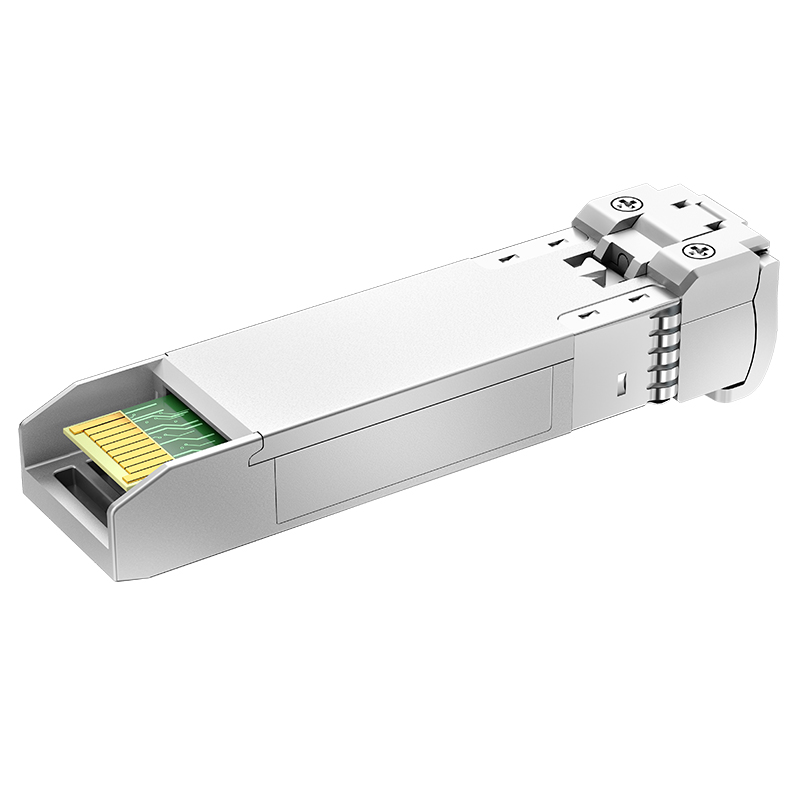

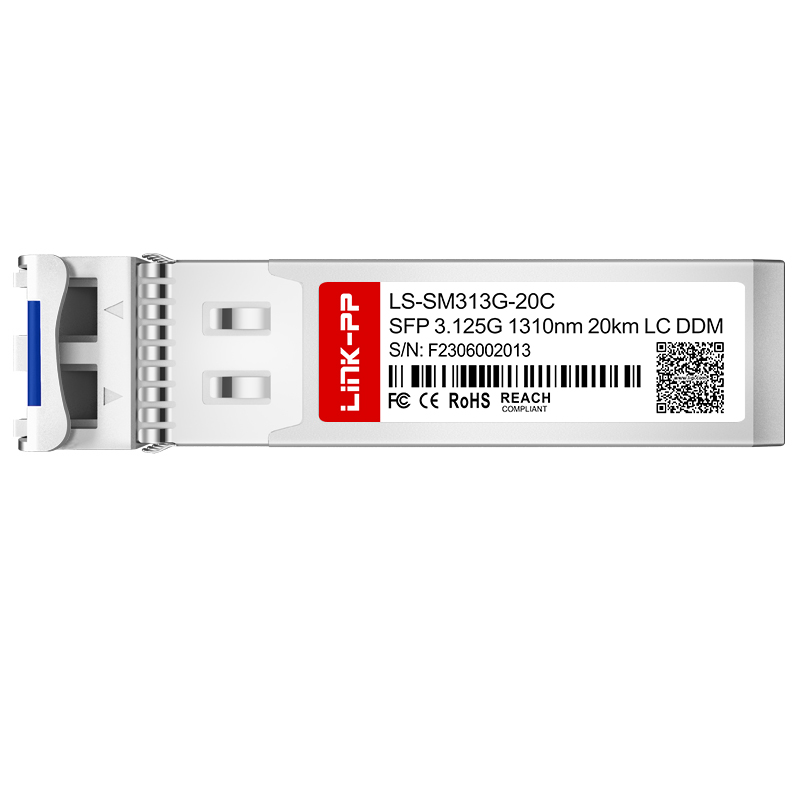

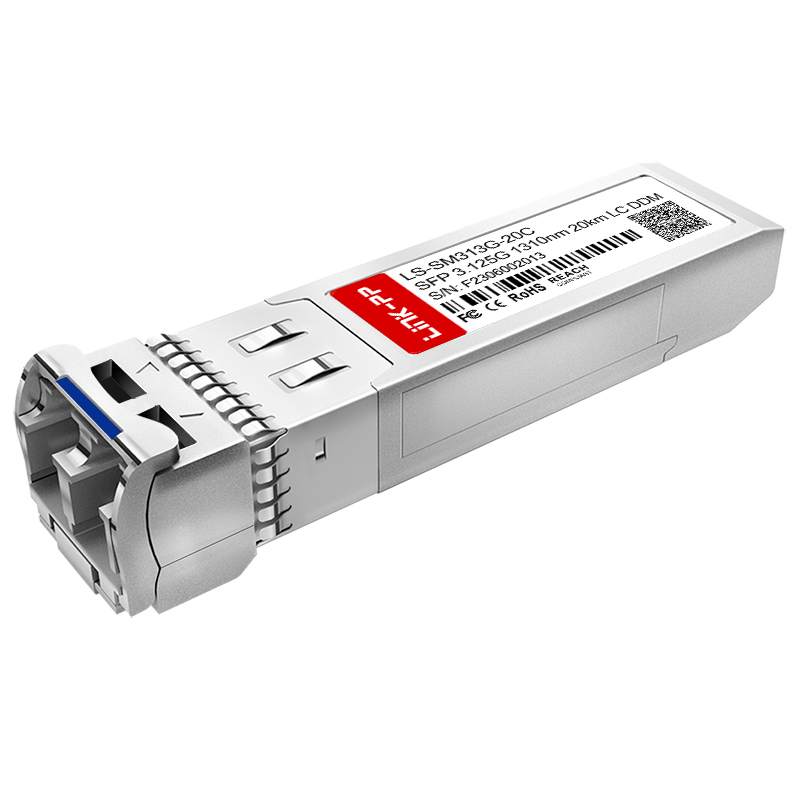

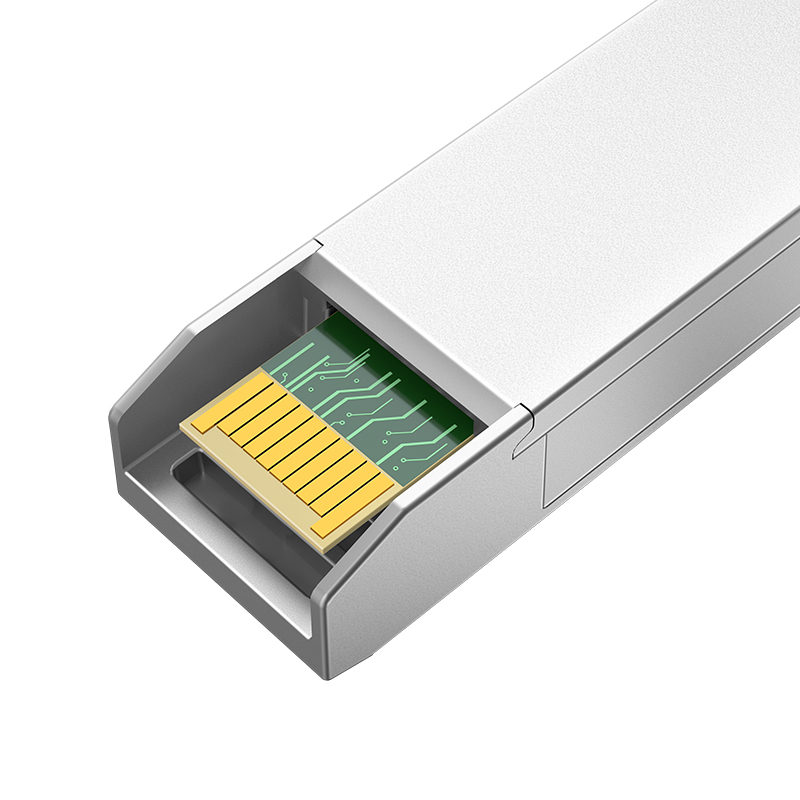

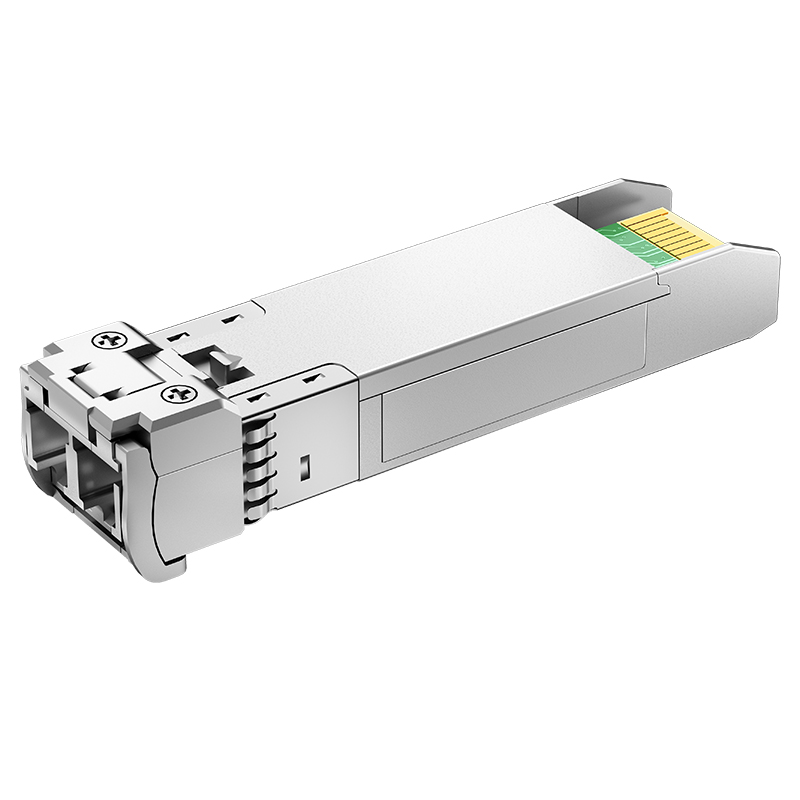

Single Mode 3.125G SFP 1310nm 20km DDM SMF LC Optic Transceiver Module
| Part No. |
LS-SM313G-20C |
| Form Factor |
SFP |
| Max Data Rate |
3.125Gbps |
| Wavelength |
1310nm |
| Max Cable Distance |
20km |
| Connector |
Duplex LC |
| Media |
SMF |
| Transmitter Type |
DFB |
| Receiver Type |
PIN |
| TX Power |
-6 ~ 0dBm |
| Receiver Sensitivity |
< -18dBm |
| Receiver Overload |
-1dBm |
| EMC (Electro Magnetic Compatibility) |
Supported |
| DDM/DOM |
Supported |
| Protocols |
MSA Compliant |
| Temperature Range |
0 to 70°C / -40 to 85°C |
| Warranty |
5 Years |
| Sample |
Available |
VIEW OUR SOLUTIONS
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
| Part Number |
Data Rate |
Wavelength |
Distance |
Media |
DDM |
| LS-MM852G-S3C |
2.5Gbps |
850nm |
300m |
Multi-mode |
Yes |
| LS-MM852G-S5C |
2.5Gbps |
850nm |
550m |
Multi-mode |
Yes |
| LS-SM312G-02C |
2.5Gbps |
1310nm |
2km |
Single Mode |
Yes |
| LS-SM312G-10C |
2.5Gbps |
1310nm |
10km |
Single Mode |
Yes |
| LS-SM312G-15C |
2.5Gbps |
1310nm |
15km |
Single Mode |
Yes |
| LS-SM312G-20C |
2.5Gbps |
1310nm |
20km |
Single Mode |
Yes |
| LS-SM552G-20C |
2.5Gbps |
1550nm |
20km |
Single Mode |
Yes |
| LS-SM312G-40C |
2.5Gbps |
1310nm |
40km |
Single Mode |
Yes |
| LS-SM552G-40C |
2.5Gbps |
1550nm |
40km |
Single Mode |
Yes |
| LS-SM552G-80C |
2.5Gbps |
1550nm |
80km |
Single Mode |
Yes |
