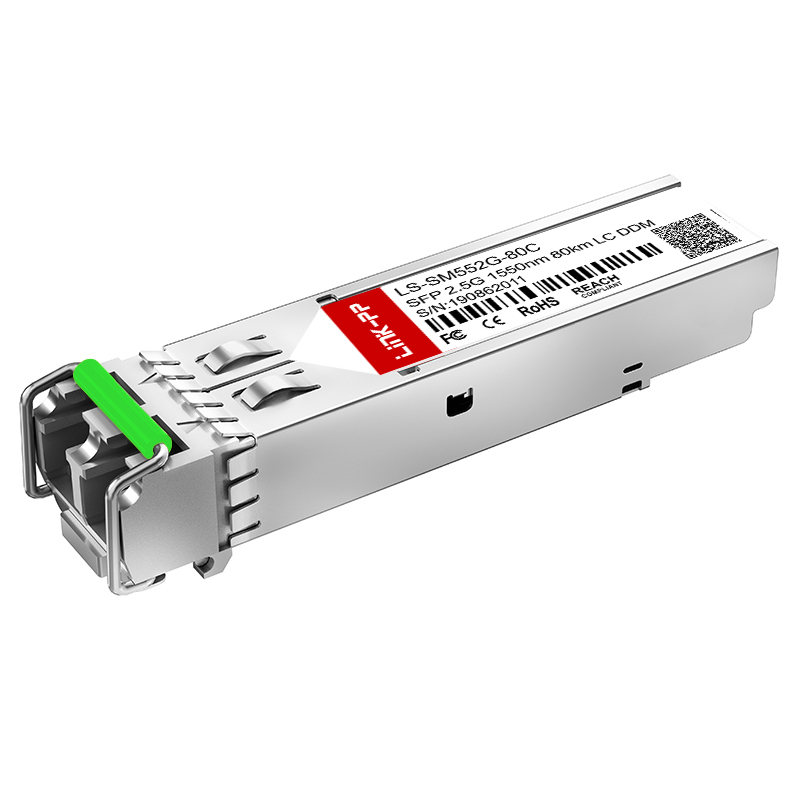

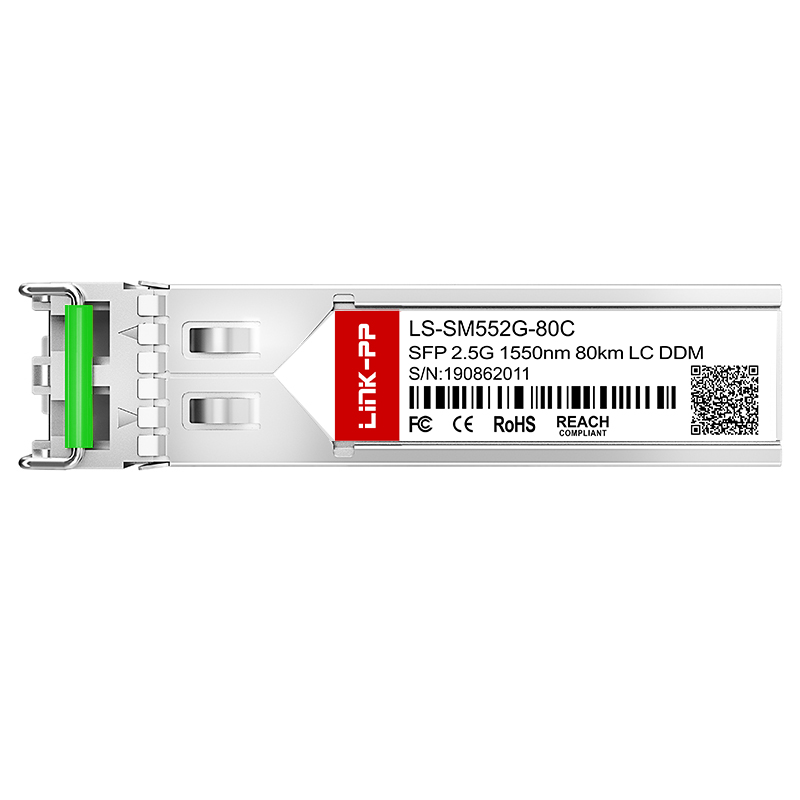

| Parameter | Specifications |
|---|---|
| Form Factor | SFP |
| Max Data Rate | 2.5Gbps |
| Wavelength | 1550nm |
| Max Cable Distance | 80km |
| Connector | Duplex LC |
| Media | SMF |
| Transmitter Type | DFB |
| Receiver Type | PIN |
| TX Power | -2 ~ 3dBm |
| Receiver Sensitivity | < -28dBm |
| EMC Supported | Yes |
| DDM/DOM | Supported |
| Protocols | MSA Compliant |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
Drawing on over 10 years of experience in chips and modules, we integrate fast speeds, small size, power savings, and high performance into every optical module. We provide a full series of modules for fixed access, wireless access, carrier Ethernet, WDM, and data communication networks.
| Part Number | Data Rate | Wavelength | Distance | Media | DDM |
|---|---|---|---|---|---|
| LS-MM852G-S3C | 2.5Gbps | 850nm | 300m | Multi-mode | Yes |
| LS-MM852G-S5C | 2.5Gbps | 850nm | 550m | Multi-mode | Yes |
| LS-SM312G-02C | 2.5Gbps | 1310nm | 2km | Single Mode | Yes |
| LS-SM312G-10C | 2.5Gbps | 1310nm | 10km | Single Mode | Yes |
| LS-SM312G-20C | 2.5Gbps | 1310nm | 20km | Single Mode | Yes |
| LS-SM552G-20C | 2.5Gbps | 1550nm | 20km | Single Mode | Yes |
| LS-SM312G-40C | 2.5Gbps | 1310nm | 40km | Single Mode | Yes |
| LS-SM552G-40C | 2.5Gbps | 1550nm | 40km | Single Mode | Yes |
| LS-SM552G-80C | 2.5Gbps | 1550nm | 80km | Single Mode | Yes |
Providing end-to-end DWDM devices including active modules and optical passive devices like amplifiers (EDFA & RFA), Mux & Demux, ROADM, and OTDR.
High-speed optical modules ranging from 10G to 800G, specifically developed to meet mass data transmission demands in modern data centers.
High reliability products using mainstream chip solutions for Dark Fiber, WDM, and Radio over Fiber, covering 4G/5G mid-haul and back-haul scenarios.
Total solutions for global communication network constructors, covering all-optical and combined optical-copper access products.
Our manufacturing facilities are certified by ISO9001:2000, ROHS, REACH, CE, and UL. We utilize advanced manufacturing and testing equipment to ensure the highest quality for magnetic telecom and network components. With a production capacity of 3000K per month, we provide short lead times and global delivery.
