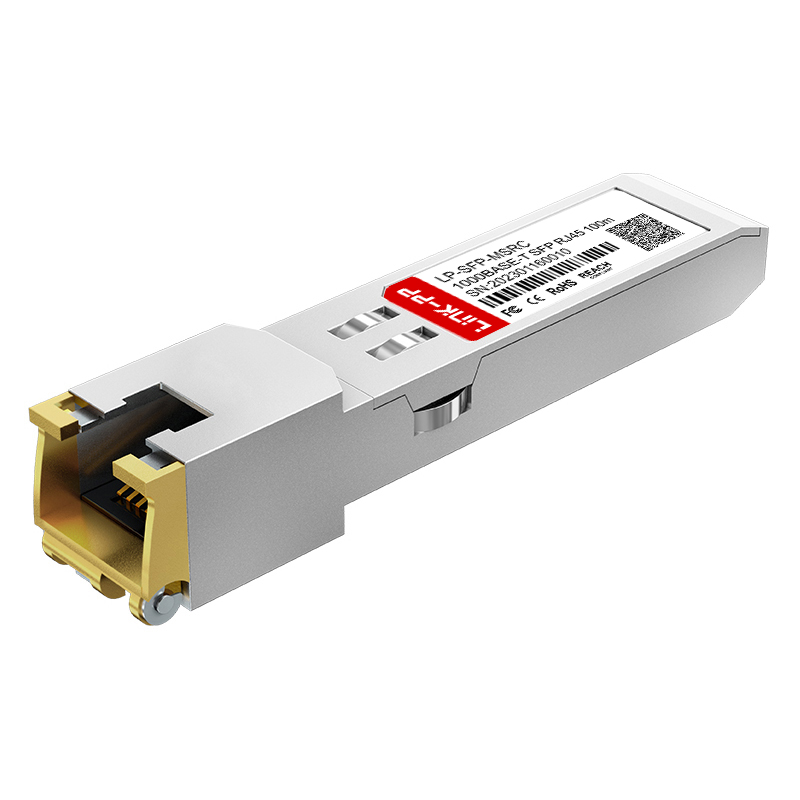

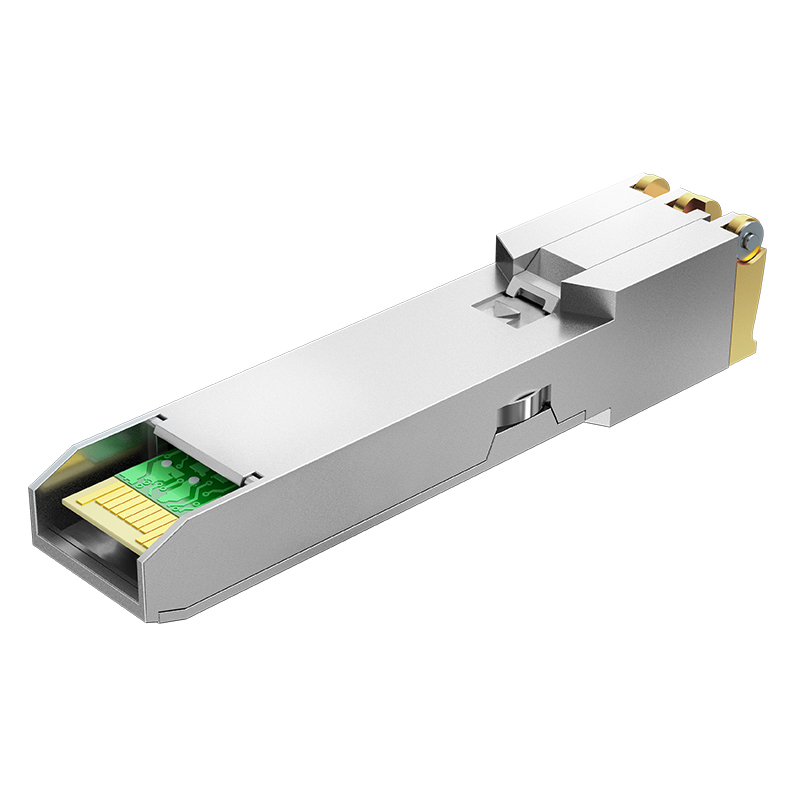

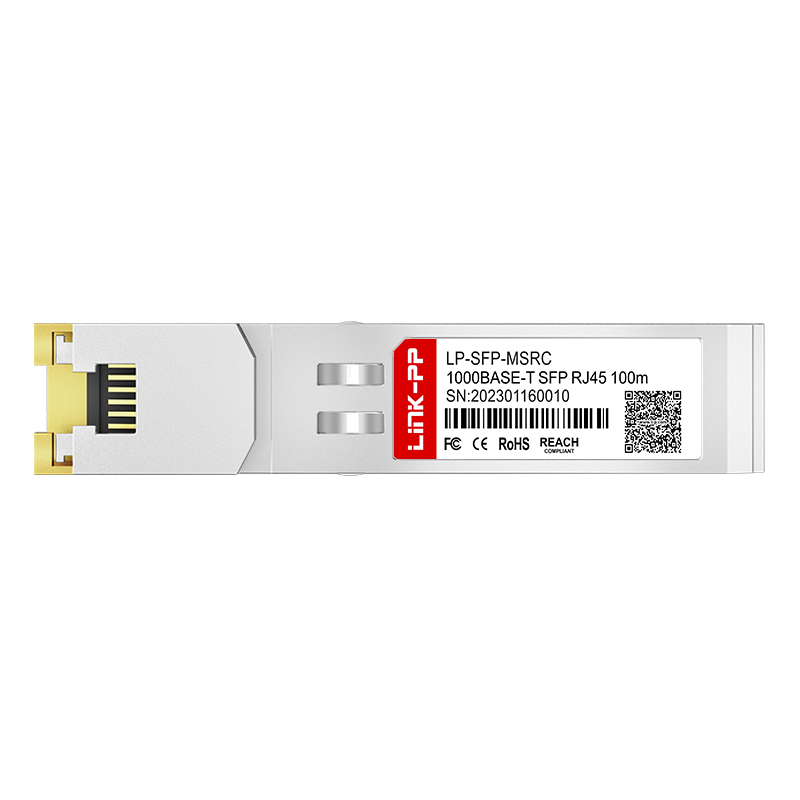

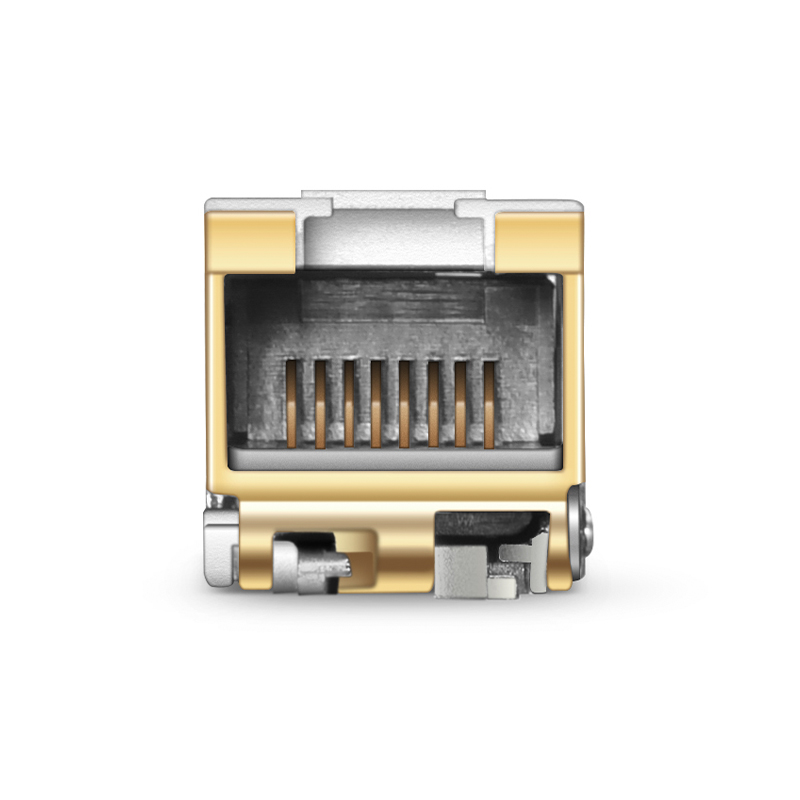

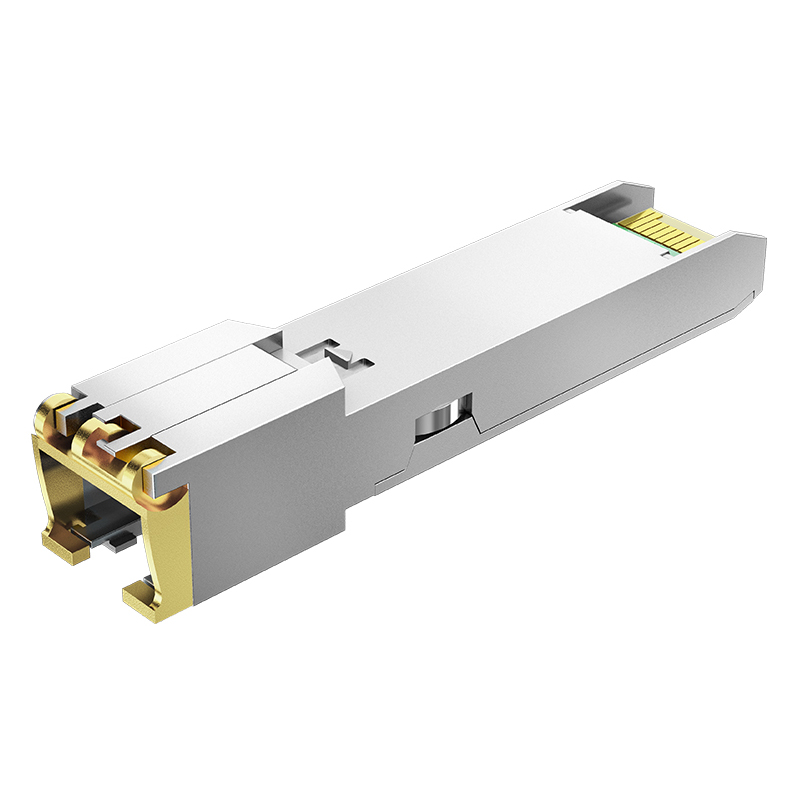

1000BASE-T 1G SFP Copper RJ45 100m Fiber Optical Transceiver Module
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
🚀 Products Description
| Item |
Specifications |
| Copper SFP Transceiver | SFP Form Factor |
| Part No. | LP-SFP-MSRC |
| Max Data Rate | 1000Mbps |
| Max Cable Distance | 100m |
| Media | Cat 5e/6/6a |
| Connector | RJ45 |
| Power Consumption | ≤1.2W |
| DDM/DOM | Supported |
| Commercial Temp Range | 0℃ to 70°C / -40℃ to 85℃ |
| EMC Support | Supported |
| MTBF | 1,000,000 Hours |
| Warranty | 5 Years |
| Sample | Available |
📋 Support 100M-10G Copper SFP Transceiver
| Part Number |
Data Rate |
Connector |
Media |
Distance |
| LP-FE-TCB | 10/100Mbps | RJ45 | Cat 5/6/6a | 100m |
| LP-RJ4501-TC | 100Mbps | RJ45 | Cat 5/6/6a | 100m |
| LP-SFP-TMRC | 10/100/1000Mbps | RJ45 | Cat 6/6a | 100m |
| LP-SFP-TM8C | 10/100/1000Mbps | RJ45 | Cat 6/6a | 100m |
| LP-SFP-MS8C | 1000Mbps | RJ45 | Cat 6/6a | 100m |
| LP-SFP-MSRC | 1000Mbps | RJ45 | Cat 6/6a | 100m |
| LP-RJ452G-TC | 2.5Gbps | RJ45 | Cat 5e | 100m |
| LP-RJ45TG-3YC | 10Gbps | RJ45 | Cat 6a/7+ | 30m |
| LP-RJ45TG-8YC | 10Gbps | RJ45 | Cat 6a/7+ | 80m |
🛠 Related Products & SFP Cage
⭐ Why Choose Us
🏭 Profile & Capabilities
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE and UL. Our facilities feature advanced manufacturing and test equipment imported to ensure high-quality standards.
Established in 1997, we have around 2000 staff members. With a monthly production capacity of 3000K, we ensure short delivery lead times. We offer a full range of optical modules for fixed access, wireless, carrier Ethernet, WDM, and data centers.
❓ Frequently Asked Questions
What is the maximum transmission distance for this copper SFP module?
This 1000BASE-T SFP module supports a maximum cable distance of up to 100 meters over Cat 5e, Cat 6, or Cat 6a copper cabling.
Is this transceiver hot-swappable?
Yes, it is designed for hot-plugging into any SFP port that complies with the SFP MSA (Multi-Source Agreement) without powering down the host equipment.
Does this module support Digital Diagnostic Monitoring (DDM)?
Yes, this module supports DDM/DOM functionality, allowing you to monitor real-time parameters such as temperature and voltage.
What operating temperature ranges are available?
We offer both commercial temperature range (0°C to 70°C) and industrial temperature range (-40°C to 85°C) versions to suit different environments.
What certifications do your products hold?
Our networking components are certified by ISO9001:2000, RoHS, REACH, CE, and UL, ensuring compliance with international quality and safety standards.
What is the warranty period for this SFP module?
We provide a comprehensive 5-year warranty for this transceiver module, along with 24-hour online technical support.
