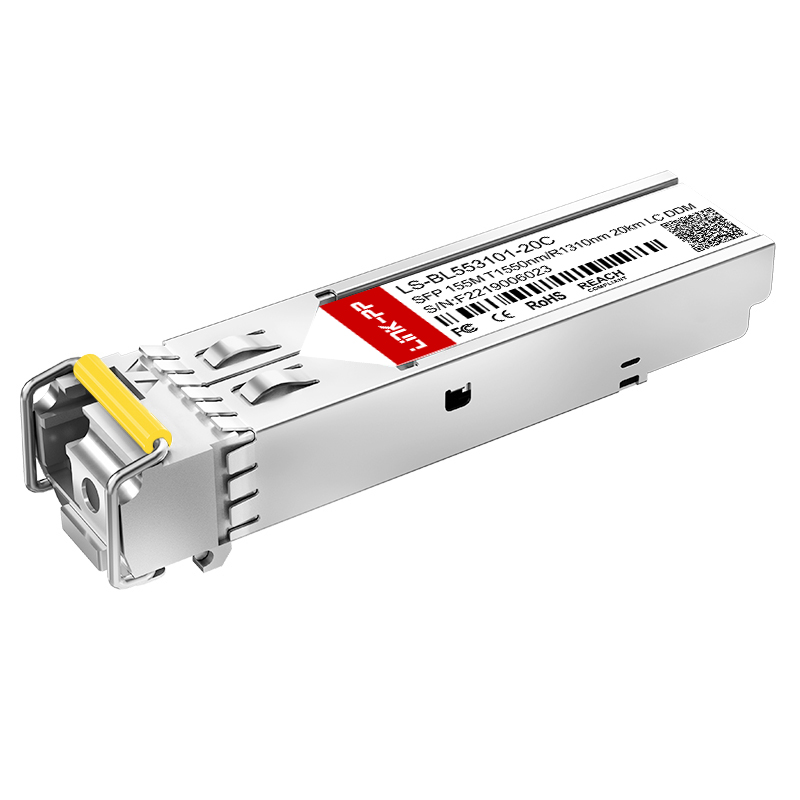

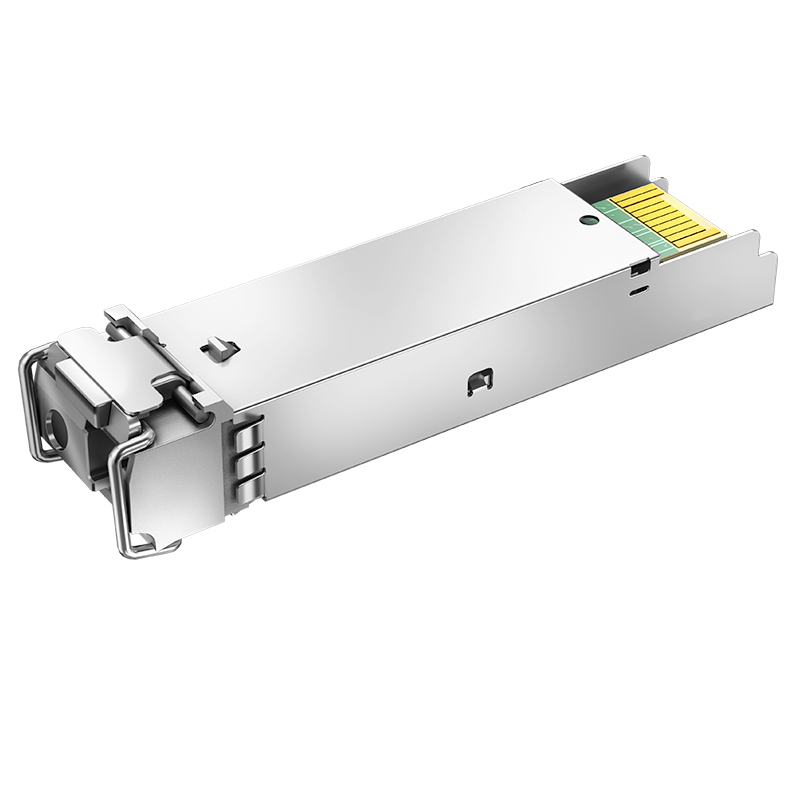

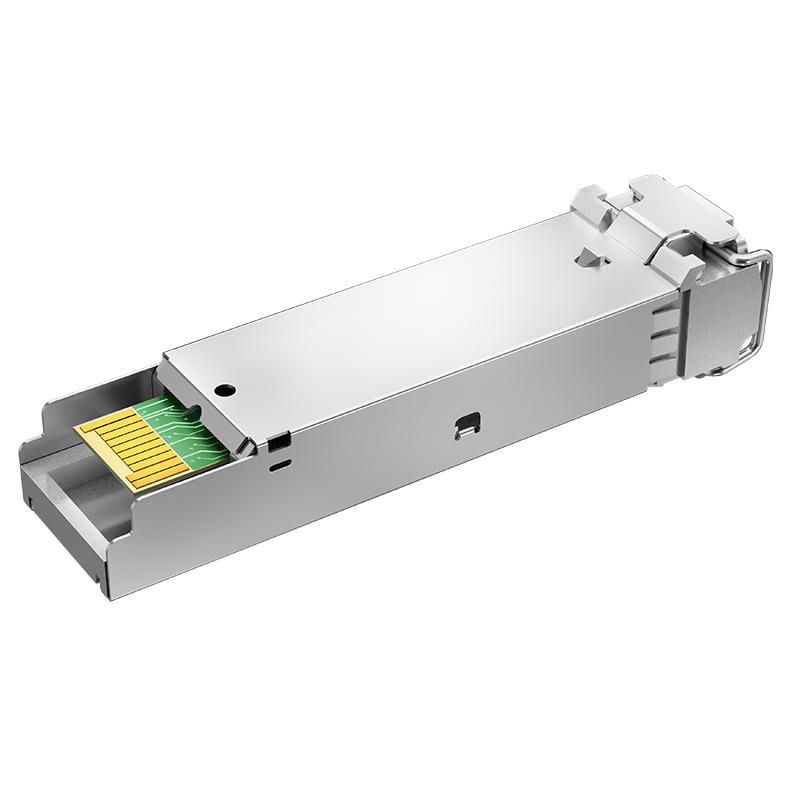

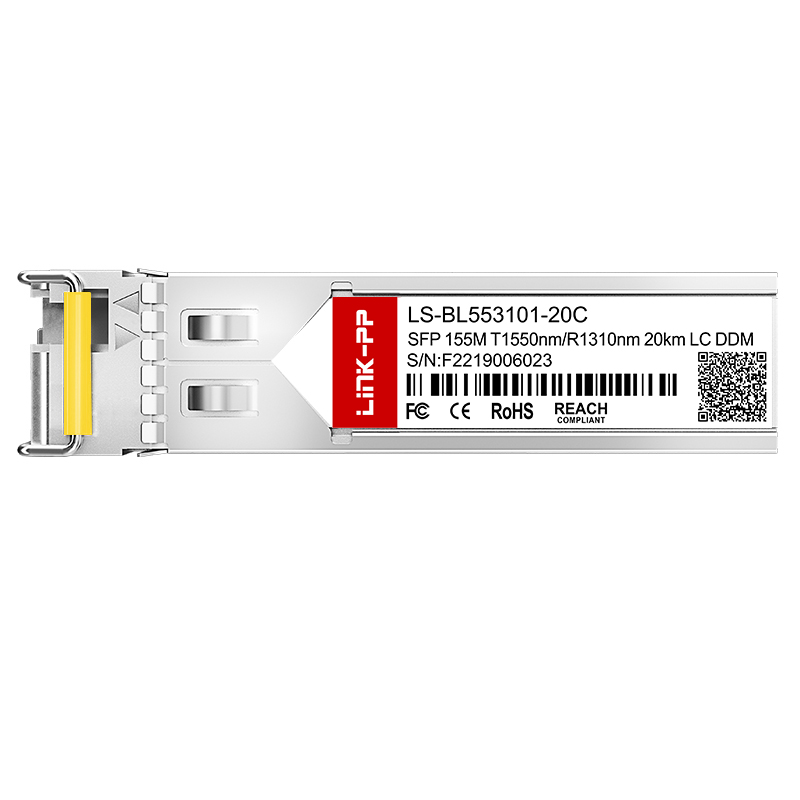

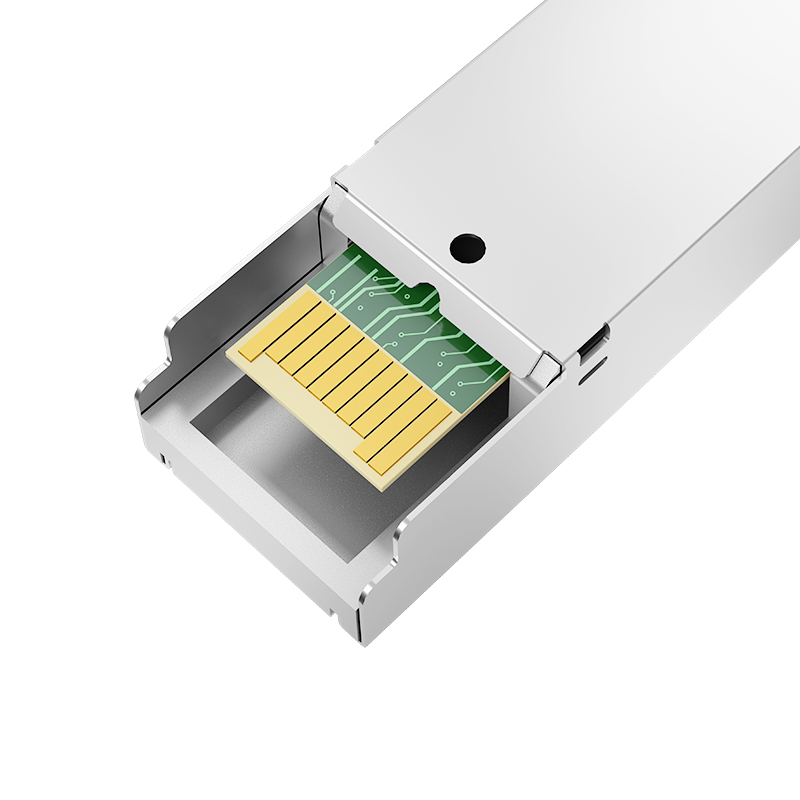

1550nm-TX/1310nm-RX Simplex LC 155M Bidi SFP 20km Single Mode Optic Transceiver Module

Product Description

1550nm-TX/1310nm-RX Simplex LC 155M Bidi SFP 20km Single Mode Optic Transceiver Module
Vendor NameProfessional Provider
Part No.LS-BL553101-20C
Form FactorSFP
Max Data Rate155Mbps
Wavelength1550nm-TX/1310nm-RX
Max Cable Distance20km
ConnectorSimplex LC
MediaSMF
Transmitter TypeFP
Receiver TypePIN
TX Power-14 ~ -8dBm
Receiver Sensitivity< -30dBm
EMC SupportedYes
DDM/DOMSupported
ProtocolsFast Ethernet, Gigabit Fibre Channel, MSA Compliant
Temperature Range0 to 70°C / -40 to 85°C
Warranty5 Years
🚀
VIEW OUR SOLUTIONS
Drawing on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. A full series of optical modules is provided for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Support Full Range Of 155M BiDi SFP
Part Number Data Rate Wavelength Distance Components DDM
LS-BL315501-10C155Mbps1310nm-TX/1550nm-RX10kmFP/PINYes
LS-BL553101-10C155Mbps1550nm-TX/1310nm-RX10kmFP/PINYes
LS-BL315501-15C155Mbps1310nm-TX/1550nm-RX15kmFP/PINYes
LS-BL553101-15C155Mbps1550nm-TX/1310nm-RX15kmFP/PINYes
LS-BL315501-20C155Mbps1310nm-TX/1550nm-RX20kmFP/PINYes
LS-BL553101-20C155Mbps1550nm-TX/1310nm-RX20kmFP/PINYes
LS-BL315501-40C155Mbps1310nm-TX/1550nm-RX40kmFP/PINYes
LS-BL553101-40C155Mbps1550nm-TX/1310nm-RX40kmFP/PINYes
LS-BL315501-80C155Mbps1310nm-TX/1550nm-RX80kmFP/PINYes
LS-BL553101-80C155Mbps1550nm-TX/1310nm-RX80kmFP/PINYes
