Single Mode 1550nm 2.5G SFP 20km SMF Dual LC Optic Transceiver Module

Product Description

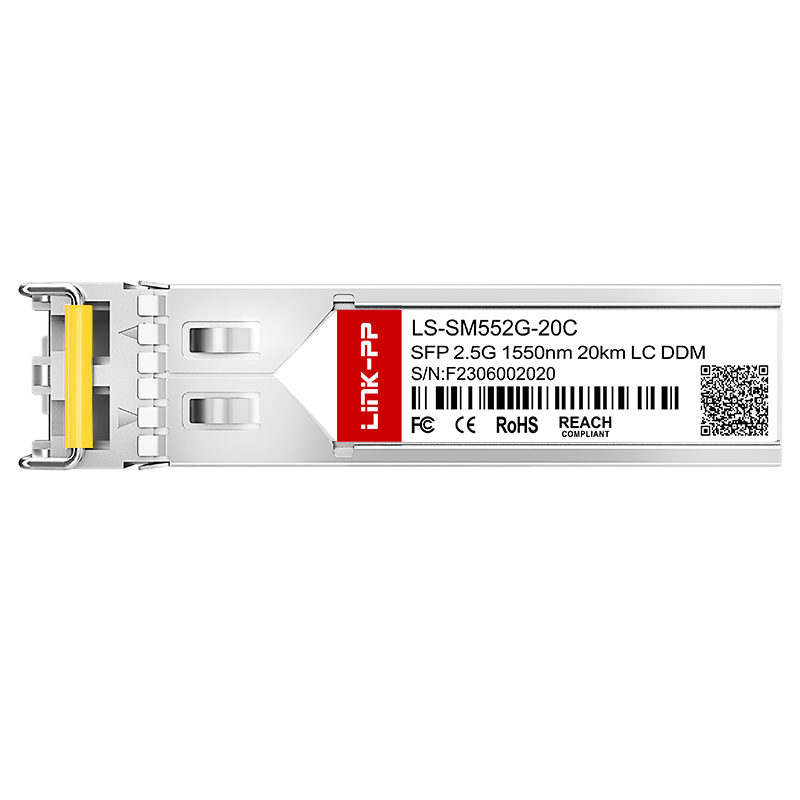

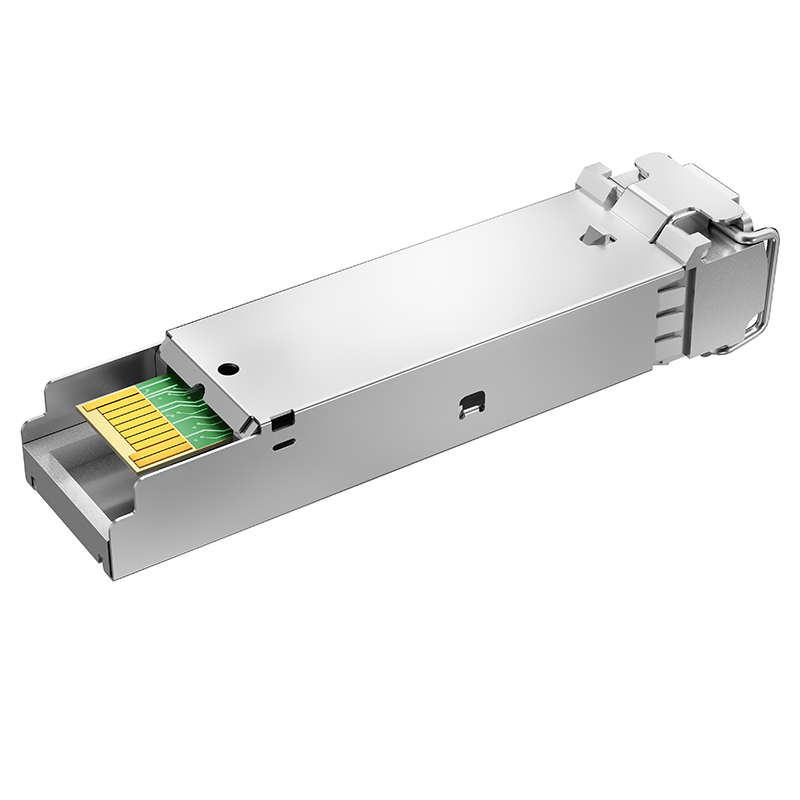

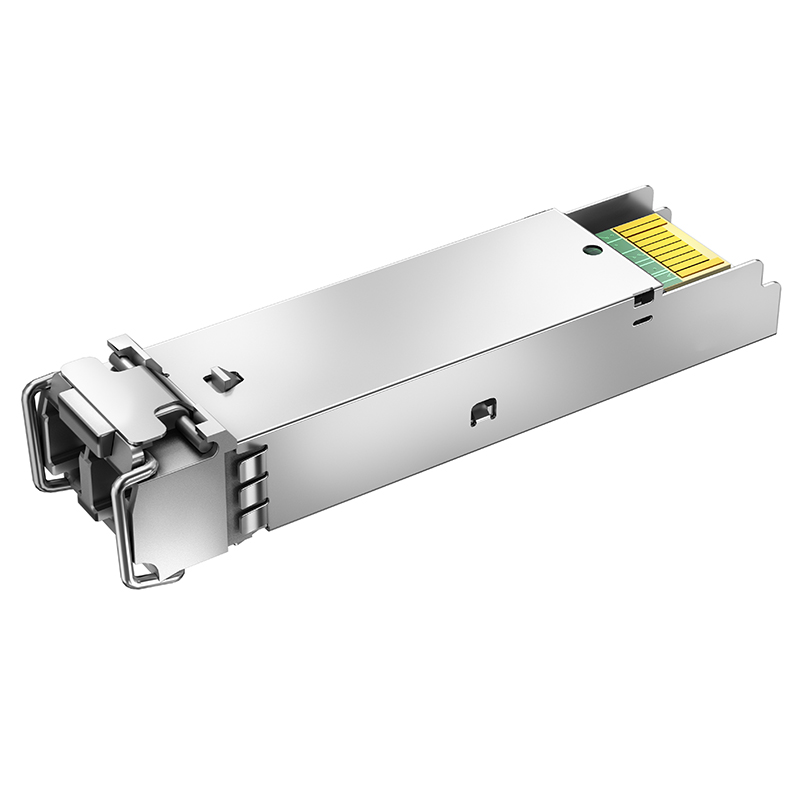

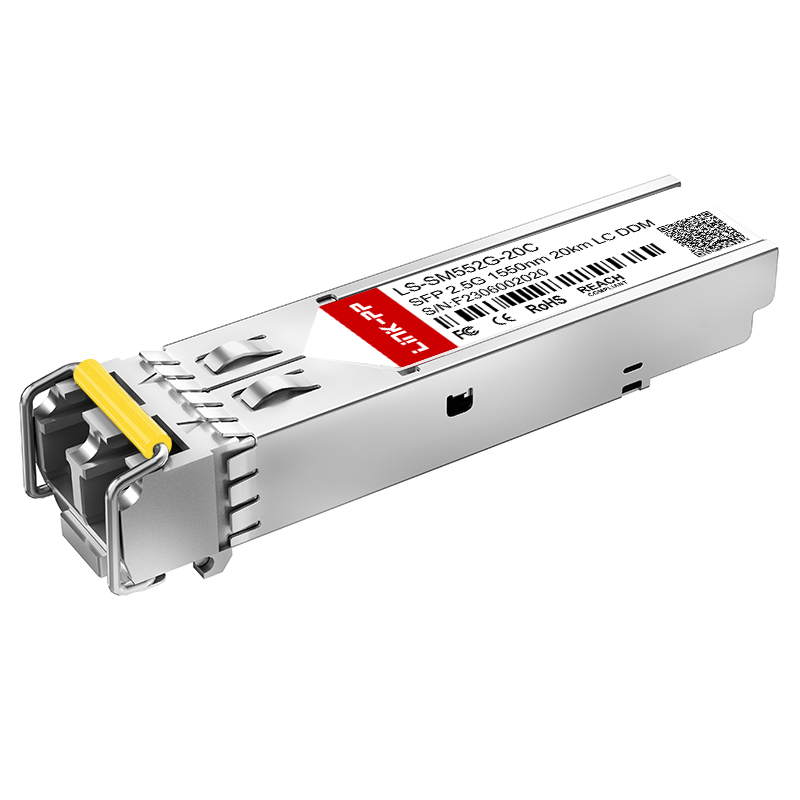

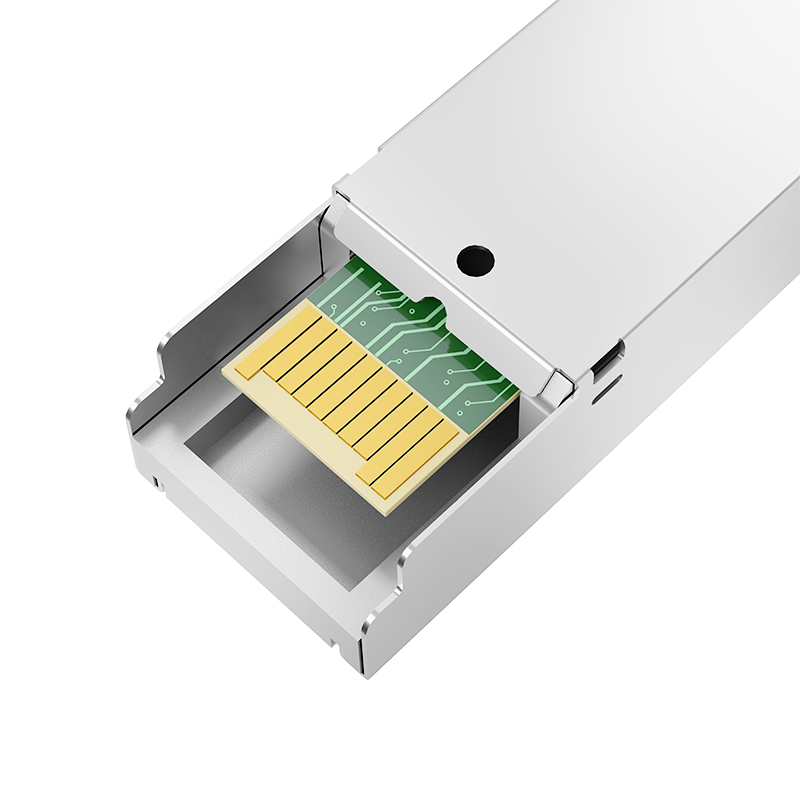

Single Mode 1550nm 2.5G SFP 20km SMF Dual LC Optic Transceiver Module
Part Number LS-SM552G-20C
Form Factor SFP
Max Data Rate 2.5Gbps
Wavelength 1550nm
Max Cable Distance 20km
Connector Duplex LC
Media SMF
Transmitter Type DFB
Receiver Type PIN
TX Power -6 ~ 1dBm
Receiver Sensitivity < -18dBm
EMC (Electro Magnetic Compatibility) Supported
DDM/DOM Supported
Protocols MSA Compliant
Temperature Range 0 to 70°C / -40 to 85°C
Warranty 5 Years
Sample Available
VIEW OUR SOLUTIONS
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. Provides a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Solutions Showcase
Support Full Range Of 2.5G SFP
Part Number Data Rate Wavelength Distance Media DDM
LS-MM852G-S3C 2.5Gbps 850nm 300m Multi-mode Yes
LS-MM852G-S5C 2.5Gbps 850nm 550m Multi-mode Yes
LS-SM312G-02C 2.5Gbps 1310nm 2km Single Mode Yes
LS-SM312G-10C 2.5Gbps 1310nm 10km Single Mode Yes
LS-SM312G-15C 2.5Gbps 1310nm 15km Single Mode Yes
LS-SM312G-20C 2.5Gbps 1310nm 20km Single Mode Yes
LS-SM552G-20C 2.5Gbps 1550nm 20km Single Mode Yes
LS-SM312G-40C 2.5Gbps 1310nm 40km Single Mode Yes
LS-SM552G-40C 2.5Gbps 1550nm 40km Single Mode Yes
LS-SM552G-80C 2.5Gbps 1550nm 80km Single Mode Yes
