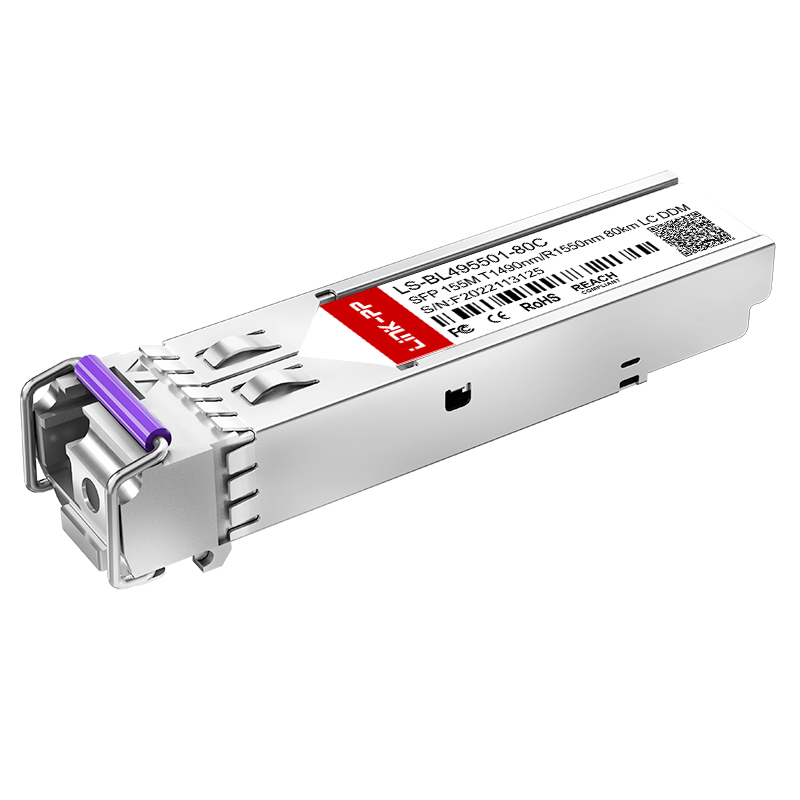

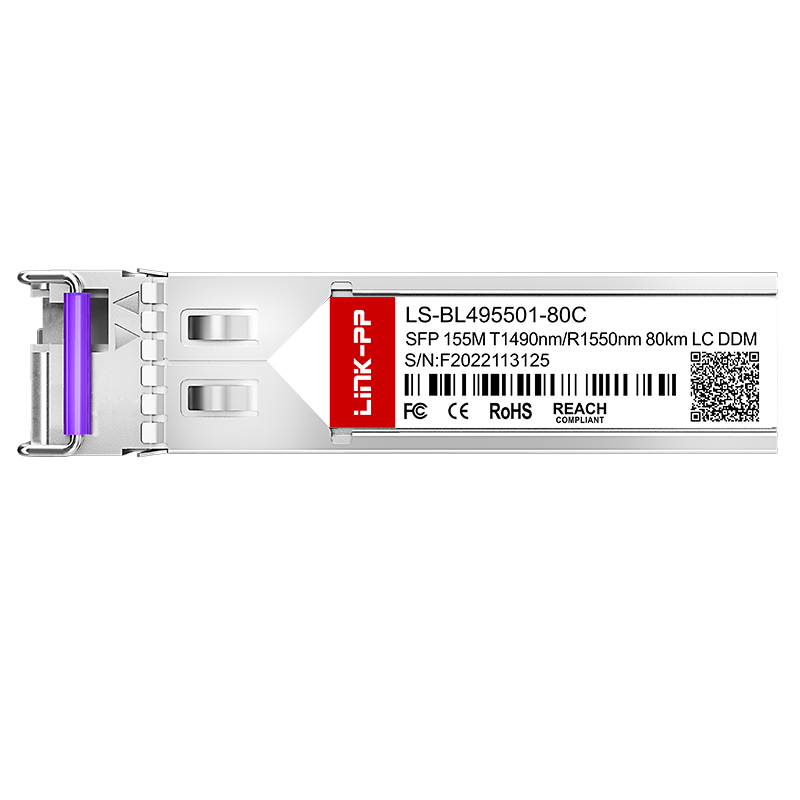

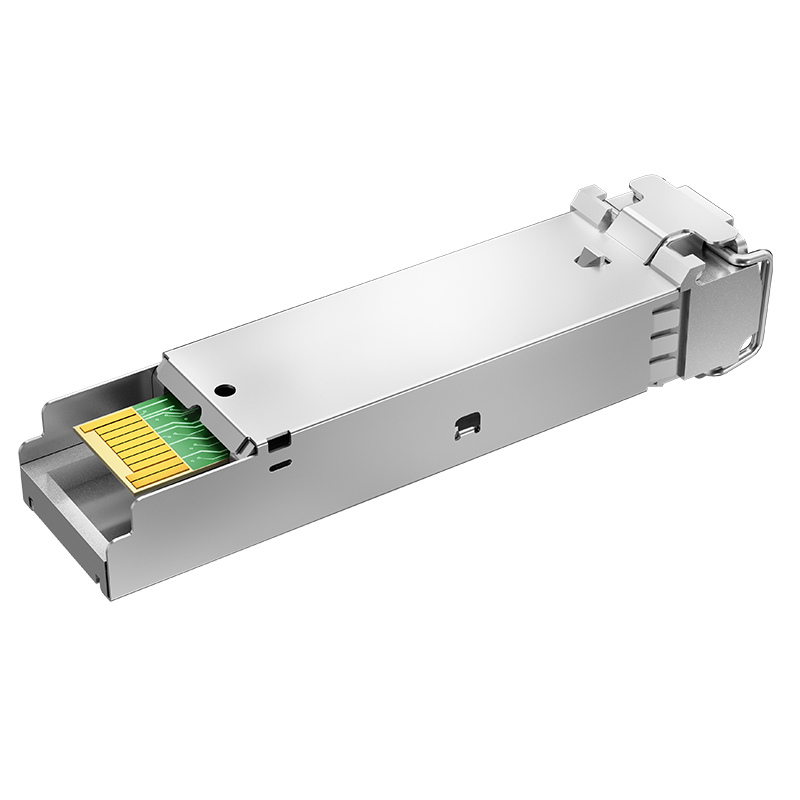

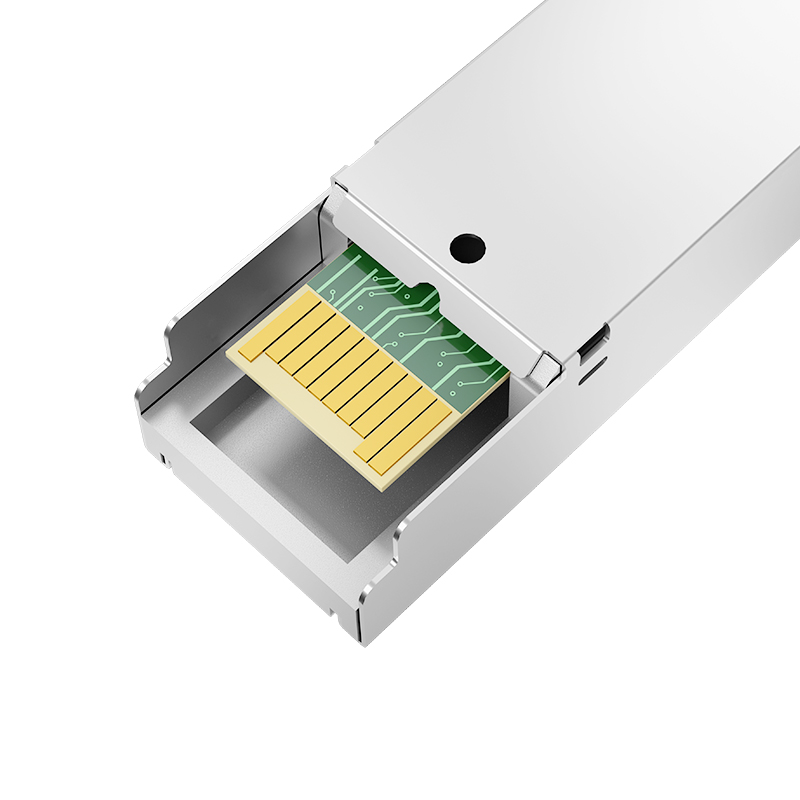

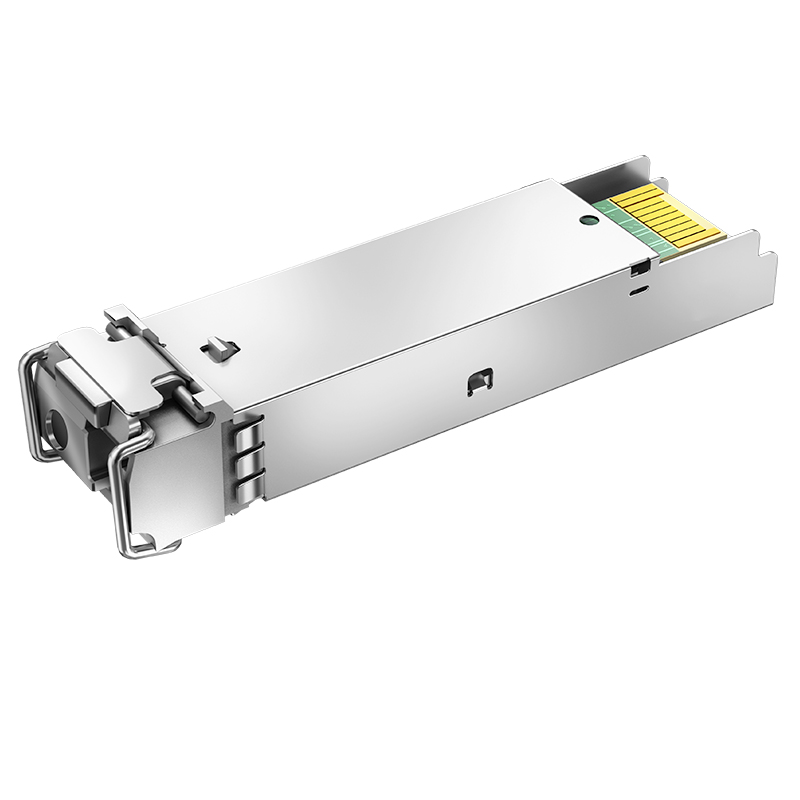

1490nm-TX/1550nm-RX Single Mode SFP Bidi 80km 155M LC Optical Transceiver Module
| Form Factor | SFP |
| Max Data Rate | 155Mbps |
| Wavelength | 1490nm-TX/1550nm-RX |
| Max Cable Distance | 80km |
| Connector | Simplex LC |
| Media | SMF |
| Transmitter Type | FP |
| Receiver Type | PIN |
| TX Power | -5 ~ 2dBm |
| Receiver Sensitivity | < -32dBm |
| EMC Supported | Yes |
| DDM/DOM | Supported |
| Protocols | SFP MSA and SFF-8472 |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
| Sample | Available |
Drawing on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
| Part Number | Data Rate | Wavelength | Distance | DDM |
|---|---|---|---|---|
| LS-BL315501-10C | 155Mbps | 1310nm-TX/1550nm-RX | 10km | Yes |
| LS-BL553101-10C | 155Mbps | 1550nm-TX/1310nm-RX | 10km | Yes |
| LS-BL315501-20C | 155Mbps | 1310nm-TX/1550nm-RX | 20km | Yes |
| LS-BL315501-40C | 155Mbps | 1310nm-TX/1550nm-RX | 40km | Yes |
| LS-BL495501-80C | 155Mbps | 1490nm-TX/1550nm-RX | 80km | Yes |
| LS-BL554901-80C | 155Mbps | 1550nm-TX/1490nm-RX | 80km | Yes |
Optical Transport Networks
End-to-end DWDM device including optical amplifier(EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR.
Cloud and Enterprise
High-speed optical interconnect solutions for data centers ranging from 10G to 800G.
Wireless (4G/5G)
Includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul solutions.
FTTx
FTTx optical fiber access total solutions covered from all-optical or optical copper combined access.
We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROSH, REACH, CE and UL. With advanced manufacturing and testing equipment, we produce approximately 3000K units per month. Our expertise includes a complete series of optical modules for fixed access, wireless access, carrier Ethernet, and cloud computing interconnection using the latest optoelectronic technologies.
