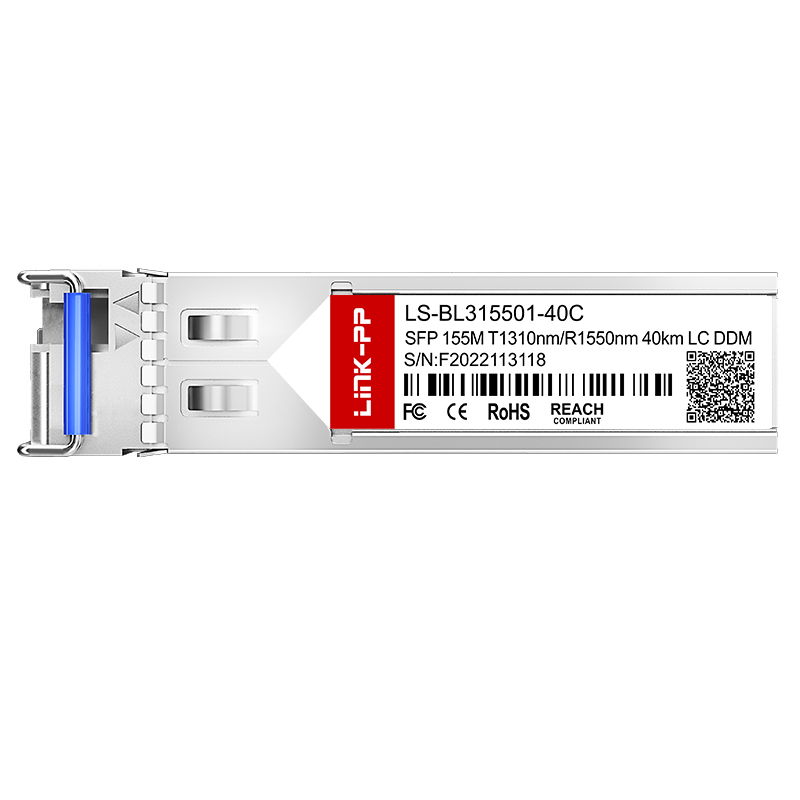

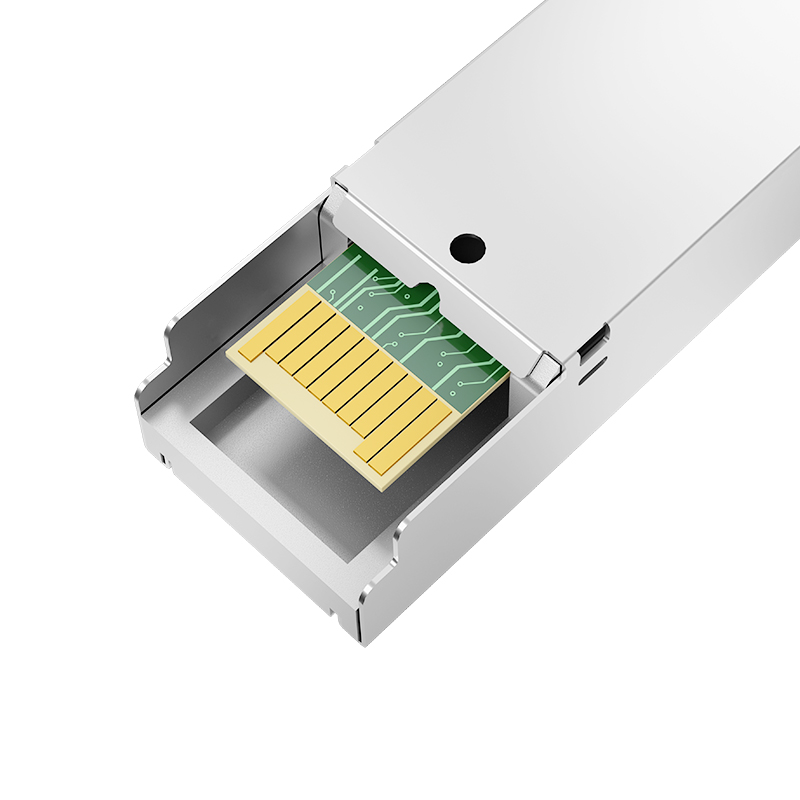

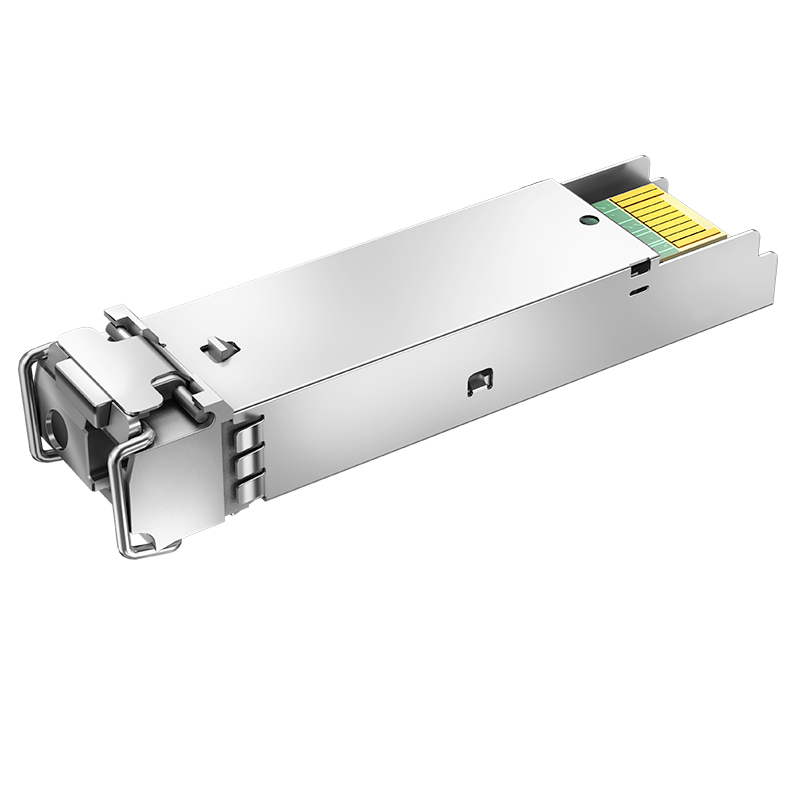

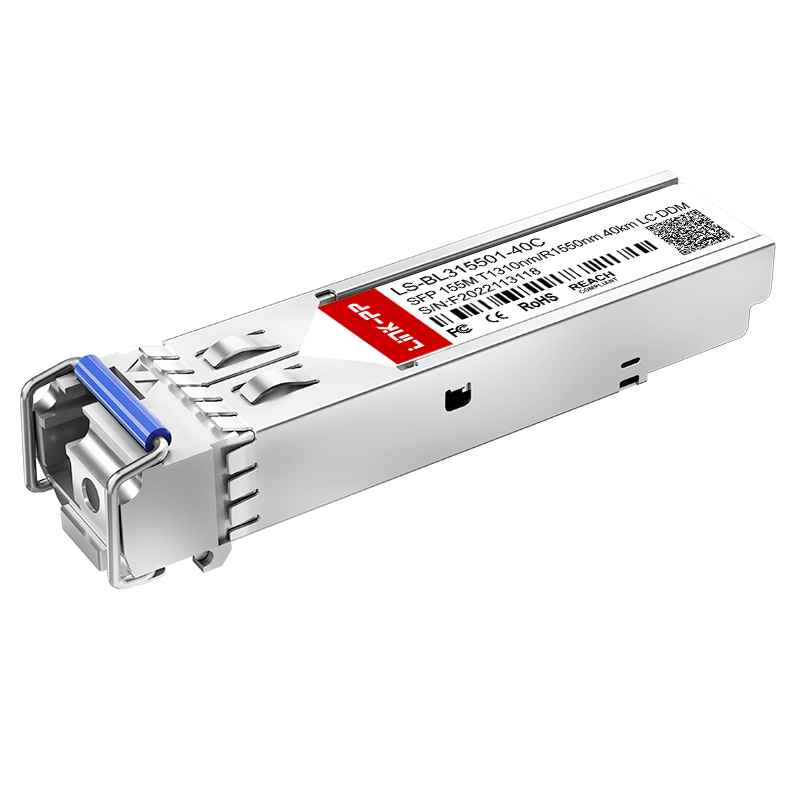

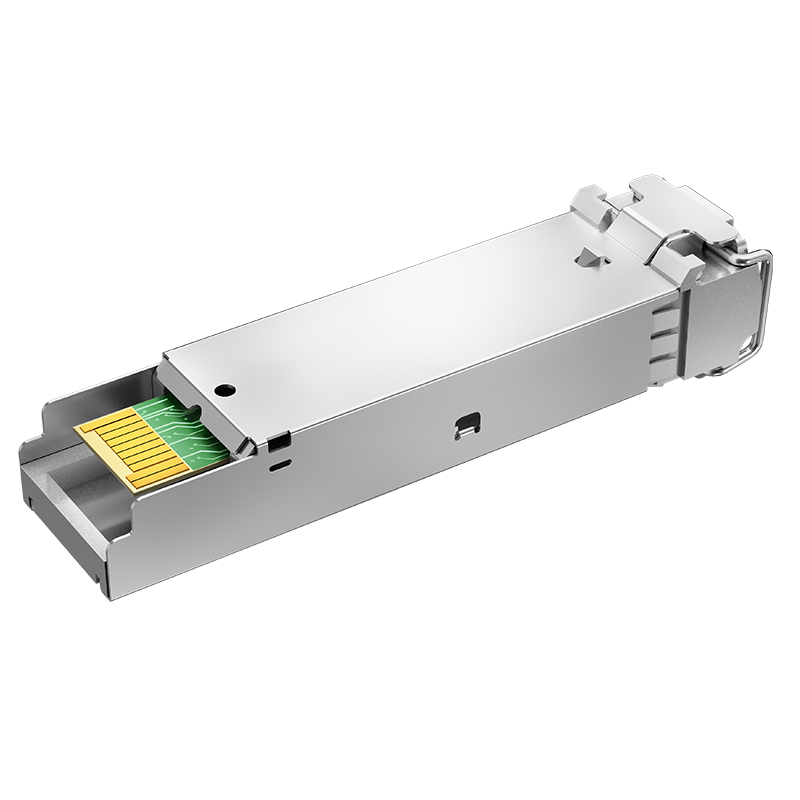

1310nm-TX/1550nm-RX Single Mode SFP 155M Bidi 40km DDM LC Optical Transceiver Module
| Part No. | LS-BL315501-40C |
| Form Factor | SFP |
| Max Data Rate | 155Mbps |
| Wavelength | 1310nm-TX/1550nm-RX |
| Max Cable Distance | 40km |
| Connector | Simplex LC |
| Media | SMF |
| Transmitter Type | FP |
| Receiver Type | PIN |
| TX Power | -8 ~ -1dBm |
| Receiver Sensitivity | < -32dBm |
| EMC Supported | Yes |
| DDM/DOM | Supported |
| Protocols | SFP MSA and SFF-8472 |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
VIEW OUR SOLUTIONS
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. Providing a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Support Full Range Of 155M BiDi SFP
| Part Number |
Data Rate |
Wavelength |
Distance |
Components |
DDM |
| LS-BL315501-10C | 155Mbps | 1310nm-TX/1550nm-RX | 10km | FP/PIN | Yes |
| LS-BL315501-15C | 155Mbps | 1310nm-TX/1550nm-RX | 15km | FP/PIN | Yes |
| LS-BL315501-20C | 155Mbps | 1310nm-TX/1550nm-RX | 20km | FP/PIN | Yes |
| LS-BL315501-40C | 155Mbps | 1310nm-TX/1550nm-RX | 40km | FP/PIN | Yes |
| LS-BL315501-80C | 155Mbps | 1310nm-TX/1550nm-RX | 80km | FP/PIN | Yes |
Application Scenarios
Optical Transport Networks
End-to-end DWDM device with almost all optical devices - from active modules to optical passive devices.
Cloud and Enterprise
High-speed optical modules ranging from 10G to 800G, providing high-quality interconnection for data centers.
Wireless
Solutions include Dark Fiber, WDM, Radio over Fiber, and Back-haul for 4G/5G systems.
Why Choose Us
Production Excellence
Specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROSH, REACH, CE and UL. With advanced manufacturing and testing equipment, we provide a complete series of optical modules for fixed access, wireless access, and cloud computing networks.
Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, lan transformers, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer free samples to test quality, though shipping fees apply.
What is your delivery time?
Items in stock are ready to ship; mass production typically takes 15-30 days.
What after-service do you offer?
We provide a one-year guarantee period and 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, we accept OEM/ODM orders. Please contact us for detailed discussions.
What are your main advantages?
We have 19 years of production experience and high-capacity manufacturing capabilities of 3000K per month.
