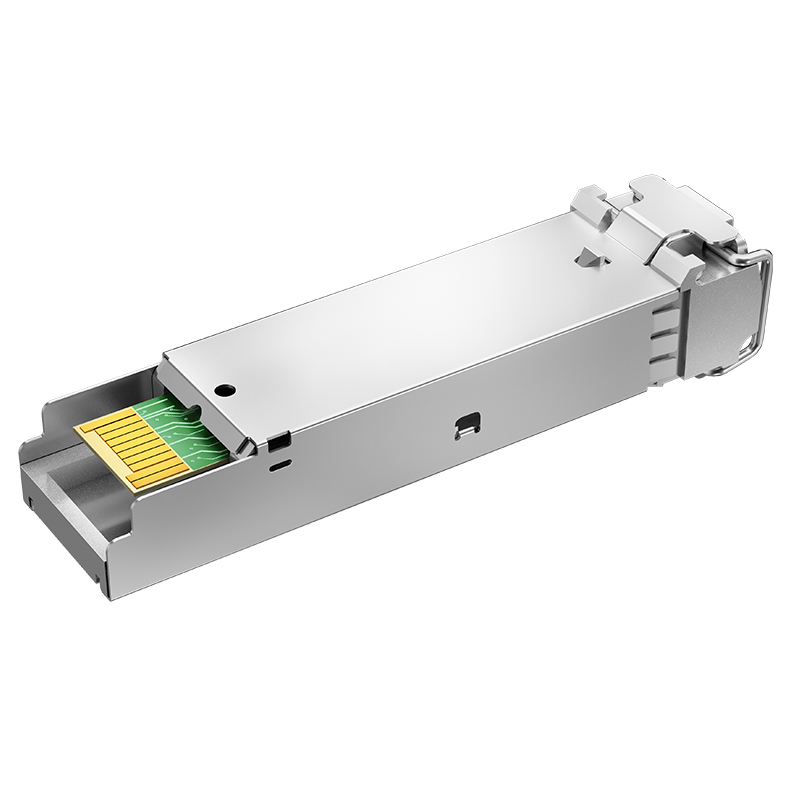

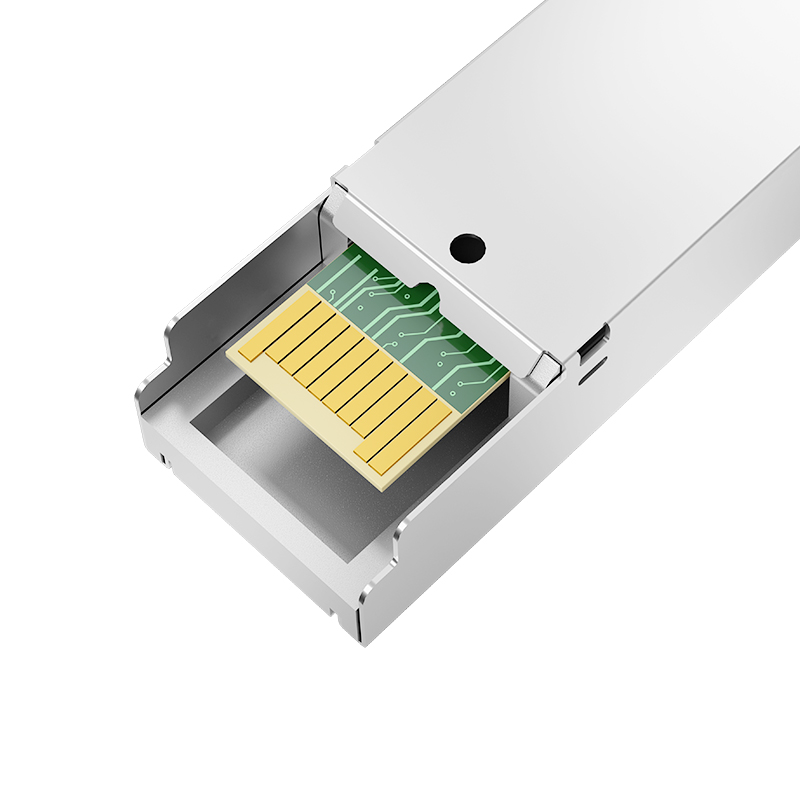

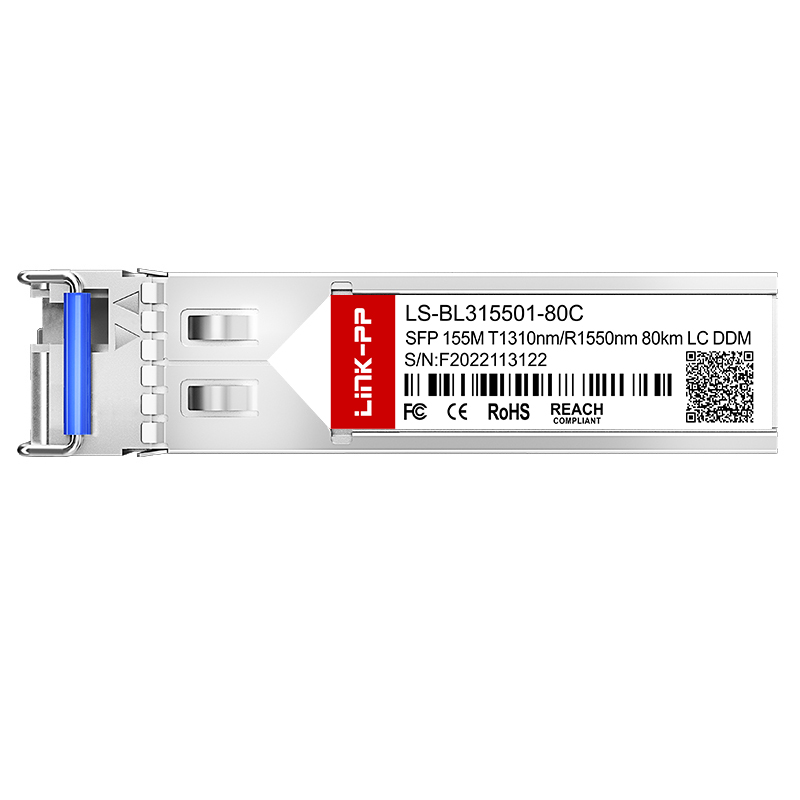

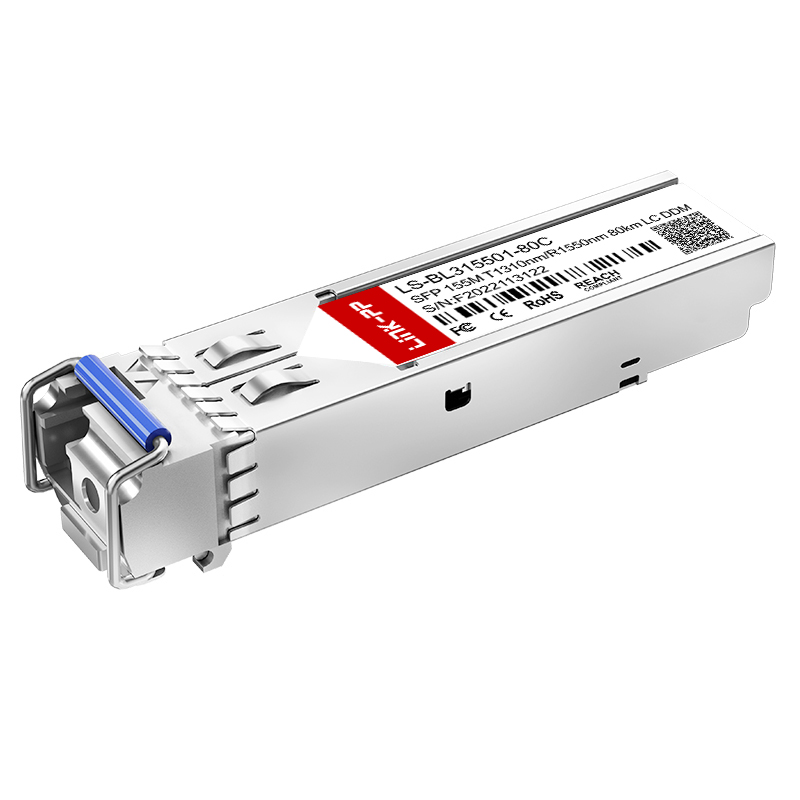

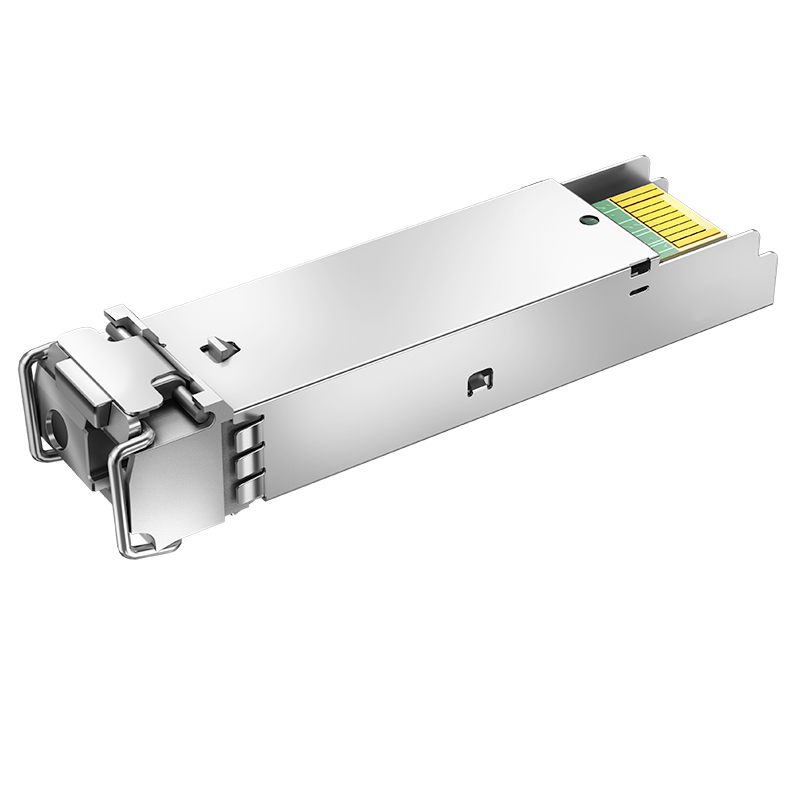

1310nm-TX/1550nm-RX Single Mode SFP 155M Bidi 80km LC Optical Transceiver Module
| Part No. | LS-BL315501-80C |
| Form Factor | SFP |
| Max Data Rate | 155Mbps |
| Wavelength | 1310nm-TX/1550nm-RX |
| Max Cable Distance | 80km |
| Connector | Simplex LC |
| Media | SMF |
| Transmitter Type | FP |
| Receiver Type | PIN |
| TX Power | -5 ~ 2dBm |
| Receiver Sensitivity | < -32dBm |
| EMC Supported | Yes |
| DDM/DOM | Supported |
| Protocols | SFP MSA and SFF-8472 |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
With over 10 years of experience in chips and modules, we integrate high speeds, compact sizes, and power-saving performance into every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, and WDM data communication networks.
Optical Transport Networks
We provide end-to-end DWDM devices including active modules and optical passive devices, such as optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, and OTDR.
Cloud and Enterprise
To meet high-speed data transmission needs in data centers, we offer a range of modules from 10G to 800G, ensuring high-quality interconnection solutions.
| Part Number | Data Rate | Wavelength | Distance | Components |
|---|---|---|---|---|
| LS-BL315501-10C | 155Mbps | 1310T/1550R | 10km | FP/PIN |
| LS-BL315501-15C | 155Mbps | 1310T/1550R | 15km | FP/PIN |
| LS-BL315501-20C | 155Mbps | 1310T/1550R | 20km | FP/PIN |
| LS-BL315501-40C | 155Mbps | 1310T/1550R | 40km | FP/PIN |
| LS-BL315501-80C | 155Mbps | 1310T/1550R | 80km | FP/PIN |
As a specialized manufacturer of magnetic telecom and network components, we are certified by ISO9001:2000, ROSH, REACH, CE, and UL. Our facility uses advanced manufacturing and testing equipment. We maintain a monthly production capacity of 3000K units, ensuring short lead times for worldwide delivery.
