We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. A full series of optical modules is available for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

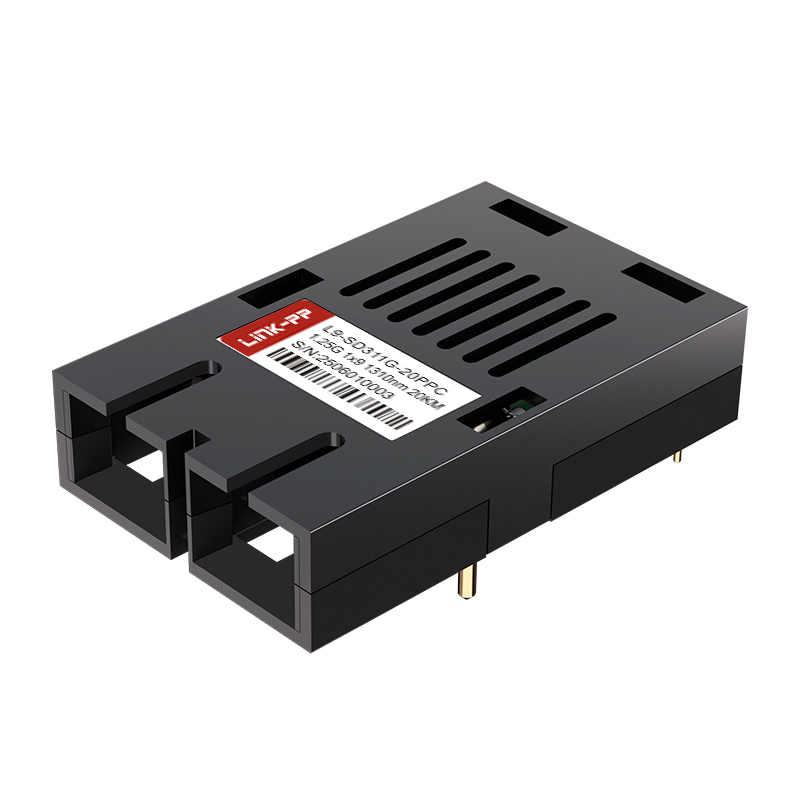

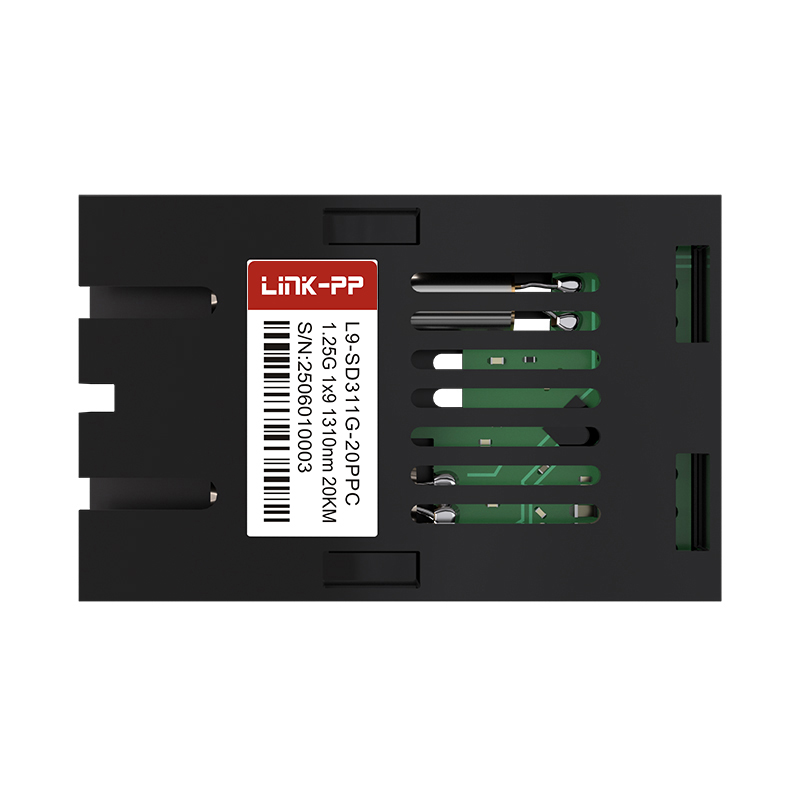

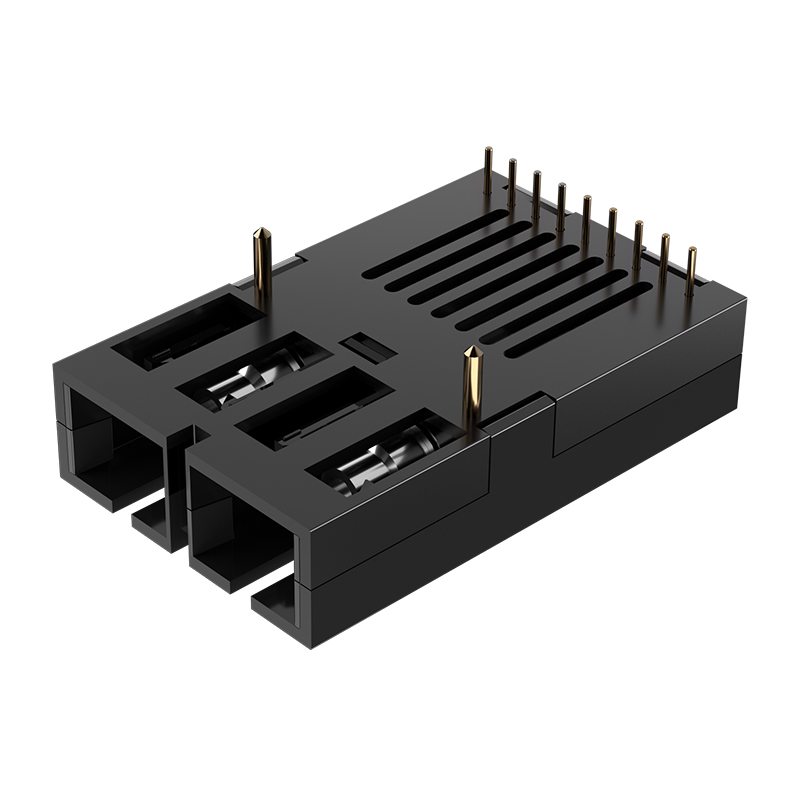

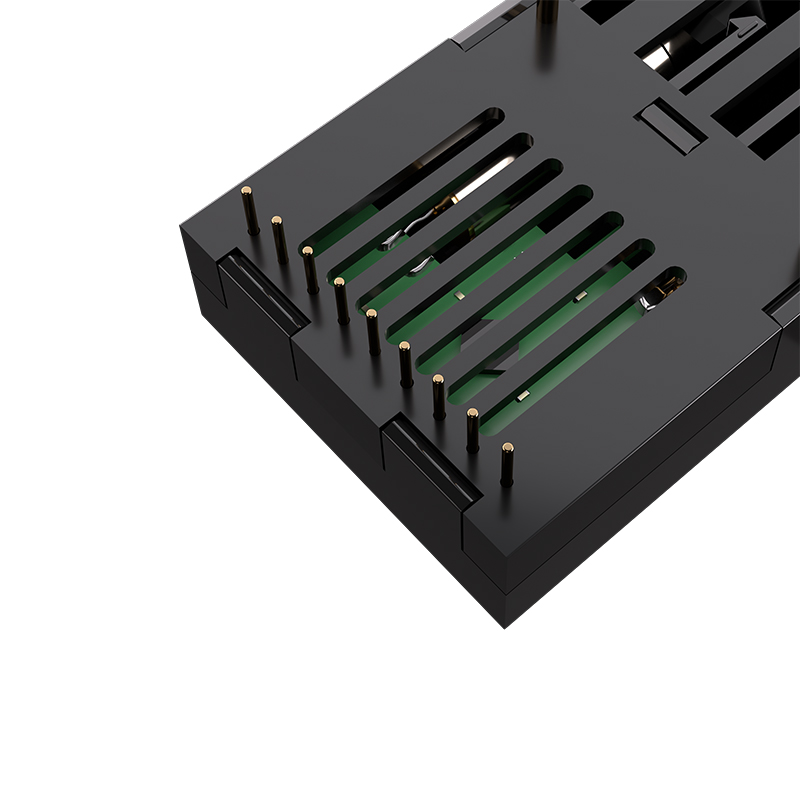

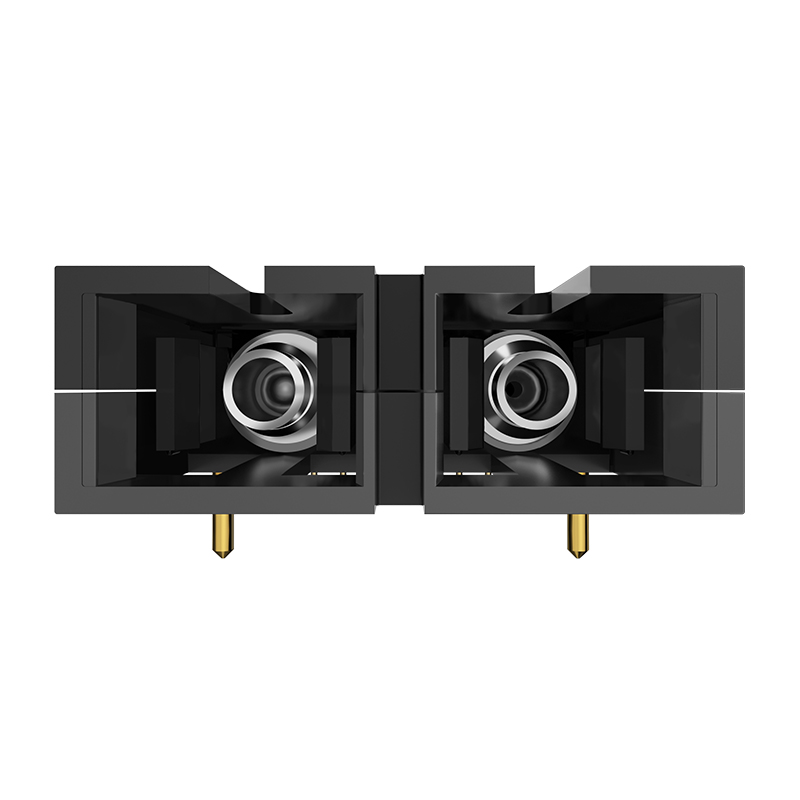

Single Mode 1.25G 1310nm Duplex SC 20km SMF 1x9 Optical Transceiver
| Form Factor | 1x9 |
|---|---|
| Max Data Rate | 1.25Gbps |
| Wavelength | 1310nm |
| Max Cable Distance | 20km |
| Connector | Duplex SC |
| Media | SMF |
| Transmitter Type | FP |
| Receiver Type | PIN |
| TX Power | -10 ~ -3dBm |
| Receiver Sensitivity | < -23dBm |
| Protocols | Multi-sourced 1×9 protocol |
| Temperature Range | 0 to 70°C |
| Warranty | 5 Years |
| Sample | Available |
| Model Number | Description |
|---|---|
| L9-SD312M-02TTC5 | 1x9 2Mbps, 1310nm(FP), 2km, MMF, Duplex SC, 0℃-70℃ |
| L9-SD312M-02TTI5 | 1x9 2Mbps, 1310nm(FP), 2km, MMF, Duplex SC, -40℃-85℃ |
| L9-SD312M-20TTC5 | 1x9 2Mbps, 1310nm(FP), 20km, SMF, Duplex SC, 0℃-70℃ |
| L9-SD312M-20TTI5 | 1x9 2Mbps, 1310nm(FP), 20km, SMF, Duplex SC, -40℃-85℃ |
| L9-SD851G-S5CTC | 1x9 1.25Gbps, 850nm(Vcsel), 500m, MMF, Duplex SC, 0℃-70℃ |
| L9-SD311G-S5CTC | 1x9 1.25Gbps, 1310nm(FP), 550m, MMF, Duplex SC, 0℃-70℃ |
| L9-SD311G-10CTC | 1x9 1.25Gbps, 1310nm(FP), 10km, SMF, Duplex SC, 0℃-70℃ |
| L9-SD311G-20CTC | 1x9 1.25Gbps, 1310nm(FP), 20km, SMF, Duplex SC, 0℃-70℃ |
| L9-SD311G-40CTC | 1x9 1.25Gbps, 1310nm(DFB), 40km, SMF, Duplex SC, 0℃-70℃ |
| L9-SD551G-80CTC | 1x9 1.25Gbps, 1550nm(DFB), 80km, SMF, Duplex SC, 0℃-70℃ |
As a specialized manufacturer of magnetic telecom and network components, we are certified by ISO9001, RoHS, REACH, CE, and UL. Our facilities utilize advanced manufacturing and testing equipment to ensure high reliability. We provide a complete series of optical modules for fixed access, wireless access, carrier Ethernet, and data communication networks, including high-speed interconnect solutions for cloud computing.
